LT 15 (954820221) - Jonsered Lawn Tractor (1996-01) SEAT Parts Diagram

Lawn Tractor

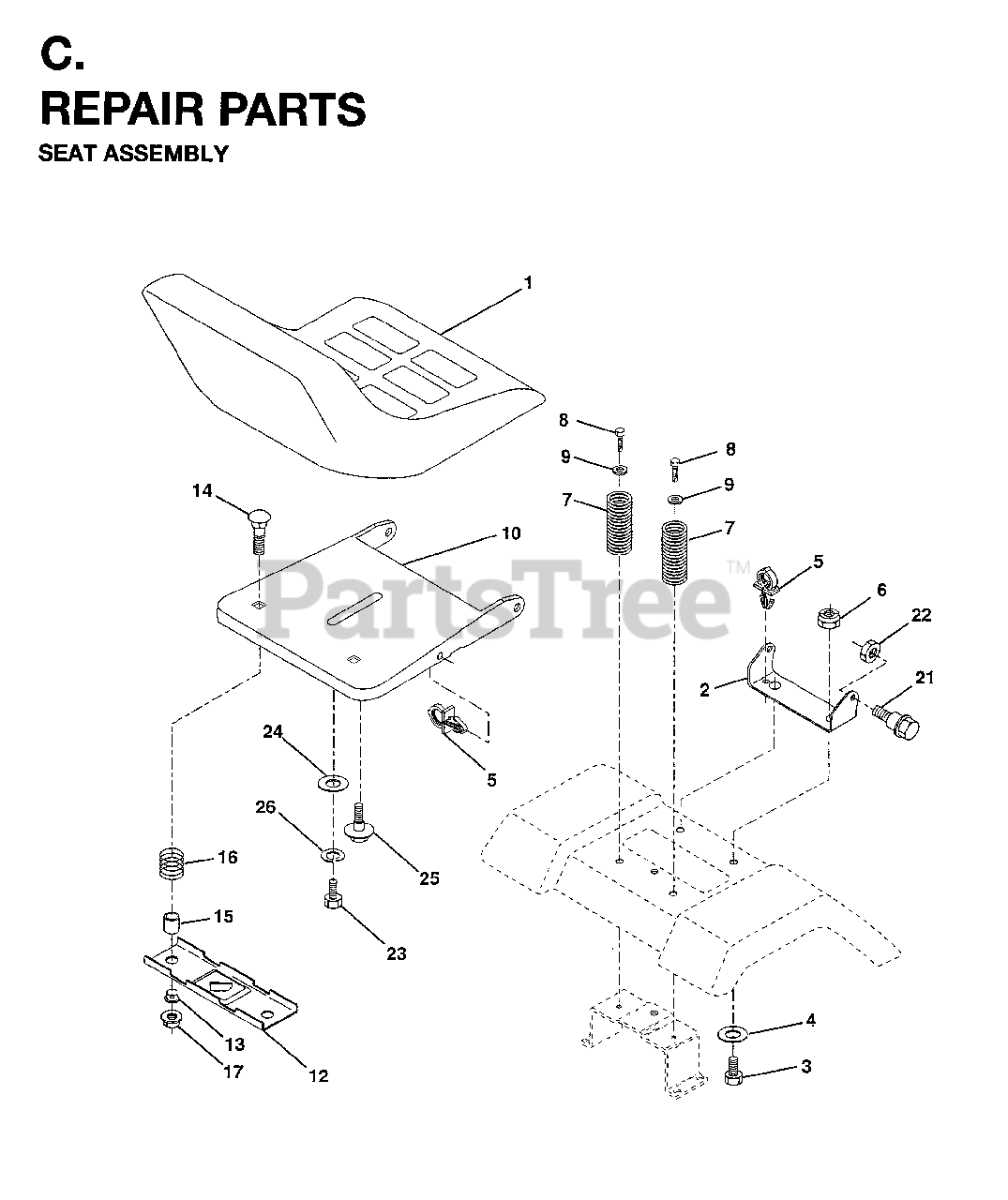

SEAT Parts Diagram

  • Title

1

Jonsered 532127440

SEAT
(Superseded to 532140121)

$

$

Not available

2

Jonsered 532140551

SEAT PIVOT BRKT

$6.49

$

Usually ships in 3-10 days

0

3

Jonsered 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

4

Jonsered 819131610

WASHER PM

$6.49

$

In Stock, Qty 7

0

5

Jonsered 532145006

PUSH CLIP

$6.49

$

In Stock, only 1 left!

0

6

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

7

Jonsered 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.49

$

In Stock, Qty 19

0

8

Jonsered 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

9

Jonsered 819131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

10

Jonsered 532140552

SEAT PAN
(Superseded to 532155925)

$21.99

$

Usually ships in 3-10 days

0

12

Jonsered 532121246

BRKT SWITCH
(Superseded to 532174648)

$8.99

$

In Stock, only 1 left!

0

13

Jonsered 532121248

BUSHING

$6.49

$

Usually ships in 3-10 days

0

14

Jonsered 872050411

BOLT CARRIAGE 1/4-20X1 3/8

$

$

Not available

15

Jonsered 532121249

SPACER SPLIT

$6.49

$

In Stock, Qty 5

0

16

Jonsered 532123740

SPRING COMPRESSED

$6.49

$

Usually ships in 3-10 days

0

17

Jonsered 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

21

Jonsered 532139888

BOLT

$6.49

$

In Stock, Qty 9

0

22

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

23

Jonsered 874780814

BOLT
(Superseded to 871110814)

$6.49

$

Usually ships in 3-10 days

0

24

Jonsered 819171912

WASHER

$7.49

$

In Stock, only 2 left!

0

25

Jonsered 532127018

BOLT,SHOULD

$7.49

$

Usually ships in 3-10 days

0

26

Jonsered 810040800

LOCKWASHER

$6.49

$

Usually ships in 3-10 days

0
