LT-1500 (13A2606G190) - White Outdoor 42" Lawn Tractor (2003)

42" Lawn Tractor

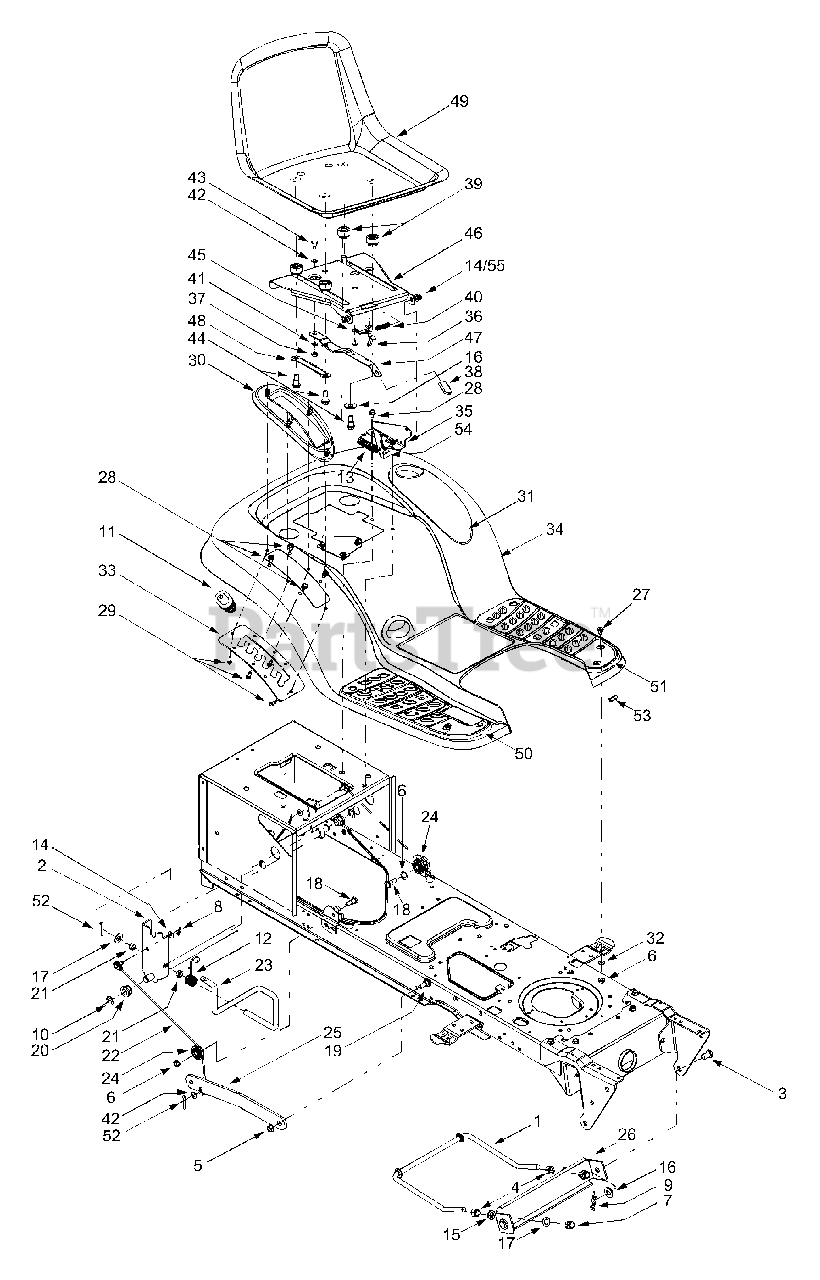

LT-1500 (13A2606G190) - White Outdoor 42" Lawn Tractor (2003) > Parts Diagrams (14) > Fender, Seat, Deck Stabilizer

  • Title
747-1130B

1

Deck Stabilizer Rod

Part# 747-1130B

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $29.29

683-0197B

2

Lift Shaft Assembly

Part# 683-0197B

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

SHAFT-LIFT ASSY

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $48.61

711-0332

3

Clevis Pin, .5 x .78

Part# 711-0332 (Superseded to 911-0332)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $11.88

712-0206

4

Hex Nut, 1/2-13

Part# 712-0206 (Superseded to 912-0206)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.11

712-0431

5

Flange Lock Nut, 3/8-16

Part# 712-0431 (Superseded to 912-0431)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.45

712-3004A

6

Flange Lock Nut, 5/16-18

Part# 712-3004A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

712-3083

7

Hex Nut, 1/2-13

Part# 712-3083

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.21

714-0104

8

Internal Cotter Pin

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

714-0145

9

Internal Cotter Pin

Part# 714-0145 (Superseded to 914-0145)

OEM Warranty Repair Part for White Outdoor

Not available

716-0106

10

E-ring

Part# 716-0106

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.82

720-0311

11

Handle Grip

Part# 720-0311

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $10.63

732-0874

12

Torsion Spring

Part# 732-0874

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.23

732-1027

13

Extension Spring, .872 x 3.4

Part# 732-1027

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.92

736-0275

14

Flat Washer, 5/16

Part# 736-0275 (Superseded to 936-0275)

OEM Warranty Repair Part for White Outdoor

Not available

736-0921

15

Lock Washer, 1/2

Part# 736-0921 (Superseded to 936-0921)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.11

736-3019

16

Flat Washer, .31 x 1.062 x .134

Part# 736-3019

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.33

736-3084

17

Flat Washer, .51 x 1.12 x .06

Part# 736-3084

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.49

738-0138A

18

Hex Cap Screw, 5/16-18 x .62

Part# 738-0138A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.66

738-0143

19

Shoulder Screw, 3/8-16

Part# 738-0143

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.12

741-0225

20

Hex Flange Bearing

Part# 741-0225 (Superseded to 941-0225)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.20

741-0715

21

Snap Flange Bearing

Part# 741-0715 (Superseded to 941-0715)

OEM Warranty Repair Part for White Outdoor

Not available

746-0968

22

Lift Cable, 16.16

Part# 746-0968

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $14.37

747-1111A

23

Lift Handle

Part# 747-1111A

OEM Warranty Repair Part for White Outdoor

Not available

756-1154

24

Roller Pulley

Part# 756-1154

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.31

783-0678A

25

Arm Lift

Part# 783-0678A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $20.94

Variations

POWDER BLACK (0637)

Lift Deck Link

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $20.94

WINE RED (4008)

LINK-LIFT DECK

Part# WINE RED (4008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $20.94

783-0720A

26

Deck Stabilizer Bracket

Part# 783-0720A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Deck Adjustment Bracket, Front

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $33.48

WINE RED (4008)

BRACKET-ADJ:FRT DE

Part# WINE RED (4008)

OEM Warranty Repair Part for White Outdoor

Not available

710-0260A

27

Carriage Bolt, 5/16 x .62

Part# 710-0260A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.98

710-0604A

28

Self-tapping Screw, 5/16-18 x .625

Part# 710-0604A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

710-0895

29

Self-tapping Screw, 1/4-15 x .75

Part# 710-0895

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.63

731-1990

30

Lift Lever Cover

Part# 731-1990 (Superseded to 731-06795)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $17.15

731-1993

31

C over w/ Cup Holder

Part# 731-1993 (Superseded to 731-1993A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $20.66

736-3078

32

Flat Washer, .349 x 1.0 x .063

Part# 736-3078

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.14

783-0677

33

Lift Adjustment Bracket

Part# 783-0677

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET:LIFT:ADJ

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $19.52

783-1279

34

Fender

Part# 783-1279

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $293.39

Variations

OLD CUB YELLOW (0498)

FENDER 4 STYLE

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for White Outdoor

Not available

MAJESTIC ORANGE (0606)

FENDER 4 STYLE

Part# MAJESTIC ORANGE (0606)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

FENDER 4 STYLE

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

RED METALLIC (0650)

FENDER 4 STYLE

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

FENDER 4 STYLE

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

BLACK JACK (0691)

FENDER 4 STYLE

Part# BLACK JACK (0691)

OEM Warranty Repair Part for White Outdoor

Not available

MASTERCRAFT GREEN (0709)

FENDER 4 STYLE

Part# MASTERCRAFT GREEN (0709)

OEM Warranty Repair Part for White Outdoor

Not available

CUB YELLOW-99 (0716)

FENDER 4 STYLE

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for White Outdoor

Not available

SPARKLING GRAY (0732)

FENDER 4 STYLE

Part# SPARKLING GRAY (0732)

OEM Warranty Repair Part for White Outdoor

Not available

783-1489

35

Seat Mounting Bracket

Part# 783-1489

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Seat Mounting Bracket

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $16.58

710-1268

36

Screw, #10-16 x .375

Part# 710-1268

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

712-3027

37

Hex Flange Lock Nut, 1/4-20

Part# 712-3027 (Superseded to 912-3027)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.05

720-0309A

38

Seat Adjuster Grip

Part# 720-0309A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.60

731-04074

39

Spacer

Part# 731-04074

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.48

732-0499

40

Compression Spring, .41 x 1.5

Part# 732-0499

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.61

736-0175

41

Spring Washer, .265 x .562 x .025

Part# 736-0175 (Superseded to 936-0175)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.79

736-0204

42

Flat Washer, .344 x .62 x .03

Part# 736-0204

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.08

738-0137A

43

Shoulder Screw, .340 x .285,1/4-20

Part# 738-0137A (Superseded to 938-0137A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.79

738-0966

44

Shoulder Screw, .50 x .925, 3/8-16

Part# 738-0966 (Superseded to 738-0966A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.27

783-0611

45

Seat Stop

Part# 783-0611

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.32

783-0738

46

Seat Pivot Bracket

Part# 783-0738

OEM Warranty Repair Part for White Outdoor

Variations

MTD/TROY-BILT RED (0638)

Seat Pivot Bracket

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

RED METALLIC (0650)

BRACKET-PIVOT:SEAT

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

BRACKET-PIVOT:SEAT

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

BLACK JACK (0691)

Seat Pivot Bracket

Part# BLACK JACK (0691)

OEM Warranty Repair Part for White Outdoor

Not available

CUB YELLOW-99 (0716)

Seat Pivot Bracket

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for White Outdoor

Not available

783-0739

47

Seat Adjustment Lever

Part# 783-0739

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $20.90

Variations

MTD/TROY-BILT RED (0638)

Seat Adjust Lever

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $20.90

YARDMAN GREEN (0665)

Seat Adjust Lever

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $20.90

BLACK JACK (0691)

Seat Adjust Lever

Part# BLACK JACK (0691)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $20.90

CUB YELLOW-99 (0716)

Seat Adjust Lever

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $20.90

783-0753

48

Seat Adjustment Selector

Part# 783-0753

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $11.10

757-04014

49

Medium Back Seat, Black

Part# 757-04014 (Superseded to 957-04037)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $169.16

735-0656

50

RH Foot Pad

Part# 735-0656

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $20.42

735-0657

51

LH Foot Pad

Part# 735-0657

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $21.24

726-3046

Foot Pad Clips

Part# 726-3046

Note: (Not Shown)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.95

714-0111

52

Cotter Pin

Part# 714-0111 (Superseded to 914-0111)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.36

731-0511

53

Trim Strip

Part# 731-0511

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.84

783-0209

54

Seat Lift Bracket

Part# 783-0209 (Superseded to 783-0209D)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $11.39

726-0201

55

Speed Clip

Part# 726-0201

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81
