LT 151 (960110001-00) - Husqvarna Lawn Tractor (2005-01) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

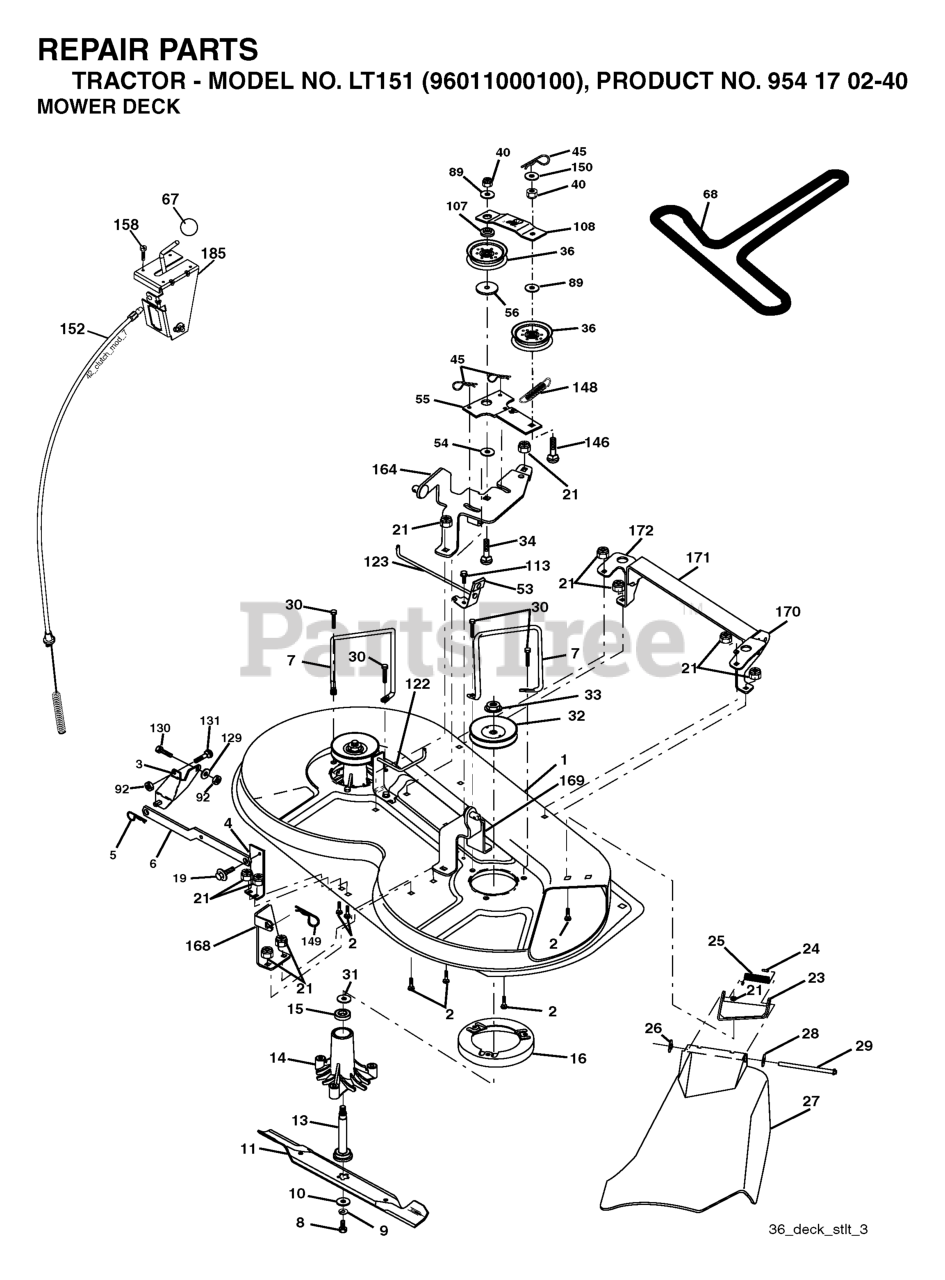

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

7

Husqvarna 532140608

KEEPER LH

$27.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532140296

WASHER.BLADE

$6.49

$

In Stock, only 3 left!

0

36

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 20+

0

34

Husqvarna 872110614

BOLT

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$26.99

$

In Stock, Qty 20+

0

89

Husqvarna 819131311

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

1

Husqvarna 532174595

NEEDS DESCRIPTION

$

$

Not available

- -

Husqvarna 532130794

KIT.MANDREL.ASM.3.BOLT

$44.99

$

In Stock, Qty 20+

0

3

Husqvarna 532138017

BRKT ASM SWAY BAR

$12.99

$

In Stock, Qty 6

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

108

Husqvarna 532133503

STIFFENER.IDLER.ARM

$6.49

$

Usually ships in 3-10 days

0

107

Husqvarna 532133502

SPACER.IDLER.ARM

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 532176162

CONSOLE.STLT.5SP.BLK

$8.99

$

Usually ships in 3-10 days

0

172

Husqvarna 532172355

NEEDS DESCRIPTION

$

$

Not available

67

Husqvarna 532106932

KNOB T (3/8 HOLE)

$6.49

$

In Stock, Qty 8

0

55

Husqvarna 532133840

IDLER ARM

$

$

Not available

148

Husqvarna 532169022

IDLER RETURN SPRING

$4.99

$

In Stock, Qty 17

0

168

Husqvarna 532172377

NEEDS DESCRIPTION

$

$

Not available

171

Husqvarna 532165237

BRACE.SUPT.SUSP.FRT.CRD
(Superseded to 583259301)

$12.99

$

Usually ships in 3-10 days

0

2

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

40

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

169

Husqvarna 532174977

NEEDS DESCRIPTION

$

$

Not available

158

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 18

0

29

Husqvarna 532121980

HINGE ROD
(Superseded to 583383801)

$

$

Not available

149

Husqvarna 532165898

SPRING.RETAINER.YELLOW.ZINC

$7.49

$

In Stock, only 2 left!

0

113

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

123

Husqvarna 532174504

NEEDS DESCRIPTION

$

$

Not available

25

Husqvarna 532123713

SPRING TORSION

$5.99

$

In Stock, Qty 7

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

131

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$3.99

$

In Stock, Qty 9

0

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

122

Husqvarna 532174505

NEEDS DESCRIPTION

$

$

Not available

129

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

92

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532153531

PULLEY, MANDREL
(Superseded to 532173434)

$18.99

$

In Stock, Qty 20+

0

14

Husqvarna 532128774

HOUSING.MANDREL.VENTED (MACHD)

$31.99

$

In Stock, Qty 9

0

146

Husqvarna 532165891

BOLT, CARRIAGE IDLER
(Superseded to 532173443)

$7.49

$

In Stock, Qty 16

0

53

Husqvarna 532130840

BRAKE ASSEMBLY

$12.99

$

Usually ships in 3-10 days

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532174493

STRIPPER.MANDREL.ROUND.BLACK

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 810030600

LOCKWASHER
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

68

Husqvarna 532180213

V-BELT.MOWER.

$78.99

$

In Stock, only 1 left!

0

19

Husqvarna 532132827

BOLT SHD 5/16-18

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532136631

BRACKET ASM DEFLECTOR

$11.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 532181376

NEEDS DESCRIPTION

$

$

Not available

33

Husqvarna 532178342

NUT, FLG TOPLOCK 9/16"
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

6

Husqvarna 532178024

BAR SWAY DECK

$8.99

$

In Stock, Qty 5

0

56

Husqvarna 532165723

SPACER.RETAINER.MOWER

$6.49

$

In Stock, Qty 8

0

54

Husqvarna 532178515

WASHER

$6.49

$

In Stock, Qty 20+

0

164

Husqvarna 532174976

NEEDS DESCRIPTION

$

$

Not available

11

Husqvarna 532138496

BLADE, HI-LIFT 36" PREMIUM

$24.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532110485

BEARING

$10.99

$

In Stock, Qty 20+

0

130

Husqvarna 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

150

Husqvarna 819091210

WASHER LT

$6.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532850857

BLADE BOLT

$3.99

$

In Stock, Qty 9

0

152

Husqvarna 532176079

NEEDS DESCRIPTION

$

$

Not available

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

4

Husqvarna 532175654

NEEDS DESCRIPTION

$

$

Not available

28

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga SD

$3.99

$

Usually ships in 3-10 days

0

185

Husqvarna 532188234

HEAD ASM. CABLE CLUTCH

$53.99

$

In Stock, only 1 left!

0

170

Husqvarna 532172359

NEEDS DESCRIPTION

$

$

Not available
