LT 154 (960410240-00) - Husqvarna Lawn Tractor (2011-09) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

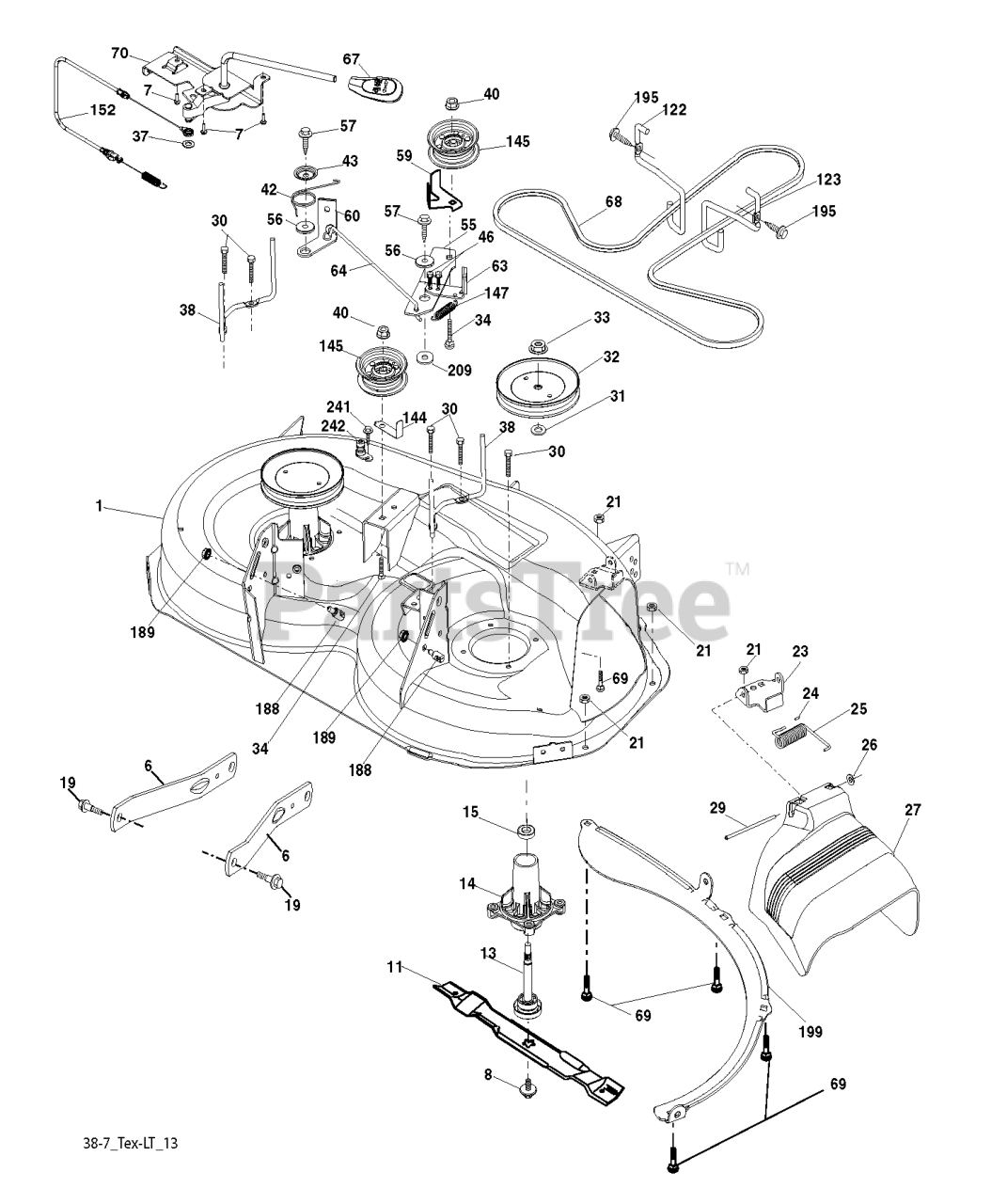

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 532444163

DECK.WELD.38.NGW.TX.W/HOL.GREY
(Superseded to 583498001)

$284.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532195186

ARM.SUSPENSION.MOWER.R
(Superseded to 529846401)

$21.99

$

In Stock, Qty 20+

0

7

Husqvarna 532416358

SCREW.#10 X 0.750.BOS
(Superseded to 596321701)

$3.99

$

In Stock, Qty 13

0

8

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$9.49

$

In Stock, Qty 20+

0

11

Husqvarna 532193957

BLADE 38" PREMIUM
(Superseded to 581116302)

$21.99

$

In Stock, Qty 20+

0

13

Husqvarna 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$71.99

$

In Stock, Qty 20+

0

14

Husqvarna 532187281

RP.HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$71.99

$

In Stock, Qty 20+

0

15

Husqvarna 532110485

BEARING

$17.99

$

In Stock, Qty 20+

0

19

Husqvarna 532196539

BOLT.SHOULDER

$1.49

$

In Stock, Qty 20+

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

23

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$9.99

$

In Stock, Qty 20+

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 532197026

SPRING.TORSION.DEFLECT

$11.99

$

In Stock, Qty 20+

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 532401472

SHIELD.DEFLECTOR.MWR.38-7/97CM

$53.99

$

In Stock, Qty 5

0

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$7.49

$

In Stock, Qty 20+

0

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$5.99

$

In Stock, Qty 20+

0

32

Husqvarna 532199789

PULLEY.MANDREL.5.0.PD.38"
(Superseded to 532199791)

$28.99

$

In Stock, Qty 18

0

33

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$2.49

$

In Stock, Qty 20+

0

34

Husqvarna 872110612

BOLT.3/8-16X1.50
(Superseded to 596136101)

$3.99

$

In Stock, Qty 10

0

37

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 532199541

KEEPER BELT LH MANDREL
(Superseded to 532400140)

$53.99

$

Usually ships in 3-10 days

0

40

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

42

Husqvarna 532198410

SPRING.TORSION.BRAKE

$5.99

$

In Stock, Qty 20+

0

43

Husqvarna 532197256

SRPING.TORSION.RETAINE

$5.99

$

In Stock, Qty 17

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$2.49

$

In Stock, Qty 20+

0

55

Husqvarna 532197249

IDLER.ARM
(Superseded to 531169401)

$7.49

$

In Stock, Qty 20+

0

56

Husqvarna 532199092

SPACER.RETAINER

$8.49

$

In Stock, Qty 20+

0

57

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

59

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$5.99

$

In Stock, Qty 20+

0

60

Husqvarna 532199471

ARM BRAKE MOWER RH 38"
(Superseded to 532400132)

$17.99

$

In Stock, Qty 20+

0

63

Husqvarna 532199470

RP ARM.BRAKE.MOWER.38"LH.TEX
(Superseded to 532400130)

$23.99

$

In Stock, Qty 11

0

64

Husqvarna 532199790

LINK BRAKE
(Superseded to 532199918)

$14.99

$

In Stock, Qty 20+

0

67

Husqvarna 532403012

HANDLE.CLUTCH.CABLE.LT

$8.49

$

In Stock, Qty 12

0

68

Husqvarna 532408381

V-BELT

$45.99

$

In Stock, only 4 left!

0

69

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

70

Husqvarna 532401246

CLUTCH.ASM.MANUAL.LT.PRED

$43.99

$

In Stock, Qty 5

0

122

Husqvarna 532197258

KEEPER BELT ENGINE LH
(Superseded to 531169501)

$7.49

$

In Stock, Qty 20+

0

123

Husqvarna 532197259

KEEPER BELT RH
(Superseded to 531169701)

$8.49

$

In Stock, Qty 20+

0

144

Husqvarna 532193414

KEEPER BELT
(Superseded to 531148901)

$4.99

$

In Stock, only 2 left!

0

145

Husqvarna 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$33.99

$

In Stock, Qty 20+

0

147

Husqvarna 532401872

SPRING RETURN

$5.99

$

In Stock, Qty 20+

0

152

Husqvarna 532435111

CABLE.CLUTCH.MANUAL.

$37.99

$

In Stock, Qty 20+

0

188

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE
(Superseded to 593824001)

$4.99

$

In Stock, Qty 9

0

189

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

195

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

199

Husqvarna 532400095

BAFFLE.VORTEX.FRONT.38"
(Superseded to 531170401)

$23.99

$

In Stock, Qty 10

0

209

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, only 2 left!

0

241

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$3.99

$

In Stock, Qty 19

0

242

Husqvarna 532415598

PORT.WASHOUT

$8.49

$

In Stock, Qty 20+

0

--

Husqvarna 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

Note: Mandrel Assembly (Includes housing shaft and shaft hardware only pulley not included)

$71.99

$

In Stock, Qty 20+

0

--

Husqvarna 532443359

$

$

Not available
