LT-155 (136D696G190) - White Outdoor 42" Lawn Tractor (1996) Battery, Seat And Upper Frame Parts Diagram

42" Lawn Tractor

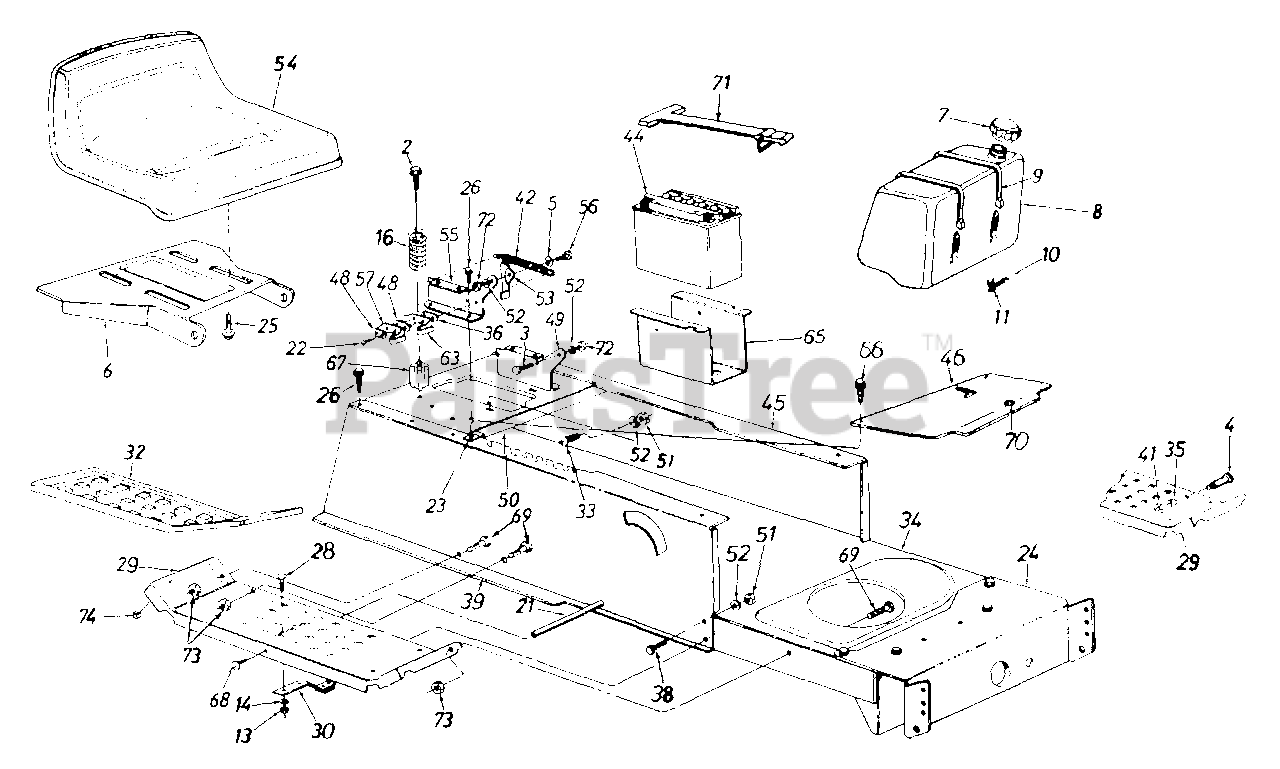

Battery, Seat And Upper Frame Parts Diagram

  • Title

2

White Outdoor 710-1208

Hex Wash. Hd. Tap Scr. 5/16-18 x 3.25" Lg.

$6.49

$

In Stock, only 2 left!

0

3

White Outdoor 738-0155

Shld. Bolt .437" Dia. x .162"
(Superseded to 938-0155)

$6.49

$

Usually ships in 3-6 days

0

4

White Outdoor 738-0145

Shld. Bolt .50" Dia. x .84"

$6.49

$

Usually ships in 3-6 days

0

5

White Outdoor 736-0141

Spr-Wash. .445" I.D. x .75
(Superseded to 936-0141)

$6.49

$

Usually ships in 3-6 days

0

6

White Outdoor 783-0039

Seat Pivot Bracket
(Superseded to 783-0039A)

Variations

White Outdoor 783-0039-0637

Seat Pivot Bracket, Black - POWDER BLACK (0637)

$71.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0039-0638

Seat Pivot Bracket, Black - MTD/TROY-BILT RED (0638)

$71.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0039-0662

Seat Pivot Bracket, Black - OYSTER GRAY (0662)

$71.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0039-0667

Seat Pivot Bracket, Black - MIDNIGHT BLUE (0667)

$71.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

7

White Outdoor 751-0603

Fuel Cap
(Superseded to 751-0603B)

$21.99

$

In Stock, Qty 20+

0

8

White Outdoor 751-0553

Fuel Tank (LT-125)
(Superseded to 751-0555B)

$89.99

$

Usually ships in 3-6 days

0

White Outdoor 751-0574A

Fuel Tank (LT-155/LT-165)

$

$

Not available

White Outdoor 749-0934

Fuel Tank Support Rod (LT-155/LT-165 - Not shown)

$

$

Not available

9

White Outdoor 726-0209

Tie Strap
(Superseded to 726-0230)

$25.99

$

In Stock, only 2 left!

0

10

White Outdoor 751-0535-15

Fuel Line
(Superseded to 751-10349-16)

$18.99

$

In Stock, Qty 13

0

11

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 712-3006

Hex Nut 1/4-20 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

16

White Outdoor 732-0735

Compression Spring
(Superseded to 732-0735A)

$27.99

$

In Stock, Qty 8

0

21

White Outdoor 738-0526

Running Board Rod

$

$

Not available

22

White Outdoor 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

23

White Outdoor 726-0139

Speed Nut #10Z

$6.49

$

In Stock, only 3 left!

0

24

White Outdoor 783-0041A

Front Pivot Brkt.
(Superseded to 783-0041C)

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 783-0041A-0483

Pivot Bar Bracket - CHARCOAL GRAY (0483)

$89.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0041A-0637

BRACKET-PIVOT BAR - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0041A-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0041A-0638

BRACKET-PIVOT BAR - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0041A-0648

BRACKET-PIVOT BAR - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0041A-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

$77.99

$

Usually ships in 3-6 days

0

25

White Outdoor 710-0870

Hex Tap Scr. 3/8-16 x .62"

$5.99

$

In Stock, only 2 left!

0

26

White Outdoor 710-0726

Hex AB-Tap Scr. 5/16 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

28

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62"

$3.99

$

In Stock, Qty 20+

0

29

White Outdoor 17770B

Running Board (R.H. & L.H.)
(Superseded to 17770H)

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 17770B-0480

BOARD-RUNNING - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 17770B-0483

BOARD-RUNNING - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 17770B-0499

BOARD-RUNNING - CUB BEIGE (0499)

$

$

Not available

White Outdoor 17770B-0629

BOARD-RUNNING - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 17770B-0637

BOARD-RUNNING - POWDER BLACK (0637)

$

$

Not available

White Outdoor 17770B-0660

BOARD-RUNNING - TEAL (0660)

$

$

Not available

White Outdoor 17770B-0662

BOARD-RUNNING - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 17770B-0665

BOARD-RUNNING - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 17770B-0667

BOARD-RUNNING - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 17770B-0692

BOARD-RUNNING - AGWAY BLUE (0692)

$

$

Not available

White Outdoor 17770B-0638

BOARD-RUNNING - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17770B-0648

BOARD-RUNNING - TECH GRAY (0648)

$

$

Not available

White Outdoor 17770B-0650

BOARD-RUNNING - RED METALLIC (0650)

$

$

Not available

White Outdoor 17770B-0663

BOARD-RUNNING - CAYMEN GREEN (0663)

$

$

Not available

White Outdoor 17770B-0691

BOARD-RUNNING - BLACK JACK (0691)

$

$

Not available

$

$

30

White Outdoor 761-0168A

Blade Brake Ass'y.
(Superseded to 961-0168D)

$31.99

$

In Stock, Qty 5

0

32

White Outdoor 731-0911

Rubber Foot Pad - L.H.

$

$

Not available

White Outdoor 731-0912

Rubber Foot Pad - R.H.

$

$

Not available

33

White Outdoor 710-0323

Truss Mach. Scr. 5/16-18 x .75"

$4.49

$

In Stock, only 2 left!

0

34

White Outdoor 783-0310

Lower Frame
(Superseded to 783-0310F-0637)

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 783-0310-0637

FRAME-LOWER 600 - POWDER BLACK (0637)

$148.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0310-0665

FRAME-LOWER 600 - YARDMAN GREEN (0665)

$148.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0310-0638

FRAME-LOWER 600 - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0310-0648

FRAME-LOWER 600 - TECH GRAY (0648)

$

$

Not available

$148.99

$

Usually ships in 3-6 days

0

35

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

36

White Outdoor 726-0278

Insulator Boss Plate

$6.49

$

In Stock, Qty 10

0

38

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

39

White Outdoor 783-0042A

Upper Frame - R.H.
(Superseded to 783-0042D)

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 783-0042A-0480

FRAME-UPPER RH SID - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 783-0042A-0483

FRAME-UPPER RH SID - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0042A-0629

FRAME-UPPER RH SID - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 783-0042A-0637

FRAME-UPPER RH SID - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0042A-0638

FRAME-UPPER RH SID - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0042A-0648

FRAME-UPPER RH SID - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0042A-0650

FRAME-UPPER RH SID - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0042A-0663

FRAME-UPPER RH SID - CAYMEN GREEN (0663)

$

$

Not available

White Outdoor 783-0042A-0665

FRAME-UPPER RH SID - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0042A-0667

FRAME-UPPER RH SID - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 783-0042A-0686

FRAME-UPPER RH SID - SIMPLICITY ORANGE (0686)

$

$

Not available

White Outdoor 783-0042A-0687

FRAME-UPPER RH SID - PINE GREEN (0687)

$

$

Not available

$

$

41

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

In Stock, only 2 left!

0

42

White Outdoor 732-0581

Extension Spring 5.31" Lg.
(Superseded to 932-0581B)

$13.99

$

Usually ships in 3-6 days

0

44

White Outdoor 725-1705

12-V Battery (LT-125)
(Superseded to 925-1707D)

Note: Code: N notates a new part (not previously existing).

$

$

Not available

White Outdoor 725-1707

12-V Battery (LT-155/LT-165)
(Superseded to 925-1707D)

Note: Code: N notates a new part (not previously existing).

$

$

Not available

45

White Outdoor 783-0043

Upper Frame - L.H.
(Superseded to 783-0043B)

Variations

White Outdoor 783-0043-0648

FRAME-UPPER LH - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0043-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0043-0499

FRAME-UPPER LH - CUB BEIGE (0499)

$

$

Not available

White Outdoor 783-0043-0606

FRAME-UPPER LH - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-0043-0629

FRAME-UPPER LH - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 783-0043-0637

FRAME-UPPER LH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0043-0638

FRAME-UPPER LH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0043-0650

FRAME-UPPER LH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0043-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0043-0667

FRAME-UPPER LH - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 783-0043-0677

FRAME-UPPER LH - GRASS GREEN (0677)

$

$

Not available

White Outdoor 783-0043-0689

No Longer Available FRAME-UPPER LH - POLO GREEN (0689)

$

$

Not available

$

$

46

White Outdoor 783-0133A

Shift Cover
(Superseded to 783-0133B)

Variations

White Outdoor 783-0133A-0637

COVER-SHIFT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0133A-0638

COVER-SHIFT - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0133A-0648

COVER-SHIFT - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0133A-0662

COVER-SHIFT - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-0133A-0665

COVER-SHIFT - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0133A-0667

COVER-SHIFT - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

48

White Outdoor 726-0279

Insulator Plate

$3.49

$

In Stock, Qty 8

0

49

White Outdoor 17951

Seat Pivot Brkt. Support - L.H.
(Superseded to 17951A-0637)

Variations

White Outdoor 17951-0637

Seat Support Bracket, LH - POWDER BLACK (0637)

$24.99

$

In Stock, only 3 left!

0

$24.99

$

In Stock, only 3 left!

0

50

White Outdoor 783-0355

Hitch Plate
(Superseded to 783-0355D)

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 783-0355-0483

PLATE-HITCH - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0355-0637

PLATE-HITCH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0355-0638

PLATE-HITCH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0355-0648

PLATE-HITCH - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0355-0665

PLATE-HITCH - YARDMAN GREEN (0665)

$

$

Not available

$

$

51

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

52

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

53

White Outdoor 17239A

Seat Lift Brkt.
(Superseded to 17239C)

$

$

Not available

54

White Outdoor 757-0371

Seat (LT-125/LT-155)
(Superseded to 957-0371A)

$

$

Not available

White Outdoor 757-0370

Seat (LT-165)
(Superseded to 957-0370A)

$

$

Not available

55

White Outdoor 17950

Seat Pivot Brkt. Support - R.H.
(Superseded to 17950A-0637)

Variations

White Outdoor 17950-0637

Seat Support Bracket, RH - POWDER BLACK (0637)

$21.99

$

Usually ships in 3-6 days

0

$21.99

$

Usually ships in 3-6 days

0

56

White Outdoor 738-0296

Shld. Bolt .437" Dia. x .268"

$3.99

$

In Stock, Qty 15

0

57

White Outdoor 725-1303

Spring Switch
(Superseded to 925-1303)

$5.99

$

In Stock, Qty 8

0

63

White Outdoor 725-1439

Safety Switch (Seat)

$7.99

$

In Stock, Qty 8

0

65

White Outdoor 783-0345

Battery Tray
(Superseded to 783-0345-0637)

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 783-0345-0637

Battery Tray - POWDER BLACK (0637)

$15.99

$

In Stock, only 1 left!

0

$15.99

$

In Stock, only 1 left!

0

66

White Outdoor 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, only 4 left!

0

67

White Outdoor 748-0347

Spring Spacer
(Superseded to 748-0347A)

$

$

Not available

68

White Outdoor 710-0323

Pan Hd. Scr. 5/16-18 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

69

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

70

White Outdoor 731-0405

Snap Bushing

$

$

Not available

71

White Outdoor 723-3064

Battery Retainer Strap

Note: Code: N notates a new part (not previously existing).

$27.99

$

In Stock, only 4 left!

0

72

White Outdoor 712-3010

Hex Nut 5/16-18 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

73

White Outdoor 712-0265

Hex Sems Nut 5/16-18 Thd.

$3.49

$

Usually ships in 3-6 days

0

74

White Outdoor 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0
