LT-155 (13A1696G190) - White Outdoor 42" Lawn Tractor (1997) 42" Mowing Deck Parts Diagram

42" Lawn Tractor

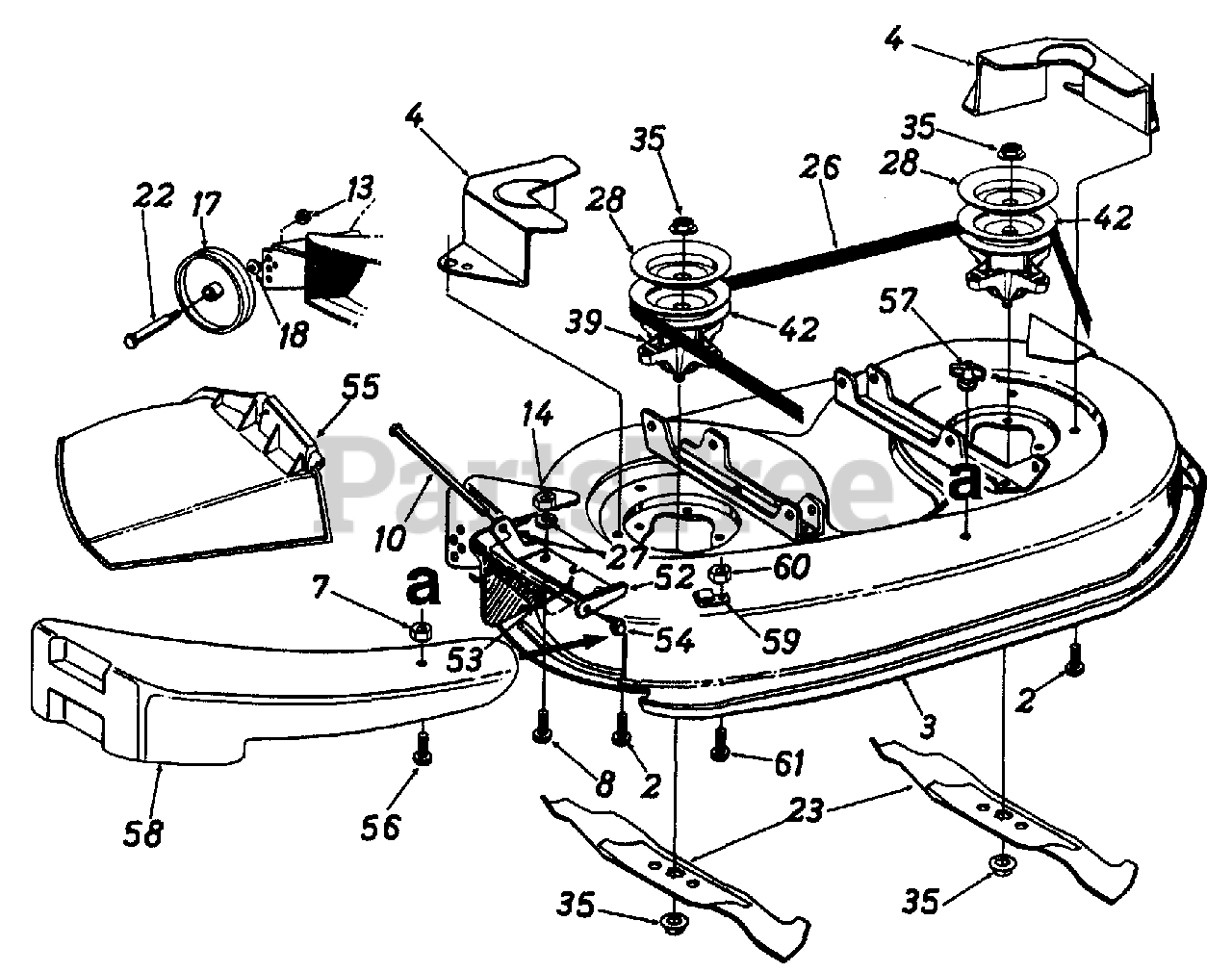

42" Mowing Deck Parts Diagram

  • Title

2

White Outdoor 710-1260

Hex Wash. Hd. TT-Tap Scr. 5/16-18 x .75" Lg.
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 683-0141

42" Deck Ass'y.
(Superseded to 983-0141B)

Note: Code: N Notates a new part (not previously existing).

Variations

White Outdoor 683-0141-0483

DECK ASSY- 42" - CHARCOAL GRAY (0483)

$857.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0141-0637

DECK ASSEMBLY 42'' BLACK - POWDER BLACK (0637)

$857.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0141-0638

DECK ASSEMBLY 42'' RED - MTD/TROY-BILT RED (0638)

$857.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0141-0648

DECK SHELL 42'' TECH GREY - TECH GRAY (0648)

$857.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0141-0665

DECK ASSEMBLY 42'' GREEN - YARDMAN GREEN (0665)

$857.99

$

Usually ships in 3-6 days

0

$797.99

$

Usually ships in 3-6 days

0

White Outdoor 813-06977

42" Deck Ass'y. Comp.
(Superseded to 753-0698)

Note: (For Service Only) Code: N Notates a new part (not previously existing).

Variations

White Outdoor 813-06977-0483

KIT-DECK 42" NEW S - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 813-06977-0637

KIT-DECK 42" NEW S - POWDER BLACK (0637)

$

$

Not available

White Outdoor 813-06977-0638

KIT-DECK 42" NEW S - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 813-06977-0648

KIT-DECK 42" NEW S - TECH GRAY (0648)

$

$

Not available

White Outdoor 813-06977-0665

KIT-DECK 42" NEW S - YARDMAN GREEN (0665)

$

$

Not available

$

$

4

White Outdoor 783-0149

Belt Guard Deck
(Superseded to 783-0149B)

Variations

White Outdoor 783-0149-0637

Belt Guard, G-Deck Black - POWDER BLACK (0637)

$42.99

$

In Stock, only 4 left!

0

White Outdoor 783-0149-0638

Belt Guard, G-Deck Black - MTD/TROY-BILT RED (0638)

$42.99

$

In Stock, only 4 left!

0

White Outdoor 783-0149-0648

Belt Guard, G-Deck Black - TECH GRAY (0648)

$42.99

$

In Stock, only 4 left!

0

White Outdoor 783-0149-0665

Belt Guard, G-Deck Black - YARDMAN GREEN (0665)

$42.99

$

In Stock, only 4 left!

0

$42.99

$

In Stock, only 4 left!

0

7

White Outdoor 712-0291

Hex L-Nut 1/4-20 Thd.

Note: Optional

$4.99

$

In Stock, only 4 left!

0

8

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62"
(Superseded to 710-0751)

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.99

$

In Stock, Qty 11

0

13

White Outdoor 712-0181

Hex Top L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

14

White Outdoor 712-3006

Hex Nut 1/4-20 Thd. (Gr. 5)

$4.99

$

In Stock, Qty 12

0

17

White Outdoor 734-0973

Deck Wheel - 5"

$13.99

$

In Stock, Qty 20+

0

18

White Outdoor 736-0105

Bell-Wash. .40" I.D. x .88" O.D.

$4.99

$

In Stock, Qty 20+

0

22

White Outdoor 738-0373

Shld. Bolt .498" Dia. x 1.53"
(Superseded to 938-0373)

$9.99

$

In Stock, Qty 20+

0

23

White Outdoor 742-0616

3 in 1 Blade
(Superseded to 942-0616A)

Note: Code: N Notates a new part (not previously existing).

$33.99

$

In Stock, Qty 20+

0

26

White Outdoor 754-0371A

V-Belt
(Superseded to 954-0371A)

$109.99

$

In Stock, Qty 8

0

27

White Outdoor 736-0270

Bell-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 783-0342

Brake Disc
(Superseded to 783-0342A)

$

$

Not available

?33

White Outdoor 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 7

0

35

White Outdoor 712-0417A

Hex Flange Nut 5/8-18 Thd.

$7.49

$

In Stock, Qty 20+

0

?37

White Outdoor 736-0158

L-Wash. 5/8" I.D.

$4.99

$

In Stock, Qty 8

0

39

White Outdoor 618-0142

Blade Spindle Ass'y. Comp.
(Superseded to 918-0142C)

Note: (Incl. Ref. 28, 35, 42)

$142.99

$

In Stock, Qty 6

0

42

White Outdoor 756-0980

5.75" Dia. Pulleys

Note: Code: N Notates a new part (not previously existing).

$

$

Not available

52

White Outdoor 703-1693

Hinge Mtg. Brkt.
(Superseded to 703-1693A)

$24.99

$

In Stock, only 3 left!

0

53

White Outdoor 732-0602

Torsion Spring
(Superseded to 732-0602A)

$12.99

$

In Stock, only 4 left!

0

54

White Outdoor 726-0106

Push Nut

$4.49

$

Usually ships in 3-6 days

0

55

White Outdoor 731-1032

Chute Ass'y. Comp.
(Superseded to 631-05229)

Note: (Incl. Ref. 10, 52, 53, 54, 55)

$86.99

$

In Stock, Qty 20+

0

56

White Outdoor 710-0597

Hex Bolt 1/4-20 x 1" Lg.

Note: Optional

$4.49

$

In Stock, Qty 11

0

57

White Outdoor 712-3087

Wing Nut 1/4-20 Thd.

Note: Optional

$4.49

$

In Stock, Qty 20+

0

58

White Outdoor 731-1643

Mulching Plug
(Superseded to OEM-190-116)

Note: Code: N Notates a new part (not previously existing). Optional

$107.99

$

Usually ships in 3-6 days

0

59

White Outdoor 16606

Retainer Hook Brkt.
(Superseded to 96606)

$7.99

$

In Stock, only 3 left!

0

60

White Outdoor 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.99

$

In Stock, Qty 17

0

61

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$4.49

$

In Stock, Qty 20+

0
