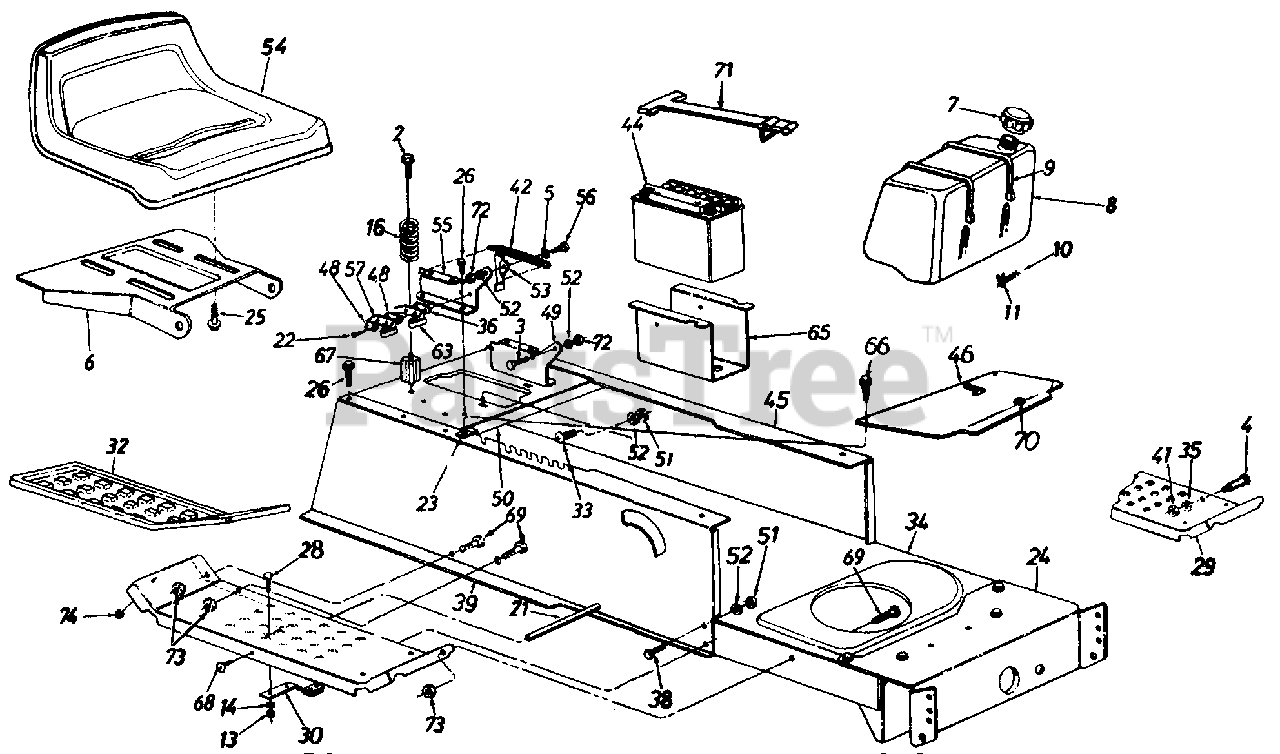

LT-155 (13A1696G190) - White Outdoor 42" Lawn Tractor (1997) > Parts Diagrams (9) > Lower Frame, Seat And Fuel Tank

  • Title
710-1208

2

Hex Wash. Hd. Tap Scr. 5/16-18 x 3.25" Lg.

Part# 710-1208

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.87

738-0155

3

Shld. Bolt .437" Dia. x .162"

Part# 738-0155 (Superseded to 938-0155)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

4

UNKNOWN

Part#

Not available

736-0141

5

Spr-Wash. .445" I.D. x .75

Part# 736-0141 (Superseded to 936-0141)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81

783-0039A

6

Seat Pivot Bracket

Part# 783-0039A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $58.52

Variations

POWDER BLACK (0637)

Seat Pivot Bracket, Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $58.52

MTD/TROY-BILT RED (0638)

Seat Pivot Bracket, Black

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $58.52

TECH GRAY (0648)

Seat Pivot Bracket, Black

Part# TECH GRAY (0648)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $58.52

OYSTER GRAY (0662)

Seat Pivot Bracket, Black

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $58.52

YARDMAN GREEN (0665)

Seat Pivot Bracket, Black

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $58.52

MIDNIGHT BLUE (0667)

Seat Pivot Bracket, Black

Part# MIDNIGHT BLUE (0667)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $58.52

751-0603

7

Fuel Cap

Part# 751-0603 (Superseded to 751-0603A)

OEM Warranty Repair Part for White Outdoor

Not available

751-0574A

8

Fuel Tank

Part# 751-0574A

OEM Warranty Repair Part for White Outdoor

Not available

749-0934

Fuel Tank Support Rod

Part# 749-0934

Note: (Not shown)

OEM Warranty Repair Part for White Outdoor

Not available

726-0209

9

Tie Strap

Part# 726-0209 (Superseded to 726-0230)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $19.19

751-0535-15

10

Fuel Line

Part# 751-0535-15 (Superseded to 751-10349-16)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $14.13

726-0205

11

Hose Clamp

Part# 726-0205

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.95

712-0287

13

Hex Nut 1/4-20 Thd.

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.18

736-0329

14

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

732-0735

16

Compression Spring

Part# 732-0735 (Superseded to 732-0735A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $21.72

738-0526

21

Running Board Rod

Part# 738-0526

OEM Warranty Repair Part for White Outdoor

Not available

710-0227

22

Hex Hd. AB-Tap Scr. #8 x .50"

Part# 710-0227

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

726-0139

23

Speed Nut #102

Part# 726-0139

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.76

783-0041A

24

Front Pivot Brkt.

Part# 783-0041A

OEM Warranty Repair Part for White Outdoor

Variations

CHARCOAL GRAY (0483)

Pivot Bar Bracket

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $72.57

POWDER BLACK (0637)

BRACKET-PIVOT BAR

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

BRACKET-PIVOT BAR

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

TECH GRAY (0648)

BRACKET-PIVOT BAR

Part# TECH GRAY (0648)

OEM Warranty Repair Part for White Outdoor

Not available

RED METALLIC (0650)

BRACKET-PIVOT BAR

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

BRACKET-PIVOT BAR

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

710-0870

25

Hex Tap Scr. 3/8-16 x .62" Lg.

Part# 710-0870

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.36

710-0726

26

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

Part# 710-0726

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.04

28

UNKNOWN

Part#

Not available

17770B

29

Running Board (R.H. & L.H.)

Part# 17770B

OEM Warranty Repair Part for White Outdoor

Variations

BRILLIANT GREEN (0480)

BOARD-RUNNING

Part# BRILLIANT GREEN (0480)

OEM Warranty Repair Part for White Outdoor

Not available

CHARCOAL GRAY (0483)

BOARD-RUNNING

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Not available

CUB BEIGE (0499)

BOARD-RUNNING

Part# CUB BEIGE (0499)

OEM Warranty Repair Part for White Outdoor

Not available

SILVER FLAKE (0629)

BOARD-RUNNING

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

BOARD-RUNNING

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

BOARD-RUNNING

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

TECH GRAY (0648)

BOARD-RUNNING

Part# TECH GRAY (0648)

OEM Warranty Repair Part for White Outdoor

Not available

RED METALLIC (0650)

BOARD-RUNNING

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Not available

 TEAL (0660)

BOARD-RUNNING

Part# TEAL (0660)

OEM Warranty Repair Part for White Outdoor

Not available

OYSTER GRAY (0662)

BOARD-RUNNING

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Not available

CAYMEN GREEN (0663)

BOARD-RUNNING

Part# CAYMEN GREEN (0663)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

BOARD-RUNNING

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

MIDNIGHT BLUE (0667)

BOARD-RUNNING

Part# MIDNIGHT BLUE (0667)

OEM Warranty Repair Part for White Outdoor

Not available

BLACK JACK (0691)

BOARD-RUNNING

Part# BLACK JACK (0691)

OEM Warranty Repair Part for White Outdoor

Not available

AGWAY BLUE (0692)

BOARD-RUNNING

Part# AGWAY BLUE (0692)

OEM Warranty Repair Part for White Outdoor

Not available

30

UNKNOWN

Part#

Not available

731-0909

32

Rubber Foot Pad - L.H.

Part# 731-0909 (Superseded to 735-04009)

OEM Warranty Repair Part for White Outdoor

Not available

731-0910

Rubber Foot Pad - R.H.

Part# 731-0910 (Superseded to 735-0689A)

OEM Warranty Repair Part for White Outdoor

Not available

710-0323

33

Truss Mach. Scr. 5/16-18 x .75" Lg

Part# 710-0323

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.23

783-0310B

34

Lower Frame

Part# 783-0310B

Note: Code: N Notates a new part (not previously existing)

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

FRAME-LOWER 600

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $120.73

MTD/TROY-BILT RED (0638)

FRAME-LOWER 600

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

TECH GRAY (0648)

FRAME-LOWER 600

Part# TECH GRAY (0648)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

FRAME-LOWER 600

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $120.73

736-0169

35

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.64

726-0278

36

Insulator Boss Plate

Part# 726-0278

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.77

736-0264

?37

Fl-Wash. .344" I.D. x .625" O.D.

Part# 736-0264 (Superseded to 936-0264)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

710-0118

38

Hex Bolt 5/16-18 x .75" Lg.

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.99

783-0042A

39

Upper Frame - R.H.

Part# 783-0042A

OEM Warranty Repair Part for White Outdoor

Variations

BRILLIANT GREEN (0480)

FRAME-UPPER RH SID

Part# BRILLIANT GREEN (0480)

OEM Warranty Repair Part for White Outdoor

Not available

CHARCOAL GRAY (0483)

FRAME-UPPER RH SID

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Not available

SILVER FLAKE (0629)

FRAME-UPPER RH SID

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

FRAME-UPPER RH SID

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

FRAME-UPPER RH SID

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

TECH GRAY (0648)

FRAME-UPPER RH SID

Part# TECH GRAY (0648)

OEM Warranty Repair Part for White Outdoor

Not available

RED METALLIC (0650)

FRAME-UPPER RH SID

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Not available

CAYMEN GREEN (0663)

FRAME-UPPER RH SID

Part# CAYMEN GREEN (0663)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

FRAME-UPPER RH SID

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

MIDNIGHT BLUE (0667)

FRAME-UPPER RH SID

Part# MIDNIGHT BLUE (0667)

OEM Warranty Repair Part for White Outdoor

Not available

SIMPLICITY ORANGE (0686)

FRAME-UPPER RH SID

Part# SIMPLICITY ORANGE (0686)

OEM Warranty Repair Part for White Outdoor

Not available

PINE GREEN (0687)

FRAME-UPPER RH SID

Part# PINE GREEN (0687)

OEM Warranty Repair Part for White Outdoor

Not available

712-0798

41

Hex Nut 3/8-16 Thd.

Part# 712-0798

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

732-0581B

42

Extension Spring 5.31" Lg.

Part# 732-0581B (Superseded to 932-0581B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $10.07

725-1707B

44

12-V Battery

Part# 725-1707B (Superseded to 925-1707D)

Note: Code: N Notates a new part (not previously existing)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $56.13

783-0043

45

Upper Frame - L.H.

Part# 783-0043

OEM Warranty Repair Part for White Outdoor

Variations

CHARCOAL GRAY (0483)

No Longer Available

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Not available

CUB BEIGE (0499)

FRAME-UPPER LH

Part# CUB BEIGE (0499)

OEM Warranty Repair Part for White Outdoor

Not available

MAJESTIC ORANGE (0606)

FRAME-UPPER LH

Part# MAJESTIC ORANGE (0606)

OEM Warranty Repair Part for White Outdoor

Not available

SILVER FLAKE (0629)

FRAME-UPPER LH

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

FRAME-UPPER LH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

FRAME-UPPER LH

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

TECH GRAY (0648)

FRAME-UPPER LH

Part# TECH GRAY (0648)

OEM Warranty Repair Part for White Outdoor

Not available

RED METALLIC (0650)

FRAME-UPPER LH

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

No Longer Available

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

MIDNIGHT BLUE (0667)

FRAME-UPPER LH

Part# MIDNIGHT BLUE (0667)

OEM Warranty Repair Part for White Outdoor

Not available

GRASS GREEN (0677)

FRAME-UPPER LH

Part# GRASS GREEN (0677)

OEM Warranty Repair Part for White Outdoor

Not available

POLO GREEN (0689)

No Longer Available FRAME-UPPER LH

Part# POLO GREEN (0689)

OEM Warranty Repair Part for White Outdoor

Not available

17286B

46

Shift Cover

Part# 17286B

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $30.19

Variations

POWDER BLACK (0637)

Shift Cover

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $30.19

725-1643

?47

Reverse Safety Switch

Part# 725-1643

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.19

726-0279

48

Insulator Plate

Part# 726-0279

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.58

17951

49

Seat Pivot Brkt. Support - L.H.

Part# 17951

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Seat Support Bracket, LH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $18.77

783-0355

50

Hitch Plate

Part# 783-0355

OEM Warranty Repair Part for White Outdoor

Variations

CHARCOAL GRAY (0483)

PLATE-HITCH

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

PLATE-HITCH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

PLATE-HITCH

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

TECH GRAY (0648)

PLATE-HITCH

Part# TECH GRAY (0648)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

PLATE-HITCH

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

712-0267

51

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Not available

736-0119

52

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.41

17239A

53

Seat Lift Brkt.

Part# 17239A (Superseded to 17239C)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.58

757-0371A

54

Seat

Part# 757-0371A (Superseded to 957-0371A)

OEM Warranty Repair Part for White Outdoor

Not available

17950

55

Seat Pivot Brkt. Support - R.H.

Part# 17950

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Seat Support Bracket, RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $16.36

738-0296

56

Shld. Bolt .437" Dia. x .268"

Part# 738-0296 (Superseded to 938-0296)

OEM Warranty Repair Part for White Outdoor

Not available

725-1303

57

Spring Switch

Part# 725-1303 (Superseded to 925-1303)

Note: (Seat)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.47

710-0650

?59

Hex Wash. TT-Tap Scr. 5/16-18 x 7/8" Lg.

Part# 710-0650

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.95

726-0320

?62

Insulator Nut Plate

Part# 726-0320 (Superseded to 926-0320)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81

725-1439

63

Safety Switch

Part# 725-1439

Note: (Seat)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.76

783-0345

65

Battery Tray

Part# 783-0345

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Battery Tray

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $12.39

710-0351

66

Truss Mach. B-Tap Scr. #10 x .5"

Part# 710-0351

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

748-0347

67

Spring Spacer

Part# 748-0347 (Superseded to 748-0347A)

OEM Warranty Repair Part for White Outdoor

Not available

710-1221

68

Pan Hd. Cutting Scr. 5/16-18 x .75" Lg.

Part# 710-1221

OEM Warranty Repair Part for White Outdoor

Not available

710-0118

69

Hex Bolt 5/16-18 x .75" Lg.

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.99

70

UNKNOWN

Part#

Not available

723-3064

71

Battery Retainer Strap

Part# 723-3064

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $20.89

712-3010

72

Hex Nut 5/16-18 Thd. (Gr. 5)

Part# 712-3010 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Not available

712-0265

73

Hex Sems Nut 5/16-18 Thd.

Part# 712-0265

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.53

712-0271

74

Hex Sems Nut 1/4-20 Thd.

Part# 712-0271

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.03

749-0934

?75

Gas Tank Support

Part# 749-0934

OEM Warranty Repair Part for White Outdoor

Not available

710-1189

?76

Hex Hd. Tap Scr. #12-24 x .62" Lg.

Part# 710-1189

OEM Warranty Repair Part for White Outdoor

Not available
