LT-155 (13A1696G190) - White Outdoor 42" Lawn Tractor (1997)

42" Lawn Tractor

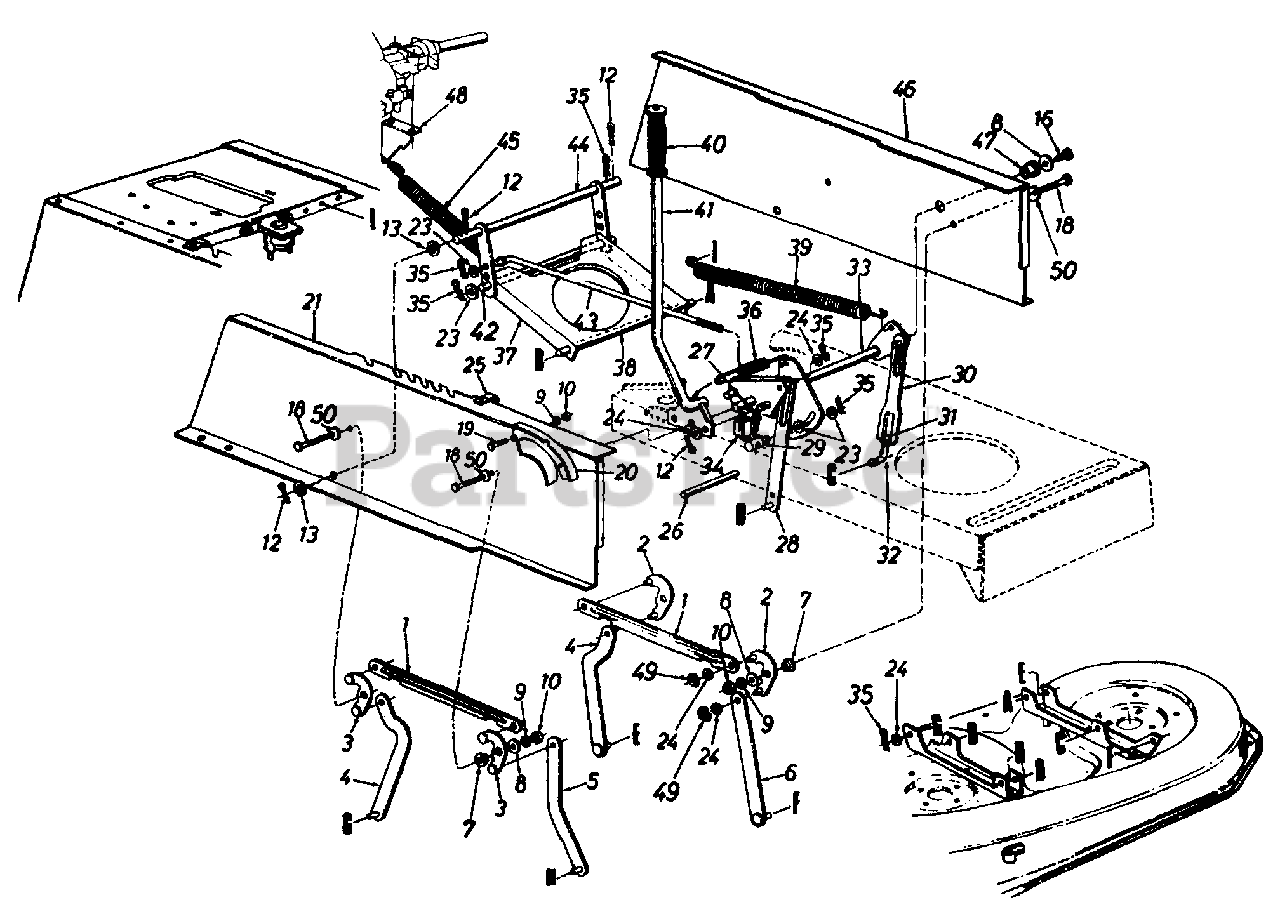

LT-155 (13A1696G190) - White Outdoor 42" Lawn Tractor (1997) > Parts Diagrams (9) > Upper Frame And Mower Deck Linkage

  • Title
783-0103

1

Connecting Rod

Part# 783-0103

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

ROD-CONNECTING

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

683-0029A

2

Pivot Link Ass'y. - L.H.

Part# 683-0029A (Superseded to 983-0029A-0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $13.08

683-0028A

3

Pivot Link Ass'y. - R.H.

Part# 683-0028A

OEM Warranty Repair Part for White Outdoor

Not available

17710

4

Deck Hanger Link Ass'y.

Part# 17710

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

HANGER LINK ASSEMBLY BLACK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

14800A

5

Deck Hanger Link Ass'y.

Part# 14800A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

HANGER-DECK LINK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

14804A

6

Deck Hanger Link Ass'y.

Part# 14804A

OEM Warranty Repair Part for White Outdoor

Not available

748-0331

7

Shld. Spacer .318" I.D.

Part# 748-0331 (Superseded to 948-0331)

OEM Warranty Repair Part for White Outdoor

Not available

736-0264

8

Fl-Wash. .344" I.D. x .62" O.D.

Part# 736-0264 (Superseded to 936-0264)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

736-0119

9

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.41

712-3010

10

Hex Nut 5/16-18 Thd. (Gr. 5)

Part# 712-3010 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Not available

714-0470

12

Cotter Pin 1/8" Dia.

Part# 714-0470 (Superseded to 914-0470)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

736-0256

13

Fl-Wash. .635" I.D. x 1.0" O.D.

Part# 736-0256 (Superseded to 936-0256)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.02

710-0604

16

Hex Wash. TT-Tap Scr. 5/16-18 x .75" Lg.

Part# 710-0604 (Superseded to 710-0604A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

710-1238

18

Hex Wash. Hd. Scr. 5/16-18 x .875" Lg.

Part# 710-1238

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.19

710-0118

19

Hex Bolt 5/16-18 x .75" Lg.

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.99

783-0118

20

Index Brkt.

Part# 783-0118

OEM Warranty Repair Part for White Outdoor

Not available

783-0042A

21

Upper Frame - R.H.

Part# 783-0042A

OEM Warranty Repair Part for White Outdoor

Variations

BRILLIANT GREEN (0480)

FRAME-UPPER RH SID

Part# BRILLIANT GREEN (0480)

OEM Warranty Repair Part for White Outdoor

Not available

CHARCOAL GRAY (0483)

FRAME-UPPER RH SID

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Not available

SILVER FLAKE (0629)

FRAME-UPPER RH SID

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

FRAME-UPPER RH SID

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

FRAME-UPPER RH SID

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

TECH GRAY (0648)

FRAME-UPPER RH SID

Part# TECH GRAY (0648)

OEM Warranty Repair Part for White Outdoor

Not available

RED METALLIC (0650)

FRAME-UPPER RH SID

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Not available

CAYMEN GREEN (0663)

FRAME-UPPER RH SID

Part# CAYMEN GREEN (0663)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

FRAME-UPPER RH SID

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

MIDNIGHT BLUE (0667)

FRAME-UPPER RH SID

Part# MIDNIGHT BLUE (0667)

OEM Warranty Repair Part for White Outdoor

Not available

SIMPLICITY ORANGE (0686)

FRAME-UPPER RH SID

Part# SIMPLICITY ORANGE (0686)

OEM Warranty Repair Part for White Outdoor

Not available

PINE GREEN (0687)

FRAME-UPPER RH SID

Part# PINE GREEN (0687)

OEM Warranty Repair Part for White Outdoor

Not available

736-0267

23

Fl-Wash. .385" I.D. x .87" O.D.

Part# 736-0267 (Superseded to 936-0267)

OEM Warranty Repair Part for White Outdoor

Not available

736-0160

24

Fl-Wash. .531" I.D. x .93" O.D.

Part# 736-0160 (Superseded to 936-0160)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

726-0272

25

Clamp

Part# 726-0272

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.02

738-0526

26

Running Board Rod

Part# 738-0526

OEM Warranty Repair Part for White Outdoor

Not available

710-3007

27

Hex Wash. Hd. Tap Scr.

Part# 710-3007

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

14802A

28

Link Deck Lift Ass'y.

Part# 14802A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Deck Lift Link, Powder Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

711-0723A

29

Adj. Ferrule 3/8-24 Thd.

Part# 711-0723A (Superseded to 911-0723A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $12.60

17712

30

Adj. Deck Lift Link

Part# 17712

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Deck Adjust Link

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $18.23

712-3066

31

Hex Nut 1/2-20 Thd. (Gr. 5)

Part# 712-3066 (Superseded to 912-3066)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

711-0841

32

Lift Link Adjuster

Part# 711-0841 (Superseded to 911-0841)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $11.87

683-0059

33

Lift Shaft Ass'y.

Part# 683-0059 (Superseded to 983-0059-0637)

OEM Warranty Repair Part for White Outdoor

Not available

725-1657

34

Safety Switch (Deck)

Part# 725-1657 (Superseded to 925-1657A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $17.92

714-0145

35

Inter. Cotter Pin 3/8" Dia.

Part# 714-0145 (Superseded to 914-0145)

OEM Warranty Repair Part for White Outdoor

Not available

732-0637

36

Extension Spring

Part# 732-0637 (Superseded to 932-0637)

OEM Warranty Repair Part for White Outdoor

Not available

17636B

37

Stabilizer Bracket

Part# 17636B

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Stabilizer Bracket, Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $50.65

738-0670

38

Shaft 1/2" Dia. x 10.28" Lg.

Part# 738-0670 (Superseded to 738-0670A)

OEM Warranty Repair Part for White Outdoor

Not available

732-0638

39

Extension Spring

Part# 732-0638

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $15.65

720-0233

40

Grip

Part# 720-0233 (Superseded to 920-0233)

Note: (Lift Handle)

OEM Warranty Repair Part for White Outdoor

Not available

97675A

41

Deck Lift Handle Ass'y.

Part# 97675A

OEM Warranty Repair Part for White Outdoor

Variations

CHARCOAL GRAY (0483)

LIFT HANDLE ASSY POWDER BLACK

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

LIFT HANDLE ASSY POWDER BLACK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

LIFT HANDLE ASSY POWDER BLACK

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

TECH GRAY (0648)

LIFT HANDLE ASSY POWDER BLACK

Part# TECH GRAY (0648)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

LIFT HANDLE ASSY POWDER BLACK

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

738-0669

42

Shaft 3/8" Dia. x 9.34" Lg.

Part# 738-0669

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $14.08

747-0598

43

Disengagement Rod

Part# 747-0598

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $9.79

97624

44

Stabilizer Shaft Ass'y.

Part# 97624

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

STABALIZER SHAFT ASSY BLACK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $79.74

732-0556

45

Extension Spring 7.58" Lg.

Part# 732-0556 (Superseded to 932-0556)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $15.91

783-0043

46

Upper Frame - L.H.

Part# 783-0043

OEM Warranty Repair Part for White Outdoor

Variations

CHARCOAL GRAY (0483)

No Longer Available

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Not available

CUB BEIGE (0499)

FRAME-UPPER LH

Part# CUB BEIGE (0499)

OEM Warranty Repair Part for White Outdoor

Not available

MAJESTIC ORANGE (0606)

FRAME-UPPER LH

Part# MAJESTIC ORANGE (0606)

OEM Warranty Repair Part for White Outdoor

Not available

SILVER FLAKE (0629)

FRAME-UPPER LH

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

FRAME-UPPER LH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

FRAME-UPPER LH

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

TECH GRAY (0648)

FRAME-UPPER LH

Part# TECH GRAY (0648)

OEM Warranty Repair Part for White Outdoor

Not available

RED METALLIC (0650)

FRAME-UPPER LH

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

No Longer Available

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

MIDNIGHT BLUE (0667)

FRAME-UPPER LH

Part# MIDNIGHT BLUE (0667)

OEM Warranty Repair Part for White Outdoor

Not available

GRASS GREEN (0677)

FRAME-UPPER LH

Part# GRASS GREEN (0677)

OEM Warranty Repair Part for White Outdoor

Not available

POLO GREEN (0689)

No Longer Available FRAME-UPPER LH

Part# POLO GREEN (0689)

OEM Warranty Repair Part for White Outdoor

Not available

741-0313

47

Flange Brg. .632" I.D.

Part# 741-0313 (Superseded to 741-0487C)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.46

17128A

48

Spring Retainer Brkt.

Part# 17128A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Retainer Spring Bracket

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $11.42

716-0104

49

"E"-Ring

Part# 716-0104 (Superseded to 916-0104)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.69

736-0425

50

Bell-Wash. .325" I.D.

Part# 736-0425 (Superseded to 936-0425)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.18
