LT 155420 C (7800362) - Murray 42" Lawn Tractor, 15.5hp (2008) Housing Suspension Group Parts Diagram

42" Lawn Tractor, 15.5hp

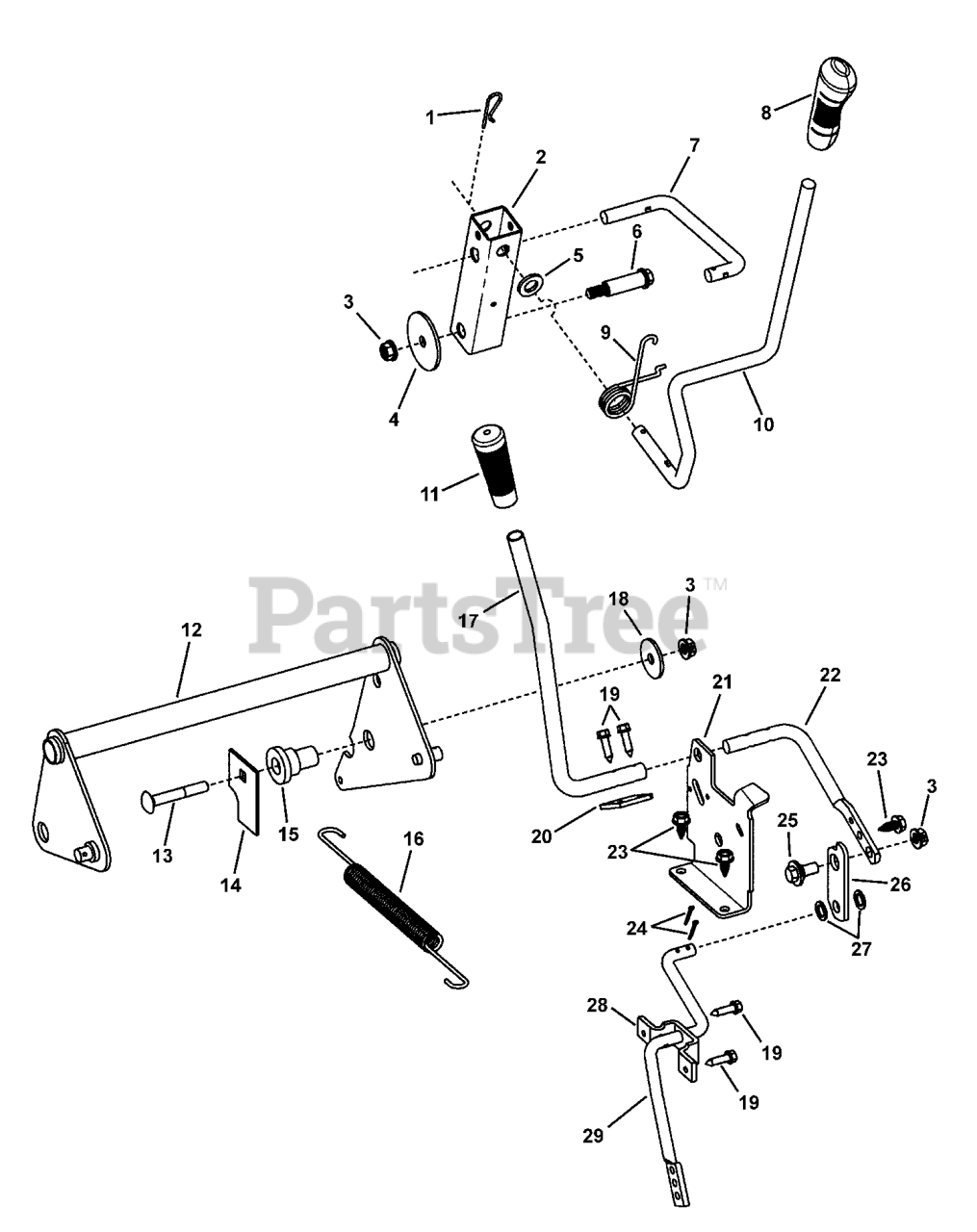

Housing Suspension Group Parts Diagram

  • Title

1

Murray 0031X4MA

HAIR PIN, .56D-.092T
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

2

Murray 094015E701MA

BRACKET - PIVOT

$70.99

$

Usually ships in 2-12 days

0

3

Murray 015X84MA

NUT, HEX FLANGE, 3/8-16 NC
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

4

Murray 17X191MA

HER PLAIN .406 X 2.25

$3.99

$

Usually ships in 2-12 days

0

5

Murray 17X103MA

HER - FLAT, 1.0"OD X 0.550"

$4.99

$

In Stock, Qty 7

0

6

Murray 009X53MA

SHOULDER BOLT, 1.563L X 0.75D X 9/16 X 3/8-16

$6.99

$

Usually ships in 2-12 days

0

7

Murray 690122E701MA

LINK - LIFT HANDLE
(Superseded to 7300877ZMA)

$19.99

$

Usually ships in 2-12 days

0

8

Murray 94496MA

GRIP
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

9

Murray 166X40MA

SPRING - TORSION

$6.49

$

Usually ships in 2-12 days

0

10

Murray 690533MA

HANDLE - LIFT

$40.99

$

In Stock, only 1 left!

0

11

Murray 092697MA

GRIP, .50 SHAFT, TAPERED
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

12

Murray 1001111E701MA

LIFTER ASSY (WELDMENT)

$112.99

$

Usually ships in 2-12 days

0

13

Murray 7091008YP

RHSSNB,3/8CX2-1/2

$4.99

$

In Stock, only 1 left!

0

14

Murray 1001098E701MA

PLATE STIFFENING

$21.99

$

Usually ships in 2-12 days

0

15

Murray 690151MA

SPACER - LIFTER PIVOT

$6.99

$

Usually ships in 2-12 days

0

16

Murray 165X131MA

SPRING, EXTENSION

$15.99

$

Usually ships in 2-12 days

0

17

Murray 094157ZMA

HANDLE, PTO

$40.99

$

Usually ships in 2-12 days

0

18

Murray 7013866YP

HER 1-1/2 OD

$6.49

$

Usually ships in 2-12 days

0

19

Murray 0025X3MA

THD FORMING HES HD SCREW, 1 X 1/4-20 STEP TAPER

$4.99

$

Usually ships in 2-12 days

0

20

Murray 094022ZMA

PADDLE - SWITCH

$3.99

$

In Stock, only 4 left!

0

21

Murray 7300821ZMA

BRACKET - PTO

$26.99

$

Usually ships in 2-12 days

0

22

Murray 094017ZMA

LEVER - PTO

$64.99

$

Usually ships in 2-12 days

0

23

Murray 26X249MA

CAPSCREW 5/16-18

$

$

Not available

24

Murray 030X20MA

PIN - COTTER, 0.75 X 0.090
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

25

Murray 009X39MA

SHOULDER BOLT, 0.75 X 0.60 X 3/8-16

$6.49

$

In Stock, Qty 9

0

26

Murray 094018E701MA

LINK PTO

$10.99

$

Usually ships in 2-12 days

0

27

Murray 017X57MA

HER - FLAT, 0.72OD X 0.469ID X 16GA

$4.49

$

Usually ships in 2-12 days

0

28

Murray 094005E701MA

BRACKET - BELLCRANK
(Superseded to 7300796ZMA)

$8.99

$

Usually ships in 2-12 days

0

29

Murray 690394E701MA

CRANK - PTO

$38.99

$

Usually ships in 2-12 days

0
