LT 16001 (89050) - Snapper Lawn Tractor, 16hp Rear Wheels Parts Diagram

Lawn Tractor, 16hp

Rear Wheels Parts Diagram

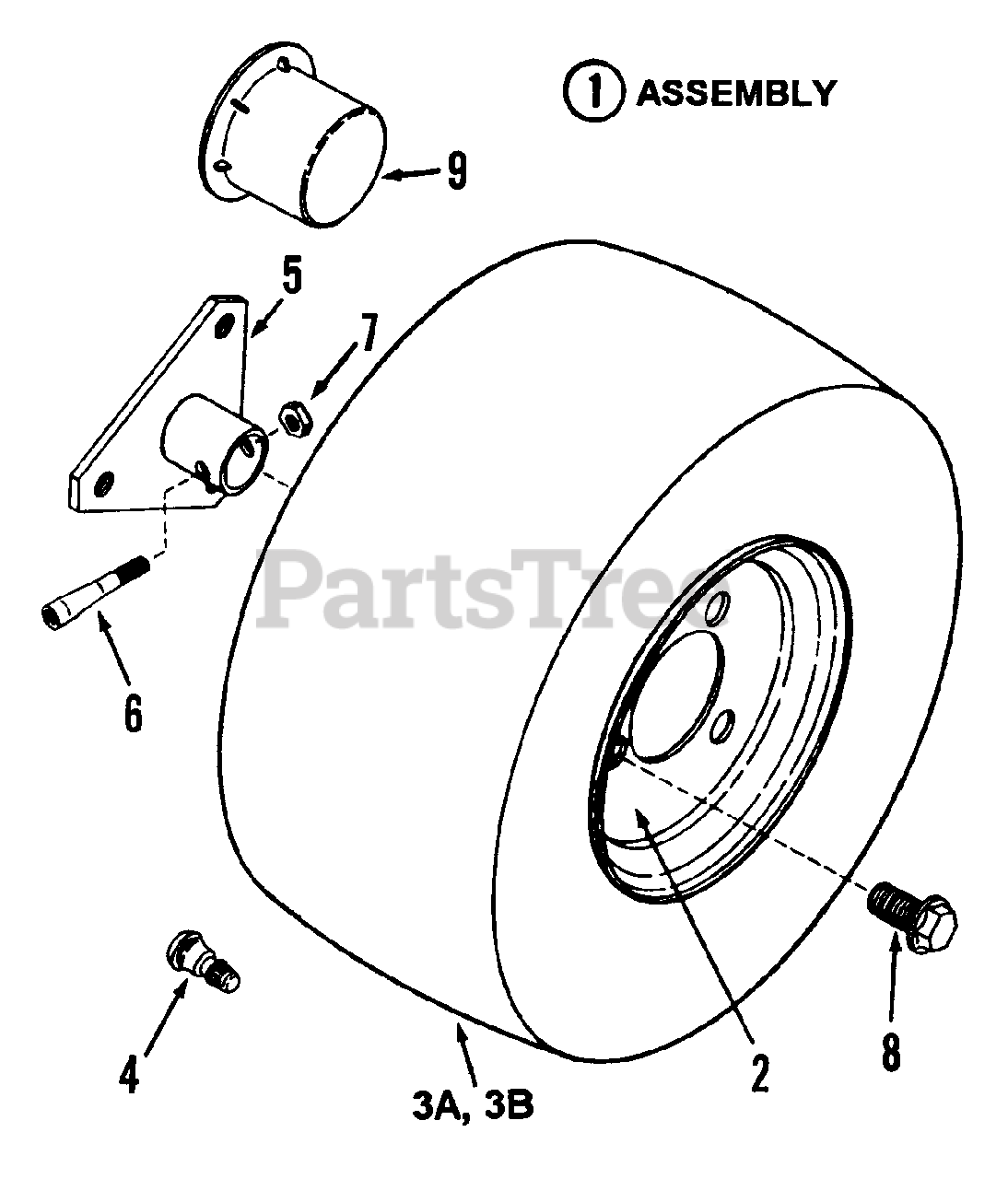

  • Title

1

Snapper 7051367

ASSEMBLY, Rear Tire & Rim 18x6.50-8

Note: 33" Models (Includes items 2, 3A, & 4)

$

$

Currently unavailable

1

Snapper 7051524

ASSEMBLY, Rear Tire & Rim 21x6.50-8 (NLA)

Note: 41" & 48" Models (Includes items 2, 3B & 4)

$

$

Currently unavailable

2

Snapper 7012163

RIM, LT16 Rear Wheel
(Superseded to 7012163YP)

$121.99

$

Usually ships in 2-12 days

0

3A

Snapper 7014349

TIRE, 18 x 6.50 x 8

$

$

Not available

3B

Snapper 7015047

TIRE, 21 x 7.00 x 8 (NLA)

$

$

Currently unavailable

4

Snapper 7012234

VALVE, Air
(Superseded to 7012234SM)

$6.49

$

In Stock, only 2 left!

0

5

Snapper 7040433

HUB, Wheel 3 Hole 1" ID
(Superseded to 7040433YP)

$37.99

$

Usually ships in 2-12 days

0

6

Snapper 7011013

BOLT, Wheel Hub, Tapered 5/16-24 x 2"
(Superseded to 7011013YP)

$6.49

$

In Stock, Qty 17

0

7

Snapper 7092062

NUT, 5/16-24 Lock
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

8

Snapper 7091502

BOLT, Lug 1/2-20 x 3/4" HHCS
(Superseded to 703431)

Note: Was 90367

$4.99

$

In Stock, Qty 6

0

9

Snapper 7015266

HUB-CAP
(Superseded to 7015266YP)

$3.99

$

Usually ships in 2-12 days

0

Snapper 7060609

KIT, Tire Chain (18 x 6.5 x 8)(Not shown)
(Superseded to 7060609YP)

$

$

Not available

Snapper 7060700

KIT, Tire Chain (21 x 7.00 x 8)(Not shown)
(Superseded to 7060700YP)

$119.99

$

Usually ships in 2-12 days

0
