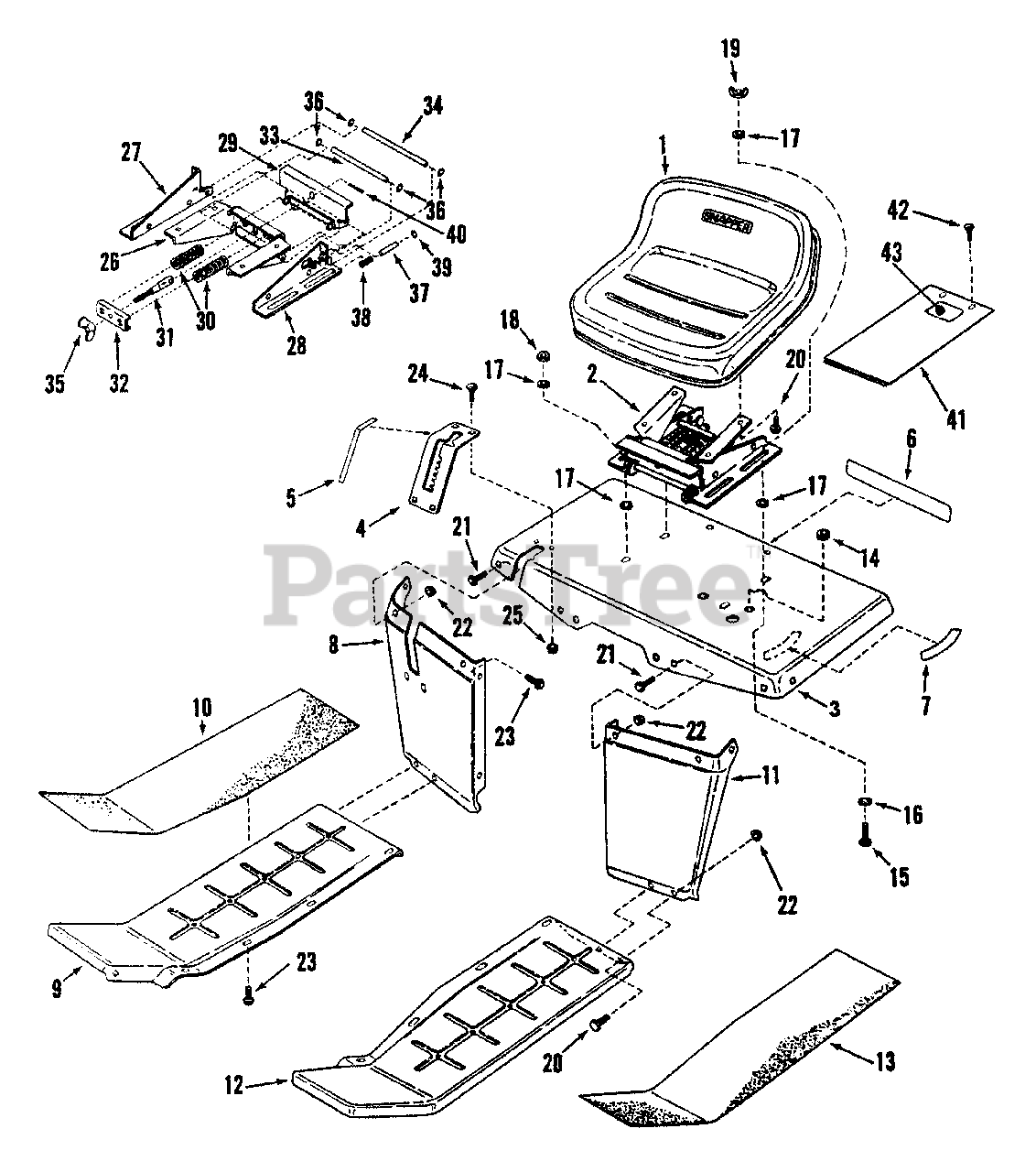

LT 16002 (82016) - Snapper Lawn Tractor, 16hp Seat, Step Panels & Rear Fender Parts Diagram

Lawn Tractor, 16hp

Seat, Step Panels & Rear Fender Parts Diagram

  • Title

1

Snapper 7019964

SEAT, Operator's

$

$

Not available

2

Snapper 7059841

ASSEMBLY, Seat Suspension (No Longer Available)

Note: (Includes Items 26 thru 40)

$

$

Currently unavailable

3

Snapper 7035071

FENDER, Rear

$

$

Currently unavailable

4

Snapper 7038089

DETENT, Shift
(Superseded to 7038089YP)

$39.99

$

Usually ships in 2-12 days

0

5

Snapper 7014506

DECAL, Speed Shift (No longer available)

$

$

Not available

6

Snapper 7019295

DECAL, SNAPPER
(Superseded to 7019295YP)

Note: Was 18593

$14.99

$

In Stock, only 3 left!

0

7

Snapper 7014505

DECAL, Hl-LOW RANGE (Shift)

$

$

Not available

8

Snapper 7039932

EXTENSION, Right Side Fender (No longer available)

$

$

Currently unavailable

9

Snapper 7035016

PANEL, Right Side Step

$

$

Not available

10

Snapper 7022413

TREAD, Right Side (No longer available)

Note: Was 18602 (Non-Skid)

$

$

Not available

11

Snapper 7039931

EXTENSION, Left Side Fender (No longer available)

$

$

Currently unavailable

12

Snapper 7035015

PANEL, Left Side Step

$

$

Not available

13

Snapper 7022414

TREAD, Left Side (Non-Skid)

Note: Was 18603

$

$

Not available

14

Snapper 7014856

GROMMET, 5/16 I.D. for .75 Hole (NLA)

$

$

Not available

15

Snapper 7091303

BOLT, 5/16-18 x 1" Square Neck Carriage
(Superseded to 703800)

Note: Was 90208

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

17

Snapper 7016314

WASHER, 5/16" x 1-1/4" x 3/32" Flat
(Superseded to 7016314YP)

Note: Was 13848

$5.49

$

Usually ships in 2-12 days

0

18

Snapper 7091575

NUT, 5/16-18 Hex Center Lock, Grade B or 5
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 20+

0

19

Snapper 7091537

WING-NUT, 5/16-18
(Superseded to 7091537YP)

Note: Was 14848

$4.49

$

In Stock, only 2 left!

0

20

Snapper 7090721

BOLT, 5/16-18 x 1/2 Hex Flange Lock, Grade 5
(Superseded to 7090721YP)

$3.49

$

In Stock, only 4 left!

0

21

Snapper 7090731

BOLT, 5/16-18 x 1/2" Short Neck Carriage, Grade 5
(Superseded to 703798)

$4.49

$

In Stock, only 4 left!

0

22

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 90585

$5.99

$

In Stock, Qty 20+

0

23

Snapper 7090361

SCREW, 5/16-18 x 5/8" Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 16

0

24

Snapper 7091604

BOLT, 1/4-20 x 1/2" Short Neck Carriage, Grade 5
(Superseded to 703978)

Note: Was 90005

$3.99

$

In Stock, Qty 18

0

25

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 11

0

26

Snapper 7049720

WELDMENT, Seat Hinge
(Superseded to 7049720YP)

$97.99

$

Usually ships in 2-12 days

0

27

Snapper 7036119

ANGLE, L.H. Mounting

$

$

Currently unavailable

28

Snapper 7036118

ANGLE, R.H. Mounting
(Superseded to 7036118YP)

$96.99

$

Usually ships in 2-12 days

0

29

Snapper 7047838

WELDMENT, Seat Hinge (NLA)

$

$

Currently unavailable

30

Snapper 7014845

SPRING, Seat

$

$

Not available

31

Snapper 7014844

ROD, Adjusting

$

$

Not available

32

Snapper 7032399

RETAINER, Spring

$

$

Not available

33

Snapper 7021947

PIN, Seat Tilt Hinge

$

$

Not available

34

Snapper 7021948

PIN, Seat Tilt Hinge (3/8x12)(NLA)

$

$

Not available

35

Snapper 7014850

WING-NUT, 1/2-13
(Superseded to 7014850YP)

$9.99

$

Usually ships in 2-12 days

0

36

Snapper 7013946

PUSHNUT, 3/8
(Superseded to 7013946YP)

$4.49

$

Usually ships in 2-12 days

0

37

Snapper 7021946

PLUNGER (5/16x2.42)
(Superseded to 7021946YP)

$58.99

$

Usually ships in 2-12 days

0

38

Snapper 7014846

SPRING, Compression
(Superseded to 7014846YP)

$5.99

$

Usually ships in 2-12 days

0

39

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: Was 90037

$4.49

$

In Stock, Qty 11

0

40

Snapper 7090881

GROOVED PIN, 3/16 x 1-3/4"
(Superseded to 7090881YP)

Note: Was 90843

$12.99

$

Usually ships in 2-12 days

0

41

Snapper 7038395

COVER, Access (NLA)

Note: Was 38186

$

$

Currently unavailable

42

Snapper 7090858

SCREW, 5/16-18 x 1/2" Hex Washer Self-Tap
(Superseded to 703985)

$4.49

$

In Stock, Qty 18

0

43

Snapper 7014921

DECAL, Seat Adjustment
(Superseded to 7014921YP)

$6.49

$

Usually ships in 2-12 days

0
