LT 160H42CBV2 (80843) - Snapper 42" Lawn Tractor, 16hp Engine Components Parts Diagram

42" Lawn Tractor, 16hp

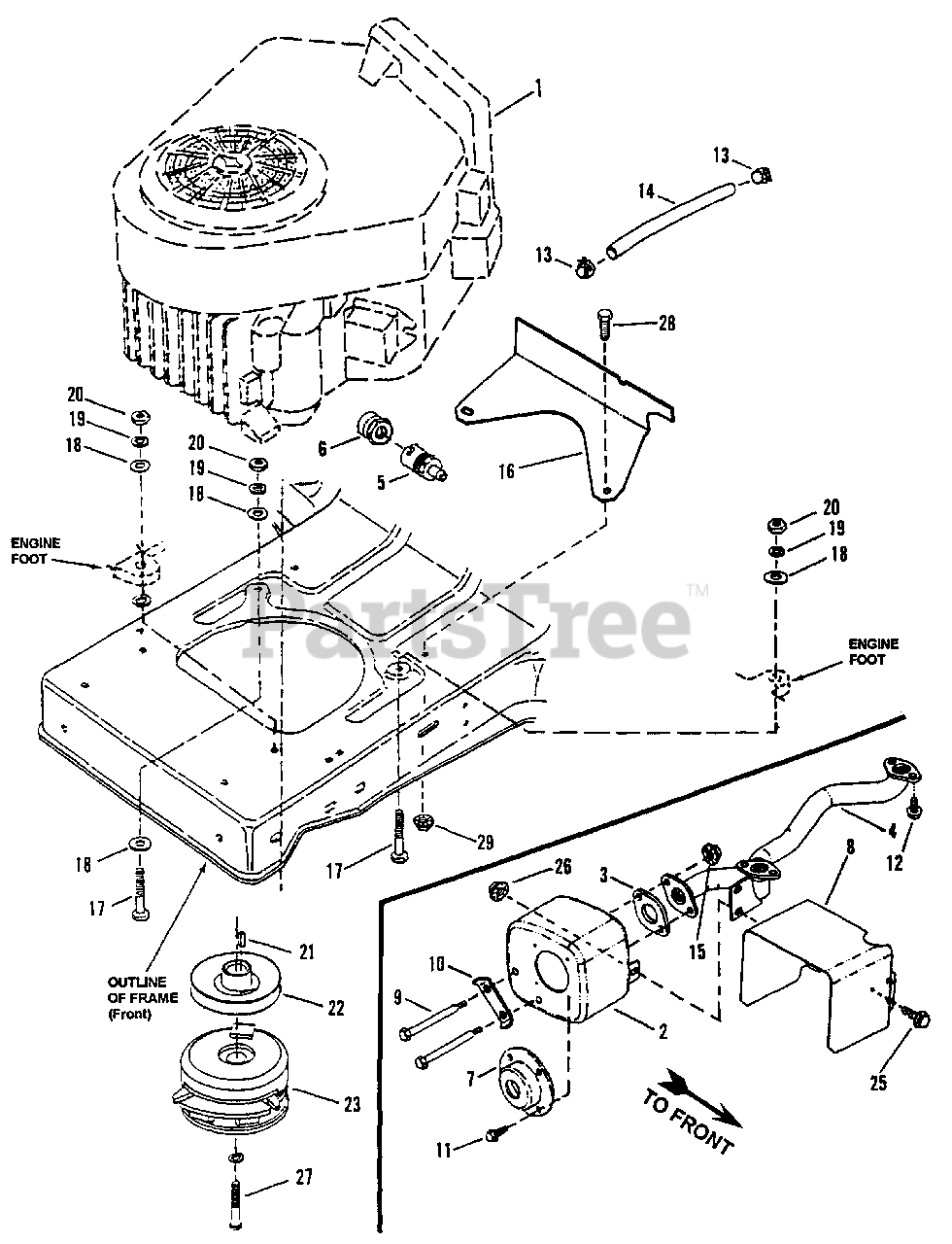

Engine Components Parts Diagram

  • Title

1

* ENGINE, B. & S. 16.0 HP V-Twin Mod. 303777-1150-A1

$

$

Not available

2

Snapper 7024241

MUFFLER

$

$

Not available

3

Snapper 7014509

GASKET, Muffler/Exhaust
(Superseded to 7014509YP)

$7.49

$

Usually ships in 2-12 days

0

4

Snapper 7041742

MANIFOLD, Exhaust
(Superseded to 7041742YP)

$205.99

$

Usually ships in 2-12 days

0

5

Snapper 7027972

ASSEMBLY, Oil Valve Drain
(Superseded to 7027972SM)

$24.99

$

In Stock, only 1 left!

0

6

Snapper 7022486

EXTENSION, Oil Drain
(Superseded to 7022486YP)

$22.99

$

Usually ships in 2-12 days

0

7

Snapper 7026778

DEFLECTOR, Exhaust
(Superseded to 7026778YP)

$4.49

$

Usually ships in 2-12 days

0

8

Snapper 7034767

SHIELD, Muffler Heat
(Superseded to 7034767YP)

$75.99

$

Usually ships in 2-12 days

0

9

Snapper 7024161

BOLT, 5/16-18 x 3-1/2 Shoulder Hex Head
(Superseded to 691416)

$11.99

$

In Stock, Qty 9

0

10

Snapper 7024566

LOCK, Screw
(Superseded to 691178)

$5.49

$

In Stock, Qty 10

0

11

Snapper 7091581

SCREW, #8-18 x 1/2 Self Tapping
(Superseded to 7091581YP)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7090858

SCREW, 5/16-18 x 1/2" Hex Washer Face Self Tapping
(Superseded to 703985)

$4.49

$

In Stock, Qty 15

0

13

Snapper 7029900

CLAMP, Fuel Line
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 20+

0

14

Snapper 7023479

LINE, Fuel, 16 Long
(Superseded to 791745)

$10.99

$

In Stock, Qty 7

0

15

Snapper 7091601

NUT, 5/16-18 Hex Flanged Lock Grade 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

16

Snapper 7034762

SHIELD, Heat

$

$

Not available

17

Snapper 7090669

SCREW, 5/16-18 x 1-3/4 Hex Head Cap Grade 5
(Superseded to 7090669YP)

$4.49

$

In Stock, only 1 left!

0

18

Snapper 7090188

WASHER, 5/16 Flat Grade 5
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, Qty 20+

0

19

Snapper 7091315

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

20

Snapper 7091511

NUT, 5/16-18 Hex Grade 5 or B
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

21

Snapper 7016755

KEY, 1/4 x 1/4 x 3/4 Square
(Superseded to 7016755YP)

$4.99

$

Usually ships in 2-12 days

0

22

Snapper 7028584

PULLEY, Traction Drive
(Superseded to 7028584YP)

$91.99

$

Usually ships in 2-12 days

0

23

Snapper 7053740

CLUTCH/BRAKE

$

$

Not available

25

Snapper 7090072

CAPSCREW, 1/4-20 x 5/8" Hex Head Grade 5
(Superseded to 001X38MA)

Note: Was 27172

$4.49

$

In Stock, Qty 20+

0

26

Snapper 7091584

NUT, 1/4 -20 Hex Flanged Lock Grade 5
(Superseded to 703233)

$4.49

$

In Stock, only 2 left!

0

27

Snapper 7091703

SCREW, 7/16-20 x 2-1/2 Hex Head Cap Special Grade 5
(Superseded to 7091703SM)

$7.99

$

Usually ships in 2-12 days

0

28

Snapper 7090209

CAPSCREW, 5/16-18 x 1 Hex Head Grade 2
(Superseded to 7090209YP)

$2.99

$

Usually ships in 2-12 days

0

29

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock Grade 5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0
