LT 160H42CBV2 (80843) - Snapper 42" Lawn Tractor, 16hp Implement Lift Parts Parts Diagram

42" Lawn Tractor, 16hp

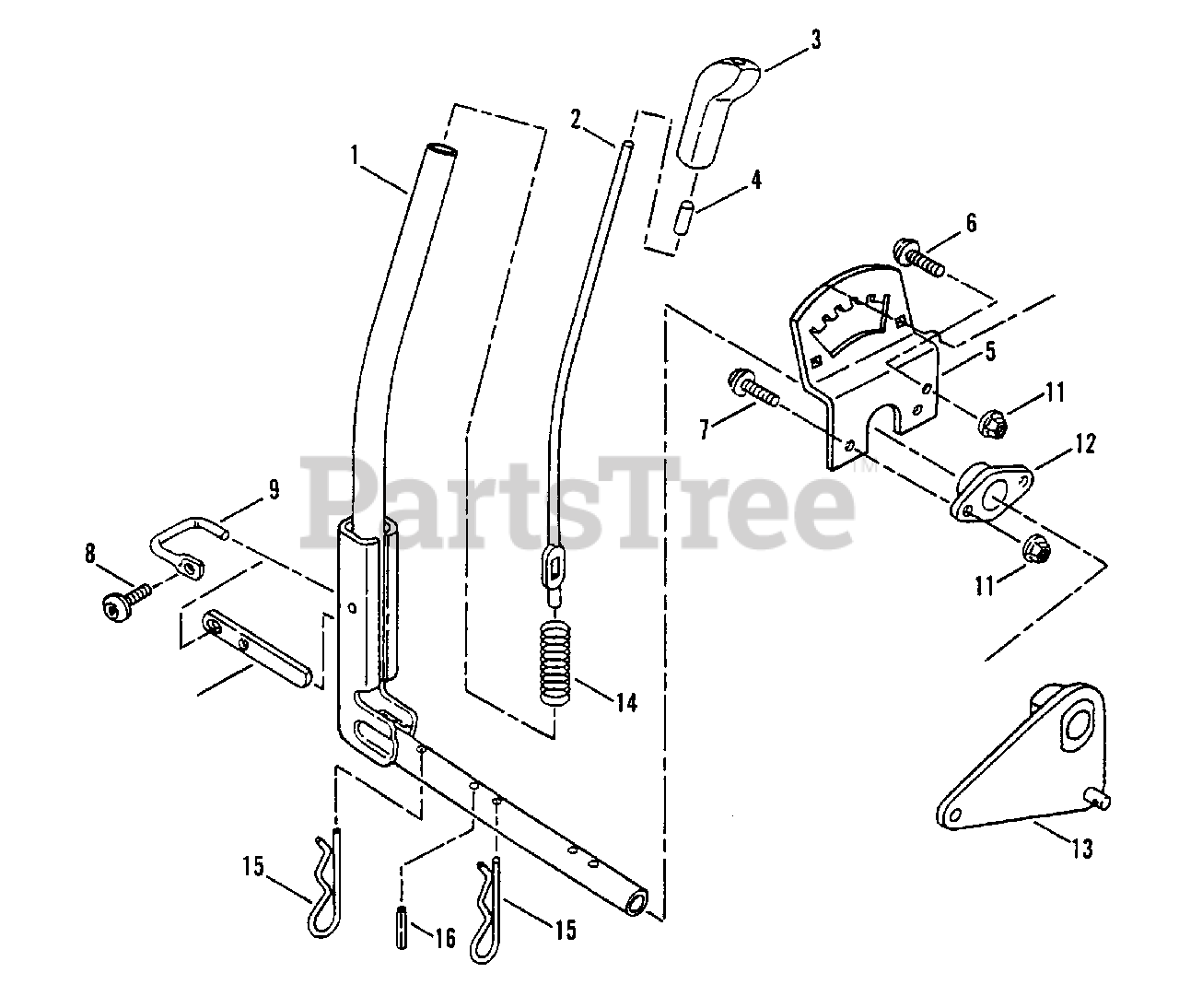

Implement Lift Parts Parts Diagram

  • Title

1

Snapper 7041015

LEVER, Implement Lift
(Superseded to 7041015YP)

Note: (Model LT145H38CBV)

$117.99

$

Usually ships in 2-12 days

0

1

Snapper 7041655

LEVER, Implement Lift
(Superseded to 7041655YP)

Note: (Models: LT160H38CBV, & LT160H42CBV2)

$213.99

$

Usually ships in 2-12 days

0

2

Snapper 7022565

ROD, Lift Lever
(Superseded to 7022565YP)

$10.99

$

Usually ships in 2-12 days

0

3

Snapper 7019363

KNOB, Lift Lever
(Superseded to 7019363YP)

$8.99

$

Usually ships in 2-12 days

0

4

Snapper 7014361

CAP, Lift Lever Rod
(Superseded to 7014361YP)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7033449

QUADRANT, Lift Lever
(Superseded to 7033449YP)

$28.99

$

Usually ships in 2-12 days

0

6

Snapper 7091001

SCREW, 5/16-18 x 5/8" Truss Head (Torx)
(Superseded to 1960086SM)

$5.49

$

In Stock, only 2 left!

0

7

Snapper 7091000

SCREW, 5/16-18 x 7/8" Truss Head (Torx)
(Superseded to 1960086SM)

$5.49

$

In Stock, only 2 left!

0

8

Snapper 7090999

SCREW, 1/4-20 x 5/8 Truss Head (Torx)
(Superseded to 7090999FS)

$4.49

$

Usually ships in 2-12 days

0

9

Snapper 7024742

LATCH, Pivot
(Superseded to 7024742YP)

$4.99

$

Usually ships in 2-12 days

0

10

Snapper 7022568

DETENT, Latch
(Superseded to 7022568YP)

$23.99

$

Usually ships in 2-12 days

0

11

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock Grade 5
(Superseded to 703409)

Note: Was 90585

$5.99

$

In Stock, Qty 20+

0

12

Snapper 7022567

PIVOT, Lift Lever
(Superseded to 7022567YP)

$7.99

$

Usually ships in 2-12 days

0

13

Snapper 7041255

BELLCRANK, Lift Lever
(Superseded to 7041255YP)

$49.99

$

Usually ships in 2-12 days

0

14

Snapper 7022566

SPRING, Latch Detent

$

$

Not available

15

Snapper 7091596

PIN, Hair, 5/32 x 2-5/8"
(Superseded to 7091596YP)

Note: Was 13844

$4.49

$

Usually ships in 2-12 days

0

16

Snapper 7022895

PIN, Dowel, 1/4 x 1-1/8
(Superseded to 7022895YP)

$3.49

$

Usually ships in 2-12 days

0
