LT 160H42DBV (84240) - Snapper 42" Lawn Tractor, 16hp Engine Components (Model: LT160H42DBV) Parts Diagram

42" Lawn Tractor, 16hp

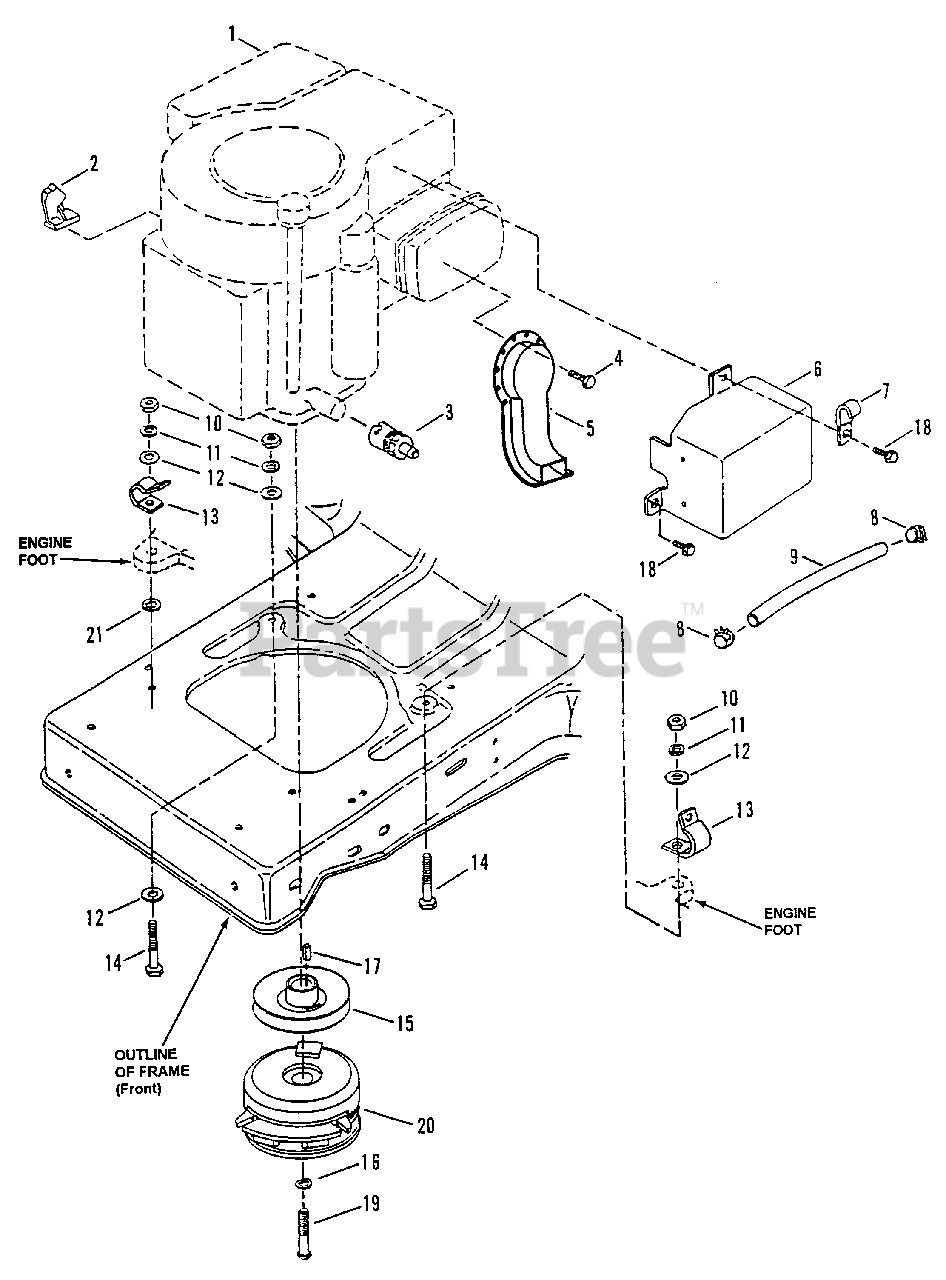

Engine Components (Model: LT160H42DBV) Parts Diagram

  • Title

1

* ENGINE, B. & S. 16.0 HP OHV, Mod. 280777-0672-A1

Note: (Model: LT160H42DBV)

$

$

Not available

2

Snapper 7025079

CLIP, Speed

$

$

Currently unavailable

3

Snapper 7027972

ASSEMBLY, Oil Valve
(Superseded to 7027972SM)

$26.99

$

In Stock, Qty 6

0

4

Snapper 7091581

SCREW, #8-18 x 1/2" Hex Head, Self-Tapping
(Superseded to 7091581YP)

$3.49

$

Usually ships in 2-12 days

0

5

Snapper 7041537

EXTENSION, Muffler
(Superseded to 7041537YP)

$85.99

$

Usually ships in 2-12 days

0

6

Snapper 7041269

HEAT SHIELD, Muffler

$

$

Not available

7

Snapper 7026482

CLIP, "J" Type
(Superseded to 7026482YP)

$3.49

$

In Stock, only 1 left!

0

8

Snapper 7029900

CLAMP, Fuel Line
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 11

0

9

Snapper 7023479

LINE, Fuel, 16" Long
(Superseded to 791745)

$11.99

$

In Stock, Qty 5

0

10

Snapper 7091511

NUT, 5/16-18 Hex, Grade 5 or B
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 5

0

11

Snapper 7091315

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 7

0

12

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 4 left!

0

13

Snapper 7015861

CLIP, Wiring Harness
(Superseded to 7015861SM)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7090669

SCREW, 5/16-18 x 1-3/4" Hex Head Cap, Grade 5
(Superseded to 7090669YP)

$4.49

$

Usually ships in 2-12 days

0

15

Snapper 7028584

PULLEY, Traction Drive
(Superseded to 7028584YP)

$96.99

$

Usually ships in 2-12 days

0

16

Snapper 7091301

WASHER, 7/16 Split Lock
(Superseded to 704007)

$4.49

$

In Stock, Qty 7

0

17

Snapper 7016755

KEY, 1/4 x 1/4 x 3/4" Square
(Superseded to 7016755YP)

$5.49

$

Usually ships in 2-12 days

0

18

Snapper 7091579

BOLT, 1/4-20 x 1/2" Hex Flange Lock, Grade 5
(Superseded to 7091579SM)

$3.99

$

In Stock, only 1 left!

0

19

Snapper 7091703

SCREW, 7/16-20 x 2-1/2" Hex Head Cap, Special, Grade 5
(Superseded to 7091703SM)

$8.49

$

Usually ships in 2-12 days

0

20

Snapper 7053740

CLUTCH/BRAKE

$

$

Not available

21

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0
