LT 1644 (2690117) - Snapper 44" Lawn Tractor, 16hp Transmission Group - Tuff Torq K-57 Parts Diagram

44" Lawn Tractor, 16hp

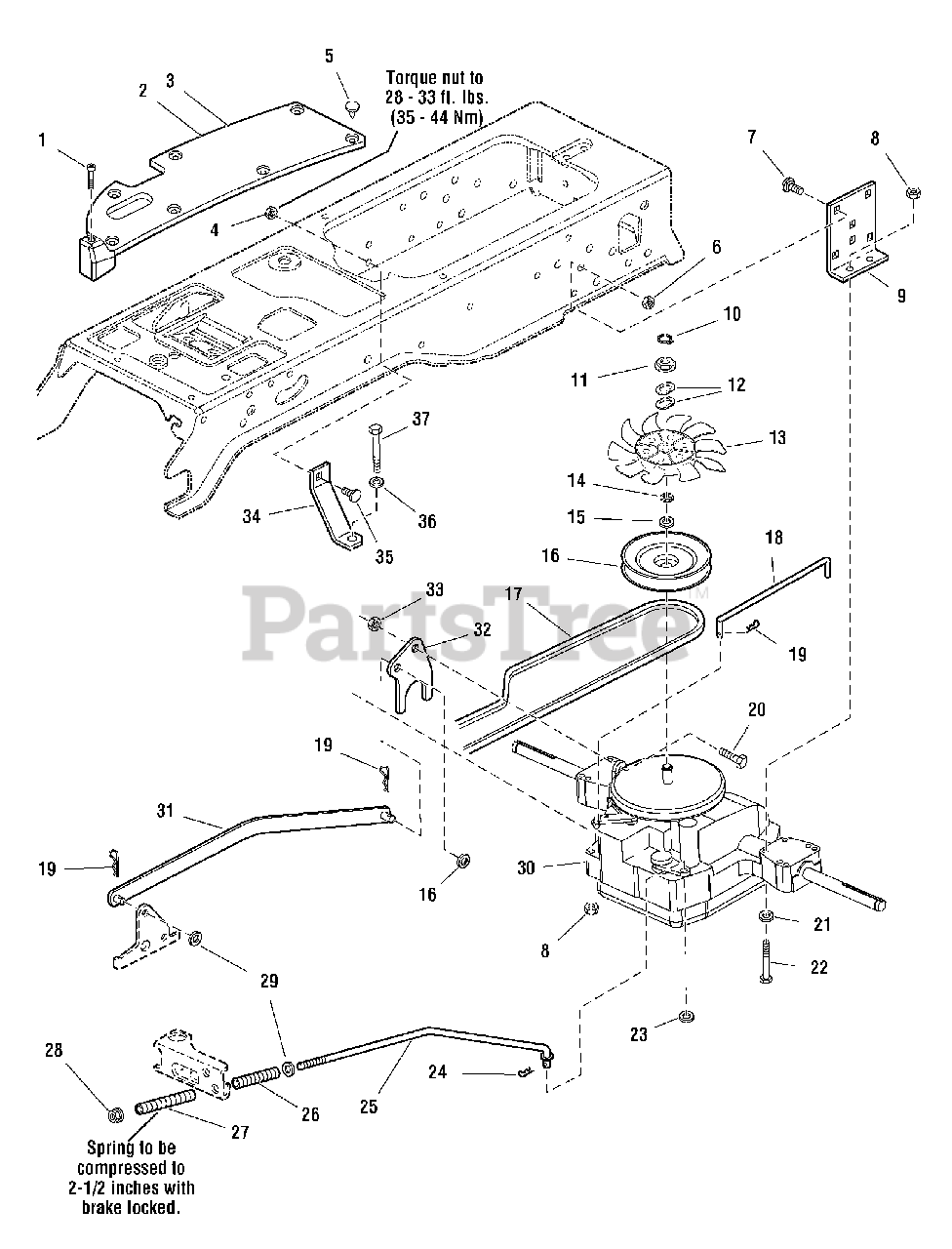

Transmission Group - Tuff Torq K-57 Parts Diagram

  • Title

1

Snapper 1960676

SCREW, Pan Head Torx Taptite, 1/4-20 x 1-1/4, Black
(Superseded to 1960676SM)

$4.49

$

Usually ships in 2-12 days

0

2

Snapper 1722345

PAD, Footrest, LH, without Differential Lock
(Superseded to 1722345SM)

$23.99

$

Usually ships in 2-12 days

0

3

Snapper 1722173

PAD, Footrest, RH
(Superseded to 1722173SM)

$32.99

$

Usually ships in 2-12 days

0

0030

Snapper 1733719SM

ROD, Return

$14.99

$

Usually ships in 2-12 days

0

4

Snapper 1960636

NUT, Hex KEPS, 5/16-18, Black
(Superseded to 1960636SM)

$4.99

$

In Stock, only 1 left!

0

5

Snapper 1704351

FASTENER, Panel
(Superseded to 1704351SM)

$4.99

$

Usually ships in 2-12 days

0

6

Snapper 1960637

NUT, Hex KEPS, 3/8-16, Black
(Superseded to 1960637SM)

$3.49

$

In Stock, only 1 left!

0

7

Snapper 1931350

CARRIAGE BOLT, 3/8-16 x 1, Black
(Superseded to 703815)

$4.49

$

In Stock, Qty 5

0

0070

Snapper 1709043SM

SPACER, w/Flange, 11/32 x 15/32 x 3/4

$8.49

$

Usually ships in 2-12 days

0

8

Snapper 1960686

NUT, Hex Flange ESNA, 5/16-18, Black
(Superseded to 703115)

$3.49

$

In Stock, Qty 7

0

9

Snapper 1721728A

SUPPORT, Transmission
(Superseded to 1721728ASM)

$14.99

$

Usually ships in 2-12 days

0

10

Snapper 1724316

RING, Snap, Transmission
(Superseded to 7073757YP)

$4.99

$

In Stock, Qty 13

0

11

Snapper 1724312

COLLOR, Spline, Transmission
(Superseded to 7073747YP)

$13.99

$

In Stock, only 3 left!

0

12

Snapper 1724315

LOCK WASHER, Transmission
(Superseded to 1724315SM)

$4.49

$

In Stock, only 3 left!

0

13

Snapper 1724314

FAN, 10 Blade, Transmission
(Superseded to 7073753YP)

$53.99

$

In Stock, only 2 left!

0

14

Snapper 1718076

RING, E, Transmission
(Superseded to 7073756YP)

$4.49

$

Usually ships in 2-12 days

0

15

Snapper 80003590

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

16

Snapper 1721666

PULLEY & HUB ASSEMBLY

$

$

Not available

17

Snapper 1721696

V-BELT, Drive
(Superseded to 1721696SM)

$58.99

$

In Stock, only 1 left!

0

18

Snapper 1721616

ROD
(Superseded to 1721616SM)

$9.49

$

Usually ships in 2-12 days

0

19

Snapper 1722460

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, Qty 8

0

21

Snapper 1919326

WASHER, 5/16, Black
(Superseded to 703332)

$4.49

$

In Stock, Qty 11

0

22

Snapper 1923141

CAPSCREW, Hex Head, 5/16-18 x 2-3/4, Black
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

23

Snapper 1918267

WASHER, 15/32 x 15/16, Black
(Superseded to 1918267SM)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper 1918447

PIN, Cotter, Black
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

26

Snapper 1722684

SPRING, Compression, 3-1/4" Long, Black
(Superseded to 1722684SM)

$4.49

$

Usually ships in 2-12 days

0

27

Snapper 1729277

SPRING, Compression, 3-5/8" Long, Black
(Superseded to 1729277SM)

$6.99

$

Usually ships in 2-12 days

0

28

Snapper 1960687

NUT, Hex FlangeESNA, 3/8-16, Black
(Superseded to 703158)

$3.49

$

In Stock, Qty 20+

0

29

Snapper 1924940

WASHER, 3/8, Black
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

30

Snapper 1722668

TRANSMISSION ASSEMBLY, K57, without Pulley
(Superseded to 1687313SM)

$2308.99

$

Usually ships in 2-12 days

0

31

Snapper 1725317

CONTROL ARM ASSEMBLY
(Superseded to 1725317SM)

$27.99

$

Usually ships in 2-12 days

0

32

Snapper 1724423A

ARM, Control
(Superseded to 1724423ASM)

$12.99

$

Usually ships in 2-12 days

0

33

Snapper 1960636

NUT, KEPS Lock, 5/16-18
(Superseded to 1960636SM)

$4.99

$

In Stock, only 1 left!

0

34

Snapper 1721592A

STRAP, Torque
(Superseded to 1721592ASM)

$8.99

$

Usually ships in 2-12 days

0

35

Snapper 1931335

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

36

Snapper 1960141

WASHER, 5/16, Black
(Superseded to 1960141SM)

$3.99

$

Usually ships in 2-12 days

0

37

Snapper 1922127

CAPSCREW, Hex Head, 5/16-18 x 1-3/4, Balck
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0
