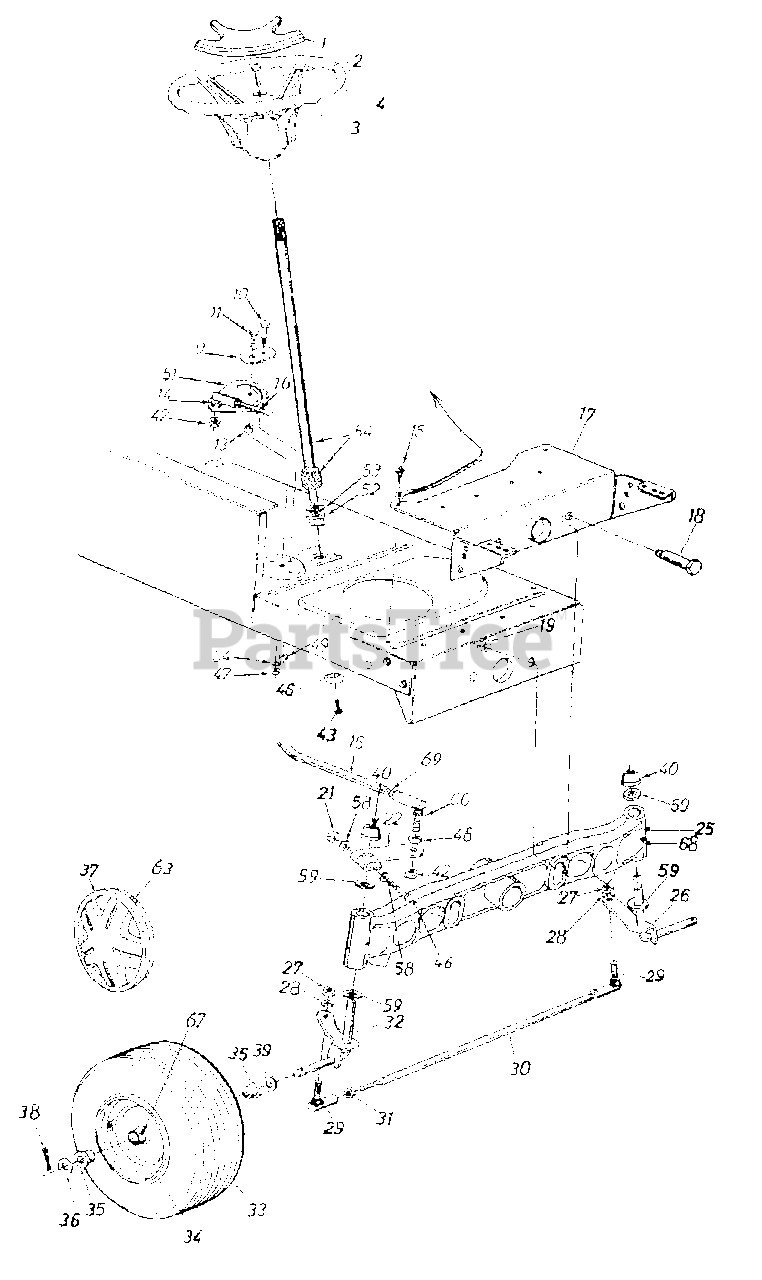

LT-165 (13AD696G190) - White Outdoor 42" Lawn Tractor (1999) Steering Assembly Parts Diagram

42" Lawn Tractor

Steering Assembly Parts Diagram

  • Title

1

White Outdoor 731-1509A

Steering Wheel Cap

$

$

Not available

2

White Outdoor 710-0643

Hex Bolt 5/16-18 x 1" Lg.

$7.49

$

In Stock, Qty 20+

0

3

White Outdoor 736-0242

Belleville Wash. .345" I.D.

$4.99

$

In Stock, Qty 20+

0

4

White Outdoor 731-1686

Steering Wheel
(Superseded to 931-1686)

$

$

Not available

9

White Outdoor 17198A

Retainer Plate
(Superseded to 783P08577A)

$7.99

$

In Stock, Qty 20+

0

10

White Outdoor 738-0141

Shoulder Bolt .437" Dia. x .35" Lg.-5/16-18 Thd.
(Superseded to 938-0141)

$7.49

$

In Stock, only 1 left!

0

11

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1.0" Lg. (Grade 5)
(Superseded to 710-1039)

$4.99

$

In Stock, Qty 18

0

13

White Outdoor 750-0535

Spacer .380" I.D. x .625" O.D. x .227
(Superseded to 950-0535)

$4.99

$

In Stock, Qty 12

0

14

White Outdoor 736-0217

L-Wash. 3/8" I.D. (H.D.)

$4.49

$

In Stock, only 3 left!

0

15

White Outdoor 710-0726

Hex Wash. Hd. Self-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 711-1107

Steering Drag Link
(Superseded to 911-1107)

$41.99

$

In Stock, Qty 7

0

17

White Outdoor 783-0041A

Pivot Bar Brkt.
(Superseded to 783-0041C)

Variations

White Outdoor 783-0041A-0483

Pivot Bar Bracket - CHARCOAL GRAY (0483)

$89.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0041A-0637

BRACKET-PIVOT BAR - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0041A-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0041A-0638

BRACKET-PIVOT BAR - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0041A-0648

BRACKET-PIVOT BAR - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0041A-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

$77.99

$

Usually ships in 3-6 days

0

18

White Outdoor 738-0527

Shoulder Bolt .498" Dia. x 2.04"

$9.49

$

In Stock, Qty 10

0

19

White Outdoor 712-0431

Flanged Hex Nut 3/8-16 Thd.
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

21

White Outdoor 712-0411

Hex L-Nut 5/16-24 Thd.

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 683-0055

Steering Arm Front Axle
(Superseded to 983-0055-0637)

$50.99

$

In Stock, Qty 10

0

?23

White Outdoor 710-0772

Hex Bolt 5/16-24 x 2.00" Lg. (Grade 5)

$4.99

$

Usually ships in 3-6 days

0

25

White Outdoor 719-0342

Pivot Bar Ass'y.
(Superseded to 919-0342B)

$

$

Not available

26

White Outdoor 683-0125

Front Axle Ass'y.-L.H.
(Superseded to 983-0125)

$169.99

$

Usually ships in 3-6 days

0

27

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 16

0

28

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

29

White Outdoor 723-3018

Ball Joint 3/8-24 Thd.
(Superseded to 923-3018)

$17.99

$

In Stock, Qty 20+

0

30

White Outdoor 747-0753

Tie Rod

$36.99

$

In Stock, Qty 11

0

31

White Outdoor 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 683-0124

Front Axle Ass'y.-R.H.
(Superseded to 983-0124)

$169.99

$

Usually ships in 3-6 days

0

33

White Outdoor 634-0059

Wheel Ass'y. Comp.

Variations

White Outdoor 634-0059-0911

No Longer Available WHEEL ASSY W/TIRE - Carlisle Gray (0911)

$

$

Not available

White Outdoor 634-0059-0912

No Longer Available - Dico Gray (0912)

$

$

Not available

White Outdoor 634-0059-0916

No Longer Available - Kenda Gray (0916)

$

$

Not available

White Outdoor 634-0059-0931

No Longer Available WHEEL ASSY W/TIRE - Carlisle Beige (0931)

$

$

Not available

White Outdoor 634-0059-0941

No Longer Available WHEEL ASSY W/TIRE - Carlisle Yellow (0941)

$

$

Not available

White Outdoor 634-0059-0942

No Longer Available WHEELASM W/TIRE - Dico Yellow (0942)

$

$

Not available

$

$

White Outdoor 734-0864

Tire Only

Variations

White Outdoor 734-0864-0901

TIRE 15 X 6 - Carlisle (0901)

$145.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0864-0902

TIRE 15 X 6 DICO T - Dico (0902)

$145.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0864-0904

TIRE - Cheng (0904)

$145.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0864-0905

TIRE 15 X 6 - Duro (0905)

$52.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0864-0906

TIRE-15X6 KENDA - Kenda (0906)

$

$

Not available

$117.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 634-0051

Front Wheel Rim Only

Variations

White Outdoor 634-0051-0629

WHEEL RIM 6 X 4.5 - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 634-0051-0662

WHEEL RIM 6 X 4.5 - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 634-0051-0499

WHEEL RIM 6 X 4.5 - CUB BEIGE (0499)

$

$

Not available

White Outdoor 634-0051-0674

WHEEL RIM 6 X 4.5 - YARDMAN YELLOW (0674)

$

$

Not available

$

$

35

White Outdoor 741-0569

Bearing
(Superseded to 941-0569)

$37.99

$

In Stock, only 1 left!

0

36

White Outdoor 736-0285

Fl-Wash. .635" I.D. x 1.59" O.D.

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 734-1783A

Hub Cap

$

$

Not available

38

White Outdoor 714-0470

Cotter Pin 1/8" Dia. x 1.25"

$4.49

$

In Stock, Qty 20+

0

39

White Outdoor 736-0366

Fl-Wash. .640" I.D. x 1.24" O.D.

$4.99

$

In Stock, Qty 20+

0

40

White Outdoor 726-0214

Push Cap 5/8" Dia. Rod

$11.99

$

In Stock, Qty 20+

0

42

White Outdoor 712-0262

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 18

0

43

White Outdoor 710-1309

Torx Bolt 5/16-18 x .63" Lg.

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 748-0389

Cap 1.25 x .16
(Superseded to 948-0389)

$5.49

$

In Stock, Qty 20+

0

47

White Outdoor 712-0214

Hex Cent. L-Nut 3/8-24 Thd.

$6.99

$

In Stock, Qty 20+

0

48

UNKNOWN

$

$

Not available

49

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 14

0

51

White Outdoor 717-0622A

Steering Gear Segment
(Superseded to 717-0622C)

$56.99

$

In Stock, only 3 left!

0

52

White Outdoor 741-0656

Hex . Flg. Brg. 5/8" I.D.
(Superseded to 941-0656A)

$5.49

$

In Stock, Qty 20+

0

53

White Outdoor 736-0187

Fl-Wash. (Hardened)

$4.99

$

In Stock, Qty 20+

0

54

White Outdoor 738-0919

Steering Shaft
(Superseded to 738-0919B)

$62.99

$

In Stock, Qty 20+

0

58

White Outdoor 736-0271

Wave-Wash. .32" I.D. x .62" O.D.
(Superseded to 936-0271)

$4.99

$

In Stock, Qty 9

0

59

White Outdoor 736-0187

Fl-Wash. (Hardened)

$4.99

$

In Stock, Qty 20+

0

60

White Outdoor 723-0448A

Drag Link Ball Joint 3/8-24 Thd.
(Superseded to 923-0448A)

Note: Code: N notates a new part (not previously existing)

$25.99

$

In Stock, Qty 20+

0

63

White Outdoor 727-0425A

Spring Clip
(Superseded to 927-0425A)

$

$

Not available

64

White Outdoor 736-0356

Bell-Wash. .39" I.D. x 1.38" O.D.
(Superseded to 936-0356)

$

$

Not available

67

White Outdoor 737-0280

Grease Fitting

$8.49

$

In Stock, only 4 left!

0

68

White Outdoor 737-3000

Grease Fitting
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

69

White Outdoor 712-0240

Hex Jam Nut 7/16-20
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0
