LT-1650 (13AO616G190) - White Outdoor 42" Lawn Tractor (2000) Engine Accessories - Industrial Plus Single Parts Diagram

42" Lawn Tractor

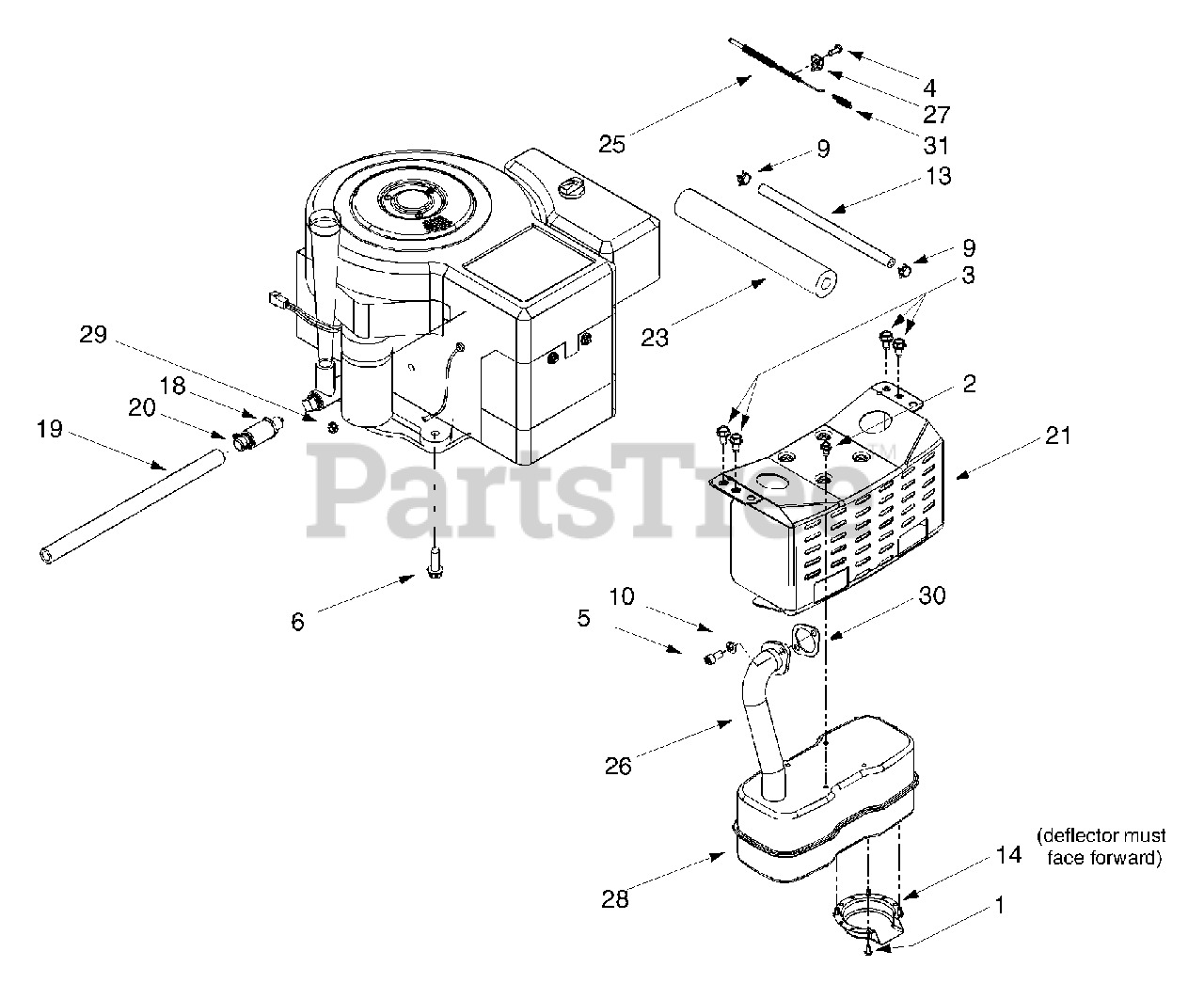

Engine Accessories - Industrial Plus Single Parts Diagram

  • Title

1

White Outdoor 710-0148

Self-tapping Screw, #8-32 x .375

$3.99

$

In Stock, Qty 16

0

2

White Outdoor 710-0599

Self-tapping Screw, 1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 710-0604A

Self-tapping Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 20+

0

4

White Outdoor 710-1237

Screw, #10-32 x .625

$4.49

$

Usually ships in 3-6 days

0

5

White Outdoor 710-1314

Socket Cap Screw, 5/16-18 x .625
(Superseded to 710-1314A)

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-1315

Self-tapping Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

13

751-0535

Fuel Line Hose

$

$

Not available

14

White Outdoor 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$12.99

$

In Stock, Qty 20+

0

18

White Outdoor 751-3140

Oil Drain Valve
(Superseded to 951-10517A)

$22.99

$

In Stock, Qty 20+

0

19

White Outdoor 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 20+

0

20

White Outdoor 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 7

0

21

White Outdoor 783-0615

Muffler Heat Shield
(Superseded to 783-0615E-0637)

Variations

White Outdoor 783-0615-0637

Muffler Bracket - POWDER BLACK (0637)

$59.99

$

In Stock, only 4 left!

0

$59.99

$

In Stock, only 4 left!

0

23

White Outdoor 722-0263

Foam
(Superseded to 723-3066-24)

Note: (Fits over fuel line)

$15.99

$

In Stock, only 4 left!

0

25

White Outdoor 746-1084

Throttle/Choke Cable (
(Superseded to 946-1084)

Note: Industrial Plus Single)

$29.99

$

Usually ships in 3-6 days

0

26

White Outdoor 751-0619

Exhaust Pipe
(Superseded to 751-0619B)

Note: (Industrial Plus Single)

$70.99

$

In Stock, only 3 left!

0

27

White Outdoor 751B213146

Casing Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 2 left!

0

28

White Outdoor 751-0617

Muffler, Single Inlet
(Superseded to 951-0617C)

$138.99

$

In Stock, Qty 8

0

29

White Outdoor 712-0271

Hex Sems Nut, 1/4-20

Note: (For starter cable)

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 721-0208

Exhaust Gasket
(Superseded to BS-692236)

Note: (Industrial Plus Single)

$5.49

$

In Stock, Qty 20+

0

31

White Outdoor 732-0966

Extension Spring, .275 x 1.25

$

$

Not available
