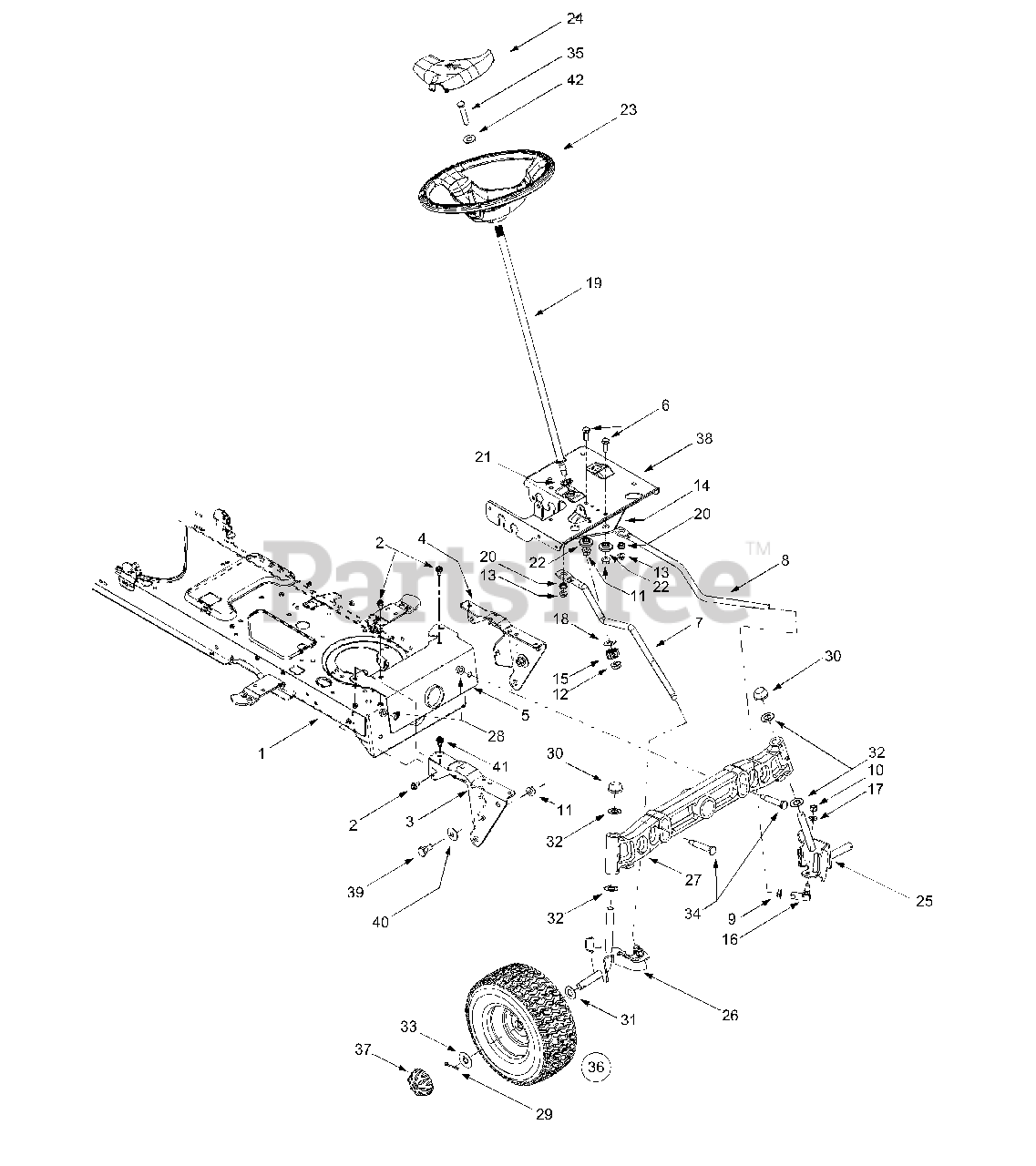

LT-1650 (13CO616G190) - White Outdoor 42" Lawn Tractor (2001) Steering and Front Axle Parts Diagram

42" Lawn Tractor

Steering and Front Axle Parts Diagram

  • Title

1

MTD 683-0304

Lower Frame Assembly

Note: NLA

Variations

MTD 683-0304-0637

No Longer Available LOWER FRAM - POWDER BLACK (0637)

$

$

Not available

MTD 683-0304-0650

No Longer Available LOWER FRAM - RED METALLIC (0650)

$

$

Not available

MTD 683-0304-0665

No Longer Available LOWER FRAM - YARDMAN GREEN (0665)

$

$

Not available

MTD 683-0304-0691

No Longer Available LOWER FRAM - BLACK JACK (0691)

$

$

Not available

MTD 683-0304-0716

No Longer Available LOWER FRAM - CUB YELLOW-99 (0716)

$

$

Not available

$

$

2

MTD 710-0604A

Self-tapping Screw, 16-18 x .625

$3.99

$

In Stock, Qty 20+

0

3

MTD 783-0726E

RH Pivot Support Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-0726E-0606

Pivot Support Bracket, RH - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0726E-0498

Pivot Support Bracket, RH - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0726E-0637

BRACKET:PIVOT:SUPT - POWDER BLACK (0637)

$

$

Not available

MTD 783-0726E-0650

BRACKET:PIVOT:SUPT - RED METALLIC (0650)

$

$

Not available

MTD 783-0726E-0691

BRACKET:PIVOT:SUPT - BLACK JACK (0691)

$

$

Not available

MTD 783-0726E-0716

Pivot Support Bracket, RH - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0726E-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0726E-4008

BRACKET:PIVOT:SUPT - WINE RED (4008)

$

$

Not available

$

$

4

MTD 783-0727D

LH Pivot Support Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-0727D-0606

BRACKET:PIVOT:SUPT - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0727D-0498

Pivot Support Bracket, LH - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0727D-0637

BRACKET:PIVOT:SUPT - POWDER BLACK (0637)

$

$

Not available

MTD 783-0727D-0650

BRACKET:PIVOT:SUPT LH - RED METALLIC (0650)

$

$

Not available

MTD 783-0727D-0691

BRACKET:PIVOT:SUPT - BLACK JACK (0691)

$

$

Not available

MTD 783-0727D-0716

Pivot Support Bracket, LH - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0727D-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0727D-4008

BRACKET:PIVOT:SUPT - WINE RED (4008)

$

$

Not available

$

$

5

MTD 783-0728B

Pivot Bar Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-0728B-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

MTD 783-0728B-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$43.99

$

Usually ships in 3-6 days

0

MTD 783-0728B-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$43.99

$

Usually ships in 3-6 days

0

MTD 783-0728B-0691

BRACKET-PIVOT BAR - BLACK JACK (0691)

$43.99

$

Usually ships in 3-6 days

0

MTD 783-0728B-4008

BRACKET-PIVOT BAR - WINE RED (4008)

$43.99

$

Usually ships in 3-6 days

0

MTD 783-0728B-0498

Pivot Bar Bracket - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0728B-0716

Pivot Bar Bracket - CUB YELLOW-99 (0716)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

6

MTD 710-0514

Hex Cap Screw, 3/8-16 x 1 (Grade 5)

$3.99

$

In Stock, Qty 20+

0

7

MTD 711-1408

RH Drag Link

$

$

Not available

8

MTD 711-1409A

LH Drag Link

$

$

Not available

9

MTD 912-0240

Jam Nut, 7/16-20 (Grade 2)

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-0241

Hex Nut, 3/8-24 (Grade 2)

$4.49

$

In Stock, Qty 20+

0

11

MTD 912-0431

Flange Lock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

12

MTD 712-0459

Flange Lock Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

13

MTD 712-3004A

HEX FLANGE NUT

$3.49

$

In Stock, Qty 20+

0

14

MTD 717-1550F

Steering Gear, 11/90 Ratio

$65.99

$

In Stock, Qty 20+

0

15

MTD 717-1554

Steering Pinion Gear

$10.99

$

In Stock, Qty 20+

0

16

MTD 923-0448A

Ball Joint, 7/16-20

$22.99

$

In Stock, Qty 20+

0

17

MTD 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

18

MTD 736-3084

Flat Washer, .51 x 1.12 x .06

$4.49

$

In Stock, Qty 20+

0

19

MTD 738-1001A

Steering Shaft, .625 OD x 24.4

$69.99

$

In Stock, Qty 6

0

20

MTD 941-0475

Plastic Bushing, .38 ID

$3.99

$

In Stock, Qty 20+

0

21

MTD 941-0656A

Hex Flange Bearing, 5/8

$4.99

$

In Stock, Qty 20+

0

22

MTD 738-0372B

Shoulder Spacer, .38 ID

$8.99

$

In Stock, Qty 20+

0

23

MTD 931-2295

Soft Touch Steering Wheel

$

$

Not available

24

MTD 731-2296

Steering Wheel Cap

$

$

Not available

25

MTD 938-0019A

LH Axle Assembly, .625 Dia.

Note: (Model LT-1650)

$53.99

$

In Stock, Qty 16

0

25

MTD 938-0021

LH Axle Assembly, .625/.750 Dia.

Note: (Models LT-1850/2150)

$96.99

$

In Stock, Qty 6

0

26

MTD 938-0020A

RH Axle Assembly, .625 Dia.

Note: (Model LT-1650)

$

$

Not available

26

MTD 938-0022

RH Axle Assembly, .625/.750 Dia.

Note: (Models LT-1850/2150)

$92.99

$

In Stock, only 3 left!

0

27

MTD 719-0399B

Cast Iron Pivot Bar w/ Fittings, .625

Note: (Model LT-1650)

$

$

Not available

27

MTD 919-04177A

Cast Iron Pivot Bar w/ Fittings, .750
(Superseded to 919-04177E)

Note: (Models LT-1850/2150)

$231.99

$

Usually ships in 3-6 days

0

28

MTD 912-0431

Flange Lock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

29

MTD 914-0470

Cotter Pin
(Superseded to 714-0470)

$3.99

$

In Stock, Qty 20+

0

30

MTD 726-0214

Push Cap, .625

$9.99

$

In Stock, Qty 20+

0

31

MTD 736-0162

Flat Washer, .64 x 1.0 x .12

$3.99

$

In Stock, Qty 20+

0

32

MTD 736-0187

Flat Washer, .64 x 1.24 x .06

Note: (Model LT-1650)

$4.49

$

In Stock, Qty 20+

0

32

MTD 936-0316

Flat Washer, .78 x 1.59 x .06
(Superseded to 736-0316)

Note: (Models LT-1850/2150)

$3.99

$

In Stock, Qty 20+

0

33

MTD 736-0285

Flat Washer, .635 x 1.589 x .06

$3.99

$

In Stock, Qty 20+

0

34

MTD 738-1011A

Shoulder Screw, .5 x 2.2, 3/8-16

$7.99

$

In Stock, Qty 12

0

35

MTD 710-0643

Hex Bolt, 5/16-18 X 1

$6.49

$

In Stock, Qty 20+

0

36

MTD 634-0115

Wheel Assembly Complete, 15 x 6 x 6

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 634-0115-0911

No Longer Available WHEEL ASM - Carlisle Gray (0911)

$

$

Not available

MTD 634-0115-0916

No Longer Available WHEEL ASM - Kenda Gray (0916)

$

$

Not available

MTD 634-0115-0914

No Longer Available -0911 WHE - Cheng Gray (0914)

$

$

Not available

MTD 634-0115-0931

No Longer Available WHEEL ASM - Carlisle Beige (0931)

$

$

Not available

$

$

36

MTD 934-0051-0662

Rim w/ Ball Bearings

Note: (Not Shown)

$

$

Not available

36

MTD 941-0569

Ball Bearing

Note: (Not Shown)

$32.99

$

In Stock, only 3 left!

0

36

MTD 934-0255

Air Valve

Note: (Not Shown)

$3.99

$

In Stock, Qty 20+

0

36

MTD 734-1731

Tire Only, Square Shoulder

Note: *CHOOSE COLOR WHEN ORDERING* (Not Shown)

Variations

MTD 734-1731-0901

Tire, 15 X 6 Square Tread - Carlisle (0901)

$46.99

$

Usually ships in 3-6 days

0

MTD 734-1731-0902

TIRE-MULTI TRAC 15 - Dico (0902)

$41.99

$

In Stock, only 3 left!

0

MTD 734-1731-0904

Tire, 15 X 6 Square Tread - Cheng (0904)

$46.99

$

Usually ships in 3-6 days

0

MTD 734-1731-0905

Tire, 15 X 6 Square Tread - Duro (0905)

$46.99

$

Usually ships in 3-6 days

0

MTD 734-1731-0906

Tire, 15 X 6 Square Tread - Kenda (0906)

$46.99

$

Usually ships in 3-6 days

0

$103.99

$

In Stock, only 1 left!

0

37

MTD 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

38

MTD 783-04612-0637

Steering Support Bracket

$83.99

$

In Stock, only 3 left!

0

39

MTD 738-0143

SHOULDER SCREW .498 DIA x .340

$3.99

$

In Stock, Qty 20+

0

40

MTD 736-0331

Bell Washer, .39 x 1.13 x .062

$3.99

$

In Stock, Qty 20+

0

41

MTD 710-1260A

Self-tapping Screw, 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

42

MTD 736-0242

Bell Washer, .34 x .872

$3.99

$

In Stock, Qty 20+

0
