LT-1650 (13CO616G190) - White Outdoor 42" Lawn Tractor (2002) Fuel Tank & Hood Assembly Parts Diagram

42" Lawn Tractor

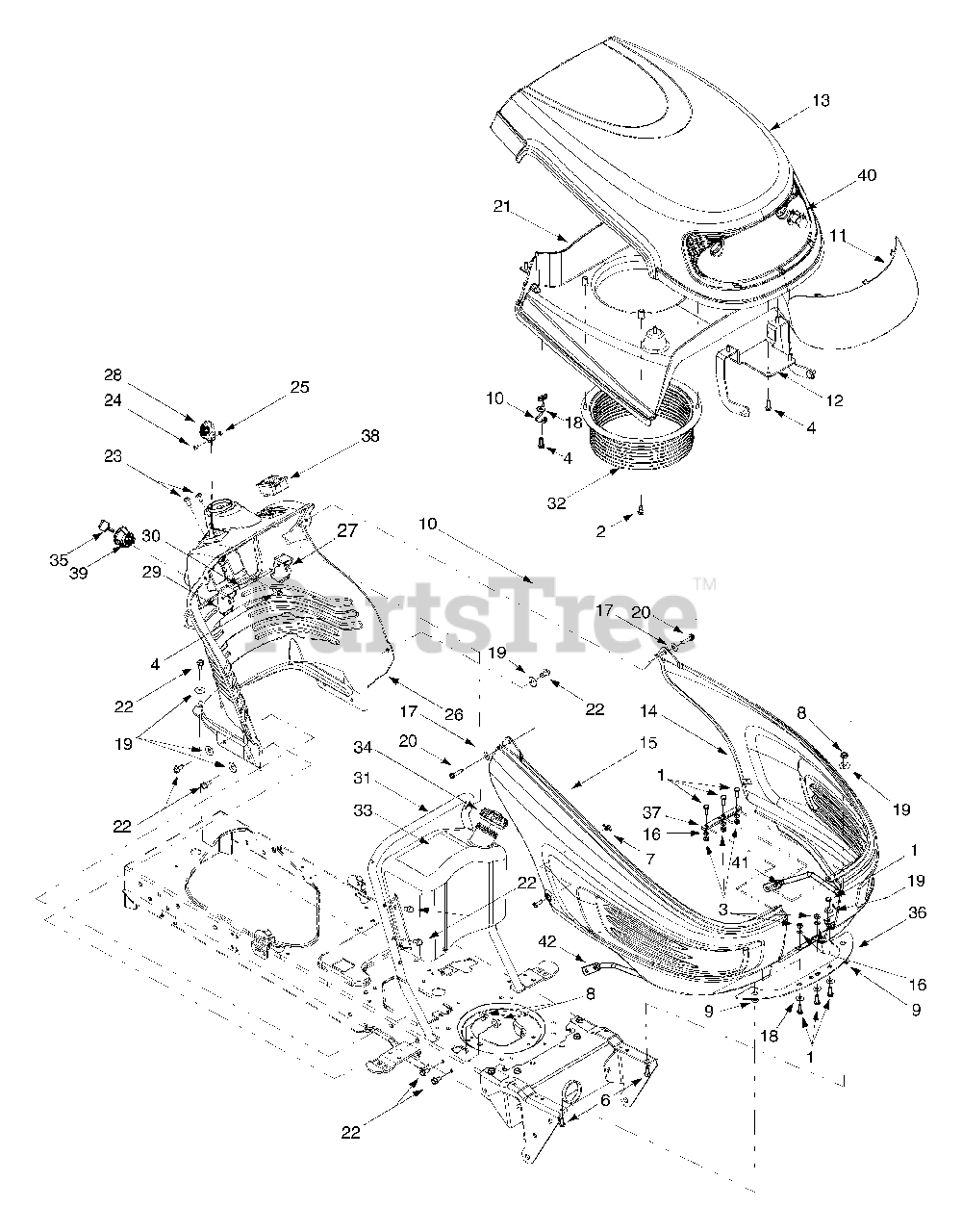

Fuel Tank & Hood Assembly Parts Diagram

  • Title

1

White Outdoor 710-3015

Hex Cap Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 12

0

4

White Outdoor 710-0895

Self-tapping Screw, 1/4-15 x .75

$6.99

$

In Stock, Qty 20+

0

?5

White Outdoor 710-0924

Pan Phillips Screw, 1/4-20 x .75

$4.99

$

In Stock, Qty 20+

0

6

White Outdoor 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.99

$

In Stock, Qty 20+

0

7

White Outdoor 712-0292

U-type Speed Nut, 1/4-20

$10.99

$

In Stock, only 3 left!

0

8

White Outdoor 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 726-0201

Speed Nut

$7.49

$

In Stock, Qty 20+

0

10

White Outdoor 747-2127

Hood Latch Rod

$12.99

$

Usually ships in 3-6 days

0

11

White Outdoor 731-2286

Head Light Lens
(Superseded to 931-2286)

$

$

Not available

12

White Outdoor 683-0305

Hood Bracket Assembly
(Superseded to 683-0305-0637)

Variations

White Outdoor 683-0305-0637

Hood Bracket Assembly, 6 ST - POWDER BLACK (0637)

$

$

Not available

$

$

13

White Outdoor 731-2283A

Hood
(Superseded to 931-2283A)

$

$

Not available

14

White Outdoor 731-2327A

LH Side Panel
(Superseded to 931-2327C)

$

$

Not available

15

White Outdoor 731-2328A

RH Side Panel
(Superseded to 931-2328C)

$

$

Not available

16

White Outdoor 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 16

0

17

White Outdoor 736-0342

Flat Washer, .283 x .75 x .030

$7.99

$

Usually ships in 3-6 days

0

18

White Outdoor 736-0173

Flat Washer, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 736-3078

Flat Washer, .349 x 1.0 x .063

$4.99

$

In Stock, Qty 6

0

20

White Outdoor 710-0809

Self-tapping Screw, 1/4-20 x 1.25

$7.49

$

In Stock, Qty 8

0

21

White Outdoor 731-2284

Hood Plenum w/o Intake Bellow

$63.99

$

Usually ships in 3-6 days

0

22

White Outdoor 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.99

$

In Stock, Qty 19

0

23

White Outdoor 710-1017

Torx Self-tapping Screw, 1/4-14 x .625

$8.99

$

In Stock, Qty 14

0

24

White Outdoor 710-3217

Torx Screw, #8-32 x .375

$7.49

$

In Stock, Qty 5

0

25

White Outdoor 712-0142

Hex Nut, 8-32

$4.99

$

In Stock, Qty 8

0

26

White Outdoor 731-0069C

Dash Panel, 4-style
(Superseded to 631-04035A)

Note: (LT-1650)

$

$

Not available

731-0071C

Dash Panel, 4-style

Note: (LT-1850)

$

$

Not available

27

White Outdoor 731-0072

Parking Brake Button

$

$

Not available

28

White Outdoor 731-1857

Throttle Control Lever

$15.99

$

In Stock, only 4 left!

0

29

White Outdoor 731-2106

Cruise Control Button

$

$

Not available

30

White Outdoor 747-1155

Brake/Cruise Pivot Rod

$13.99

$

Usually ships in 3-6 days

0

31

White Outdoor 749-1087A

Dash Support Tube
(Superseded to 749-1087A-0637)

Variations

White Outdoor 749-1087A-0637

TUBE-DASH SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

32

White Outdoor 731-2234

Intake Bellow
(Superseded to 731-2234A)

Note: (LT-1850)

$29.99

$

Usually ships in 3-6 days

0

~N/A

Intake Bellow

Note: (LT-1650)

$

$

Not available

33

White Outdoor 751-0659C

Fuel Tank, 2-gallon
(Superseded to 751-0659D)

Note: (LT-1650)

$90.99

$

In Stock, Qty 5

0

White Outdoor 751-0658C

Fuel Tank, 3-gallon
(Superseded to 751-0658E)

Note: (LT-1850)

$122.99

$

In Stock, only 1 left!

0

34

White Outdoor 751-0603

Fuel Cap
(Superseded to 751-0603B)

$24.99

$

In Stock, Qty 7

0

35

White Outdoor 725-1745

Ignition Key w/ plastic cover
(Superseded to 925-1745A)

$18.99

$

In Stock, Qty 20+

0

White Outdoor 725-1744

Ignition Key w/o plastic cover
(Superseded to 925-1745A)

$18.99

$

In Stock, Qty 20+

0

36

White Outdoor 731-2272

Heat Shield

$

$

Not available

37

White Outdoor 783-1000A

Grille Support Bracket

Variations

White Outdoor 783-1000A-0637

BRACKET-GRILLE SUP - POWDER BLACK (0637)

$

$

Not available

$

$

38

White Outdoor 725-1976

Systems Indicator Monitor
(Superseded to 925-1976)

$

$

Not available

39

White Outdoor 725-1741

Ignition Switch
(Superseded to 925-1741)

$47.99

$

In Stock, Qty 15

0

40

White Outdoor 625-0051

Headlight Assembly
(Superseded to 925-0051)

$17.99

$

In Stock, only 1 left!

0

41

White Outdoor 747-1303

LH Rod

Variations

White Outdoor 747-1303-0637

No Longer Available ROD-LH 4/6 STY - POWDER BLACK (0637)

$

$

Not available

$

$

42

White Outdoor 747-1304

RH Rod
(Superseded to 747-1304-0637)

Variations

White Outdoor 747-1304-0637

ROD-RH 4/6 STY - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 629-0469A

Headlight Wire Harness
(Superseded to 929-0469B)

$

$

Not available

White Outdoor 629-1069

Tractor Wire Harness

Note: (LT-1850)

$

$

Not available

White Outdoor 629-1071

Tractor Wire Harness
(Superseded to 929-1071)

Note: (LT-1650)

$333.99

$

Usually ships in 3-6 days

0

White Outdoor 725-1657A

Interlock Switch, snap mount.
(Superseded to 925-1657A)

Note: (Not Shown)

$25.99

$

In Stock, only 4 left!

0
