LT-175 (13A2683G790) - White Outdoor 42" Lawn Tractor (2004) Deck Assembly Parts Diagram

42" Lawn Tractor

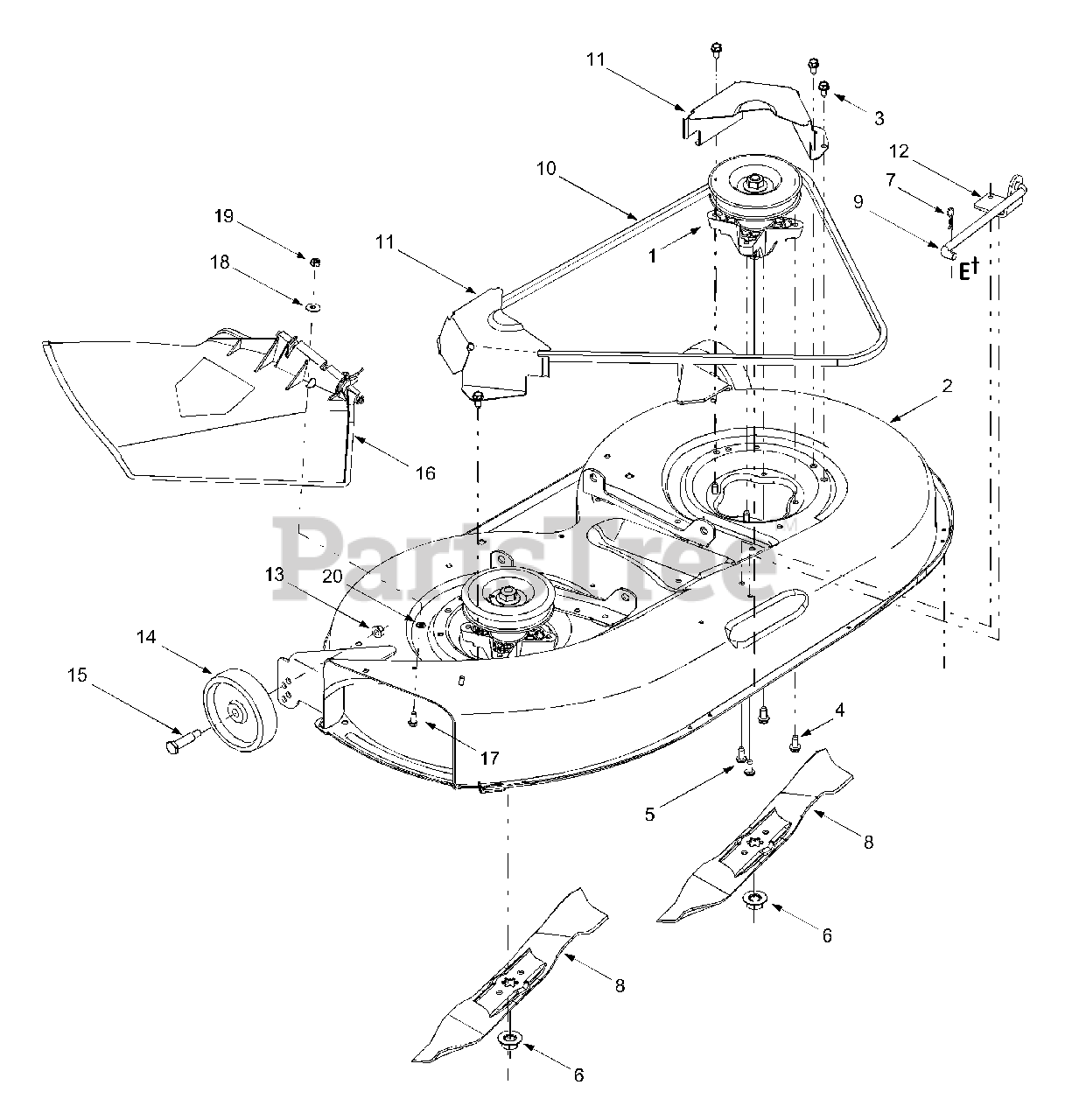

Deck Assembly Parts Diagram

  • Title

1

White Outdoor 618-0142A

Spindle Assembly
(Superseded to 918-0142C)

$134.99

$

In Stock, Qty 7

0

2

White Outdoor 683-04035A

Deck Shell
(Superseded to 983-04035A)

Variations

White Outdoor 683-04035A-0637

DECK SHELL ASSEMBLY 42" BLACK - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-04035A-0691

DECK SHELL ASSEMBLY 42" BLACK - BLACK JACK (0691)

$

$

Not available

White Outdoor 683-04035A-0650

DECK ASSY-42" SHELL - RED METALLIC (0650)

$

$

Not available

$

$

3

White Outdoor 710-0726

Self-tapping Screw, 5/16-12 x .75

$3.99

$

In Stock, Qty 20+

0

4

White Outdoor 710-1260A

Screw, 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-1611B

Self-tapping Screw, 5/16-18 x .75

$6.49

$

In Stock, only 2 left!

0

6

White Outdoor 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

7

White Outdoor 714-04023

Internal Cotter Pin, .080 x 1.56

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 742-0616A

Blade, 21.23"
(Superseded to 942-0616A)

$31.99

$

In Stock, Qty 20+

0

9

White Outdoor 747-04018A

Deck Hanger Link/Anti-sway Rod
(Superseded to 947-04018A)

$

$

Not available

10

White Outdoor 754-0371A

Deck Belt
(Superseded to 954-0371A)

$103.99

$

In Stock, Qty 10

0

11

White Outdoor 783-04149B

Belt Cover

Variations

White Outdoor 783-04149B-0637

Belt Cover, 42" Black - POWDER BLACK (0637)

$25.99

$

In Stock, Qty 7

0

White Outdoor 783-04149B-0650

COVER-BELT 42"DK - RED METALLIC (0650)

$25.99

$

In Stock, Qty 7

0

White Outdoor 783-04149B-0665

COVER-BELT 42"DK - YARDMAN GREEN (0665)

$25.99

$

In Stock, Qty 7

0

White Outdoor 783-04149B-0691

Deck Belt Cover, 42" Black - BLACK JACK (0691)

$25.99

$

In Stock, Qty 7

0

$20.99

$

Usually ships in 3-6 days

0

12

White Outdoor 783-04211

Anti-sway Stabilizer Bracket
(Superseded to 783-04211-0637)

Variations

White Outdoor 783-04211-0637

BRACKET-STABILIZER - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

13

White Outdoor 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

14

White Outdoor 734-0973

Deck Wheel, 5 x 1.38

$12.99

$

In Stock, Qty 20+

0

15

White Outdoor 738-0373

Shoulder Screw, .498 x 1.53
(Superseded to 938-0373)

$8.49

$

In Stock, Qty 20+

0

16

White Outdoor 731-1032

Discharge Chute Assembly
(Superseded to 631-05229)

$77.99

$

In Stock, Qty 19

0

17

White Outdoor 710-0751

Hex Cap Screw:1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 13

0

19

White Outdoor 712-3006

Hex Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 726-0233

Push Nut, 1/4

$3.99

$

In Stock, only 2 left!

0
