LT-175 (13A2683G790) - White Outdoor 42" Lawn Tractor (2004) Engine Accessories Parts Diagram

42" Lawn Tractor

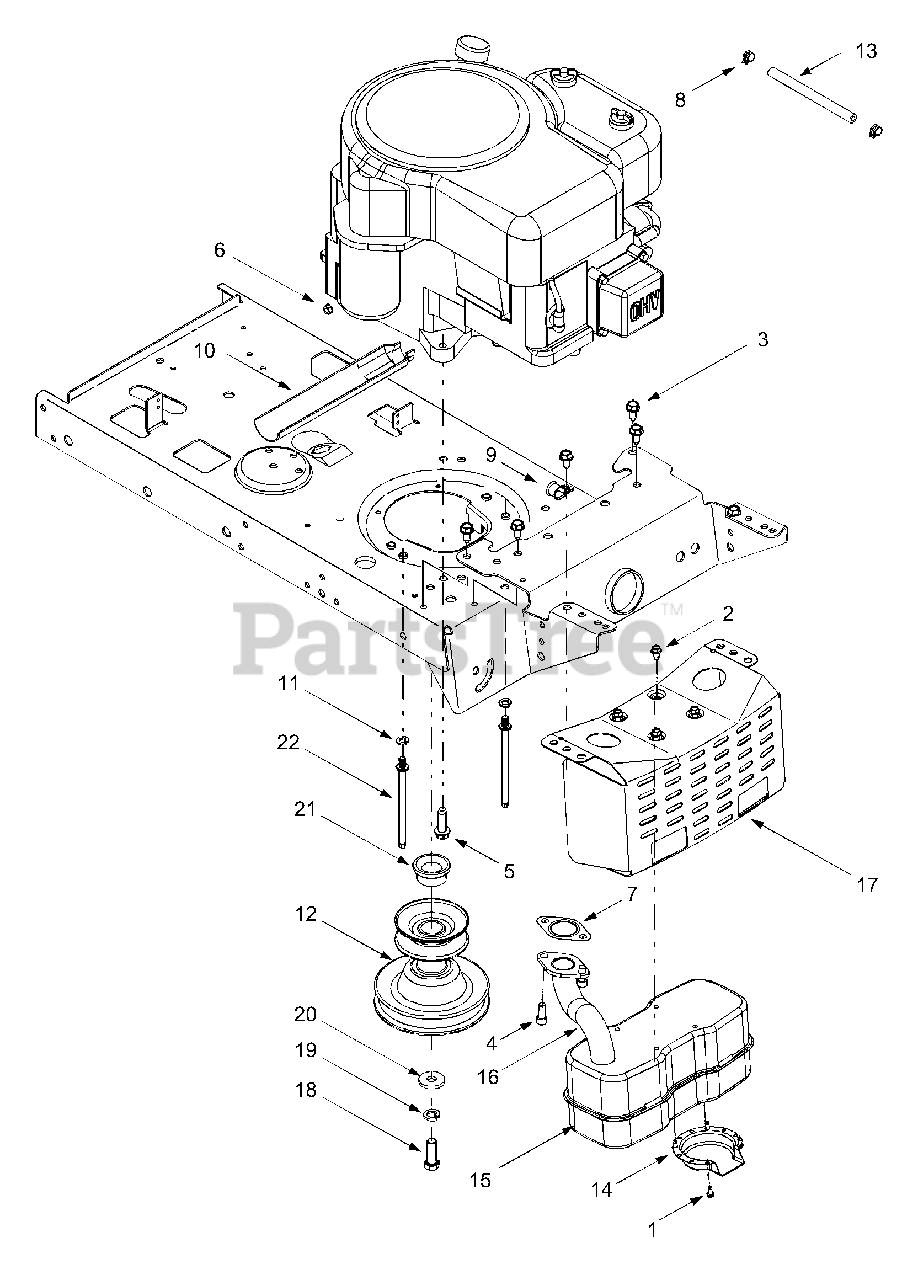

Engine Accessories Parts Diagram

  • Title

1

White Outdoor 710-0148

Screw, #8-32 x .375

$3.99

$

In Stock, Qty 16

0

2

White Outdoor 710-0599

Self-tapping Screw, 1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 710-0726

Self-tapping Screw, 5/16-12 x .75

$3.99

$

In Stock, Qty 20+

0

4

White Outdoor 710-1314A

Socket Cap Screw, 5/16-18 x .

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-1315

Self-tapping Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 721-0348

Exhaust Gasket
(Superseded to TC-36365)

$3.49

$

In Stock, Qty 12

0

8

White Outdoor 726-0205

Hose Clamp, .490

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 726-0272

Clamp, 9/16

$6.99

$

Usually ships in 3-6 days

0

10

White Outdoor 731-1682A

Oil Drain Sleeve

$7.49

$

In Stock, Qty 11

0

11

White Outdoor 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 956-04023

Engine Pulley, 3.39 X 5.56

$112.99

$

In Stock, Qty 9

0

13

751-0535

Fuel Line Hose

$

$

Not available

14

White Outdoor 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$12.99

$

In Stock, Qty 20+

0

15

White Outdoor 751-0617

Muffer, Single Inlet
(Superseded to 951-0617C)

$138.99

$

In Stock, Qty 10

0

16

White Outdoor 751-0620

Exhaust Pipe
(Superseded to 751-0620A)

$75.99

$

In Stock, only 3 left!

0

17

White Outdoor 783-0615B

Muffler Heat Shield
(Superseded to 783-0615E-0637)

Variations

White Outdoor 783-0615B-0637

Muffler Bracket - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

18

White Outdoor 710-3029

Hex Screw, 7/16-20 x 1.25

$4.49

$

In Stock, Qty 15

0

19

White Outdoor 736-0171

Lock Washer, 7/16

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 736-0322

Flat Washer, .450 x 1.25 x .164

$8.49

$

In Stock, Qty 20+

0

21

White Outdoor 750-0956

Spacer, 1.0 x 1.4 x .825

$17.99

$

In Stock, Qty 7

0

22

White Outdoor 711-1044

Belt Keeper Pin, 5/16 x 4.75
(Superseded to 711-1044A)

$8.49

$

In Stock, Qty 14

0
