LT-175 (13A2683G790) - White Outdoor 42" Lawn Tractor (2004) Steering, Front Wheel And Axle Parts Diagram

42" Lawn Tractor

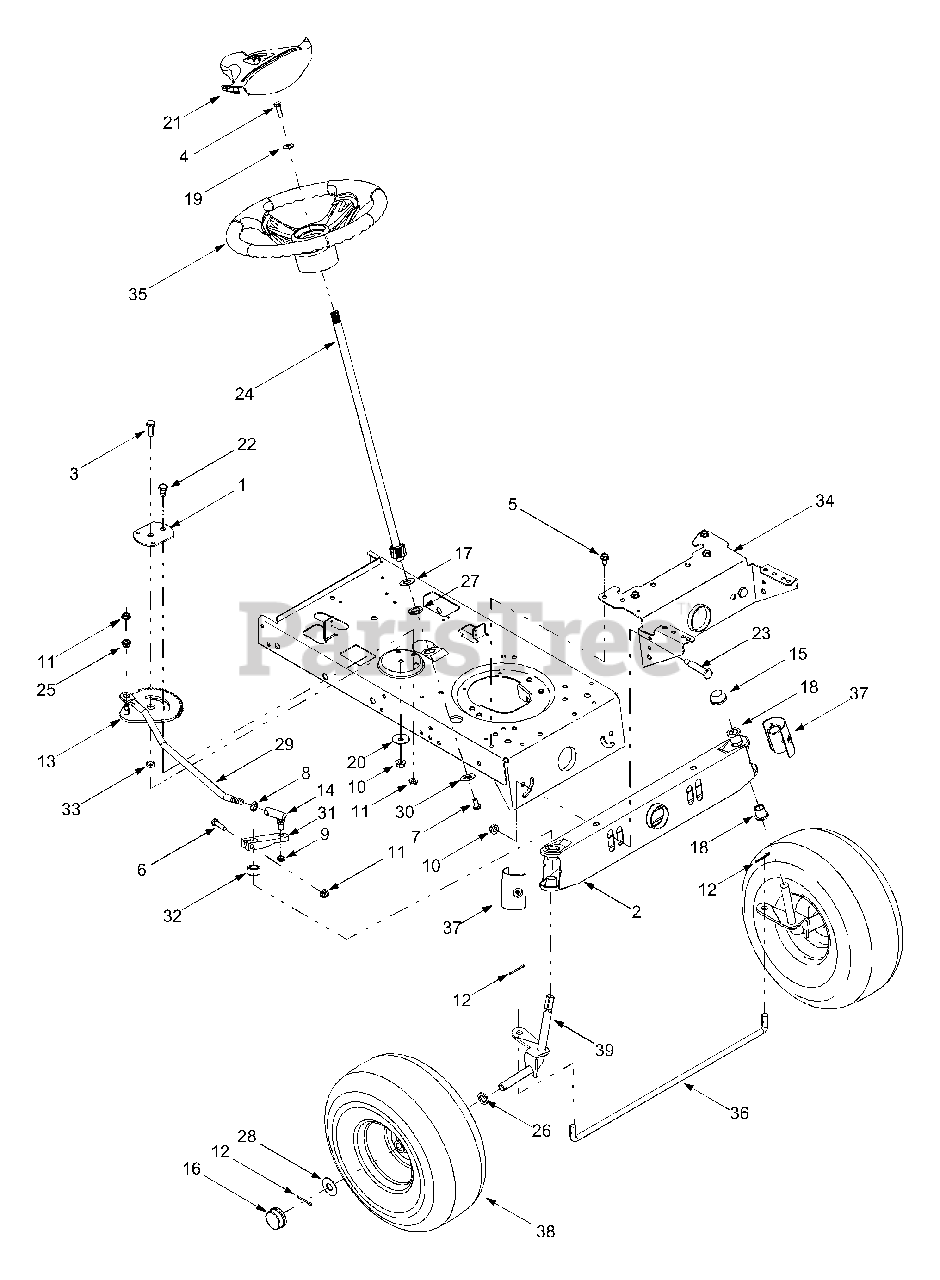

Steering, Front Wheel And Axle Parts Diagram

  • Title

1

White Outdoor 17198A

Retainer Gear Segment Plate
(Superseded to 783P08577A)

$6.99

$

In Stock, Qty 10

0

2

White Outdoor 683-0002A

Steel Pivot Bar, .625
(Superseded to 683-0002B-0637)

Variations

White Outdoor 683-0002A-0637

Pivot Bar, Steel - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

4

White Outdoor 710-0643

Hex Cap Screw, 5/16-18 x 1.0

$6.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-0726

Self-tapping Screw, 5/16-12 x .75

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 710-0805

Hex Cap Screw, 5/16-18 x 1.5
(Superseded to 710-0805A)

$3.99

$

In Stock, only 2 left!

0

7

White Outdoor 710-1309

Machine Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 712-0240

Jam Nut, 7/16-20 (Grade 2)
(Superseded to 912-0240)

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 712-0262

Jam Nut, 3/8-24

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

11

White Outdoor 712-3004A

Flange Lock Nut, 5/16-18

$3.49

$

In Stock, Qty 20+

0

12

White Outdoor 714-0470

Cotter Pin, 1/8 x 1.25

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 717-1757A

Stearing Segment Gear

$49.99

$

In Stock, only 1 left!

0

14

White Outdoor 723-0448A

Ball Joint, 7/16 -20
(Superseded to 923-0448A)

$22.99

$

In Stock, Qty 20+

0

15

White Outdoor 726-0214

Push Cap, .625

$9.99

$

In Stock, Qty 20+

0

16

White Outdoor 731-0484A

Hub Cap
(Superseded to 931-0484A)

$5.99

$

In Stock, Qty 20+

0

17

White Outdoor 736-0187

Flat Washer, .64 x 1.24 x .060

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 741-0487A

Flange Bearing
(Superseded to 741-0487C)

$6.99

$

In Stock, Qty 20+

0

19

White Outdoor 736-0242

Bell Washer, .34 x .872 x .060

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 736-0356

Bell Washer, .391 x .380 x .062
(Superseded to 936-0356)

$

$

Not available

21

White Outdoor 731-04065

Steering Wheel Cap, Large

$

$

Not available

22

White Outdoor 738-0141

Shoulder Screw, .435 x .350, 5/16-18
(Superseded to 938-0141)

$6.99

$

In Stock, Qty 8

0

23

White Outdoor 738-0527

Shoulder Screw, .498 x 2.045

$7.99

$

Usually ships in 3-6 days

0

24

White Outdoor 738-0919

Steering Shaft, 21.86
(Superseded to 738-0919B)

$54.99

$

In Stock, Qty 20+

0

25

White Outdoor 741-0475

Plastic Bushing, .38 ID
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

26

White Outdoor 736-0162

Flat Washer, .64 x 1.0 x .12

$3.99

$

In Stock, Qty 20+

0

27

White Outdoor 741-0656

Hex Flange Bearing, 5/8
(Superseded to 941-0656A)

$4.99

$

In Stock, Qty 20+

0

28

White Outdoor 736-0285

Flat Washer, .635 x 1.589 x .06

$3.99

$

In Stock, Qty 20+

0

29

White Outdoor 747-1268B

Steering Drag Link, 7/16-20

$27.99

$

Usually ships in 3-6 days

0

30

White Outdoor 748-0389

Cap, 1.25 x .16
(Superseded to 948-0389)

$4.99

$

In Stock, Qty 20+

0

31

White Outdoor 748-04014B

Steering Arm
(Superseded to 948-04014B)

$26.99

$

Usually ships in 3-6 days

0

32

White Outdoor 748-04020

Spacer, 1.0 x .645 x .56
(Superseded to 948-04020)

$6.99

$

In Stock, only 1 left!

0

33

White Outdoor 750-0535

Spacer, .380 x .625 x .21
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 7

0

34

White Outdoor 783-0041D

Pivot Bar Bracket

Variations

White Outdoor 783-0041D-0483

BRACKET-PIVOT BAR - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0041D-0637

BRACKET-PIVOT BAR - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0041D-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0041D-0638

BRACKET-PIVOT BAR - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0041D-0648

BRACKET-PIVOT BAR - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0041D-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

$

$

35

White Outdoor 631-04008

Steering Wheel, Three Spoke Soft Grip
(Superseded to 631-04008B)

$88.99

$

In Stock, Qty 12

0

36

White Outdoor 747-04057

Tie Rod

$

$

Not available

37

White Outdoor 731-04058

Axle End Cap w/ Fitting

$4.49

$

In Stock, Qty 13

0

38

White Outdoor 634-0056A

Wheel Ass'y Complete
(Superseded to 634-0056B-0911)

Variations

White Outdoor 634-0056A-0911

Tire and Wheel Assembly - Carlisle Gray (0911)

$231.99

$

In Stock, only 3 left!

0

White Outdoor 634-0056A-0912

Tire and Wheel Assembly - Dico Gray (0912)

$231.99

$

In Stock, only 3 left!

0

White Outdoor 634-0056A-0914

Tire and Wheel Assembly - Cheng Gray (0914)

$231.99

$

In Stock, only 3 left!

0

White Outdoor 634-0056A-0916

Tire and Wheel Assembly - Kenda Gray (0916)

$231.99

$

In Stock, only 3 left!

0

White Outdoor 634-0056A-0941

Tire and Wheel Assembly - Carlisle Yellow (0941)

$231.99

$

In Stock, only 3 left!

0

White Outdoor 634-0056A-0981

Tire and Wheel Assembly - Carlisle Green (0981)

$231.99

$

In Stock, only 3 left!

0

White Outdoor 634-0056A-0931

WHEEL ASM-W/TIRE - Carlisle Beige (0931)

$188.99

$

Usually ships in 3-6 days

0

$231.99

$

In Stock, only 3 left!

0

White Outdoor 634-0172

Rim Assembly
(Superseded to 934-0172A)

Variations

White Outdoor 634-0172-0499

Rim Assembly, Beige - CUB BEIGE (0499)

$96.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0172-0662

Rim Assembly, Gray - OYSTER GRAY (0662)

$96.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0172-0674

RIM 6 X 4.5-YELLOW - YARDMAN YELLOW (0674)

$96.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0172-0688

Rim Assembly, Gray - SPRING GREEN (0688)

$96.99

$

Usually ships in 3-6 days

0

$78.99

$

Usually ships in 3-6 days

0

White Outdoor 741-0706

Inner Bearing (Flange w/Fitting)
(Superseded to 941-0706)

$7.99

$

In Stock, Qty 20+

0

White Outdoor 741-0487A

Outer Bearing (Plastic Flange)
(Superseded to 741-0487C)

$6.99

$

In Stock, Qty 20+

0

White Outdoor 734-0864

Tire Only (15 x 6 x 6)

Variations

White Outdoor 734-0864-0901

TIRE 15 X 6 - Carlisle (0901)

$127.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0864-0902

TIRE 15 X 6 DICO T - Dico (0902)

$127.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0864-0904

TIRE - Cheng (0904)

$127.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0864-0905

TIRE 15 X 6 - Duro (0905)

$46.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0864-0906

TIRE-15X6 KENDA - Kenda (0906)

$

$

Not available

$103.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

$3.99

$

In Stock, Qty 20+

0

39

White Outdoor 683-04016

RH Axle Assembly
(Superseded to 683-04016-0637)

Variations

White Outdoor 683-04016-0637

Front Axle Assembly, RH Black - POWDER BLACK (0637)

$45.99

$

In Stock, only 3 left!

0

$45.99

$

In Stock, only 3 left!

0

White Outdoor 683-04015

LH Axle Assembly

Variations

White Outdoor 683-04015-0637

Front Axle Assembly, Black - POWDER BLACK (0637)

$99.99

$

In Stock, only 3 left!

0

$99.99

$

In Stock, only 3 left!

0
