LT-1800 (13A2606G790) - White Outdoor 46" Lawn Tractor (2004) Carburetor Parts Diagram

46" Lawn Tractor

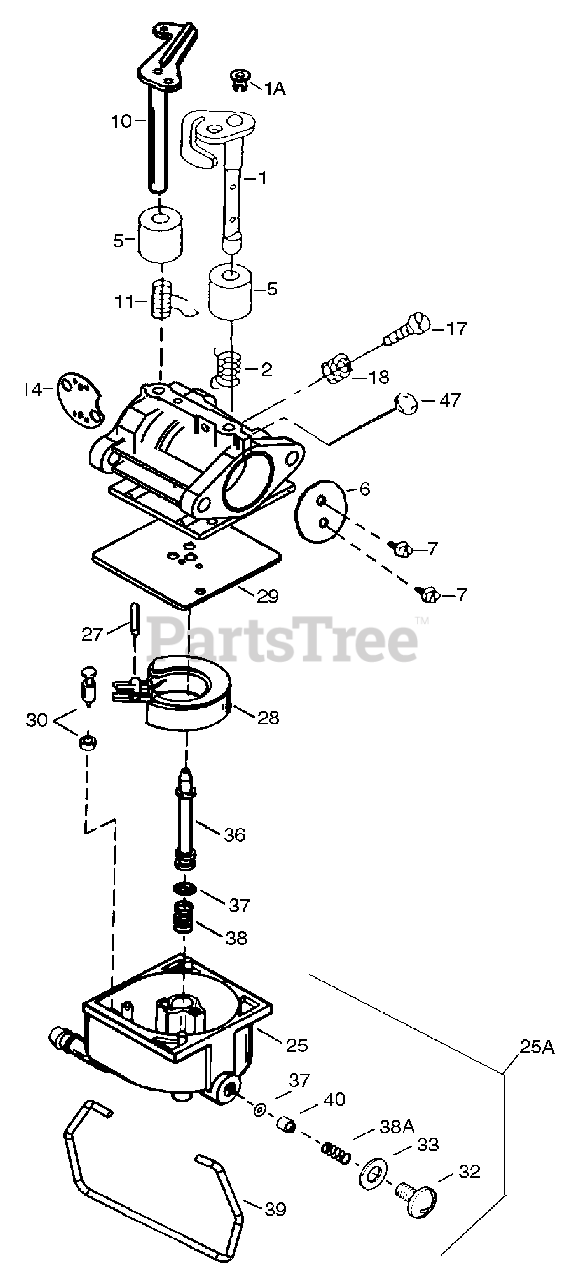

Carburetor Parts Diagram

  • Title

White Outdoor TC-640330

Carburetor
(Superseded to TC-640330A)

Note: (Incl 184 of Engine Parts Lists)

$110.99

$

In Stock, only 1 left!

0

1

White Outdoor TC-640035

Throttle Shaft & Lever Assembly

$10.99

$

Usually ships in 3-12 days

0

1A

White Outdoor TC-36288

Throttle Link Bushing

$1.99

$

In Stock, only 3 left!

0

2

White Outdoor TC-640036

Throttle Return Spring

$1.99

$

Usually ships in 3-12 days

0

5

White Outdoor TC-640037

Dust Seal

$1.99

$

In Stock, only 3 left!

0

6

White Outdoor TC-640332

Throttle Shutter

$4.99

$

In Stock, only 2 left!

0

7

MTD TC-650506

Throttle Shutter Screws

$1.49

$

In Stock, Qty 17

0

10

White Outdoor TC-640044

Choke Shaft & Lever Assembly

$2.49

$

Usually ships in 3-12 days

0

11

White Outdoor TC-632785

Choke Return Spring

$1.99

$

Usually ships in 3-12 days

0

14

White Outdoor TC-640913

Choke Shutter

$1.99

$

Usually ships in 3-12 days

0

17

MTD TC-651025

Throttle Crack Screw/Idle Speed Screw

$1.99

$

In Stock, Qty 5

0

18

MTD TC-630766

Tension Spring

$1.99

$

In Stock, only 4 left!

0

25

White Outdoor TC-640331

Float Bowl Assembly

$21.99

$

In Stock, only 1 left!

0

25A

TC-630334

Bowl Kit

$

$

Not available

27

White Outdoor TC-632544

Float Shaft

$3.99

$

In Stock, only 2 left!

0

28

White Outdoor TC-632543

Float

$9.49

$

In Stock, only 2 left!

0

29

White Outdoor TC-640047

Float Bowl to Body Gasket

$3.99

$

In Stock, only 4 left!

0

30

White Outdoor TC-632709

Inlet Needle & Seat

$6.99

$

In Stock, Qty 7

0

32

White Outdoor TC-640041

Bowl Drain Screw

$1.99

$

In Stock, Qty 5

0

33

MTD TC-27110A

Bowl Drain Washer

$2.49

$

In Stock, Qty 20+

0

36

White Outdoor TC-640067

Main Nozzle Tube

$6.99

$

In Stock, Qty 6

0

37

MTD TC-632547

O-Ring

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor TC-632545

Spring, Main Nozzle Tube

$1.49

$

In Stock, Qty 10

0

38A

White Outdoor TC-36918

Spring

$1.99

$

In Stock, only 4 left!

0

39

White Outdoor TC-640218A

Float Bowl Retainer

$3.49

$

Usually ships in 3-12 days

0

40

White Outdoor TC-632788

Main Fuel Jet

$2.99

$

Usually ships in 3-12 days

0

47

MTD TC-630748

Welch Plug, Idle Mixing Well

$1.99

$

In Stock, Qty 8

0

White Outdoor TC-611221

Fuel Solenoid Shut Off

Note: Not Shown

$66.99

$

In Stock, only 1 left!

0
