LT-1800 (13A2606G790) - White Outdoor 46" Lawn Tractor (2004)

46" Lawn Tractor

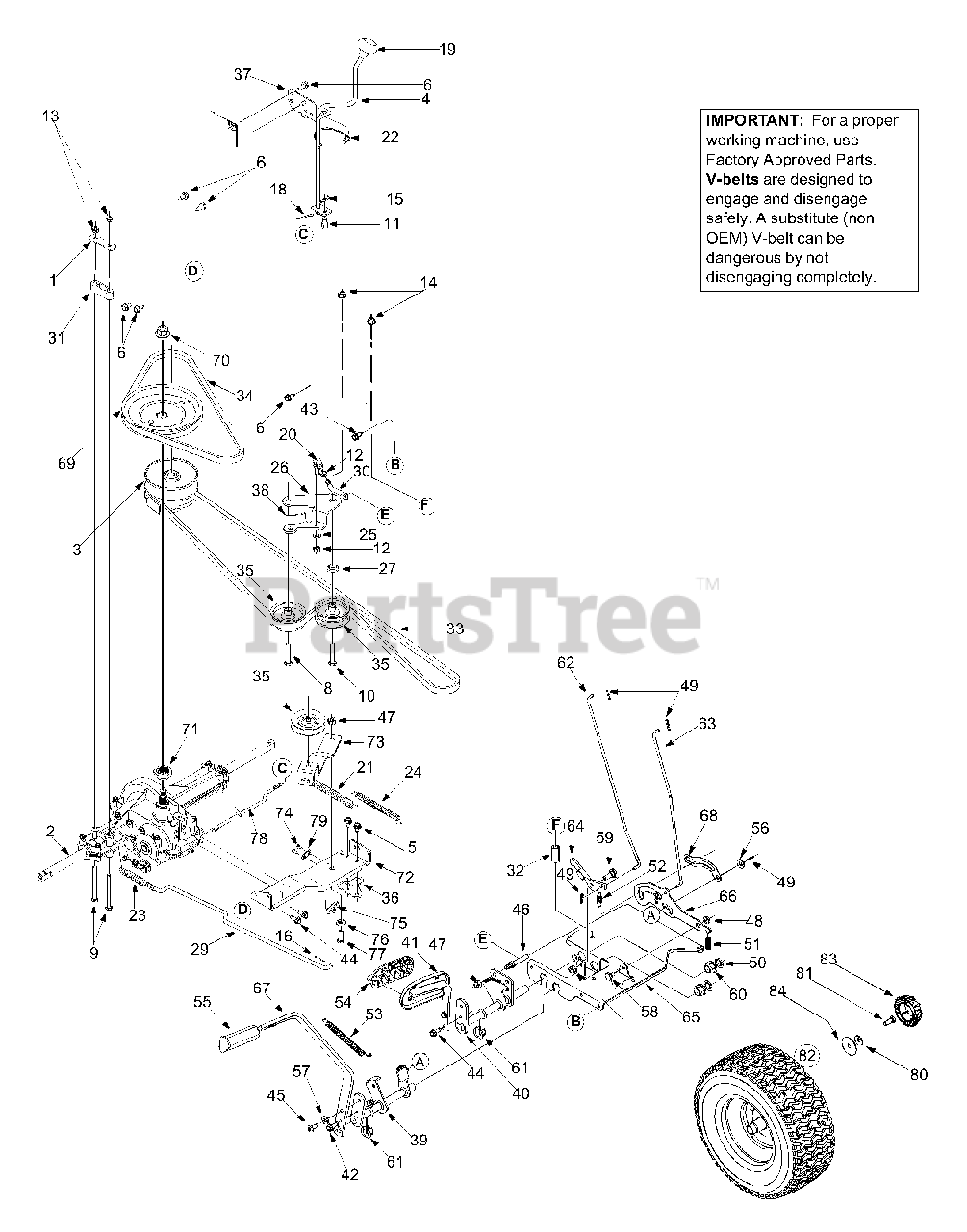

LT-1800 (13A2606G790) - White Outdoor 46" Lawn Tractor (2004) > Parts Diagrams (14) > Drive And Rear Wheels

  • Title
17840

1

Mounting Bracket

Part# 17840 (Superseded to 17840-0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $7.50

Variations

POWDER BLACK (0637)

BRACKET-TRANS MOUNTING

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $7.50

618-04133

2

Drive Assembly

Part# 618-04133 (Superseded to 753-05851)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $437.47

618-04147

3

Variable Spd. Pulley Assembly

Part# 618-04147 (Superseded to 918-04423A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $121.21

647-04020

4

Shift Lever Assembly

Part# 647-04020

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $20.82

710-0607

5

TT Screw 5/16-18 x 0.5

Part# 710-0607

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.45

710-0726

6

AB Screw 5/16-12 x 0.75

Part# 710-0726

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.81

710-0809

7

TT Screw 1/4-20 x 1.25

Part# 710-0809

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.67

710-1007

8

TT Sems Screw 3/8-16 x 1.5

Part# 710-1007

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.19

710-1266

9

Hex Bolt 5/16-18 x 3.5

Part# 710-1266

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.42

710-3144

10

Hex Bolt 3/8-16 x 2.0

Part# 710-3144

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

711-0736

11

Ferrule

Part# 711-0736

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.21

712-0241

12

Hex Nut 3/8-24

Part# 712-0241

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.86

712-0429

13

Hex Lock Nut 5/16-18

Part# 712-0429 (Superseded to 912-0429)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.65

712-0431

14

Flange Lock Nut 3/8-16

Part# 712-0431 (Superseded to 912-0431)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.18

714-0104

15

Hairpin Clip

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.85

714-0111

16

Cotter Pin

Part# 714-0111 (Superseded to 914-0111)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

714-0209

17

Hairpin Clip

Part# 714-0209 (Superseded to 914-0209)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.39

714-0470

18

Cotter Pin

Part# 714-0470 (Superseded to 914-0470)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.85

720-04028

19

Shift Knob

Part# 720-04028

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.00

723-3018

20

Ball Joint

Part# 723-3018 (Superseded to 923-3018)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $11.38

732-0384

21

Extension Spring

Part# 732-0384 (Superseded to 932-0384)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.73

732-0525

22

Spring Clip

Part# 732-0525

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.61

732-0716

23

Extension Spring

Part# 732-0716 (Superseded to 732-0716D)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.52

732-0963

24

Extension Spring

Part# 732-0963

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.54

736-0169

25

Lock Washer 3/8

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.47

26

Grease

Part#

Note: Purchase locally

Not available

738-0372B

27

Shoulder Spacer

Part# 738-0372B

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.44

747-04146

28

Shift Rod

Part# 747-04146 (Superseded to 747-04146C)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $15.33

747-04164

29

Brake Rod

Part# 747-04164

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $18.73

747-1127

30

Idler Adj. Rod

Part# 747-1127

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $27.61

748-0334

31

Spacer: Transaxle

Part# 748-0334 (Superseded to 948-0334)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $7.26

750-0566A

32

Spacer

Part# 750-0566A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.74

754-0467

33

V Belt

Part# 754-0467 (Superseded to 954-0467A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $39.48

754-0468

34

V Belt

Part# 754-0468 (Superseded to 954-0468)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $25.59

756-0981A

35

Flat Idler Pulley

Part# 756-0981A (Superseded to 756-04224)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $18.76

783-04283

36

Shift Bracket

Part# 783-04283

OEM Warranty Repair Part for White Outdoor

Not available

783-04360

37

Shift Bracket

Part# 783-04360

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.10

783-04442

38

Double Idler Bracket: Center

Part# 783-04442

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $23.32

Variations

POWDER BLACK (0637)

BRACKET ASSY-DBL IDLER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $23.32

WINE RED (4008)

BRACKET ASSY-DBL IDLER

Part# WINE RED (4008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $23.32

647-0031C

39

Brake Control Assembly

Part# 647-0031C (Superseded to 753-05606)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $60.63

647-0032A

40

Speed Control Assembly

Part# 647-0032A (Superseded to 647-0032A-0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $44.94

Variations

POWDER BLACK (0637)

CONTROL ASSY-SPEED

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $44.94

683-0266

41

Drive Pedal Assembly

Part# 683-0266

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $63.84

710-0650

42

TT Screw 5/16-18 x 0.875

Part# 710-0650

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.73

710-0726

43

AB Screw 5/16-12 x 0.75

Part# 710-0726

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.81

710-1260A

44

LD Screw 5/16-18 x 0.75

Part# 710-1260A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.53

710-1611B

45

TT Screw 5/16-18 x 0.75

Part# 710-1611B

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.40

711-04159

46

Pin

Part# 711-04159 (Superseded to 753-04872)

OEM Warranty Repair Part for White Outdoor

Not available

712-0130

47

Hex Lock Nut 3/8-16

Part# 712-0130

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.65

712-3004A

48

Flange Lock Nut

Part# 712-3004A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.56

714-0104

49

Cotter Pin

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.85

726-04028

50

Push Nut

Part# 726-04028 (Superseded to 712-04016)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $4.45

732-0335

51

Compression Spring

Part# 732-0335

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.27

732-0955

52

Extension Spring

Part# 732-0955

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.19

732-0963

53

Extension Spring

Part# 732-0963

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.54

735-0662

54

Control Pad

Part# 735-0662

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.76

735-3049

55

Brake Pad

Part# 735-3049 (Superseded to 735-3049A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.39

736-0262

56

Flat Washer

Part# 736-0262

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.69

736-3008

57

Flat Washer

Part# 736-3008 (Superseded to 936-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.60

738-0155

58

Shoulder Screw

Part# 738-0155 (Superseded to 938-0155)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $4.45

738-0380

59

Shoulder Screw

Part# 738-0380 (Superseded to 938-0380)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.39

741-0225

60

Hex Flange Bearing

Part# 741-0225 (Superseded to 941-0225)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

741-3065B

61

Hex Flange Bearing: Split

Part# 741-3065B

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.47

747-04093

62

Brake Lock Rod

Part# 747-04093

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $10.52

747-04096

63

Cruise Control Rod

Part# 747-04096

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $11.58

748-04039

64

Cruise Latch

Part# 748-04039 (Superseded to 748-04039B)

OEM Warranty Repair Part for White Outdoor

Not available

783-0653F

65

Steering Support Bracket

Part# 783-0653F (Superseded to 783-04612-0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $61.29

Variations

POWDER BLACK (0637)

STEERING SUPPORT BRACKET

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $61.29

783-0732

66

Lock-Out Bracket

Part# 783-0732 (Superseded to 783-0732A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $22.39

783-0773A

67

Brake Pedal

Part# 783-0773A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $60.63

Variations

POWDER BLACK (0637)

KIT-SERVICE REPLAC

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $60.63

RED METALLIC (0650)

KIT-SERVICE REPLAC

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $60.63

YARDMAN GREEN (0665)

KIT-SERVICE REPLAC

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $60.63

BLACK JACK (0691)

KIT-SERVICE REPLAC

Part# BLACK JACK (0691)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $60.63

WINE RED (4008)

PEDAL-BRAKE

Part# WINE RED (4008)

OEM Warranty Repair Part for White Outdoor

Not available

783-0780B

68

Neutral Return Bracket

Part# 783-0780B

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-NEUTRAL RE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

756-04002

69

Transmission Pulley

Part# 756-04002 (Superseded to 956-04002)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $18.94

712-0700

70

Flange Nut 9/16-18

Part# 712-0700

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.42

718-0758A

71

Pulley Hub

Part# 718-0758A (Superseded to 718-04407)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.23

683-04055

72

Transmission Torque Bracket

Part# 683-04055 (Superseded to 753-05343)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $100.77

683-04130

73

Idler Bracket

Part# 683-04130 (Superseded to 753-05343)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $100.77

710-0227

74

AB Screw #8-18 x 0.5

Part# 710-0227

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.85

725-1644

75

Spring Switch

Part# 725-1644

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.19

750-0736

76

Shoulder Spacer

Part# 750-0736 (Superseded to 950-0736)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $3.97

710-0514

77

Hex Bolt 3/8-16 x 1.0

Part# 710-0514

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.78

747-04146

78

Shift Rod

Part# 747-04146 (Superseded to 747-04146C)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $15.33

726-0320

79

Insulator Nut Plate

Part# 726-0320 (Superseded to 926-0320)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.45

736-0242

80

Bell Washer

Part# 736-0242

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

710-0627

81

Hex Cap Screw

Part# 710-0627

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.73

634-0104

82

Wheel Assembly

Part# 634-0104

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $358.34

Variations

Carlisle Gray (0911)

WHEEL ASSY 20X8

Part# Carlisle Gray (0911)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $358.34

Dico Gray (0912)

WHL ASSY 20 X 8

Part# Dico Gray (0912)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $358.34

Cheng Gray (0914)

WHL ASSY 20 X 8

Part# Cheng Gray (0914)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $358.34

Duro Gray (0915)

WHEEL ASSY 20X8

Part# Duro Gray (0915)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $358.34

Kenda Gray (0916)

WHL ASSY 20 X 8

Part# Kenda Gray (0916)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $358.34

Carlisle Beige (0931)

WHL ASSY 20 X 8

Part# Carlisle Beige (0931)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $358.34

Carlisle Yellow (0941)

WHL ASSY 20 X 8

Part# Carlisle Yellow (0941)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $358.34

Dico Yellow (0942)

WHEEL ASSY W/TIRE

Part# Dico Yellow (0942)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $358.34

Duro Yellow (0945)

WHL ASSY 20 X 8

Part# Duro Yellow (0945)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $358.34

Carlisle Gray (0961)

WHEEL ASM-20 X 8

Part# Carlisle Gray (0961)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $358.34

Carlisle Green (0981)

No Longer Available WHEEL ASM COMP-20

Part# Carlisle Green (0981)

OEM Warranty Repair Part for White Outdoor

Not available

Carlisle White (0991)

WHEEL ASM COMP-20

Part# Carlisle White (0991)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $358.34

TEE WHITE (4009)

WHEEL ASM COMP-20

Part# TEE WHITE (4009)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $358.34

SEARS YELLOW (4028)

WHEEL ASSY COMP-20

Part# SEARS YELLOW (4028)

OEM Warranty Repair Part for White Outdoor

Not available

634-0070

82

Rim Assembly

Part# 634-0070

Note: Not Shown

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $116.36

Variations

CUB BEIGE (0499)

WHEEL RIM

Part# CUB BEIGE (0499)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $116.36

SILVER FLAKE (0629)

WHEEL RIM

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $116.36

OYSTER GRAY (0662)

WHEEL RIM

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $116.36

YARDMAN YELLOW (0674)

WHEEL RIM

Part# YARDMAN YELLOW (0674)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $108.02

SPRING GREEN (0688)

WHEEL RIM

Part# SPRING GREEN (0688)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $116.36

TEE WHITE (4009)

WHEEL RIM

Part# TEE WHITE (4009)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $116.36

734-0255

82

Air Valve

Part# 734-0255 (Superseded to 934-0255)

Note: Not Shown

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.86

734-1730

82

Tire

Part# 734-1730

Note: Not Shown

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $78.25

Variations

Carlisle (0901)

TIRE 20 X 8 X 8

Part# Carlisle (0901)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $78.25

Dico (0902)

TIRE 20 X 8-DICO M

Part# Dico (0902)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $107.21

Cheng (0904)

TIRE 20 X 8 X 8

Part# Cheng (0904)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $78.25

Duro (0905)

TIRE 20 X 8

Part# Duro (0905)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $78.25

Kenda (0906)

TIRE 20 X 8 KENDA

Part# Kenda (0906)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $161.53

731-2290A

83

Hub Cap

Part# 731-2290A (Superseded to 731-2290B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.84

736-0430

84

Flat Washer

Part# 736-0430

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.85
