LT-1800 (13A2606G790) - White Outdoor 46" Lawn Tractor (2004)

46" Lawn Tractor

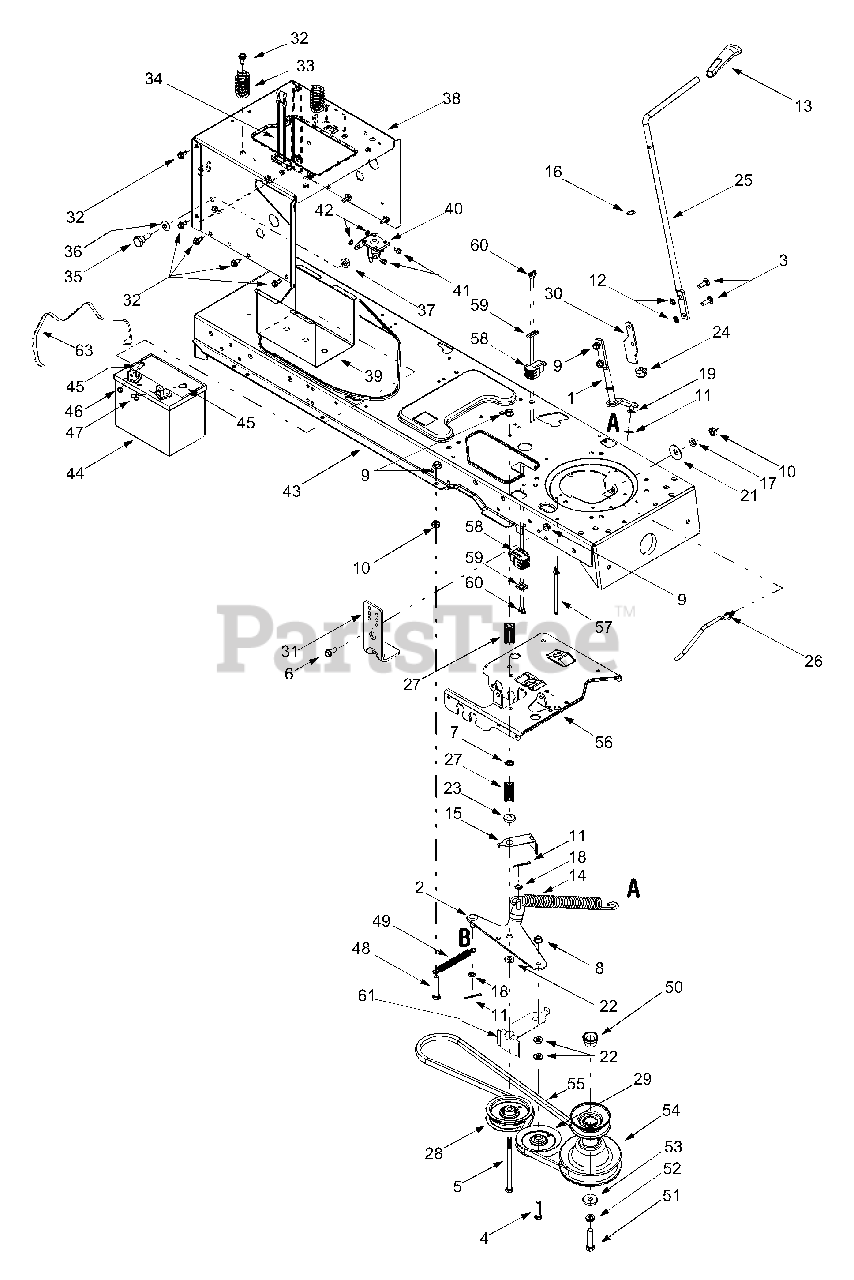

LT-1800 (13A2606G790) - White Outdoor 46" Lawn Tractor (2004) > Parts Diagrams (14) > PTO And Frame

  • Title
647-0064

1

PTO Engage Lever Assembly

Part# 647-0064

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $27.61

683-0450

2

PTO Engage Plate Assembly

Part# 683-0450

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

PLATE ASSY-ENGAGE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

710-0276

3

Carriage Screw, 5/16-18 x 1.00

Part# 710-0276

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.71

710-0520

4

Hex Cap Screw, 3/8-16 x 1.5

Part# 710-0520

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

710-0831

5

Hex Cap Screw, 3/8-16 x 5.5

Part# 710-0831

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.44

710-0726

6

AB Screw 5/16-12 x 0.75

Part# 710-0726

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.81

712-0229

7

Push Nut, 3/8

Part# 712-0229

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.32

712-0130

8

Lock Nut, 3/8-16

Part# 712-0130

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.65

712-3004A

9

Flange Lock Nut, 5/16-18

Part# 712-3004A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.56

712-3010

10

Hex Nut, 5/16-18

Part# 712-3010 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

714-0470

11

Cotter Pin, 1/8 x 1.25

Part# 714-0470 (Superseded to 914-0470)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.85

726-0201

12

Speed Nut, .3125

Part# 726-0201

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.45

731-2111A

13

PTO Knob

Part# 731-2111A (Superseded to 731-2111B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $9.26

732-1170

14

Extension Spring, .75 x 6.75

Part# 732-1170

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.18

732-0991A

15

Belt Guard

Part# 732-0991A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $10.52

736-0108

16

Flat Washer, .510 x .750 x .033

Part# 736-0108 (Superseded to 936-0108)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.50

736-0119

17

Lock Washer, 5/16

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

736-0140

18

Flat Washer, .385 x .62 x .063

Part# 736-0140 (Superseded to 936-0140)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.60

736-0275

19

Flat Washer, 5/16

Part# 736-0275 (Superseded to 936-0275)

OEM Warranty Repair Part for White Outdoor

Not available

736-3000

20

Flat Washer, .406 x .875 x .059

Part# 736-3000 (Superseded to 936-0176)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

736-0242

21

Bell Washer

Part# 736-0242

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

736-3039

22

Flat Washer

Part# 736-3039 (Superseded to 936-3039)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.27

738-0372B

23

Shoulder Spacer, .380

Part# 738-0372B

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.44

741-0708

24

Hex Split Flange Bearing, .5

Part# 741-0708

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

747-1112D

25

PTO Engage Handle

Part# 747-1112D

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

HANDLE-PTO ENGAGE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $30.29

747-1286A

26

Belt Keeper Rod

Part# 747-1286A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $21.40

748-0415A

27

Spacer, 3/8 x 1.54

Part# 748-0415A (Superseded to 748-0415B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.07

756-0627B

28

Idler Pulley, 3.5

Part# 756-0627B (Superseded to 756-0627D)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $20.99

756-1208

29

Idler Pulley, 4.0

Part# 756-1208

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $24.21

783-0744A

30

Engagement Stop

Part# 783-0744A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-STOP

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $28.92

WINE RED (4008)

BRACKET-STOP

Part# WINE RED (4008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $28.92

783-0891B

31

Deck Stop

Part# 783-0891B

OEM Warranty Repair Part for White Outdoor

Variations

OLD CUB YELLOW (0498)

BRACKET-DECK UP STOP

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

BRACKET-DECK:UP STOP

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $24.26

RED METALLIC (0650)

BRACKET-DECK STOP

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $24.26

YARDMAN GREEN (0665)

BRACKET-DECK:UP STOP

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $24.26

BLACK JACK (0691)

BRACKET-DECK STOP

Part# BLACK JACK (0691)

OEM Warranty Repair Part for White Outdoor

Not available

710-0604A

32

Self Tapping Screw, 5/16-18 x .625

Part# 710-0604A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

732-04035

33

Compression Spring, 1.28 x 3.125

Part# 732-04035

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.06

723-0444

34

Battery Strap

Part# 723-0444

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $15.47

738-1020

35

Shoulder Screw, .625 x .5, 7/16-20

Part# 738-1020

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.05

736-0407

36

Bell Washer, .45 x 1.0 x .062

Part# 736-0407

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.67

712-0459

37

Flange Lock Nut, 7/16-20

Part# 712-0459

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.22

783-04329

38

Seat Bracket

Part# 783-04329

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-FRAME SEAT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

CUB YELLOW-99 (0716)

BRACKET-FRAME SEAT

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for White Outdoor

Not available

783-0349

39

Battery Tray

Part# 783-0349

OEM Warranty Repair Part for White Outdoor

Variations

MAJESTIC ORANGE (0606)

TRAY-BATTERY 400 S

Part# MAJESTIC ORANGE (0606)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $58.65

POWDER BLACK (0637)

BATTERY TRAY-POWDER BLACK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $58.65

WINE RED (4008)

TRAY-BATTERY 400 S

Part# WINE RED (4008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $58.65

725-1426

40

Solenoid, 12-Volt, 100 Amp

Part# 725-1426 (Superseded to 925-1426A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $22.35

710-0599

41

Self Tapping Screw, 1/4-20 x .5

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

736-0222

42

Lock Washer, 1/4

Part# 736-0222 (Superseded to 936-0222)

OEM Warranty Repair Part for White Outdoor

Not available

683-04099

43

Lower Frame Assembly

Part# 683-04099

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

FRAME ASSY-LOWER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

RED METALLIC (0650)

FRAME ASSY-LOWER

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $247.16

YARDMAN GREEN (0665)

FRAME ASSY-LOWER

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

BLACK JACK (0691)

FRAME ASSY-LOWER

Part# BLACK JACK (0691)

OEM Warranty Repair Part for White Outdoor

Not available

MASTERCRAFT GREEN (0709)

FRAME ASSY-LOWER

Part# MASTERCRAFT GREEN (0709)

OEM Warranty Repair Part for White Outdoor

Not available

CUB YELLOW-99 (0716)

FRAME ASSY-LOWER

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for White Outdoor

Not available

725-1706

44

12-volt Battery, 270 CCA

Part# 725-1706 (Superseded to 925-1707D)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $55.61

710-0751

45

Hex Cap Screw, 1/4-20 x .62

Part# 710-0751

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.66

712-0271

46

Hex Sems Nut, 1/4-20

Part# 712-0271

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.81

712-3044

47

Wing Nut, 1/4-20

Part# 712-3044

OEM Warranty Repair Part for White Outdoor

Not available

732-1165

48

Extension Spring, .50 x 5.0

Part# 732-1165 (Superseded to 732-04197)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.66

710-3180

49

Hex Cap Screw, 5/16-18 x 1.75

Part# 710-3180

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.62

750-0596

50

Spacer Cup

Part# 750-0596

Not available

710-3029

51

Hex Head Cap Screw, 7/16-20 x 1.25

Part# 710-3029

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.84

736-0171

52

Lock Washer, 7/16

Part# 736-0171 (Superseded to 936-0171)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.86

736-0322

53

Flat Washer, .450 x 1.25

Part# 736-0322

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.17

756-0982B

54

Engine Pulley, 3.56 OD x 5.56

Part# 756-0982B

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $49.24

754-0497

55

PTO Belt

Part# 754-0497 (Superseded to 954-0497)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $36.26

783-0653F

56

Steering Support Bracket

Part# 783-0653F

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

STEERING SUPPORT BRACKET

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $61.29

711-1044

57

Keeper Pin, 5/16 x 4.75

Part# 711-1044 (Superseded to 711-1044A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.63

725-1657A

58

Switch

Part# 725-1657A (Superseded to 925-1657A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $16.58

17962

59

Switch Plate

Part# 17962

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.23

710-0224

60

Screw, #10-16 x .5

Part# 710-0224 (Superseded to 910-0224)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.36

732-1013

61

Belt Guard

Part# 732-1013 (Superseded to 732-1013A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.47

736-0300

62

Flat Washer

Part# 736-0300 (Superseded to 936-0300)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

747-04121A

63

Battery Hold-Down Rod

Part# 747-04121A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.10
