LT-1800 (13A2606G790) - White Outdoor 46" Lawn Tractor (2004) Steering, Front Axle And Wheels Parts Diagram

46" Lawn Tractor

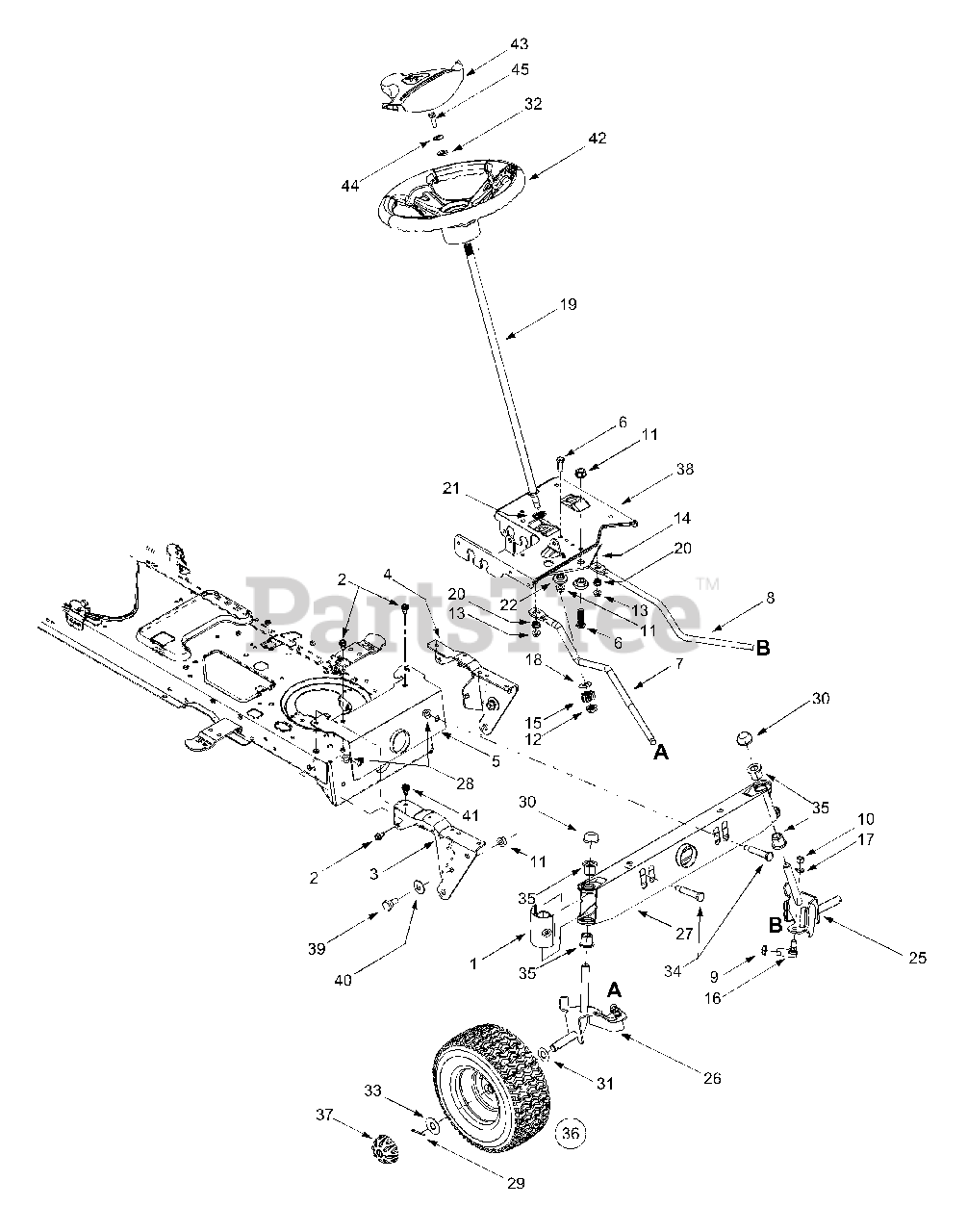

Steering, Front Axle And Wheels Parts Diagram

  • Title

1

White Outdoor 731-1291A

Pivot Bar End Cap w/ Fitting
(Superseded to 931-1291A)

$15.99

$

In Stock, Qty 20+

0

2

White Outdoor 710-0604A

Self-tapping Screw, 16-18 x .625

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 783-0726B

RH Pivot Support Bracket
(Superseded to 783-0726E)

Variations

White Outdoor 783-0726B-0606

Pivot Support Bracket, RH - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-0726B-0498

Pivot Support Bracket, RH - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 783-0726B-0637

BRACKET:PIVOT SUPPORT RH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0726B-0650

BRACKET:PIVOT SUPPORT RH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0726B-0691

BRACKET:PIVOT SUPPORT RH - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0726B-0716

Pivot Support Bracket, RH - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-0726B-0665

BRACKET:PIVOT SUPPORT RH - YARDMAN GREEN (0665)

$

$

Not available

$

$

4

White Outdoor 783-0727A

LH Pivot Support Bracket
(Superseded to 783-0727B)

Variations

White Outdoor 783-0727A-0650

BRACKET:PIVOT:SUPPORT LH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0727A-0691

BRACKET:PIVOT:SUPPORT LH - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0727A-0637

USE 783-0727C BRKT:PIVOT:SUPT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0727A-0665

BRACKET:PIVOT:SUPPORT LH - YARDMAN GREEN (0665)

$

$

Not available

$52.99

$

Usually ships in 3-6 days

0

5

White Outdoor 783-0728

Pivot Bar Bracket
(Superseded to 783-0728B)

Variations

White Outdoor 783-0728-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0728-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0728-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0728-0691

BRACKET-PIVOT BAR - BLACK JACK (0691)

$43.99

$

Usually ships in 3-6 days

0

$38.99

$

Usually ships in 3-6 days

0

6

White Outdoor 710-0723

Hex Cap Screw, 3/8-16 x 1.25 (Grade 5)

$4.49

$

In Stock, only 3 left!

0

7

White Outdoor 711-1408

RH Drag Link

$

$

Not available

8

White Outdoor 711-1409A

LH Drag Link

$

$

Not available

9

White Outdoor 712-0240

Jam Nut, 7/16-20
(Superseded to 912-0240)

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 712-0214

Hex Nut, 3/8-24

$5.99

$

In Stock, Qty 20+

0

11

White Outdoor 712-0130

Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 712-0459

Flange Lock Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 712-0429

Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 717-1550E

Steering Gear, 11/90 Ratio
(Superseded to 717-1550F)

$65.99

$

In Stock, Qty 20+

0

15

White Outdoor 717-1554

Steering Pinion Gear

$10.99

$

In Stock, Qty 20+

0

16

White Outdoor 723-0448A

Ball Joint, 7/16-20
(Superseded to 923-0448A)

$22.99

$

In Stock, Qty 20+

0

18

White Outdoor 736-3084

Flat Washer, .51 x 1.12 x .06

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 738-1001A

Steering Shaft, .625 OD x 24.4

$69.99

$

In Stock, Qty 6

0

20

White Outdoor 741-0475

Plastic Bushing, .38 ID
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 741-0656

Hex Flange Bearing, 5/8
(Superseded to 941-0656A)

$4.99

$

In Stock, Qty 20+

0

22

White Outdoor 738-0372B

Shoulder Spacer, .38 ID

$8.99

$

In Stock, Qty 20+

0

23

White Outdoor 631-0027

Standard Steering Wheel, 13.25
(Superseded to 931-0027A)

$90.99

$

Usually ships in 3-6 days

0

24

White Outdoor 731-0220

Steering Wheel Cap, Round
(Superseded to 931-0220)

$8.49

$

In Stock, only 1 left!

0

25

White Outdoor 638-04003

LH Axle Assembly, .750 Diameter
(Superseded to 638-04003AP)

$76.99

$

In Stock, Qty 10

0

26

White Outdoor 638-04004

RH Axle Assembly, .750 Diameter
(Superseded to 938-04004A)

$66.99

$

In Stock, Qty 10

0

27

White Outdoor 683-0128A

Steel Pivot Bar
(Superseded to 683-0128B)

Variations

White Outdoor 683-0128A-0498

Steel Axle Pivot Bar Assembly - OLD CUB YELLOW (0498)

$90.99

$

In Stock, Qty 20+

0

White Outdoor 683-0128A-0637

Steel Axle Pivot Bar Assembly - POWDER BLACK (0637)

$90.99

$

In Stock, Qty 20+

0

White Outdoor 683-0128A-0691

Steel Axle Pivot Bar Assembly - BLACK JACK (0691)

$90.99

$

In Stock, Qty 20+

0

White Outdoor 683-0128A-0665

Pivot Bar, Yard-Man Green - YARDMAN GREEN (0665)

$90.99

$

In Stock, Qty 20+

0

$83.99

$

Usually ships in 3-6 days

0

28

White Outdoor 712-0130

Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

29

White Outdoor 714-0162

Cotter Pin

$4.99

$

In Stock, Qty 20+

0

30

White Outdoor 726-0341

Push Cap, .625

$4.49

$

In Stock, Qty 20+

0

31

White Outdoor 736-0316

Flat Washer, .64 x 1.0 x .12

$3.99

$

In Stock, Qty 20+

0

32

White Outdoor 736-3004

Flat Washer, .406 x .875 x .105

$4.49

$

In Stock, Qty 19

0

33

White Outdoor 736-0285

Flat Washer, .635 x 1.589 x .06

$3.99

$

In Stock, Qty 20+

0

34

White Outdoor 738-1011

Shoulder Screw, .5 x 2.2, 3/8-16
(Superseded to 738-1011A)

$7.99

$

In Stock, Qty 12

0

35

White Outdoor 741-0660A

Flange Bearing

$2.99

$

In Stock, Qty 20+

0

36

White Outdoor 634-04099

Wheel Assembly

Variations

White Outdoor 634-04099-0911

WHL ASM-COMP - Carlisle Gray (0911)

$

$

Not available

White Outdoor 634-04099-0941

WHL ASM-COMP - Carlisle Yellow (0941)

$

$

Not available

$

$

36

White Outdoor 634-04091

Rim Assembly Only
(Superseded to 934-04091B)

Variations

White Outdoor 634-04091-0662

USE 934-04091-0662 A-0662 - OYSTER GRAY (0662)

$130.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04091-0674

RIM ASSY: 6.0 X 4.5 - YARDMAN YELLOW (0674)

$121.99

$

Usually ships in 3-6 days

0

$121.99

$

Usually ships in 3-6 days

0

36

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

Note: (Not Shown)

$3.99

$

In Stock, Qty 20+

0

36

White Outdoor 734-1731

Tire Only, Square Shoulder

Variations

White Outdoor 734-1731-0901

TIRE SQUARE TREAD 15 X 5 - Carlisle (0901)

$46.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1731-0902

TIRE 15 X 6 DICO-M - Dico (0902)

$41.99

$

In Stock, Qty 5

0

White Outdoor 734-1731-0904

TIRE SQUARE TREAD 15 X 5 - Cheng (0904)

$46.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1731-0905

TIRE 15 X 6 - Duro (0905)

$46.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1731-0906

TIRE 15 X 6 KENDA - Kenda (0906)

$46.99

$

Usually ships in 3-6 days

0

$103.99

$

In Stock, only 1 left!

0

36

White Outdoor 737-0224

Grease Fitting

Note: (Not Shown)

$6.99

$

In Stock, Qty 9

0

36

White Outdoor 741-3032

Ball Bearing
(Superseded to 941-3032)

Note: (Not Shown)

$43.99

$

In Stock, Qty 7

0

37

White Outdoor 731-2290A

Deluxe Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 783-0653F

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

White Outdoor 783-0653F-0637

Steering Support Bracket - POWDER BLACK (0637)

$83.99

$

In Stock, only 4 left!

0

$83.99

$

In Stock, only 4 left!

0

39

White Outdoor 738-0143

Shoulder Screw, 3/8-16

$3.99

$

In Stock, Qty 20+

0

40

White Outdoor 736-0331

Bell Washer, .39 x 1.13 x .062

$3.99

$

In Stock, Qty 20+

0

41

White Outdoor 710-1260A

Self-tapping Screw, 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

42

White Outdoor 631-04008

Steering Wheel, Soft Grip, Three Spoke
(Superseded to 631-04008B)

$88.99

$

In Stock, Qty 12

0

43

White Outdoor 731-04065

Steering Wheel Cap, Round

$

$

Not available

45

White Outdoor 710-0643

Hex Bolt, 5/16-18 X 1

$6.49

$

In Stock, Qty 20+

0
