LT-1800 (13AT606H190) - White Outdoor 46" Lawn Tractor (2000) Drive System Parts Diagram

46" Lawn Tractor

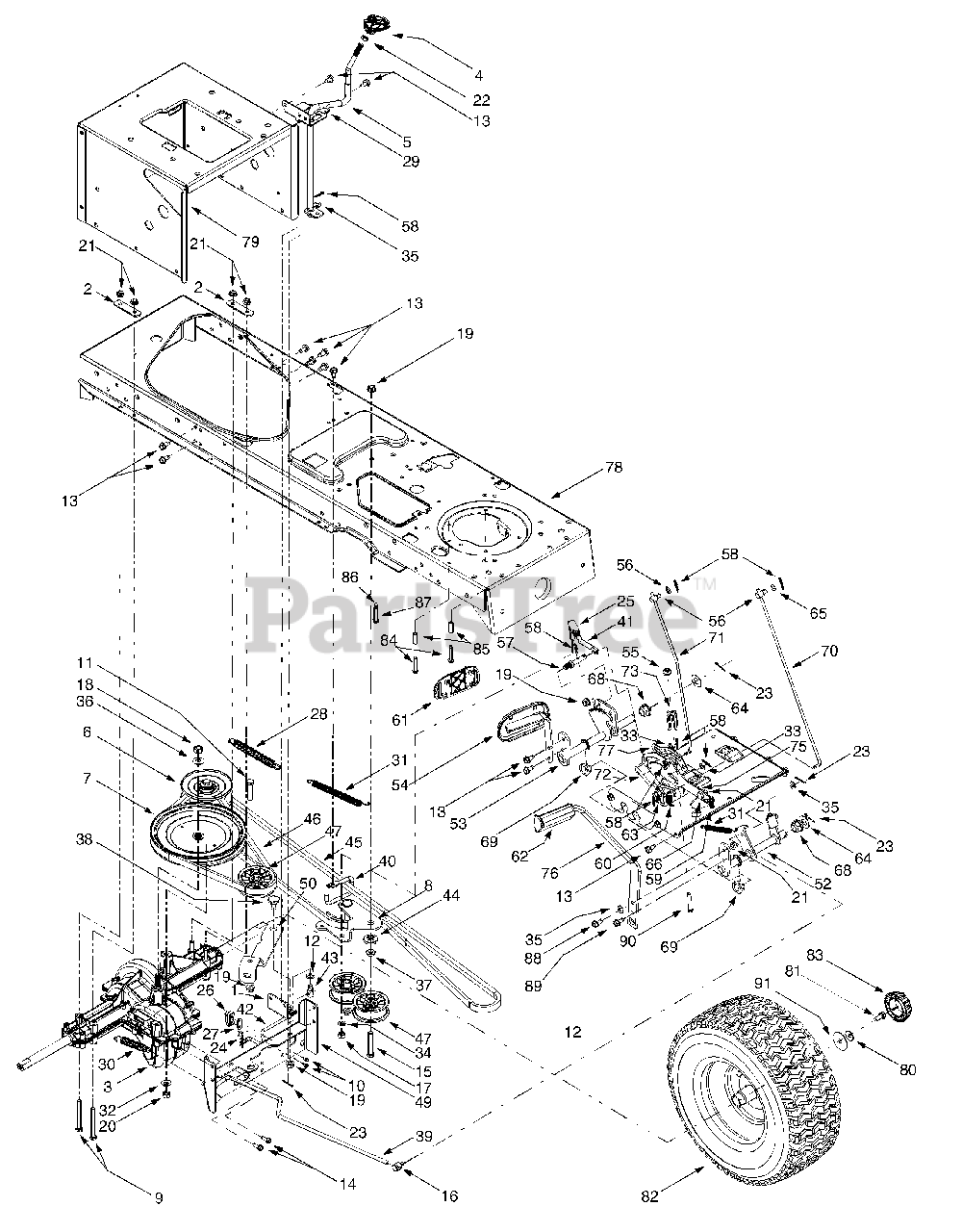

Drive System Parts Diagram

  • Title

1

White Outdoor 783-1015

Shift Lever Support
(Superseded to 783-1015-0637)

Variations

White Outdoor 783-1015-0637

BRACKET-SHFT LVR S - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

2

White Outdoor 17840

Transaxle Mounting Bracket
(Superseded to 17840-0637)

Variations

White Outdoor 17840-0637

Trans Mounting Bracket - POWDER BLACK (0637)

$10.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

3

White Outdoor 618-0307C

Single-speed Transmission Assembly
(Superseded to 918-0551A)

$

$

Not available

4

White Outdoor 631-0009

Shifter Knob
(Superseded to 931-0009A)

$13.99

$

In Stock, Qty 5

0

5

White Outdoor 647-0045

Shift Lever

$

$

Not available

6

White Outdoor 656-0048

Variable-speed Pulley Assembly
(Superseded to 956-0048)

$

$

Not available

7

White Outdoor 656-0051A

Transmission Pulley, 8.5 x .5-36

$86.99

$

Usually ships in 3-6 days

0

8

White Outdoor 683-0251

Double-idler Bracket

$

$

Not available

9

White Outdoor 710-0189

Hex Cap Screw, 5/16-18 x 3

$5.99

$

In Stock, Qty 5

0

10

White Outdoor 710-0227

Self-tapping Screw, #8-18 x .5

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$4.99

$

In Stock, Qty 20+

0

12

White Outdoor 736-0272

Flat Washer, .51 x 1.0 x .060

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 710-0604A

Self-tapping Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 710-0642

Self-tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 710-3011

Hex Cap Screw, 3/8-16 x 2.25

$6.49

$

In Stock, Qty 20+

0

16

White Outdoor 711-0677

Ferrule, 5/16-18
(Superseded to 911-0677)

$16.99

$

In Stock, only 4 left!

0

17

White Outdoor 712-0241

Hex Nut, 3/8-24

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 712-0378

Hex Nut, 7/16-20

$6.49

$

Usually ships in 3-6 days

0

19

White Outdoor 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

20

White Outdoor 712-0798

Hex Nut, 3/8-16

$3.99

$

In Stock, only 2 left!

0

21

White Outdoor 712-3004A

Flange Lock Nut, 5/16-18

$3.49

$

In Stock, Qty 20+

0

22

White Outdoor 712-3008

Jam Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 714-0111

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 714-0149B

Internal Cotter Pin

$3.99

$

In Stock, Qty 20+

0

25

White Outdoor 723-3018

Ball Joint
(Superseded to 923-3018)

$15.99

$

In Stock, Qty 20+

0

26

White Outdoor 725-1644

Short Spring Switch

$8.99

$

In Stock, only 3 left!

0

27

White Outdoor 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.49

$

In Stock, Qty 11

0

28

White Outdoor 732-0384

Extension Spring, .62 Dia. x 6.12
(Superseded to 932-0384)

$13.99

$

In Stock, Qty 20+

0

29

White Outdoor 732-0525

Compression Spring Clip

$9.49

$

In Stock, Qty 6

0

30

White Outdoor 732-0716

Extension Spring, .59 OD x 4
(Superseded to 732-0716D)

$12.99

$

In Stock, Qty 20+

0

31

White Outdoor 732-0963

Extension Spring, .50 Dia. x 6.37

$8.99

$

In Stock, Qty 20+

0

32

White Outdoor 736-0105

Bell Washer, .401 x .87 x .063

$3.99

$

In Stock, Qty 20+

0

33

White Outdoor 736-0140

Flat Washer, .385 x .62 x .063

$6.99

$

In Stock, Qty 9

0

34

White Outdoor 736-0169

Lock Washer, 3/8

$3.49

$

In Stock, Qty 20+

0

35

White Outdoor 736-0275

Flat Washer, 5/16

$6.49

$

Usually ships in 3-6 days

0

36

White Outdoor 736-0407

Bell Washer, .45 x 1.0 x .602

$3.99

$

In Stock, Qty 7

0

37

White Outdoor 736-3010

Flat Washer, .407 x .812 x .135

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 738-0322

Shoulder Screw, .625 x .217
(Superseded to 738-0322A)

$6.49

$

In Stock, Qty 5

0

39

White Outdoor 747-1122

Brake Rod

$

$

Not available

40

White Outdoor 747-1123A

Belt Guard

$

$

Not available

41

White Outdoor 747-1127

Idler Adjustment Rod, 3/8

$39.99

$

Usually ships in 3-6 days

0

42

White Outdoor 747-1156

Shift Rod
(Superseded to 753-0868)

$

$

Not available

43

White Outdoor 711-0736

Adjustment Ferrule, 1/4-20 x 1.0

$13.99

$

In Stock, only 2 left!

0

44

White Outdoor 738-0372

Shoulder Spacer, .38 ID
(Superseded to 738-0372B)

$8.99

$

In Stock, Qty 20+

0

45

White Outdoor 754-0467

Variable-speed Belt
(Superseded to 954-0467A)

$50.99

$

In Stock, Qty 20+

0

46

White Outdoor 754-0468

Drive Belt
(Superseded to 954-0468)

$30.99

$

In Stock, Qty 20+

0

47

White Outdoor 756-0981

Flat Idler, 2.75 OD
(Superseded to 756-04224)

$24.99

$

In Stock, Qty 20+

0

48

White Outdoor 783-0637

Shift Lever Support

Variations

White Outdoor 783-0637-0637

SHIFT LINK KIT - POWDER BLACK (0637)

$

$

Not available

$

$

49

White Outdoor 783-0667A

Transmission Torque Bracket
(Superseded to 783-0667A-0637)

Variations

White Outdoor 783-0667A-0637

BRKET-TRANS TORQUE - POWDER BLACK (0637)

$

$

Not available

$

$

50

White Outdoor 783-0669

Idler Bracket
(Superseded to 783-0669-0637)

Variations

White Outdoor 783-0669-0637

Idler Bracket - POWDER BLACK (0637)

$18.99

$

In Stock, only 3 left!

0

$18.99

$

In Stock, only 3 left!

0

51

White Outdoor 783-0714

Adjustable Shift Bracket
(Superseded to 753-0868)

$

$

Not available

52

White Outdoor 647-0031

Brake Control Assembly
(Superseded to 753-05606)

$

$

Not available

53

White Outdoor 647-0032

Speed Control Assembly
(Superseded to 647-0032A-0637)

$

$

Not available

54

White Outdoor 683-0266

drive Pedal Assembly

$84.99

$

Usually ships in 3-6 days

0

55

White Outdoor 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

56

White Outdoor 711-0736

Ferrule, 1/4-20

$13.99

$

In Stock, only 2 left!

0

57

White Outdoor 711-1363

Pin, 3/8-16 x 2.43

$4.49

$

Usually ships in 3-6 days

0

58

White Outdoor 714-0104

Cotter Pin

$3.99

$

In Stock, Qty 20+

0

59

White Outdoor 732-0437

Compression Spring, .34 OD x 1.0

$9.49

$

In Stock, only 1 left!

0

60

White Outdoor 732-0955

Extension Spring, .50 OD x 1.41

$8.99

$

In Stock, only 1 left!

0

61

White Outdoor 735-0662

Drive Pedal Pad

$11.99

$

Usually ships in 3-6 days

0

62

White Outdoor 735-3049

Brake Pedal Pad
(Superseded to 735-3049A)

$11.99

$

In Stock, Qty 8

0

63

White Outdoor 736-0140

Flat Washer, .281 x .5 x .0625

$6.99

$

In Stock, Qty 9

0

64

White Outdoor 736-0187

Flat Washer, .64 x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

65

White Outdoor 736-0204

Flat Washer, .344 x .062 x .03

$3.99

$

In Stock, Qty 20+

0

66

White Outdoor 738-0155

Shoulder Screw, .437 x 1.62
(Superseded to 938-0155)

$6.49

$

Usually ships in 3-6 days

0

67

White Outdoor 738-0507B

Shoulder Screw, .5 x .434

$4.49

$

In Stock, Qty 20+

0

68

White Outdoor 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$6.99

$

In Stock, Qty 20+

0

69

White Outdoor 741-3065A

Split Hex Flange Bearing
(Superseded to 741-3065B)

$7.49

$

In Stock, Qty 20+

0

70

White Outdoor 747-1137

Cruise Control Rod

$

$

Not available

71

White Outdoor 747-1138

Brake Lock Control Rod

$

$

Not available

72

White Outdoor 748-0413

Cruise Latch

$30.99

$

Usually ships in 3-6 days

0

73

White Outdoor 748-0415A

Spacer, 5/16 x 1.54
(Superseded to 748-0415B)

$6.99

$

In Stock, Qty 14

0

74

White Outdoor 783-0653B

Stearing Support Bracket
(Superseded to 783-04612-0637)

$83.99

$

In Stock, only 4 left!

0

75

White Outdoor 783-0732

Drive Lockout Bracket
(Superseded to 783-0732A)

$31.99

$

Usually ships in 3-6 days

0

76

White Outdoor 783-0773

Brake Pedal

Variations

White Outdoor 783-0773-0498

Service Kit - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 783-0773-0637

Service Kit - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0773-0650

Service Kit - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0773-0665

Service Kit - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0773-0691

Service Kit - BLACK JACK (0691)

$

$

Not available

$

$

77

White Outdoor 783-0780

Neutral Return Bracket
(Superseded to 753-04872)

Variations

White Outdoor 783-0780-0637

KIT-NEUT RTN BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

78

White Outdoor 683-0304

Lower Frame Assembly

Variations

White Outdoor 683-0304-0637

LOWER FRAME ASSY POWDER BLACK - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-0304-0650

LOWER FRAME ASSY POWDER BLACK - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-0304-0665

LOWER FRAME ASSY POWDER BLACK - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 683-0304-0691

LOWER FRAME ASSY POWDER BLACK - BLACK JACK (0691)

$

$

Not available

$

$

79

White Outdoor 783-1031

Hitch Plate

Variations

White Outdoor 783-1031-0637

HITCH PLATE-UPPER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-1031-0650

HITCH PLATE-UPPER - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-1031-0665

HITCH PLATE-UPPER - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-1031-0691

HITCH PLATE-UPPER - BLACK JACK (0691)

$

$

Not available

$

$

80

White Outdoor 736-0242

Bell Washer, .34 x .872

$3.99

$

In Stock, Qty 20+

0

81

White Outdoor 710-0627

Hex Cap Screw, 5/16-24 x .75

$3.99

$

In Stock, Qty 20+

0

82

White Outdoor 634-0177

Wheel Assembly Complete, 20 x 10 x 8

Variations

White Outdoor 634-0177-0911

WHEEL ASS'Y COMP - Carlisle Gray (0911)

$440.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0177-0931

WHEEL ASSEMBLY COM - Carlisle Beige (0931)

$440.99

$

In Stock, only 1 left!

0

White Outdoor 634-0177-0941

WHEEL ASS'Y COMP - Carlisle Yellow (0941)

$357.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0177-0991

WHEEL ASS'Y COMP - Carlisle White (0991)

$357.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0177-0994

WHEEL ASS'Y COMP - Cheng White (0994)

$357.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0177-4009

WHEEL ASS'Y COMP - TEE WHITE (4009)

$357.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0177-0961

WHEEL ASS'Y COMP - Carlisle Gray (0961)

$

$

Not available

$357.99

$

Usually ships in 3-6 days

0

82

White Outdoor 634-0070

Rim Only
(Superseded to 634-04369)

Note: Not Shown

Variations

White Outdoor 634-0070-4009

WHEEL RIM - TEE WHITE (4009)

$154.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0499

WHEEL RIM - CUB BEIGE (0499)

$153.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0674

WHEEL RIM - YARDMAN YELLOW (0674)

$153.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0629

WHEEL RIM - SILVER FLAKE (0629)

$153.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0662

WHEEL RIM - OYSTER GRAY (0662)

$153.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0688

WHEEL RIM - SPRING GREEN (0688)

$153.99

$

Usually ships in 3-6 days

0

$124.99

$

Usually ships in 3-6 days

0

82

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

Note: Not Shown

$3.99

$

In Stock, Qty 20+

0

82

White Outdoor 734-1873

Tire Only, 20 x 10 x 8, Square Shoulder

Note: Not Shown

Variations

White Outdoor 734-1873-0901

Tire, 20 X 10 X 8 - Carlisle (0901)

$98.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1873-0904

Tire, 20 X 10 X 8 - Cheng (0904)

$98.99

$

Usually ships in 3-6 days

0

$229.99

$

Usually ships in 3-6 days

0

83

White Outdoor 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

84

White Outdoor 710-0778

Self-tapping Screw, 1/4-20 x 1.5

$3.99

$

In Stock, Qty 20+

0

85

White Outdoor 750-0566

Spacer
(Superseded to 750-0566A)

$9.49

$

In Stock, Qty 8

0

86

White Outdoor 710-1026

Self-tapping Screw, 1/4-20 x 1.75

$6.49

$

In Stock, Qty 20+

0

87

White Outdoor 750-0768

Spacer

$

$

Not available

88

White Outdoor 710-1260A

Self-tapping Screw, 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

89

White Outdoor 710-1650

Self-tapping Screw, 5/16-18 x .875

$4.49

$

In Stock, Qty 20+

0

90

White Outdoor 710-0859

Hex Cap Screw, 3/8-16 x 2.5

$6.49

$

In Stock, Qty 20+

0

91

White Outdoor 736-0430

Flat Washer, .350 x 1.59 x .062

$3.99

$

In Stock, Qty 20+

0

783-0650

Flange

Note: Not Shown

$

$

Not available
