LT 180H48HBV2 (84725) - Snapper 48" Lawn Tractor, 18hp 48" DECK SPINDLE ASSEMBLY- Series "H" Parts Diagram

48" Lawn Tractor, 18hp

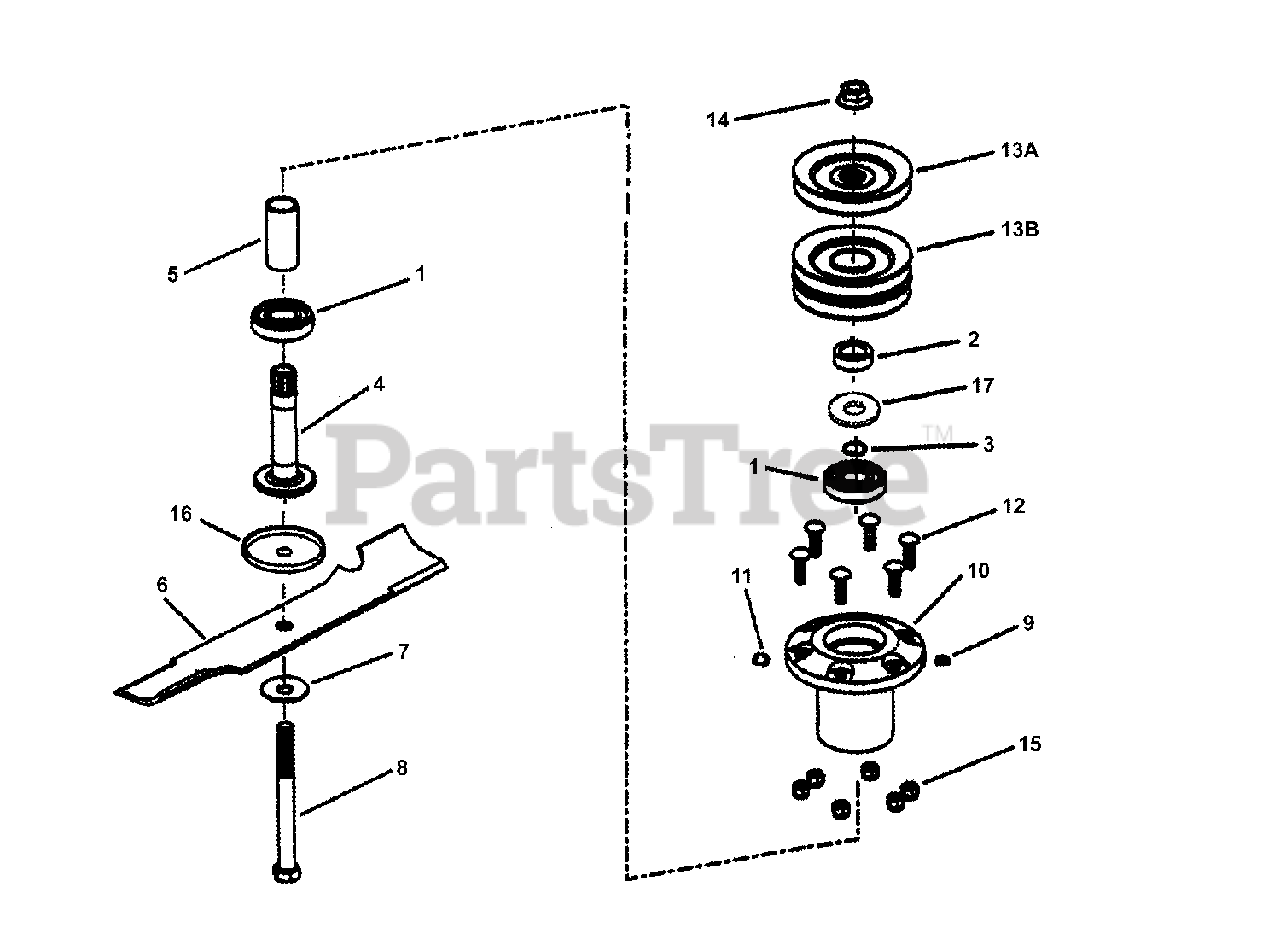

48" DECK SPINDLE ASSEMBLY- Series "H" Parts Diagram

  • Title

Snapper 7054011

ASSEMBLY, Spindle (contains indented items below)
(Superseded to 7054011YP)

$

$

Not available

1

Snapper 7029422

BALL BEARING, Sealed
(Superseded to 7029422YP)

$

$

Not available

2

Snapper 7029272

SPRING, Extension- Primary Idler
(Superseded to 7029272SM)

$15.99

$

In Stock, only 2 left!

0

3

Snapper 7029274

SNAP-RING, Spindle Shaft
(Superseded to 7029274YP)

$4.49

$

Usually ships in 2-12 days

0

4

Snapper 7059311

SHAFT, Spindle
(Superseded to 7059311YP)

$

$

Not available

5

Snapper 7029254

SPACER, Bearing
(Superseded to 7029254YP)

$21.99

$

In Stock, only 4 left!

0

6

Snapper 7075771

BLADE, 16-1/2"
(Superseded to 7075771BZYP)

Note: Was 29247

$28.99

$

In Stock, only 3 left!

0

7

Snapper 7016440

WASHER, Belleville
(Superseded to 7016440SM)

$8.49

$

In Stock, Qty 20+

0

8

Snapper 7063236

BOLT, 5/8-18 x 6-5/8" Hex Head, GR5

Note: Was 91980 (Now 63236 + 63237)

$

$

Not available

9

Snapper 7076998

LUBE FITTING, 1/4-28 Thread Forming
(Superseded to 703153)

Note: Was 29275

$3.99

$

In Stock, Qty 8

0

10

Snapper 7058237

HOUSING, Cutter
(Superseded to 7058237YP)

Note: Was 29252

$

$

Not available

11

Snapper 7029384

VENT, Spindle
(Superseded to 7029384YP)

Note: Alemite # 321839

$14.99

$

In Stock, only 2 left!

0

12

Snapper 7029302

BOLT, 3/8-16 x 1-1/4" Rib Necked
(Superseded to 7029302YP)

$4.49

$

In Stock, only 3 left!

0

13A

Snapper 7046917

PULLEY, Spindle (48" Deck L.H. & R. H.)
(Superseded to 7046917YP)

$80.99

$

Usually ships in 2-12 days

0

13B

Snapper 7046794

PULLEY, Spindle (48" Deck Drive)
(Superseded to 7046794YP)

$224.99

$

Usually ships in 2-12 days

0

14

Snapper 7063237

NUT, 5/8-18 Hex Flange Lock, GR5
(Superseded to 7063237YP)

Note: Was 91736

$4.49

$

In Stock, Qty 20+

0

15

Snapper 7091299

NUT, 3/8-16-3B Hex Nyloc
(Superseded to 703117)

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7072077

CUP, Spindle Cover
(Superseded to 7072077YP)

$61.99

$

Usually ships in 2-12 days

0

17

Snapper 7063238

SEAL, Nylos
(Superseded to 7063238YP)

$58.99

$

In Stock, only 2 left!

0
