LT 1840 (1694808) - Snapper 40" Lawn Tractor, 18hp 40" Mower Deck - Housing, Arbors & Blades Parts Diagram

40" Lawn Tractor, 18hp

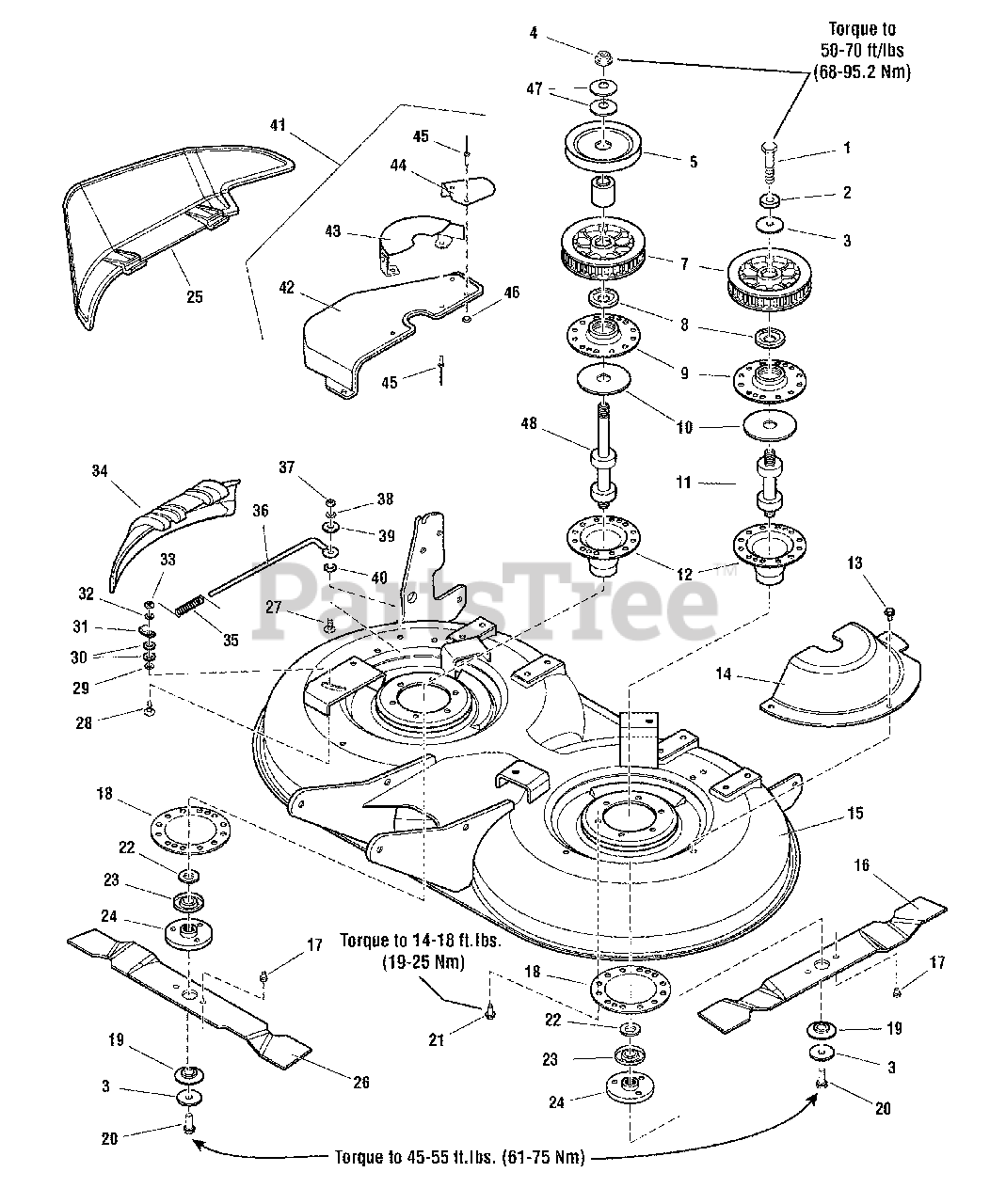

40" Mower Deck - Housing, Arbors & Blades Parts Diagram

  • Title

1

Snapper 1930584

CAPSCREW, Hex Head, 7/16-14 x 2-3/4 G8
(Superseded to 1930584SM)

$7.99

$

In Stock, only 1 left!

0

2

Snapper 1933263

WASHER, 7/16
(Superseded to 703990)

$6.99

$

In Stock, Qty 6

0

3

Snapper 1656916

WASHER, Spring
(Superseded to 1656916SM)

$7.49

$

In Stock, Qty 20+

0

4

Snapper 1714419

NUT, Hex Flange, 9/16-18
(Superseded to 1714419SM)

$5.99

$

In Stock, Qty 20+

0

5

Snapper 1713091

PULLEY
(Superseded to 1713091SM)

$23.99

$

In Stock, only 1 left!

0

6

Snapper 1719870

HUB
(Superseded to 1719870SM)

$48.99

$

Usually ships in 2-12 days

0

7

Snapper 1724453

SPROCKET & FLANGE ASSEMBLY, Riveted, 38 Tooth
(Superseded to 1732590SM)

$87.99

$

In Stock, only 2 left!

0

8

Snapper 1657969A

SHIELD, Arbor Bearing, Upper
(Superseded to 1657969SM)

$7.49

$

In Stock, Qty 20+

0

9

Snapper 1655729A

HOUSING, Arbor Top
(Superseded to 1655729ASM)

$14.99

$

In Stock, Qty 20+

0

10

Snapper 1707335

GASKET, Foam Poly
(Superseded to 1707335SM)

$5.99

$

In Stock, Qty 20+

0

11

Snapper 1722396

ARBOR SHAFT & BEARINGS ASSEMBLY
(Superseded to 1722396SM)

$263.99

$

In Stock, only 1 left!

0

12

Snapper 1703273A

HOUSING, Arbor Bottom with Lube Fitting
(Superseded to 1703273ASM)

$38.99

$

In Stock, Qty 19

0

13

Snapper 1664847

CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

14

Snapper 1724601

COVER, Arbor, LH
(Superseded to 1732301SM)

$29.99

$

Usually ships in 2-12 days

0

15

Snapper 1687175

HOUSING ASSEMBLY, 40", Red
(Superseded to 1687175SM)

$523.99

$

Usually ships in 2-12 days

0

16

Snapper 1719624A

BLADE, Mower, LH
(Superseded to 1719624ASM)

$31.99

$

In Stock, only 2 left!

0

17

Snapper 1722258

PIN, Blade
(Superseded to 1722258SM)

$8.49

$

In Stock, Qty 10

0

18

Snapper 1677274A

ADAPTOR, Arbor
(Superseded to 1677274ASM)

$20.99

$

Usually ships in 2-12 days

0

19

Snapper 1722257

WASHER, Spline
(Superseded to 1722257SM)

$59.99

$

Usually ships in 2-12 days

0

20

Snapper 2827120

CAPSCREW, Hex Head, 7/16-14 x 2-1/4 G8
(Superseded to 2827120SM)

$5.99

$

In Stock, only 1 left!

0

21

Snapper 1960373

CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

22

Snapper 1700230

WASHER, Shim
(Superseded to 1700230SM)

$4.99

$

In Stock, Qty 20+

0

23

Snapper 1700229A

SHIELD, Arbor Bearing, Lower

$

$

Currently unavailable

24

Snapper 1655777

ADAPTER, Blade
(Superseded to 1655777SM)

$25.99

$

In Stock, Qty 20+

0

25

Snapper 1723453

DEFLECTOR, Discharge
(Superseded to 1723453SM)

$61.99

$

Usually ships in 2-12 days

0

26

Snapper 1719623A

BLADE, Mower, RH
(Superseded to 1719623ASM)

$31.99

$

In Stock, only 1 left!

0

27

Snapper 1931335

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

28

Snapper 1931318

CARRIAGE BOLT, 1/4-20 x 7/8
(Superseded to 1931318SM)

$4.49

$

In Stock, only 3 left!

0

29

Snapper 1960518

NUT, Push
(Superseded to 703826)

$3.49

$

In Stock, Qty 17

0

30

Snapper 1960353

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, only 2 left!

0

31

Snapper 1704873

CLAMP
(Superseded to 1704873SM)

$4.49

$

In Stock, only 2 left!

0

32

Snapper 1916964

LOCKWASHER, Spring 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

33

Snapper 1916622

NUT, Hex 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

34

Snapper 1719597

DOOR, Mulching, Black Plastic
(Superseded to 1719597SM)

$32.99

$

Usually ships in 2-12 days

0

35

Snapper 1723938

SPRING, Torsion
(Superseded to 1723938SM)

$6.49

$

Usually ships in 2-12 days

0

36

Snapper 1719617

ROD, Pivot
(Superseded to 1719617SM)

$10.99

$

Usually ships in 2-12 days

0

37

Snapper 1917372

NUT, Hex 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

38

Snapper 1917356

LOCKWASHER, Spring 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

39

Snapper 1919381

WASHER, 5/16
(Superseded to 1919381SM)

$4.49

$

In Stock, Qty 13

0

40

Snapper 1933988

NUT, Push
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

41

Snapper 1721155

COVER ASSEMBLY, Arbor, RH (Includes Ref. Nos. 42 thru 46)
(Superseded to 1721155SM)

$116.99

$

Usually ships in 2-12 days

0

42

Snapper 1724600

COVER, Arbor RH
(Superseded to 1724600SM)

$13.99

$

Usually ships in 2-12 days

0

43

Snapper 1721259A

GUARD ASSEMBLY, RH
(Superseded to 1721259ASM)

$46.99

$

Usually ships in 2-12 days

0

44

Snapper 1721132A

GUARD, Extension
(Superseded to 1721132ASM)

$17.99

$

Usually ships in 2-12 days

0

45

Snapper 1675044

RIVIT, Pop
(Superseded to 1675044SM)

$3.99

$

In Stock, only 2 left!

0

46

Snapper 1960096

WASHER, 3/16 x 3/4 x 1/16
(Superseded to 1960096SM)

$3.99

$

Usually ships in 2-12 days

0

47

Snapper 1713675

WASHER, Bellville, 9/16
(Superseded to 1713675SM)

$4.49

$

In Stock, Qty 20+

0

48

Snapper 1726825

ARBOR SHAFT & BEARING ASSEMBLY
(Superseded to 1726825SM)

$

$

Not available
