LT-1850 (13A6616H190) - White Outdoor 46" Lawn Tractor (2003)

46" Lawn Tractor

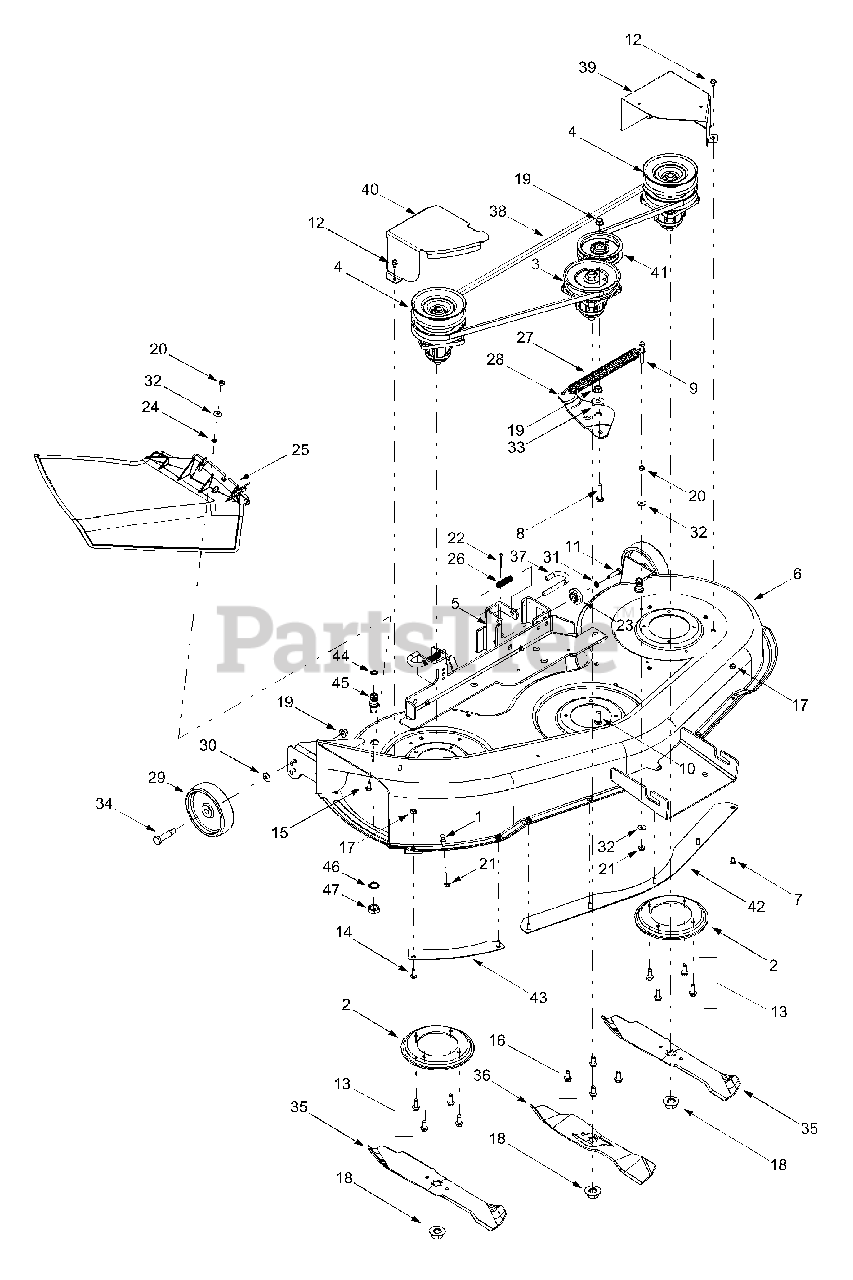

LT-1850 (13A6616H190) - White Outdoor 46" Lawn Tractor (2003) > Parts Diagrams (12) > Deck Assembly "H" 46 Inch

  • Title
711-04069

1

Grass Catcher Pin, 1/4-20

Part# 711-04069 (Superseded to 911-04069)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.21

17982

2

Spindle Reinforcement Plate

Part# 17982

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Spindle Plate, Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $29.99

618-0430A

3

Spindle Assembly, 5.0 Dia. w/ Fitting

Part# 618-0430A (Superseded to 918-0240C)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $108.44

756-1187

Pulley Only

Part# 756-1187

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $26.92

618-0431

4

Double Pulley Spindle Assembly w/ Fitting

Part# 618-0431 (Superseded to 918-0241B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $145.33

756-0603

Pulley Only

Part# 756-0603

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $88.20

683-0254

5

Deck Adjustment Bracket Assembly

Part# 683-0254

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $35.13

Variations

POWDER BLACK (0637)

Deck Bracket Assembly, LH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $35.13

RED METALLIC (0650)

BRACKET ASSY-DECK LH

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $35.13

YARDMAN GREEN (0665)

BRACKET ASSY-DECK LH

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $35.13

BLACK JACK (0691)

Deck Bracket Assembly, LH

Part# BLACK JACK (0691)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $35.13

683-04052

6

46-inch Deck Shell

Part# 683-04052

OEM Warranty Repair Part for White Outdoor

Variations

MAJESTIC ORANGE (0606)

DECK ASSY-SD 46" LT

Part# MAJESTIC ORANGE (0606)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

DECK ASSY-SD 46" LT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

RED METALLIC (0650)

DECK ASSY-SD 46" LT

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Not available

710-0167

7

Carriage Screw, 1/4-20 x .50

Part# 710-0167

OEM Warranty Repair Part for White Outdoor

Not available

710-0344

8

Hex Cap Screw, 3/8-16 x 1.5

Part# 710-0344

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.13

710-0501

9

Hex Cap Screw, 1/4-20 x 2.0

Part# 710-0501

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.02

710-0514

10

Hex Cap Screw, 3/8-16 x 1.0

Part# 710-0514

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.01

710-0528

11

Hex Cap Screw, 5/8-18 x 1.25

Part# 710-0528

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

710-0599

12

Self-tapping Screw,1/4-20 x .5

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

710-0650

13

Self-tapping Screw,15/16-18 x .875

Part# 710-0650

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.95

710-0703

14

Hex Screw, 1/4-20 x .75

Part# 710-0703

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

710-0751

15

Hex Cap Screw, 1/4-20 x .62

Part# 710-0751

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

710-1260A

16

Self-tapping Screw, 5/16-18 x .75

Part# 710-1260A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.65

712-0271

17

Hex Sems Nut, 1/4-20

Part# 712-0271

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.03

712-0417A

18

Hex Flange Nut, 5/8-18

Part# 712-0417A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.15

712-0431

19

Flange Lock Nut, 3/8-16

Part# 712-0431 (Superseded to 912-0431)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.45

712-3006

20

Hex Nut, 1/4-20

Part# 712-3006

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.24

712-3027

21

Hex Flange Lock Nut, 1/4-20

Part# 712-3027 (Superseded to 912-3027)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.05

714-0470

22

Cotter Pin, 1/8 x 1.25

Part# 714-0470 (Superseded to 914-0470)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

717-1553A

23

Deck Adjustment Gear

Part# 717-1553A (Superseded to 917-04074)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.19

726-0233

24

Push Nut. .25 x .5

Part# 726-0233

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.12

731-1032B

25

Side Discharge Chute Assembly

Part# 731-1032B (Superseded to 631-05229)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $59.82

732-0306

26

Compression Spring, .406 x .531 x 1.75

Part# 732-0306 (Superseded to 932-0306A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.09

732-0594A

27

Extension Spring, .91 x 7.3

Part# 732-0594A (Superseded to 932-0594A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $10.91

783-0139A

28

Idler Bracket

Part# 783-0139A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Idler Bracket, Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $15.97

734-0973

29

Deck Wheel, 5 x 1.38

Part# 734-0973

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.60

736-0105

30

Bell Washer, .401 x .87 x .063

Part# 736-0105

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

736-0119

31

Lock Washer, 5/16

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.41

736-0270

32

Bell Washer, .265 x .75 x .062

Part# 736-0270

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

738-0347

33

Shoulder Spacer, .625 x 1.16

Part# 738-0347 (Superseded to 938-0347)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.16

738-0373

34

Shoulder Screw

Part# 738-0373 (Superseded to 938-0373)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.70

742-0611

35

Three-in-one Blade, Star Center, 16.28"

Part# 742-0611 (Superseded to 942-0611A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $25.57

742-0612

36

Three-in-one Blade, Star Center, 14.88"

Part# 742-0612 (Superseded to 942-0612A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $25.13

747-1116

37

Deck Release Pin

Part# 747-1116

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.88

754-0349

38

Deck Belt, Poly

Part# 754-0349 (Superseded to 954-0349)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $33.53

783-0747

39

LH Belt Cover

Part# 783-0747

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Belt Cover, LH 46" Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $41.50

RED METALLIC (0650)

Belt Cover, LH 46" Red

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $41.50

YARDMAN GREEN (0665)

COVER-BELT LH 46"

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $41.50

BLACK JACK (0691)

Belt Cover, LH 46" Black

Part# BLACK JACK (0691)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $41.50

783-0805A

40

RH Belt Cover

Part# 783-0805A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Belt Cover, RH Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

RED METALLIC (0650)

COVER-BELT RH

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

COVER-BELT RH

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

BLACK JACK (0691)

COVER-BELT RH

Part# BLACK JACK (0691)

OEM Warranty Repair Part for White Outdoor

Not available

756-0627B

41

Idler Pulley, 3.5

Part# 756-0627B (Superseded to 756-0627D)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $22.70

783-0141

42

Center Deck Skirt

Part# 783-0141

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $45.90

Variations

POWDER BLACK (0637)

Center Deck Skirt, Powder Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $45.90

WINE RED (4008)

Center Skirt for Deck, Red

Part# WINE RED (4008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $45.90

783-0142

43

RH Deck Skirt

Part# 783-0142

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Deck Skirt, RH Powder Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $34.07

WINE RED (4008)

Deck Skirt, RH Powder Black

Part# WINE RED (4008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $34.07

721-0417

44

O-Ring

Part# 721-0417 (Superseded to 921-0417)

OEM Warranty Repair Part for White Outdoor

Not available

737-04003

45

Water Nozzle

Part# 737-04003 (Superseded to 737-04003D)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $16.58

736-0760

46

Lock Washer, 17 x 23.8 x 1.95

Part# 736-0760 (Superseded to 936-0760)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

712-0641

47

Hex Nut, M-16 x 1.5

Part# 712-0641 (Superseded to 912-0641)

OEM Warranty Repair Part for White Outdoor

Not available
