LT-1850 (13A6616H190) - White Outdoor 46" Lawn Tractor (2003)

46" Lawn Tractor

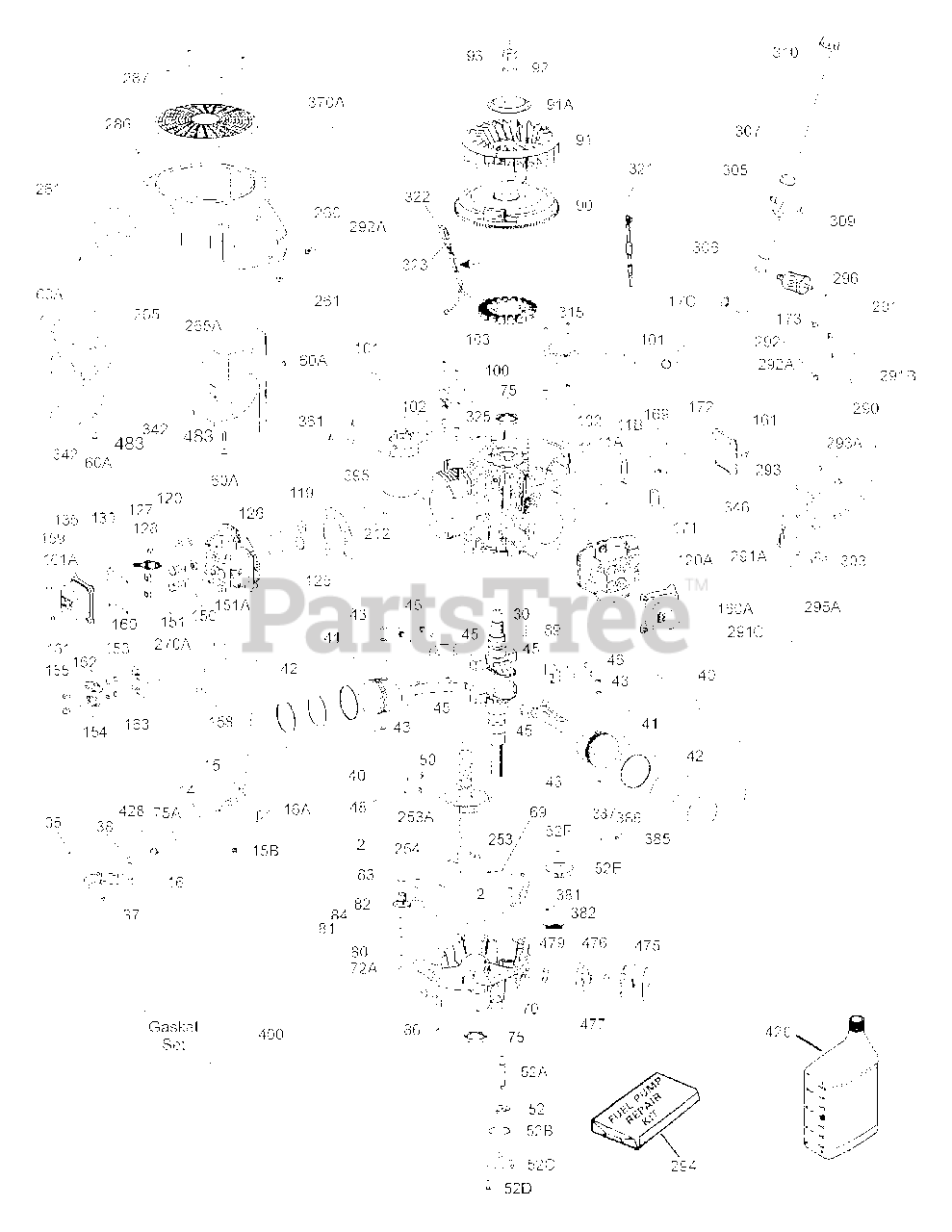

LT-1850 (13A6616H190) - White Outdoor 46" Lawn Tractor (2003) > Parts Diagrams (12) > Engine List 1

  • Title

1

UNKNOWN

Part#

Not available

TC-27652

2

Dowel Pin

Part# TC-27652

OEM Warranty Repair Part for White Outdoor

Not available

TC-36302

11

Check Valve

Part# TC-36302

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $1.76

TC-36303

11A

Breather Plate

Part# TC-36303

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 8 to 14 business days

Your price: $1.70

TC-650902

11B

Screw, 10-32 x 7/16"

Part# TC-650902

OEM Warranty Repair Part for White Outdoor

Not available

TC-37363

14

Washer

Part# TC-37363

OEM Warranty Repair Part for White Outdoor

Not available

TC-37364

15

Governor Rod

Part# TC-37364

OEM Warranty Repair Part for White Outdoor

Not available

TC-650738

15B

Screw, 1/4-20 x 5/8"

Part# TC-650738

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 8 to 14 business days

Your price: $3.64

TC-37413

16

Governor Lever

Part# TC-37413

OEM Warranty Repair Part for White Outdoor

Not available

TC-37414

16A

Governor Spring Bracket

Part# TC-37414

OEM Warranty Repair Part for White Outdoor

Not available

TC-37429

17C

Breather Tube Clamp

Part# TC-37429

OEM Warranty Repair Part for White Outdoor

Not available

TC-37371

30

Crankshaft

Part# TC-37371

OEM Warranty Repair Part for White Outdoor

Not available

TC-651069

35

Screw, Carriage 1/4-20 x 1-1/2"

Part# TC-651069

OEM Warranty Repair Part for White Outdoor

Not available

TC-650456

37

Lock Nut, 1/4-20

Part# TC-650456

OEM Warranty Repair Part for White Outdoor

Not available

TC-37365

38

Retaining Ring

Part# TC-37365

OEM Warranty Repair Part for White Outdoor

Not available

TC-40040

40

Piston, Pin & Ring Set (Std.)

Part# TC-40040

OEM Warranty Repair Part for White Outdoor

Not available

TC-40041

40

Piston, Pin & Ring Set (.010" OS)

Part# TC-40041

OEM Warranty Repair Part for White Outdoor

Not available

~N/A

41

Piston & Pin Ass'y. (Std.)

Part# ~N/A

Note: (Incl. 43)

Not available

~N/A

41

Piston & Pin Ass'y.(.010" OS)

Part# ~N/A

Note: (Incl.43)

Not available

TC-40013

42

Ring Set (Std.)

Part# TC-40013

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $28.44

TC-40014

42

Ring Set (.010" OS)

Part# TC-40014

OEM Warranty Repair Part for White Outdoor

Not available

TC-27888

43

Piston Pin Retaining Ring

Part# TC-27888

OEM Warranty Repair Part for White Outdoor

Not available

TC-37372

45

Connecting Rod Ass'y.

Part# TC-37372

Note: (Incl. 46)

OEM Warranty Repair Part for White Outdoor

Not available

TC-651063

46

Connecting Rod Bolt

Part# TC-651063

OEM Warranty Repair Part for White Outdoor

Not available

TC-37374

50

Camshaft (MCR)

Part# TC-37374 (Superseded to TC-37826)

OEM Warranty Repair Part for White Outdoor

Not available

TC-37305

52

Oil Pump Ass'y.

Part# TC-37305

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $19.44

TC-37382

52A

Oil Pump Shaft

Part# TC-37382

OEM Warranty Repair Part for White Outdoor

Not available

TC-36333

52B

"O" Ring

Part# TC-36333

OEM Warranty Repair Part for White Outdoor

Not available

TC-36334

52C

Oil Pump Cover

Part# TC-36334

Note: (Incl. 52B)

OEM Warranty Repair Part for White Outdoor

Not available

TC-650888

52D

Screw, T-30 1/4-20 x 43/64"

Part# TC-650888

OEM Warranty Repair Part for White Outdoor

Not available

TC-37383

52E

Oil Pump Gear

Part# TC-37383

OEM Warranty Repair Part for White Outdoor

Not available

TC-37384

52F

Oil Pump Gear Retaining Ring

Part# TC-37384

OEM Warranty Repair Part for White Outdoor

Not available

TC-650773

60A

Screw, 1/4-20 x 1/2"

Part# TC-650773

OEM Warranty Repair Part for White Outdoor

Not available

TC-37377

69

Mounting Flange Gasket

Part# TC-37377

Note: Kit (P)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.16

TC-37378

70

Mounting Flange

Part# TC-37378

Note: (Incl. 72, 72A, 75, 80, 381-387)

OEM Warranty Repair Part for White Outdoor

Not available

72A

UNKNOWN

Part#

Not available

TC-36301

75

Oil Seal (1 in Ref 1, 1 in Ref 70)

Part# TC-36301

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.12

TC-37369

75A

Oil Seal (Governor Shaft)

Part# TC-37369

OEM Warranty Repair Part for White Outdoor

Not available

TC-37379

80

Governor Shaft

Part# TC-37379

OEM Warranty Repair Part for White Outdoor

Not available

TC-37381

81

Washer (Governor Shaft)

Part# TC-37381

OEM Warranty Repair Part for White Outdoor

Not available

TC-37380

82

Governor Gear Ass'y.

Part# TC-37380

OEM Warranty Repair Part for White Outdoor

Not available

TC-35322

83

Governor Spool

Part# TC-35322

OEM Warranty Repair Part for White Outdoor

Not available

TC-29193

84

Retaining Ring

Part# TC-29193

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.38

TC-651064

86

Screw, 5/16-18 x 1-15/32"

Part# TC-651064

OEM Warranty Repair Part for White Outdoor

Not available

TC-611254

90

Flywheel

Part# TC-611254

Note: (Incl. 91 & 91A)

OEM Warranty Repair Part for White Outdoor

Not available

TC-611241

91

Flywheel Fan

Part# TC-611241 (Superseded to TC-611241A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $18.31

TC-611242

91A

Flywheel Retainer

Part# TC-611242

OEM Warranty Repair Part for White Outdoor

Not available

TC-651082

92

Belleville Washer

Part# TC-651082

OEM Warranty Repair Part for White Outdoor

Not available

TC-650594

93

Flywheel Nut

Part# TC-650594

OEM Warranty Repair Part for White Outdoor

Not available

TC-37395

100

Solid State Ignition

Part# TC-37395

Note: (Incl. 101)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $50.94

TC-610118

101

Spark Plug Cover

Part# TC-610118

OEM Warranty Repair Part for White Outdoor

Not available

TC-651024

102

Solid State Mounting Stud

Part# TC-651024

OEM Warranty Repair Part for White Outdoor

Not available

TC-651007

103

Screw, T-15 10-24 x 15/16"

Part# TC-651007

OEM Warranty Repair Part for White Outdoor

Not available

TC-37388

119

Cylinder Head Gasket

Part# TC-37388 (Superseded to TC-37830)

Note: Kit (P)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $12.54

TC-37387

120

Cylinder Head, Opp. Breather Side

Part# TC-37387

OEM Warranty Repair Part for White Outdoor

Not available

TC-37389

120A

Cylinder Head, Breather Side

Part# TC-37389

OEM Warranty Repair Part for White Outdoor

Not available

TC-36934

125

Exhaust Valve (Std.)

Part# TC-36934

OEM Warranty Repair Part for White Outdoor

Not available

TC-36935

126

Intake Valve (Std)

Part# TC-36935

OEM Warranty Repair Part for White Outdoor

Not available

TC-650691

127

Flat Washer

Part# TC-650691

OEM Warranty Repair Part for White Outdoor

Not available

TC-650690

128

Belleville Washer

Part# TC-650690 (Superseded to TC-730324)

OEM Warranty Repair Part for White Outdoor

Not available

TC-650697A

130

Screw, 5/16-18 x 2-1/2" (Head Mount)

Part# TC-650697A

OEM Warranty Repair Part for MTD

Not available

TC-34645

135

Spark Plug (RN4C)

Part# TC-34645 (Superseded to RN4C)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.99

TC-33507

150

Valve Spring

Part# TC-33507

OEM Warranty Repair Part for White Outdoor

Not available

TC-33508

151

Valve Keeper Retainer & Cap Set

Part# TC-33508

OEM Warranty Repair Part for White Outdoor

Not available

TC-35862

151A

Valve Seal

Part# TC-35862

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.16

TC-37390

153

Push Rod Guide

Part# TC-37390

OEM Warranty Repair Part for White Outdoor

Not available

TC-650945

154

Rocker Arm Stud

Part# TC-650945

OEM Warranty Repair Part for White Outdoor

Not available

TC-35950

155

Rocker Arm

Part# TC-35950

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.30

TC-37391

158

Push Rod

Part# TC-37391

OEM Warranty Repair Part for White Outdoor

Not available

TC-35952

159

Rocker Arm Cover Gasket

Part# TC-35952

Note: Kit (P)

OEM Warranty Repair Part for White Outdoor

Not available

TC-35953A

160

Rocker Arm Cover, Opp. Breather Side

Part# TC-35953A

OEM Warranty Repair Part for White Outdoor

Not available

TC-37392

160A

Rocker Arm Cover, Breather Side

Part# TC-37392

OEM Warranty Repair Part for White Outdoor

Not available

TC-30063

161

Screw, T-30 1/4-20 x 1/2"

Part# TC-30063

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $1.76

TC-650947

162

Rocker Arm Jam Nut, 5/16-24

Part# TC-650947

OEM Warranty Repair Part for White Outdoor

Not available

TC-650890

163

Internal Lock Washer, 5/16"

Part# TC-650890

OEM Warranty Repair Part for White Outdoor

Not available

TC-37367

169

Valve Cover Gasket

Part# TC-37367

Note: Kit (P)

OEM Warranty Repair Part for White Outdoor

Not available

TC-37366

171

Breather Element

Part# TC-37366

OEM Warranty Repair Part for White Outdoor

Not available

TC-37368

172

Valve Cover

Part# TC-37368

OEM Warranty Repair Part for White Outdoor

Not available

TC-37393

173

Breather Tube

Part# TC-37393

OEM Warranty Repair Part for White Outdoor

Not available

TC-37370

212

Bushing

Part# TC-37370

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $1.66

TC-37376

253

Compression Release Weight

Part# TC-37376

OEM Warranty Repair Part for White Outdoor

Not available

TC-37424

253A

Compression Release Pin

Part# TC-37424

OEM Warranty Repair Part for White Outdoor

Not available

TC-37375

254

Compression Release Spring

Part# TC-37375

OEM Warranty Repair Part for White Outdoor

Not available

TC-37398

260

Blower Housing (Red)

Part# TC-37398

OEM Warranty Repair Part for White Outdoor

Not available

TC-650737

261

Screw, 1/4-20 x 1/2"

Part# TC-650737

OEM Warranty Repair Part for White Outdoor

Not available

TC-37627

265

Cylinder Head Cover, Opp. Breather

Part# TC-37627

OEM Warranty Repair Part for White Outdoor

Not available

TC-37628

265A

Cylinder Head Cover, Breather Side

Part# TC-37628

OEM Warranty Repair Part for White Outdoor

Not available

TC-35829A

270A

Exhaust Port Liner

Part# TC-35829A

OEM Warranty Repair Part for White Outdoor

Not available

TC-37394

286

Flywheel Screen

Part# TC-37394

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $12.39

TC-651066

287

Screw, T-20 8-18 x 1-15/32"

Part# TC-651066

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 8 to 14 business days

Your price: $1.68

TC-30962

290

Fuel Line (16.75")

Part# TC-30962

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $12.62

~N/A

291

Fuel Line (8-1/4")

Part# ~N/A

Not available

~N/A

291A

Fuel Line (8-1/4")

Part# ~N/A

Not available

291B

UNKNOWN

Part#

Not available

TC-34357

291C

Fuel Line (6.75")

Part# TC-34357

OEM Warranty Repair Part for White Outdoor

Not available

TC-26460

292

Fuel Line Clamp

Part# TC-26460

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $1.66

TC-37399

292A

Fuel Line Retainer

Part# TC-37399 (Superseded to TC-37399A)

OEM Warranty Repair Part for White Outdoor

Not available

TC-35787

293

Pulse Pump

Part# TC-35787 (Superseded to TC-35787A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $43.62

TC-650931

293A

Screw, 8-32 x 1-1/2"

Part# TC-650931

OEM Warranty Repair Part for White Outdoor

Not available

294

UNKNOWN

Part#

Not available

TC-37422

295A

Fuel Fitting

Part# TC-37422 (Superseded to TC-37422A)

OEM Warranty Repair Part for White Outdoor

Not available

TC-37768

296

Fuel Filter

Part# TC-37768

Note: (Incl. 292)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.06

TC-32958

303

Pulse Pump/Fuel Fitting

Part# TC-32958

OEM Warranty Repair Part for White Outdoor

Not available

TC-36349

305

Oil Fill Tube

Part# TC-36349

OEM Warranty Repair Part for White Outdoor

Not available

TC-37401

306

O-Ring (Oil Fill, Bottom)

Part# TC-37401

Note: Kit (P)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 8 to 14 business days

Your price: $3.66

TC-650974

309

Screw, 1/4-20 x 57/64"

Part# TC-650974

OEM Warranty Repair Part for White Outdoor

Not available

TC-37421

310

Dipstick

Part# TC-37421

OEM Warranty Repair Part for White Outdoor

Not available

TC-611292

315

Alternator Coil (16 Amp)

Part# TC-611292

Note: (Incl. 322-323B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $102.66

321

UNKNOWN

Part#

Not available

TC-611281

322

Connector Body

Part# TC-611281

OEM Warranty Repair Part for White Outdoor

Not available

TC-611276

323

Terminal

Part# TC-611276

OEM Warranty Repair Part for White Outdoor

Not available

TC-36342

325

Wire Clip

Part# TC-36342

OEM Warranty Repair Part for White Outdoor

Not available

TC-651031

342

Screw, 1/4-20 x 9/16"

Part# TC-651031

Note: (Ref. 240 & 265)

OEM Warranty Repair Part for White Outdoor

Not available

TC-36413

346

Fuel Pump Bracket

Part# TC-36413

OEM Warranty Repair Part for White Outdoor

Not available

TC-651065

361

Screw, 5/16-18 x 2-3/8"

Part# TC-651065

OEM Warranty Repair Part for White Outdoor

Not available

TC-35274

370A

Lubrication Decal

Part# TC-35274

OEM Warranty Repair Part for White Outdoor

Not available

TC-650767

381

Screw, 8-32 x 27/64"

Part# TC-650767

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.36

TC-36931

382

Oil Strainer Screen

Part# TC-36931

OEM Warranty Repair Part for White Outdoor

Not available

TC-570673

385

Ball

Part# TC-570673

OEM Warranty Repair Part for White Outdoor

Not available

TC-36329

386

Pressure Release Spring

Part# TC-36329

OEM Warranty Repair Part for White Outdoor

Not available

TC-37652

387

Cotter Pin

Part# TC-37652

OEM Warranty Repair Part for White Outdoor

Not available

TC-37284

395

Electric Starter Motor (12 Volt)

Part# TC-37284

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $180.50

TC-37423

400

Gasket Set

Part# TC-37423 (Superseded to TC-37423A)

Note: (Incl. Items Marked PK in Notes)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $40.87

420

UNKNOWN

Part#

Not available

TC-37362

428

Spacer

Part# TC-37362

OEM Warranty Repair Part for White Outdoor

Not available

TC-36563

475

Oil Filter

Part# TC-36563

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $13.92

TC-36929

476

Oil Filter Adaptor

Part# TC-36929

Note: (Incl. 479)

OEM Warranty Repair Part for White Outdoor

Not available

TC-650378

477

Screw, T-30 5/16-18 x 1 3/32"

Part# TC-650378

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $1.74

TC-36930

479

Oil Filter Adaptor Gasket

Part# TC-36930

Note: Kit (P)

OEM Warranty Repair Part for White Outdoor

Not available

TC-37629

483

Cylinder Wrap Spacer

Part# TC-37629

OEM Warranty Repair Part for White Outdoor

Not available
