LT-1850 (13A6616H190) - White Outdoor 46" Lawn Tractor (2003)

46" Lawn Tractor

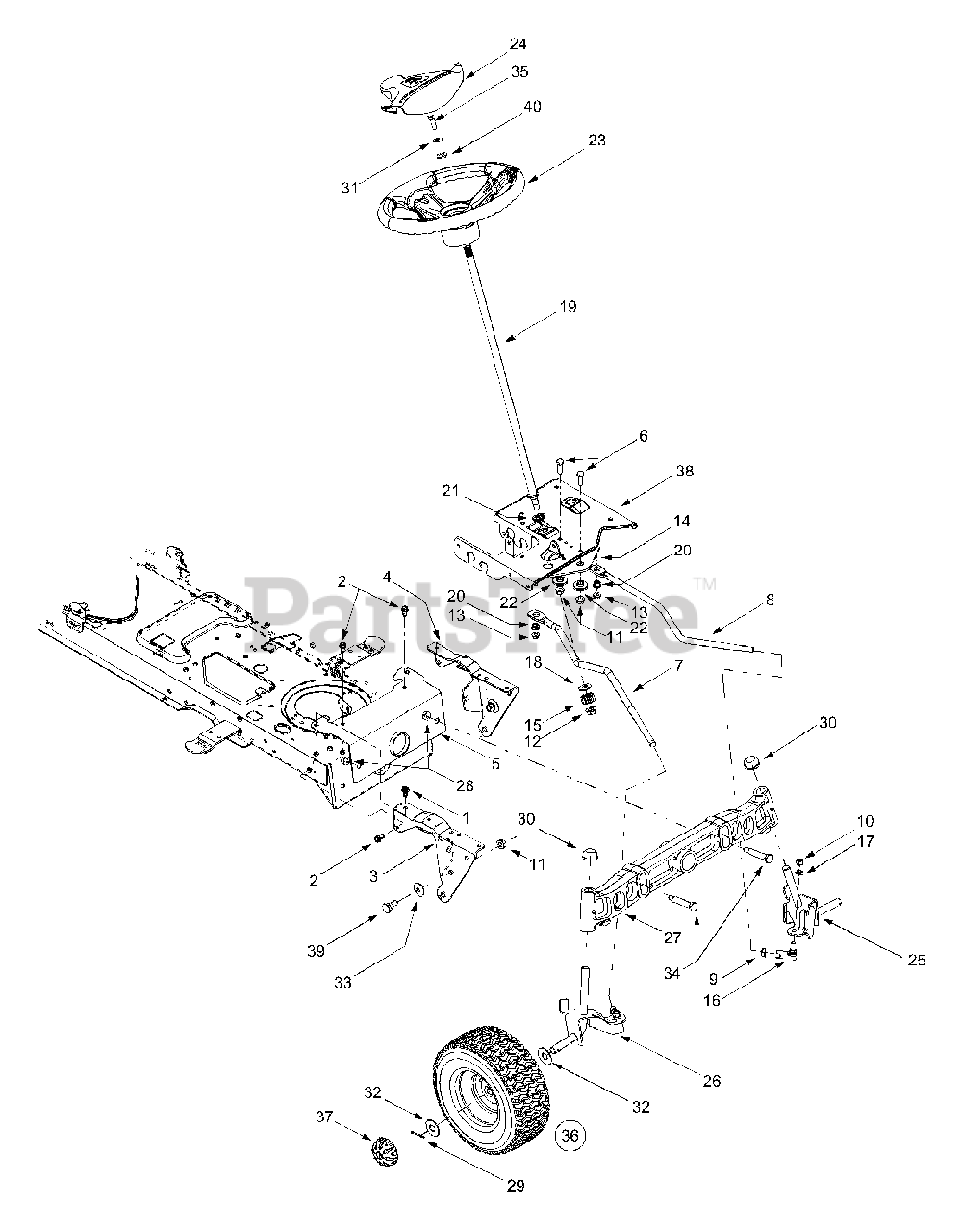

LT-1850 (13A6616H190) - White Outdoor 46" Lawn Tractor (2003) > Parts Diagrams (12) > Steering, Front Wheels & Axle

  • Title
710-1260A

1

Self-tapping Screw, 5/16-18 x .75

Part# 710-1260A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.65

710-0604A

2

Self-tapping Screw, 16-18 x .625

Part# 710-0604A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

783-0726B

3

RH Pivot Support Bracket

Part# 783-0726B

OEM Warranty Repair Part for White Outdoor

Variations

OLD CUB YELLOW (0498)

Pivot Support Bracket, RH

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $39.87

MAJESTIC ORANGE (0606)

Pivot Support Bracket, RH

Part# MAJESTIC ORANGE (0606)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $39.87

POWDER BLACK (0637)

BRACKET:PIVOT SUPPORT RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

RED METALLIC (0650)

BRACKET:PIVOT SUPPORT RH

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

BRACKET:PIVOT SUPPORT RH

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

BLACK JACK (0691)

BRACKET:PIVOT SUPPORT RH

Part# BLACK JACK (0691)

OEM Warranty Repair Part for White Outdoor

Not available

CUB YELLOW-99 (0716)

Pivot Support Bracket, RH

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $39.87

783-0727A

4

LH Pivot Support Bracket

Part# 783-0727A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

USE 783-0727C BRKT:PIVOT:SUPT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

RED METALLIC (0650)

BRACKET:PIVOT:SUPPORT LH

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

BRACKET:PIVOT:SUPPORT LH

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

BLACK JACK (0691)

BRACKET:PIVOT:SUPPORT LH

Part# BLACK JACK (0691)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $43.11

783-0728

5

Pivot Bar Bracket

Part# 783-0728

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Pivot Bar Bracket

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $35.73

RED METALLIC (0650)

BRACKET-PIVOT BAR

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $35.73

YARDMAN GREEN (0665)

BRACKET-PIVOT BAR

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $35.73

BLACK JACK (0691)

BRACKET-PIVOT BAR

Part# BLACK JACK (0691)

OEM Warranty Repair Part for White Outdoor

Not available

710-0514

6

Hex Cap Screw, 3/8-16 x 1 (Grade 5)

Part# 710-0514

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.01

711-1408

7

RH Drag Link

Part# 711-1408

OEM Warranty Repair Part for White Outdoor

Not available

711-1409A

8

LH Drag Link

Part# 711-1409A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $26.16

712-0240

9

Jam Nut, 7/16-20 (Grade 2)

Part# 712-0240 (Superseded to 912-0240)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

712-0241

10

Hex Nut, 3/8-24 (Grade 2)

Part# 712-0241

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.10

712-0431

11

Flange Lock Nut, 3/8-16

Part# 712-0431 (Superseded to 912-0431)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.45

712-0459

12

Flange Lock Nut, 7/16-20

Part# 712-0459

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.49

712-3004A

13

Flange Lock Nut, 5/16-18

Part# 712-3004A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

717-1550D

14

Steering Gear, 11/90 Ratio

Part# 717-1550D (Superseded to 717-1550F)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $49.57

717-1554

15

Steering Pinion Gear

Part# 717-1554

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.58

723-0448A

16

Ball Joint, 7/16-20

Part# 723-0448A (Superseded to 923-0448A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $17.91

736-0169

17

Lock Washer, 3/8

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.64

736-3084

18

Flat Washer, .51 x 1.12 x .06

Part# 736-3084

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.49

738-1001A

19

Steering Shaft, .625 OD x 24.4

Part# 738-1001A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $52.92

741-0475

20

Plastic Bushing, .38 ID

Part# 741-0475 (Superseded to 941-0475)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.96

741-0656

21

Hex Flange Bearing, 5/8

Part# 741-0656 (Superseded to 941-0656A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.60

738-0372B

22

Shoulder Spacer, .38 ID

Part# 738-0372B

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.97

631-04008

23

Steering Wheel, Soft Grip, Three Spoke

Part# 631-04008 (Superseded to 631-04008B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $70.12

731-04065

24

Steering Wheel Cover

Part# 731-04065

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $9.61

638-0019A

25

LH Axle Assembly, .625 Dia. (Model LT-1650)

Part# 638-0019A (Superseded to 938-0019A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $40.58

638-0021

25

LH Axle Assembly .625 / .750 Dia. Model LT-1850)

Part# 638-0021 (Superseded to 938-0021)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $72.69

638-0020A

26

RH Axle Assembly, .625 Dia. (Model LT-1650)

Part# 638-0020A (Superseded to 938-0020A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $43.00

638-0022

26

RH Axle Assembly .625 / .750 Dia. Model LT-1850)

Part# 638-0022 (Superseded to 938-0022)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $69.74

719-0399B

27

Cast Iron Pivot Bar w/ Fittings, .625 (Model LT-1650)

Part# 719-0399B

OEM Warranty Repair Part for White Outdoor

Not available

719-0525B

27

Cast Iron Pivot Bar w/ Fittings, .75 (Model LT-1850)

Part# 719-0525B (Superseded to 919-04177C)

OEM Warranty Repair Part for White Outdoor

Not available

712-0431

28

Flange Lock Nut, 3/8-16

Part# 712-0431 (Superseded to 912-0431)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.45

714-0162

29

Cotter Pin

Part# 714-0162

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.45

726-0214

30

Push Cap, .625 (Model LT-1650)

Part# 726-0214

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.29

726-0341

30

Push Cap, .750 (Model LT-1850)

Part# 726-0341

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.39

736-0242

31

Bell Washer, .34 x .872

Part# 736-0242

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

736-0285

32

Flat Washer, .635 x 1.589 x .06

Part# 736-0285

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.08

736-0331

33

Bell Washer, .39 x 1.13 x .062

Part# 736-0331

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.78

738-1011

34

Shoulder Screw, .5 x 2.2, 3/8-16

Part# 738-1011 (Superseded to 738-1011A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.08

710-0643

35

Hex Bolt, 5/16-18 X 1

Part# 710-0643

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

634-0115

36

Wheel Assembly Complete, 15 x 6 x 6

Part# 634-0115

OEM Warranty Repair Part for White Outdoor

Variations

Carlisle Gray (0911)

WHEEL ASSY-COMP

Part# Carlisle Gray (0911)

OEM Warranty Repair Part for White Outdoor

Not available

Cheng Gray (0914)

No Longer Available -0911 WHEEL ASM

Part# Cheng Gray (0914)

OEM Warranty Repair Part for White Outdoor

Not available

Kenda Gray (0916)

WHEEL ASSY-COMP

Part# Kenda Gray (0916)

OEM Warranty Repair Part for White Outdoor

Not available

Carlisle Beige (0931)

WHEEL ASSY-COMP

Part# Carlisle Beige (0931)

OEM Warranty Repair Part for White Outdoor

Not available

634-0051

36

Rim Only (Not Shown)

Part# 634-0051

OEM Warranty Repair Part for White Outdoor

Variations

CUB BEIGE (0499)

WHEEL RIM 6 X 4.5

Part# CUB BEIGE (0499)

OEM Warranty Repair Part for White Outdoor

Not available

SILVER FLAKE (0629)

WHEEL RIM 6 X 4.5

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for White Outdoor

Not available

OYSTER GRAY (0662)

WHEEL RIM 6 X 4.5

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN YELLOW (0674)

WHEEL RIM 6 X 4.5

Part# YARDMAN YELLOW (0674)

OEM Warranty Repair Part for White Outdoor

Not available

734-0255

36

Air Valve (Not Shown)

Part# 734-0255 (Superseded to 934-0255)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.10

734-1731

36

Tire Only, Square Shoulder

Part# 734-1731

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $96.82

Variations

Carlisle (0901)

TIRE SQUARE TREAD 15 X 5

Part# Carlisle (0901)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $42.31

Dico (0902)

TIRE 15 X 6 DICO-M

Part# Dico (0902)

OEM Warranty Repair Part for White Outdoor

Not available

Cheng (0904)

TIRE SQUARE TREAD 15 X 5

Part# Cheng (0904)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $42.31

Duro (0905)

TIRE 15 X 6

Part# Duro (0905)

OEM Warranty Repair Part for White Outdoor

Not available

Kenda (0906)

TIRE 15 X 6 KENDA

Part# Kenda (0906)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $42.31

737-0280

36

Grease Fitting (Not Shown)

Part# 737-0280 (Superseded to 937-0280)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.48

741-0569

36

Ball Bearing (Not Shown)

Part# 741-0569 (Superseded to 941-0569)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $25.83

731-2290A

37

Hub Cap

Part# 731-2290A (Superseded to 731-2290B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.07

783-0653F

38

Steering Support Bracket

Part# 783-0653F

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Steering Support Bracket

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $63.13

738-0143

39

Shoulder Screw, 3/8-16

Part# 738-0143

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.12

736-3004

40

Flat Washer, .406 x .875 x .105

Part# 736-3004 (Superseded to 936-3004)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.27
