LT 19 A (954130071) - Jonsered Lawn Tractor (2003-01) ENGINE Parts Diagram

Lawn Tractor

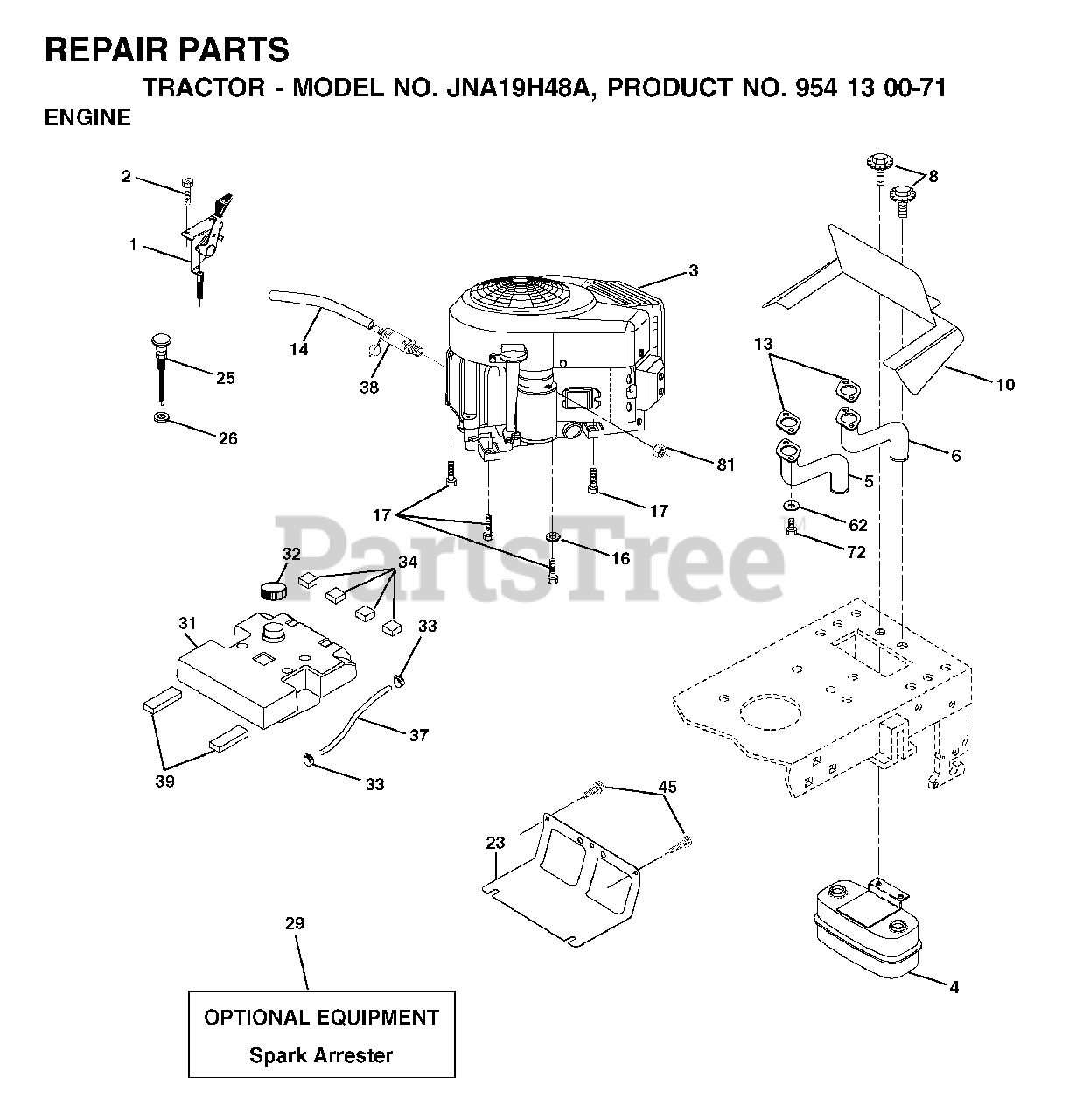

ENGINE Parts Diagram

  • Title

1

Jonsered 532170771

CONTROL, THROTTLE

$

$

Not available

2

Jonsered 817720408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

4

Jonsered 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

In Stock, Qty 6

0

5

Jonsered 532160589

EXHAUST TUBE RH
(Superseded to 581881001)

$31.99

$

In Stock, only 3 left!

0

6

Jonsered 532159955

TUBE MANIFOLD LH
(Superseded to 581881101)

$44.99

$

In Stock, only 4 left!

0

8

Jonsered 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 6

0

10

Jonsered 532162797

SHIELD.BROWNING.B&S
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

13

Jonsered 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

14

Jonsered 532148456

TUBE, DRAIN OIL ASM.

$4.99

$

In Stock, Qty 20+

0

16

Jonsered 811050600

LOCKWASHER
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

17

Jonsered 817060624

No Description Available

$7.49

$

In Stock, only 1 left!

0

23

Jonsered 532169837

SHEILD.BROWNING.DBR.GUARD

$10.99

$

Usually ships in 3-10 days

0

25

Jonsered 532145996

CONTROL, CHOKE

$

$

Not available

26

Jonsered 873920600

NUT KEPS 3/8 - 24 UNF

$3.99

$

Usually ships in 3-10 days

0

29

Jonsered 532137180

ARRESTER SPARK (OPTIONAL)

$182.99

$

In Stock, only 1 left!

0

31

Jonsered 532157103

TANK.FUEL(3.5.GAL)

$

$

Not available

32

Jonsered 532140527

FUEL CAP
(Superseded to 581075501)

$26.99

$

In Stock, Qty 7

0

33

Jonsered 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 16

0

34

Jonsered 532106082

PAD-SPACER LT

$

$

Not available

37

Jonsered 532142158

No Description Available
(Superseded to 532008543)

$10.99

$

Usually ships in 3-10 days

0

38

Jonsered 532148315

PLUG, OIL DRAIN EASY
(Superseded to 532181654)

$18.99

$

In Stock, Qty 18

0

39

Jonsered 532109227

PAD IDLER TI

$3.99

$

In Stock, Qty 20+

0

45

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

52

Jonsered 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

72

Jonsered 871070512

SCREW
(Superseded to 532192334)

$

$

Not available

81

Jonsered 873510400

NUT
(Superseded to 873640400)

$

$

Not available
