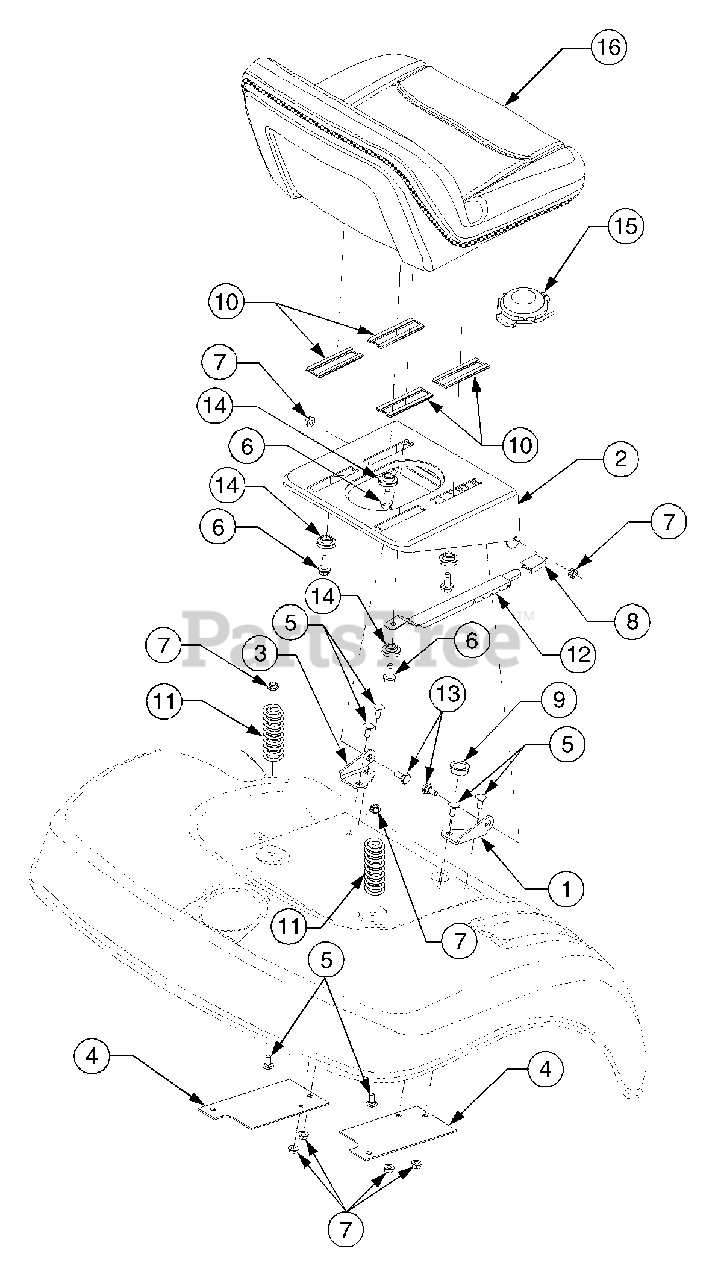

LT 2042 (13A-286G710) - Cub Cadet 42" Lawn Tractor Seat And Support Parts Diagram

42" Lawn Tractor

Seat And Support Parts Diagram

  • Title

1

Cub Cadet 703-2394

Bracket, RH Seat Pivot

Variations

Cub Cadet 703-2394-0498

PIVOT BRACKET (RH) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2394-0716

BRACKET-RH PIVOT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

2

Cub Cadet 703-2395B

Seat, Base

Variations

Cub Cadet 703-2395B-0716

BASE-SEAT - CUB YELLOW-99 (0716)

$120.99

$

Usually ships in 3-6 days

0

$112.99

$

Usually ships in 3-6 days

0

Cub Cadet 777I20310

Graphic, Seat Adjuster

$

$

Not available

3

Cub Cadet 703-2477

Bracket, LH Seat Pivot

Variations

Cub Cadet 703-2477-0498

USE 703-2477-0716 BRACKET-LH - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2477-0716

BRACKET-LH PIVOT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

4

Cub Cadet 703-2628

Bracket, Fender Reinforcement

Variations

Cub Cadet 703-2628-0498

Fender Reinforcement Plate - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2628-0716

Fender Reinforcement Plate - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 703-2628-4015

Fender Reinforcement Plate, Fire Red - FIRE RED (4015)

$

$

Not available

Cub Cadet 703-2628-4021

PLATE-FNDR REINFOR - CUB YELLOW 2 (4021)

$

$

Not available

$

$

5

Cub Cadet 710-0451

Bolt, Carriage, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1260A

Screw, Hex Wash. Hd., 5/16-18 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-04054

Nut, Hex Flange Lock, 5/16-18

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 720-0426

Knob, Seat Adjuster
(Superseded to 731-13116-1)

$14.99

$

In Stock, only 1 left!

0

9

Cub Cadet 723-3042

Bushing, Snap

$4.49

$

In Stock, only 1 left!

0

10

Cub Cadet 731-3154

Slide, Seat

$

$

Not available

11

Cub Cadet 732-3080A

Spring, Comp, 1.9 OD x 2.4

$14.99

$

In Stock, only 2 left!

0

12

Cub Cadet 732-3098

Index Spring, Seat Adjuster

$

$

Not available

13

Cub Cadet 738-0140

Bolt, Shoulder

$5.99

$

In Stock, Qty 10

0

14

Cub Cadet 738-0372B

Spacer, Shoulder

$10.99

$

In Stock, Qty 20+

0

15

Cub Cadet 725-1462

Switch, Seat

$83.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 757-3003

Seat, Mid Back
(Superseded to 759-04299)

$

$

Not available

Cub Cadet 777D06883

Graphic, Seat Back

$19.99

$

In Stock, only 2 left!

0

Cub Cadet 777D01782

Graphic, Made in USA

$

$

Not available
