LT 2042 (2691143-00) - Snapper 42" Lawn Tractor, 20hp Electrical Group Parts Diagram

42" Lawn Tractor, 20hp

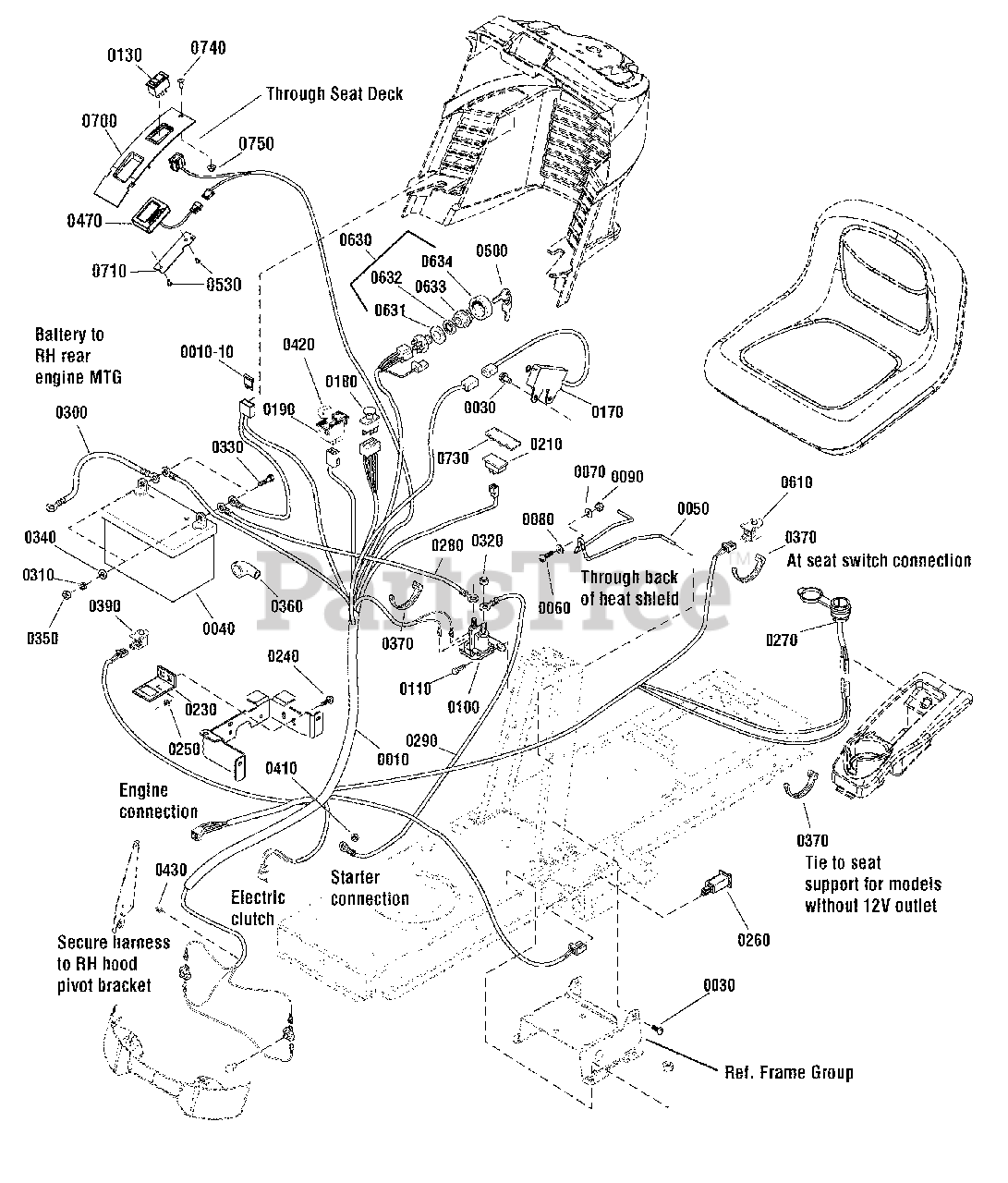

Electrical Group Parts Diagram

  • Title

0010

Snapper 1753847YP

HARNESS, Wiring

$190.99

$

Usually ships in 2-12 days

0

0010-10

Snapper 1731957SM

FUSE, Wiring Harness

$8.49

$

Usually ships in 2-12 days

0

0030

Snapper 1930601SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0040

BATTERY, 12V, 230CCA

$

$

Not available

0050

Snapper 1730007SM

HOLD DOWN, Battery

$27.99

$

Usually ships in 2-12 days

0

0060

Snapper 1931318SM

BOLT, Carriage, Short Neck, 1/4-20 x 7/8, G5

$4.49

$

In Stock, only 3 left!

0

0070

Snapper 1960353SM

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, only 2 left!

0

0080

Snapper 1960518SM

NUT, Push, 1/4
(Superseded to 703826)

$3.49

$

In Stock, Qty 16

0

0090

Snapper 1920397SM

NUT, Hex Lock, ESNA LIGHT, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0100

Snapper 1728963SM

SOLENOID
(Superseded to 1755381YP)

$24.99

$

Usually ships in 2-12 days

0

0110

Snapper 1925003SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0130

Snapper 1734141SM

SWITCH, Rocker Electric Height-Of-Cut

$47.99

$

In Stock, Qty 19

0

0170

Snapper 1738724YP

SENSOR, Electric Height of Cut

$64.99

$

Usually ships in 2-12 days

0

0180

Snapper 1722887SM

SWITCH, PTO, Push/Pull

$33.99

$

In Stock, Qty 20+

0

0190

Snapper 1726556SM

SWITCH, RMO Module Only
(Superseded to 1761897YP)

$30.99

$

Usually ships in 2-12 days

0

0210

Snapper 1716951SM

SWITCH, Headlight

$21.99

$

In Stock, only 3 left!

0

0230

Snapper 1728026SM

SUPPORT, RMO Switch
(Superseded to 1728026ASM)

$13.99

$

Usually ships in 2-12 days

0

0240

Snapper 1931333SM

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0250

Snapper 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0260

Snapper 7022886YP

SWITCH, Push Button (NO/NC)

$14.99

$

In Stock, Qty 20+

0

0270

Snapper 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

Usually ships in 2-12 days

0

0280

Snapper 1716549SM

CABLE-# 6 X 10.00LG (2) RING TERMINALS
(Superseded to 1752685YP)

$11.99

$

Usually ships in 2-12 days

0

0290

Snapper 1721830SM

CABLE, #6 x 25 Long, Ring Terminals

$19.99

$

In Stock, only 1 left!

0

0300

Snapper 1713163SM

CABLE, #6 x 26 Long, Ring Terminal

$24.99

$

Usually ships in 2-12 days

0

0310

Snapper 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

0320

Snapper 2860750SM

NUT, Hex Lock, KEPS, 5/16-24

$2.99

$

Usually ships in 2-12 days

0

0330

Snapper 2823341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4 G5
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

0340

Snapper 2821319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 12

0

0350

Snapper 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

0360

Snapper 1677296SM

BOOT, Insulator

$6.49

$

In Stock, only 2 left!

0

0370

Snapper 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

0390

Snapper 1732004SM

SWITCH, Push Button (NO)

$8.99

$

In Stock, Qty 7

0

0410

Snapper 1960294SM

NUT, Hex Flange, Whiz Lock, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, only 2 left!

0

0420

Snapper 1726557SM

KEY, No Mow

$5.49

$

In Stock, Qty 20+

0

0430

Snapper 2172434SM

CLIP, Wire

$4.99

$

In Stock, only 2 left!

0

0470

Snapper 1738985YP

GAGE, Electric Height of Cut

$55.99

$

Usually ships in 2-12 days

0

0500

Snapper 1737837YP

KEYS, Ignition

$21.99

$

Usually ships in 2-12 days

0

0530

Snapper 1739329YP

SCREW, Washer Head, 5MM x 12MM Long

$4.49

$

Usually ships in 2-12 days

0

0610

Snapper 1732005SM

SWITCH, Push Button, Seat Switch
(Superseded to 7023354YP)

$12.99

$

Usually ships in 2-12 days

0

0630

Snapper 1686734SM

SWITCH ASSEMBLY, Ignition, 5/8-32 6 Pin Indak

$32.99

$

In Stock, Qty 20+

0

0631

Snapper 2101025SM

WASHER, 5/8

$4.49

$

Usually ships in 2-12 days

0

0632

Snapper 1960547SM

LOCKWASHER, Internal Tooth, 5/8 Thin

$4.49

$

In Stock, Qty 6

0

0633

Snapper 1717549SM

NUT, Hex Flange, 5/8-32 IGN SW DIE CAST
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

0634

Snapper 1717550SM

COVER, Ignition Switch
(Superseded to 847150)

$8.49

$

In Stock, Qty 9

0

0700

Snapper 1753708YP

POD, Insert, R.H.

$28.99

$

Usually ships in 2-12 days

0

0710

Snapper 1753757BMYP

BRACKET, Indicator Hold Down

$9.99

$

Usually ships in 2-12 days

0

0730

Snapper 1722611SM

PLUG, Hole

$6.99

$

Usually ships in 2-12 days

0

0740

Snapper 7091696YP

SCREW, Philips, Pan Head, Self Tapping

$3.49

$

Usually ships in 2-12 days

0

0750

Snapper 1930641SM

NUT, Hex Flange, Whiz Lock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0
