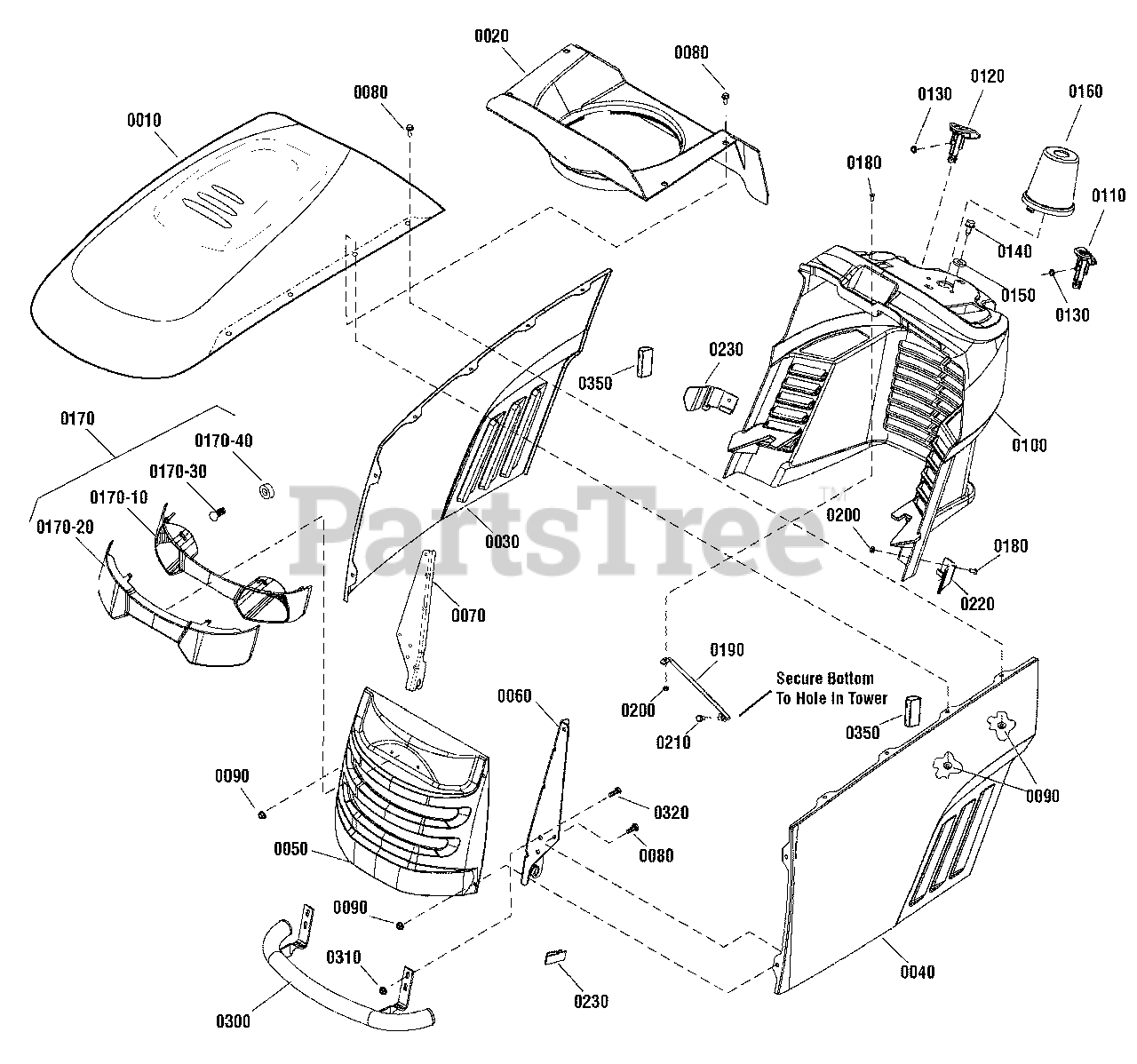

LT 2042 (2691143-00) - Snapper 42" Lawn Tractor, 20hp Hood, Grille & Dash Group Parts Diagram

42" Lawn Tractor, 20hp

Hood, Grille & Dash Group Parts Diagram

  • Title

0010

Snapper 1722110ZYP

HOOD, with Louvers

$141.99

$

Usually ships in 2-12 days

0

0020

Snapper 7102326YP

AIR DUCT, Plenum

$131.99

$

In Stock, only 1 left!

0

0030

Snapper 1728029ZYP

PANEL, R.H. Side

$125.99

$

Usually ships in 2-12 days

0

0040

Snapper 1728030ZYP

PANEL, L.H. Side

$136.99

$

Usually ships in 2-12 days

0

0050

Snapper 1727297BRYP

GRILLE

$104.99

$

Usually ships in 2-12 days

0

0060

Snapper 1727279ASM

HINGE, Hood, L.H.
(Superseded to 1727279BMYP)

$20.99

$

Usually ships in 2-12 days

0

0070

Snapper 1727280ASM

HINGE, Hood, R.H.

$20.99

$

In Stock, only 1 left!

0

0080

Snapper 1960295SM

CAPSCREW, Hex, Whiz Lock, 1/4-20 x 5/8

$4.49

$

Usually ships in 2-12 days

0

0090

Snapper 1930641SM

NUT, Hex Flange, Whiz Lock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

0100

Snapper 1727293SM

CONSOLE, Black

$202.99

$

Usually ships in 2-12 days

0

0110

Snapper 1728089SM

KNOB, Brake Lock, Red

$7.49

$

In Stock, only 1 left!

0

0120

Snapper 1728090SM

KNOB, Cruise Lock

$7.49

$

In Stock, Qty 8

0

0130

Snapper 1960518SM

PUSHNUT, 1/4
(Superseded to 703826)

$3.49

$

In Stock, Qty 14

0

0140

Snapper 1664847SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0150

Snapper 1919381SM

WASHER, Flat, 5/16 x 1 OD
(Superseded to 703298)

$4.49

$

In Stock, Qty 9

0

0160

Snapper 1727999SM

COVER, Steering Shaft

$17.99

$

Usually ships in 2-12 days

0

0170

Snapper 1727296SM

HEADLIGHT ASSEMBLY

Note: (Incl. Ref. Nos. 0170-10, 0170-20, 0170-30 & 0170-40)

$237.99

$

In Stock, Qty 7

0

0170-10

Snapper 1728973SM

REFLECTOR
(Superseded to 1727296SM)

Note: (Included with Ref. No. 0170)

$237.99

$

In Stock, Qty 7

0

0170-20

Snapper 1728974SM

LENS, Headlight
(Superseded to 1727296SM)

Note: (Included with Ref. No. 0170)

$237.99

$

In Stock, Qty 7

0

0170-30

Snapper 1677371SM

BULB, Headlight, 1141-12V 21CP

Note: (Included with Ref. No. 0170)

$30.99

$

In Stock, only 1 left!

0

0170-40

Snapper 1723451SM

SOCKET

Note: (Included with Ref. No. 0170)

$28.99

$

In Stock, only 1 left!

0

0180

Snapper 1960392SM

SCREW, Pan Head Phillips, #10-24 x 1

$3.99

$

Usually ships in 2-12 days

0

0190

Snapper 1723123SM

ROD, Dash Support

$11.99

$

Usually ships in 2-12 days

0

0200

Snapper 1933896SM

NUT, Nylock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

0210

Snapper 1925003SM

CAPSCREW, Hex Head Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0220

Snapper 1732030SM

GUIDE, Hood, L.H.

$7.49

$

In Stock, only 4 left!

0

0230

Snapper 1732031SM

GUIDE, Hood, R.H.

$7.49

$

In Stock, Qty 11

0

0300

Snapper 1731270AYP

BUMPER ASSEMBLY

$148.99

$

Usually ships in 2-12 days

0

0310

Snapper 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0320

Snapper 1930591SM

CAPSCREW, Hex Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

0350

Snapper 1754094YP

POSITIONER, Hood

$8.49

$

Usually ships in 2-12 days
