LT 2042 (2691143-00) - Snapper 42" Lawn Tractor, 20hp Seat Deck & Fuel Tank Group - EVAP Compliant Parts Diagram

42" Lawn Tractor, 20hp

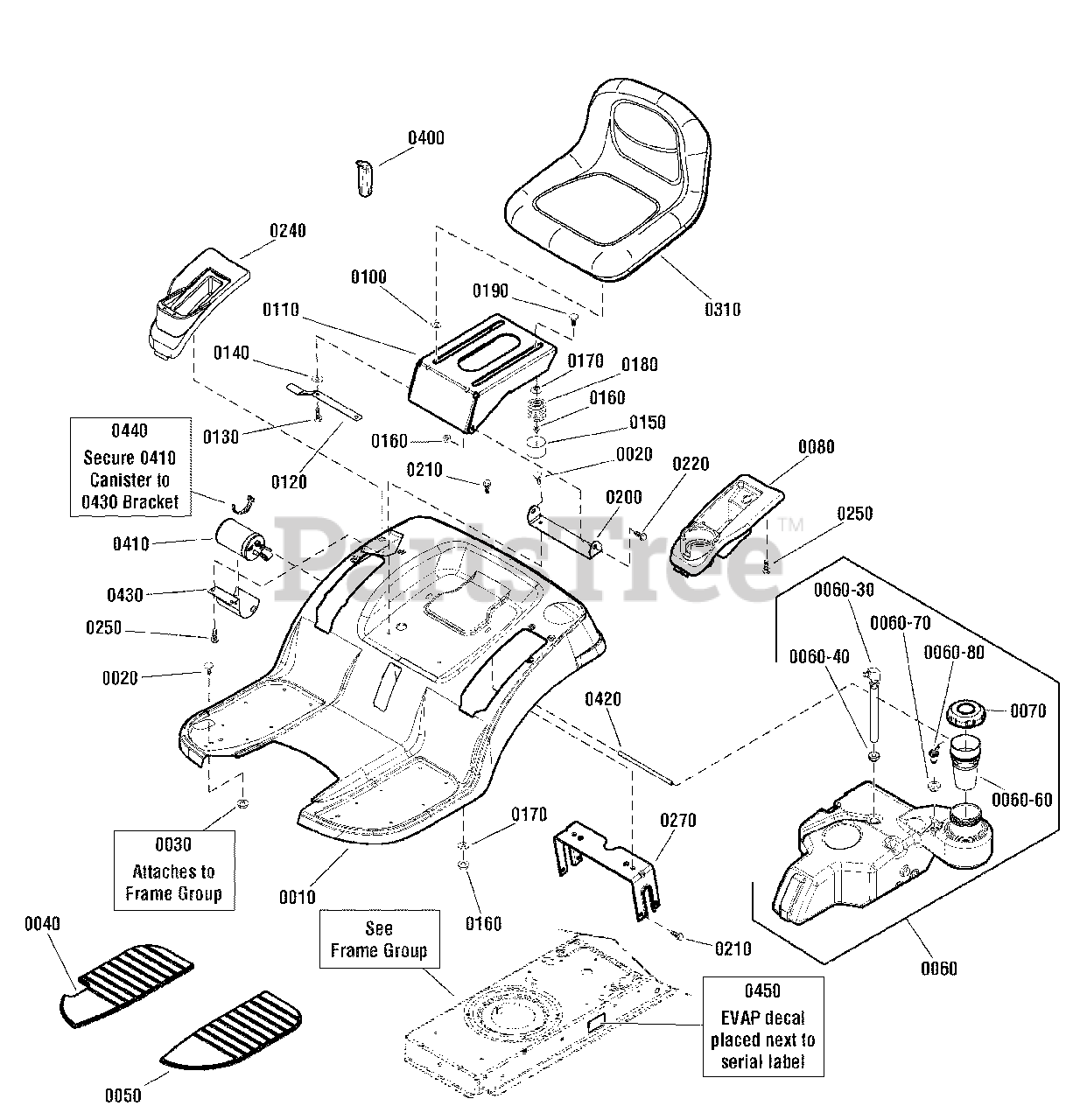

Seat Deck & Fuel Tank Group - EVAP Compliant Parts Diagram

  • Title

0010

Snapper 1727264ZYP

DECK, Seat

$319.99

$

Usually ships in 2-12 days

0

0020

Snapper 1931333SM

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0030

Snapper 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0040

Snapper 1728007SM

PAD, Footrest R.H.

$20.99

$

In Stock, only 1 left!

0

0050

Snapper 1728006SM

PAD, Footrest L.H.

$21.99

$

In Stock, only 4 left!

0

0060

Snapper 1751226YP

TANK, Fuel

$311.99

$

Usually ships in 2-12 days

0

0060-30

Snapper 1736609YP

FITTING & HOSE ASSEMBLY, Fuel Tank

$24.99

$

In Stock, only 1 left!

0

0060-40

Snapper 1654930SM

BUSHING, Fuel Tank

$7.99

$

In Stock, Qty 19

0

0060-60

DROP TUBE

$

$

Not available

0060-70

Snapper 799624

GROMMET

$8.99

$

In Stock, only 2 left!

0

0060-80

Snapper 7104638YP

REMOTE VENT ASSEMBLY

$

$

Not available

0070

Snapper 5103005YP

CAP, Fuel, EVAP
(Superseded to 1761224YP)

$48.99

$

In Stock, only 1 left!

0

0080

Snapper 1739535YP

POD, L.H., Black

$32.99

$

Usually ships in 2-12 days

0

0100

Snapper 1731300SM

SPACER, 5/16 ID x 1-1/4 OD

$5.49

$

Usually ships in 2-12 days

0

0110

Snapper 1727265SM

SUPPORT, Seat

$102.99

$

Usually ships in 2-12 days

0

0120

Snapper 1727268SM

LATCH, Seat

$8.99

$

Usually ships in 2-12 days

0

0130

Snapper 1960667SM

CAPSCREW, Hex Flange Whiz Lock Dog Point, 5/16-18 x 1

$4.99

$

Usually ships in 2-12 days

0

0140

Snapper 1919381SM

WASHER, 5/16 x 1 OD
(Superseded to 703298)

$4.49

$

In Stock, Qty 9

0

0150

Snapper 1704724SM

COVER, Spring, 1-1/2 Long

$7.99

$

In Stock, only 1 left!

0

0160

Snapper 1960686SM

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 9

0

0170

Snapper 1709256SM

WASHER, Spring, 5/16 x 1 1/4

$5.99

$

Usually ships in 2-12 days

0

0180

Snapper 1704728SM

SPRING, Compression, 2 Long

$9.99

$

In Stock, only 2 left!

0

0190

Snapper 1960282SM

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

0200

Snapper 1727266ASM

PIVOT, Seat

$10.99

$

In Stock, only 1 left!

0

0210

Snapper 1930601SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0220

Snapper 1729576SM

BOLT, Shoulder, 5/16-18 x 15/32
(Superseded to 703851)

$5.49

$

In Stock, only 1 left!

0

0240

Snapper 1739537YP

POD, Electric, HOC, R.H., Black

$31.99

$

Usually ships in 2-12 days

0

0250

Snapper 1960536SM

CAPSCREW, Hex Washer Head, 1/4 x 1/2

$4.99

$

Usually ships in 2-12 days

0

0270

Snapper 1731310ASM

SUPPORT, Seat Deck
(Superseded to 1731310SM)

$36.99

$

Usually ships in 2-12 days

0

0310

Snapper 1730159SM

SEAT, High Back

$463.99

$

Usually ships in 2-12 days

0

0400

Snapper 1722302SM

GRIP, Vinyl, 1"

$8.49

$

In Stock, Qty 11

0

0410

Snapper 1751599YP

CANISTER, Carbon, 300cc

Note: (Includes Filter)

$59.99

$

Usually ships in 2-12 days

0

0410A

Snapper 1752800YP

FILTER, Dust

Note: (Fits On End of Cannister) (Not Shown Separately)

$15.99

$

Usually ships in 2-12 days

0

0420

Snapper 1751715YP

HOSE, Vapor, 5mm

$17.99

$

In Stock, only 1 left!

0

0430

Snapper 1751519BMYP

BRACKET, Canister Mounting

$10.99

$

Usually ships in 2-12 days

0

0440

Snapper 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

0450

Snapper 1752229YP

DECAL, EVAP

$9.49

$

Usually ships in 2-12 days
