LT 2044 (2690442) - Snapper 44" Lawn Tractor, 20hp Engine & Electric Clutch Group, 44" & 50" Parts Diagram

44" Lawn Tractor, 20hp

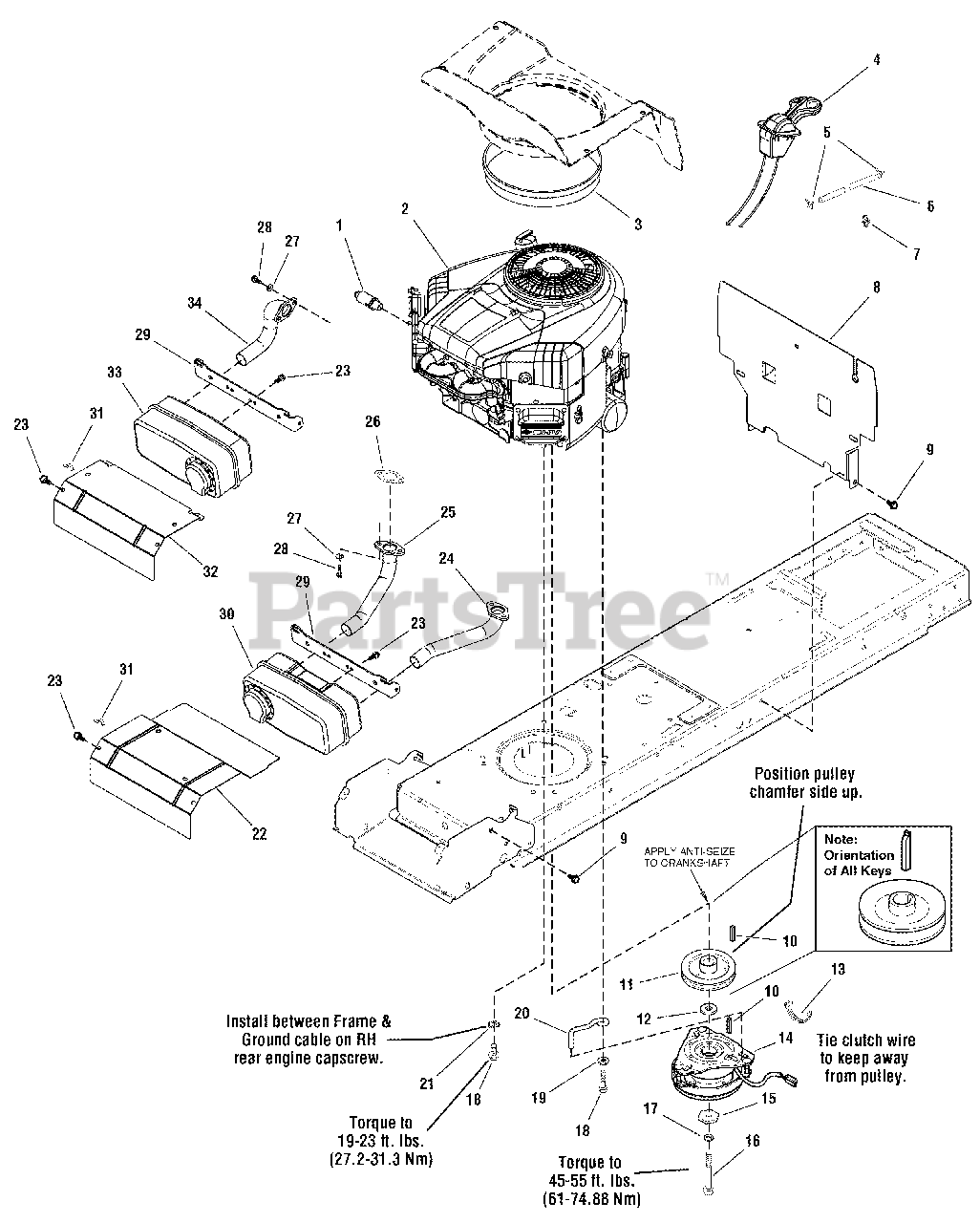

Engine & Electric Clutch Group, 44" & 50" Parts Diagram

  • Title

1

Snapper 1717473

VALVE, Oil Drain
(Superseded to 1750159YP)

$16.99

$

In Stock, only 2 left!

0

2

Snapper SV540S-18 PS-SV540-0017

* ENGINE, 18HP Kohler Single Courage Pro, Model SV540S-18 Spec #PS-SV540-0017

$

$

Currently unavailable

2

Snapper 406577-0143-B1

** ENGINE, 20HP B&S Intek Twin, Model 406577-0143-B1

$

$

Currently unavailable

2

Snapper 445677-0421-B1

** ENGINE, 22HP B&S Intek Twin, Model 445677-0421-B1

$

$

Currently unavailable

2

Snapper 441777-0117-B1

** ENGINE, 24HP B&S Intek Twin, Model 441777-0117-B1

$

$

Currently unavailable

3

Snapper 1731970

EDGING, Rubber, Short
(Superseded to 1731970SM)

Note: (B&S V-Twin & Kohler Single)

$11.99

$

Usually ships in 2-12 days

0

4

Snapper 1731409

CONTROL, Throttle Double 19" Long
(Superseded to 1734510SM)

Note: (Kohler Single)

$116.99

$

Usually ships in 2-12 days

0

4

Snapper 1731411

CONTROL, Throttle Double 34.7" Long
(Superseded to 1734505SM)

Note: (B&S Twin)

$103.99

$

In Stock, only 4 left!

0

5

Snapper 2860112

CLAMP, Hose Type E
(Superseded to 2860112SM)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 1676861

HOSE, Fuel, 45-1/2" Long

Note: (B&S V-Twin & Kohler Single)

$

$

Not available

6

Snapper 1732001

HOSE, Fuel 55" Long
(Superseded to 845503)

Note: (B&S Single Only)

$37.99

$

Usually ships in 2-12 days

0

7

Snapper 1730268

CLIP, Hose, Plastic, Push-In
(Superseded to 1730268SM)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 1728058A

SHIELD, Heat
(Superseded to 1728058SM)

$42.99

$

Usually ships in 2-12 days

0

9

Snapper 1930601

SCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 16

0

10

Snapper 2154096

KEY, Square, 1/4 x 1/4 x 29/32 Hardened
(Superseded to 2154096SM)

$7.49

$

In Stock, Qty 12

0

11

Snapper 1723497

PULLEY
(Superseded to 1723497SM)

$164.99

$

Usually ships in 2-12 days

0

12

Snapper 1732208

SPACER, 1.01 ID x 1.68 OD x 3/8 LG Powdered Metal Yellow
(Superseded to 1732208SM)

$8.49

$

Usually ships in 2-12 days

0

13

Snapper 2825094

TIE, Self Locking 7-5/16
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

14

Snapper 1731275

CLUTCH ASSEMBLY, Mid-Range OGURA
(Superseded to 1687296SM)

$356.99

$

Usually ships in 2-12 days

0

15

Snapper 1708264

WASHER
(Superseded to 1708264SM)

$8.99

$

In Stock, only 2 left!

0

16

Snapper 2860631

CAPSCREW, 7/16-20 x 3
(Superseded to 2860631SM)

$4.49

$

Usually ships in 2-12 days

0

17

Snapper 1918199

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 7

0

18

Snapper 2828635

SCREW, Hex, Washer Head, Taptite, 3/8-16 x 1-1/4
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

19

Snapper 1924940

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

20

Snapper 1732199

RETAINER, Clutch, Black
(Superseded to 1732199SM)

$21.99

$

Usually ships in 2-12 days

0

21

Snapper 2820427

LOCKWASHER, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

22

Snapper 1727997A

SHIELD, Heat B&S Twin 20GA
(Superseded to 1727997ASM)

$35.99

$

Usually ships in 2-12 days

0

23

Snapper 1925003

SCREW, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

24

Snapper 1727980

PIPE, Exhaust w/Flange LH B&S INT
(Superseded to 1727980SM)

$39.99

$

In Stock, only 2 left!

0

25

Snapper 1727979

PIPE, Exhaust w/Flange RH B&S INT
(Superseded to 1727979SM)

$39.99

$

In Stock, only 1 left!

0

26

Snapper 1731214

GASKET, Exhaust B&S
(Superseded to 1731214SM)

$4.99

$

Usually ships in 2-12 days

0

27

Snapper 1917356

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 7

0

28

Snapper 1936228

CAPSCREW, Socket Head, 5/16-18 x 3/4
(Superseded to 1936228SM)

$4.49

$

In Stock, only 2 left!

0

29

Snapper 1727976A

BRACKET, Muffler Mount 12GA
(Superseded to 1727976BMYP)

$15.99

$

Usually ships in 2-12 days

0

30

Snapper 1727994

MUFFLER, B&S Twin
(Superseded to 1727994SM)

$101.99

$

Usually ships in 2-12 days

0

31

Snapper 2834683

CLIP, Wire
(Superseded to 703176)

$3.49

$

Usually ships in 2-12 days

0

32

Snapper 1727996A

SHIELD, Heat Single Cycle 20GA
(Superseded to 7300918ASM)

$51.99

$

Usually ships in 2-12 days

0

33

Snapper 1727993

MUFFLER, B&S Single
(Superseded to 1727993SM)

$96.99

$

In Stock, only 2 left!

0

34

Snapper 1727978

PIPE, Exhaust w/Flange Kohler
(Superseded to 1727978SM)

$42.99

$

Usually ships in 2-12 days

0
