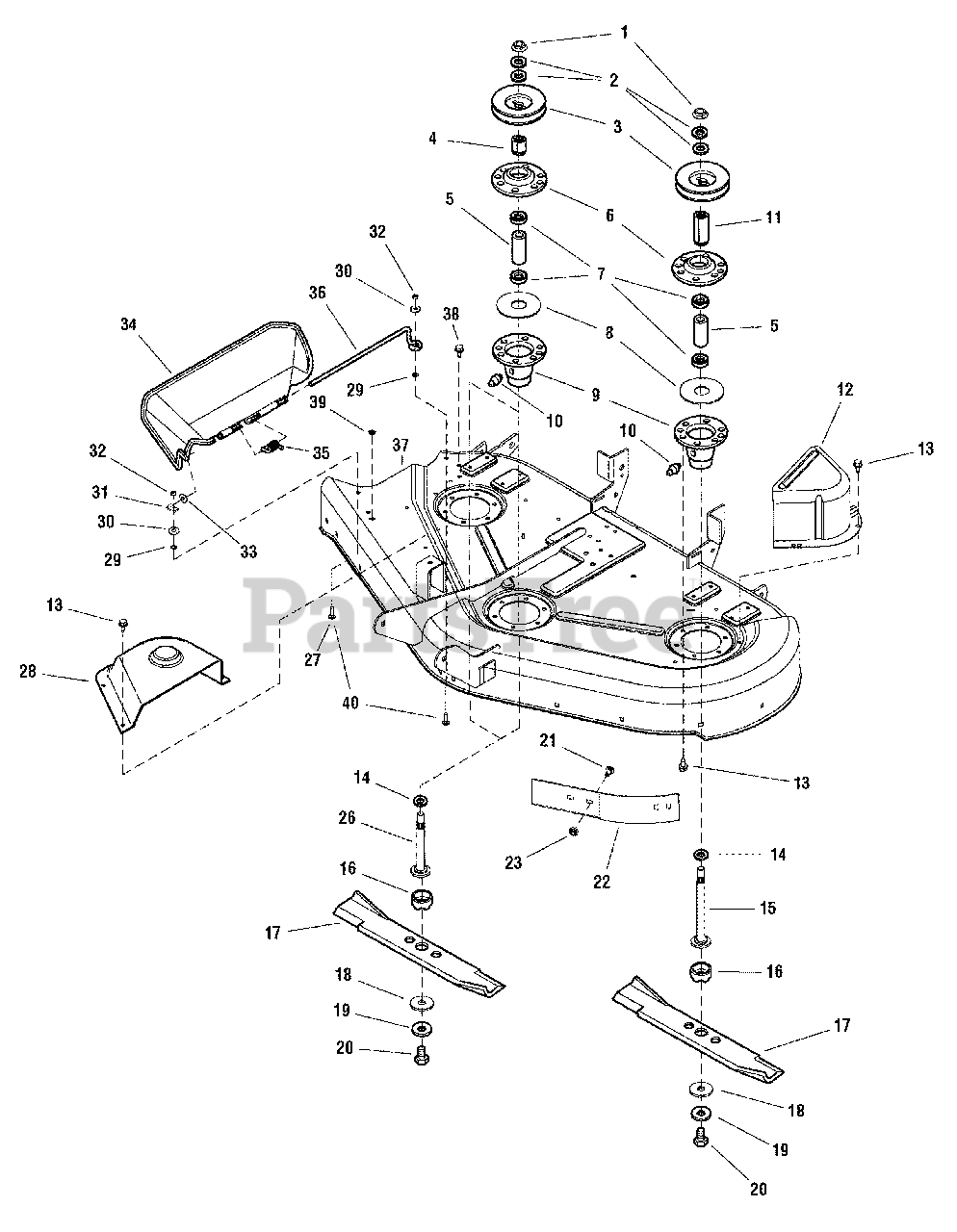

LT 2044 (2690714) - Snapper 44" Lawn Tractor, 20hp 44" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

44" Lawn Tractor, 20hp

44" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

1

Snapper 1714419SM

NUT, Hex, Flange, 9/16-8

$5.99

$

In Stock, Qty 17

0

2

Snapper 1713675SM

WASHER, Bellville .56ID x 1.34 OD x .05T

$4.49

$

In Stock, Qty 20+

0

3

Snapper 1713098SM

PULLEY, RH Arbor & LH Arbor, 4-1/4

$19.99

$

In Stock, Qty 12

0

4

Snapper 1713613SM

HUB, Pulley, RH

Note: (Middle)

$15.99

$

In Stock, Qty 20+

0

5

Snapper 1732543SM

SPACER

$8.49

$

In Stock, Qty 20+

0

6

Snapper 1713199ASM

COVER, Arbor Housing

$16.99

$

In Stock, Qty 20+

0

7

Snapper 1705897SM

BEARING

$8.49

$

In Stock, Qty 20+

0

8

Snapper 1707335SM

GASKET, Foam

$5.99

$

In Stock, Qty 20+

0

9

Snapper 1713338ASM

HOUSING ASSEMBLY, Arbor Bottom, w/Lube Fitting

$41.99

$

In Stock, Qty 20+

0

10

Snapper 1704314SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

11

Snapper 1713616SM

HUB, Adapter, LH

$24.99

$

In Stock, only 3 left!

0

12

Snapper 1720560ASM

COVER, Arbor
(Superseded to 84002518)

$90.99

$

In Stock, only 1 left!

0

13

Snapper 1664847SM

CAPSCREW, Hex Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

14

Snapper 1713619SM

WASHER

$4.49

$

In Stock, Qty 20+

0

15

Snapper 1713612SM

SHAFT, Arbor

$31.99

$

Usually ships in 2-12 days

0

16

Snapper 1713196SM

SHIELD, Grass, Lower

$9.49

$

In Stock, Qty 20+

0

17

Snapper 1704100ASM

BLADE, Mower, 16-1/8
(Superseded to 1716696ASM)

Note: (For 44" Deck)

$25.99

$

In Stock, Qty 20+

0

18

Snapper 1713089SM

WASHER, Hex

$4.99

$

In Stock, Qty 20+

0

19

Snapper 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

20

Snapper 2823471SM

CAPSCREW, Hex Head, 7/16-14 x 1-1/4
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

21

Snapper 1931333SM

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

22

Snapper 1724538ASM

BAFFLE, Anti-Blowout

$45.99

$

Usually ships in 2-12 days

0

23

Snapper 1931277SM

NUT, Hex, Flange Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

26

Snapper 1713609SM

SHAFT, Arbor, RH

$30.99

$

In Stock, only 3 left!

0

27

Snapper 1960698SM

CARRIAGE BOLT, 1/4-20 x 1, Black
(Superseded to 703584)

$3.99

$

In Stock, only 1 left!

0

28

Snapper 1715673SM

COVER, Arbor, RH

$38.99

$

In Stock, only 3 left!

0

29

Snapper 1960518SM

NUT, Push On
(Superseded to 703826)

$3.49

$

In Stock, Qty 10

0

30

Snapper 1960353SM

WASHER, Plain, 1/4 (6 Total for Export)
(Superseded to 703229)

$4.49

$

In Stock, only 2 left!

0

31

Snapper 1704873SM

CLAMP, Wire, 5/16 Diameter

$4.49

$

In Stock, only 4 left!

0

32

Snapper 1920397SM

NUT, Hex Lock, ESNA, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

33

Snapper 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 13

0

34

Snapper 1705449SM

DEFLECTOR, Plastic

$122.99

$

In Stock, Qty 8

0

35

Snapper 7101082SM

SPRING
(Superseded to 1759750YP)

$8.49

$

Usually ships in 2-12 days

0

36

Snapper 1706709SM

ROD, Deflector

$8.49

$

In Stock, Qty 5

0

37

Snapper 1687212SM

HOUSING ASSEMBLY, 44" Mower Frame Mount (Red)

$1367.99

$

Usually ships in 2-12 days

0

38

Snapper 1923683SM

CAPSCREW, Taptite 3/8-16 x .75
(Superseded to 703950)

$5.49

$

In Stock, Qty 6

0

39

Snapper 1705115SM

PLUG, Plastic

Note: (Not Shown)

$4.49

$

In Stock, Qty 5

0

40

Snapper 1960633SM

BOLT
(Superseded to 704214)

$3.99

$

Usually ships in 2-12 days

0
