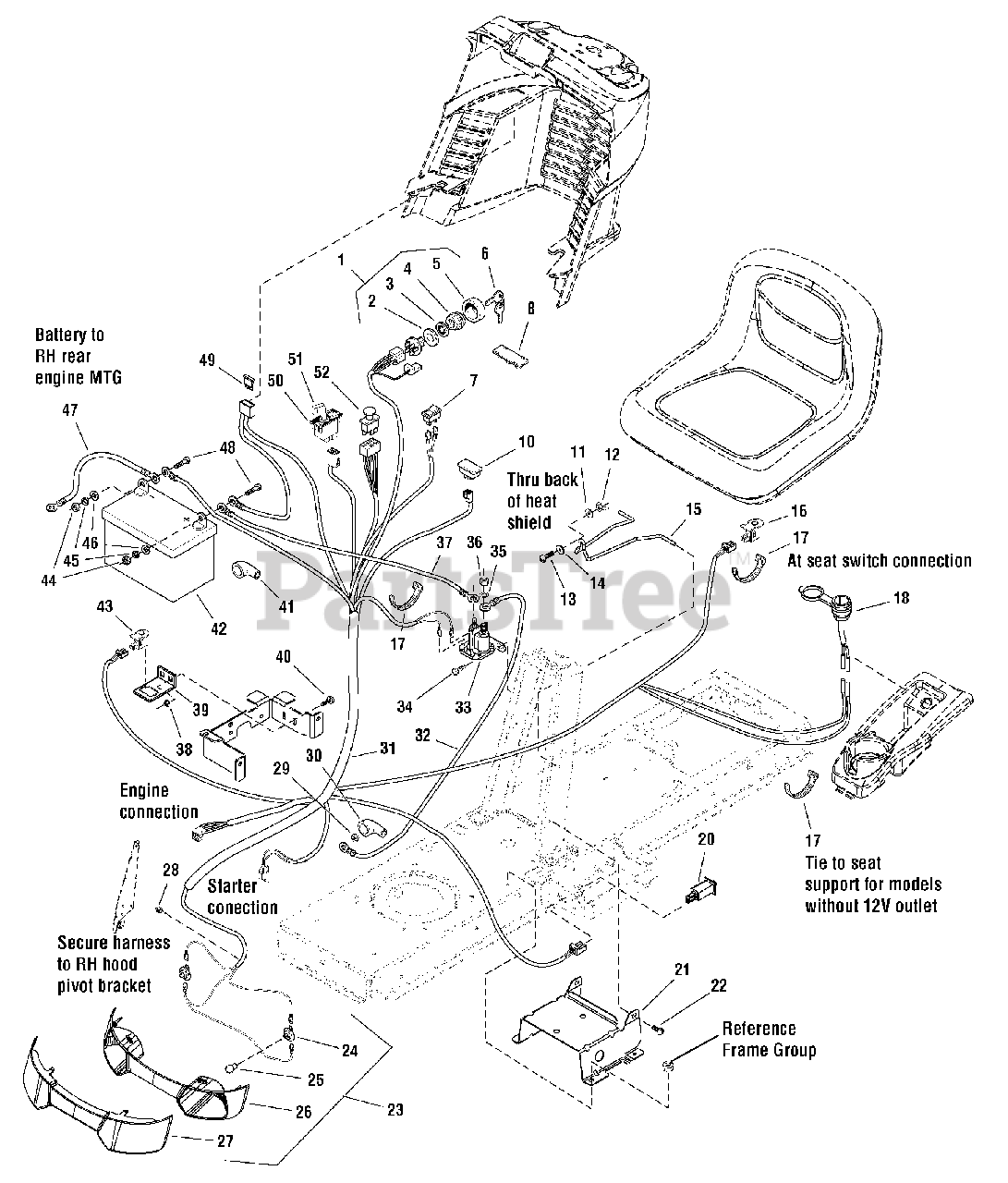

LT 2044 (2690714) - Snapper 44" Lawn Tractor, 20hp Electrical Group Parts Diagram

44" Lawn Tractor, 20hp

Electrical Group Parts Diagram

  • Title

1

Snapper 1686734SM

SWITCH ASSEMBLY, Ignition, 6-Pole (Includes Ref. 2, 3, 4 & 5)

$32.99

$

In Stock, Qty 20+

0

2

Snapper 2101025SM

WASHER, 5/8

$4.49

$

Usually ships in 2-12 days

0

3

Snapper 1960547SM

LOCKWASHER, Internal Tooth, 5/8

$4.49

$

In Stock, Qty 6

0

4

Snapper 1717549SM

NUT, Hex, Flange, 5/8-32
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

5

Snapper 1717550SM

COVER, Ignition
(Superseded to 847150)

$8.49

$

In Stock, Qty 9

0

6

Snapper 1717163SM

IGNITION KEY (Set of 2)

$8.99

$

In Stock, Qty 12

0

7

Snapper 1716951SM

SWITCH, Headlights, 2 Terminal

$21.99

$

In Stock, only 1 left!

0

8

Snapper 1722611SM

PLUG, Hole, Square

$6.99

$

Usually ships in 2-12 days

0

10

Snapper 1728068SM

METER, Hour, LCD

Note: (B&S V-Twin Only)

$46.99

$

Usually ships in 2-12 days

0

11

Snapper 1960353SM

WASHER, Plain, 1/4 (6 Total for Export)
(Superseded to 703229)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper 2860293SM

NUT, Wing, 1/4-20

$5.99

$

Usually ships in 2-12 days

0

13

Snapper 1931318SM

CARRIAGE BOLT, 1/4-20 x 7/8

$4.49

$

In Stock, only 1 left!

0

14

Snapper 1960518SM

NUT, Push On
(Superseded to 703826)

$3.49

$

In Stock, Qty 14

0

15

Snapper 1730007SM

HOLD DOWN, Battery

$27.99

$

Usually ships in 2-12 days

0

16

Snapper 1732005SM

SWITCH, Push Button (NC)
(Superseded to 7023354YP)

$12.99

$

Usually ships in 2-12 days

0

17

Snapper 1701011SM

TIE, Self Locking 7-5/16

$5.49

$

In Stock, only 2 left!

0

18

Snapper 7073090SM

OUTLET, 12 Volt DC Power

$23.99

$

Usually ships in 2-12 days

0

20

Snapper 1732006SM

SWITCH, Push Button (NO/NC)
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

21

Snapper 1727282ASM

SUPPORT, Battery 12 GA
(Superseded to 1727282SM)

$30.99

$

Usually ships in 2-12 days

0

22

Snapper 1930601SM

SCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

23

Snapper 1727296SM

HEADLIGHT ASSEMBLY (Includes Ref. 24, 25, 26 & 27)

$237.99

$

In Stock, Qty 7

0

24

Snapper 1723451SM

SOCKET ASSEMBLY

$28.99

$

In Stock, only 1 left!

0

25

Snapper 1677371SM

BULB, 1141-12V 21CP

$30.99

$

In Stock, only 1 left!

0

26

Snapper 1728973

REFLECTOR, Headlight
(Superseded to 1728973SM)

$237.99

$

In Stock, Qty 7

0

27

Snapper 1728974

LENS, Headlight
(Superseded to 1728974SM)

$237.99

$

In Stock, Qty 7

0

28

Snapper 2834683SM

CLIP, Speed Wire
(Superseded to 2172434SM)

$4.99

$

In Stock, only 1 left!

0

29

Snapper 1960294SM

NUT, Hex, Flange, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, only 1 left!

0

30

Snapper 1713535SM

COVER, Terminal

$5.99

$

Usually ships in 2-12 days

0

31

Snapper 1728097SM

HARNESS, Wiring

$

$

Not available

32

Snapper 1721830SM

CABLE, Solenoid to Starter

$19.99

$

In Stock, only 1 left!

0

33

Snapper 1728963SM

SOLENOID
(Superseded to 1755381YP)

$24.99

$

Usually ships in 2-12 days

0

34

Snapper 1925003SM

SCREW, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

35

Snapper 2820426SM

LOCKWASHER, External Tooth, 5/16

$4.49

$

In Stock, only 1 left!

0

36

Snapper 2820263SM

NUT, Hex, 5/16-24 NF
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

36

Snapper 1685215SM

BATTERY

$

$

Not available

37

Snapper 1716549SM

CABLE, #6 x 10 Long, with 2 Ring Terminals, Battery to Solenoid
(Superseded to 1752685YP)

$11.99

$

Usually ships in 2-12 days

0

38

Snapper 1931277SM

NUT, Hex, Flange Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

39

Snapper 1728026ASM

SUPPORT, RMO Switch

$13.99

$

Usually ships in 2-12 days

0

40

Snapper 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

41

Snapper 1677296SM

BOOT, Insulator

$6.49

$

In Stock, only 2 left!

0

42

Snapper 1685215SM

BATTERY

$

$

Not available

43

Snapper 1732004SM

SWITCH, Push Button (NO), Reverse Pedal

$8.99

$

In Stock, Qty 6

0

44

Snapper 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0

45

Snapper 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

46

Snapper 2821319SM

WASHER, 1/4 I.D.
(Superseded to 703332)

$4.49

$

In Stock, Qty 11

0

47

Snapper 1713163SM

CABLE, Battery to Ground

$24.99

$

Usually ships in 2-12 days

0

48

Snapper 2823341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

49

Snapper 1731957SM

FUSE, Wiring Harness

$8.49

$

Usually ships in 2-12 days

0

50

Snapper 1726556SM

SWITCH, RMO Module Only
(Superseded to 1761897YP)

$30.99

$

Usually ships in 2-12 days

0

51

Snapper 1726557SM

KEY, RMO Module, Plastic

$5.49

$

In Stock, Qty 20+

0

52

Snapper 1722887SM

SWITCH, PTO, Push/Pull

$33.99

$

In Stock, Qty 20+

0
