LT 2044 (2690714) - Snapper 44" Lawn Tractor, 20hp Engine Group Parts Diagram

44" Lawn Tractor, 20hp

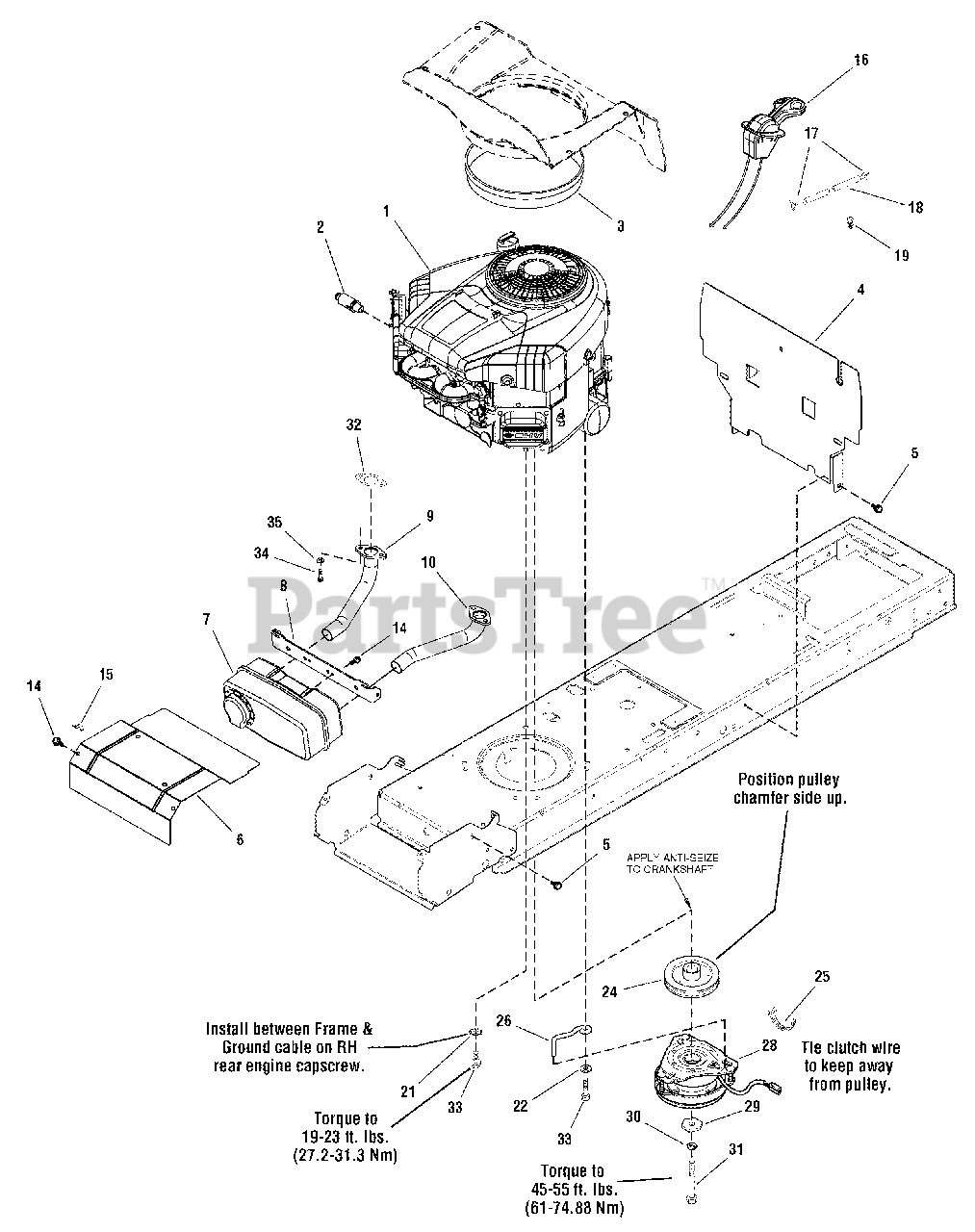

Engine Group Parts Diagram

  • Title

1

ENGINE, 20HP Briggs & Stratton Twin Intek - Model # 40G777 Type # 0400-E1

$

$

Not available

2

Snapper 1717473SM

VALVE, Shut Off Oil Drain
(Superseded to 1750159YP)

$16.99

$

In Stock, only 2 left!

0

3

Snapper 1731970SM

SEAL, Short

$11.99

$

Usually ships in 2-12 days

0

4

Snapper 1728058ASM

SHIELD, Heat
(Superseded to 1728058BMYP)

$19.99

$

Usually ships in 2-12 days

0

5

Snapper 1930601SM

SCREW, Hex Washer Head Taptite 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 16

0

6

Snapper 1727997ASM

SHIELD, Heat

$35.99

$

Usually ships in 2-12 days

0

7

Snapper 1727994SM

MUFFLER

$101.99

$

Usually ships in 2-12 days

0

8

Snapper 1727976ASM

BRACKET, Muffler Mount
(Superseded to 1727976BMYP)

$15.99

$

Usually ships in 2-12 days

0

9

Snapper 1727979SM

PIPE, Exhaust R.H.

$39.99

$

In Stock, only 1 left!

0

10

Snapper 1727980SM

PIPE, Exhaust L.H.

$39.99

$

In Stock, only 2 left!

0

14

Snapper 1925003SM

SCREW, Hex Washer Head Taptite 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 19

0

15

Snapper 2834683SM

CLIP, Speed Wire
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

16

Snapper 1731411SM

CONTROL, Throttle Double
(Superseded to 1734505SM)

$103.99

$

In Stock, only 4 left!

0

17

Snapper 2860112SM

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

18

Snapper 1732001SM

HOSE, Fuel
(Superseded to 845503)

$37.99

$

Usually ships in 2-12 days

0

19

Snapper 1730268SM

CLIP, Hose

$3.99

$

Usually ships in 2-12 days

0

21

Snapper 2820427SM

LOCKWASHER, External Tooth 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

22

Snapper 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

24

Snapper 1732576SM

PULLEY & HUB ASSEMBLY, Engine

$44.99

$

In Stock, only 2 left!

0

25

Snapper 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

26

Snapper 1732875SM

RETAINER, Clutch
(Superseded to 1737421AYP)

$12.99

$

In Stock, Qty 6

0

28

Snapper 1731275SM

CLUTCH, Electric OGURA
(Superseded to 1687296SM)

$356.99

$

In Stock, only 1 left!

0

29

Snapper 1708264SM

WASHER, Hex

$8.99

$

In Stock, only 2 left!

0

30

Snapper 1918199SM

LOCKWASHER, Spring
(Superseded to 704007)

$4.49

$

In Stock, Qty 7

0

31

Snapper 1960649SM

CAPSCREW, Hex Head 7/16-20 x 3-1/2 G5

$7.99

$

Usually ships in 2-12 days

0

32

Snapper 1731214SM

GASKET, Exhaust
(Superseded to 690970)

$4.99

$

In Stock, Qty 20+

0

33

Snapper 2828635SM

SCREW, Hex Washer Head Taptite 3/8-16 x 1-1/4

$4.99

$

In Stock, Qty 20+

0

34

Snapper 1936228SM

CAPSCREW, Hex Socket Head 5/16-18 x 3/4 G8

$4.49

$

In Stock, only 2 left!

0

35

Snapper 1917356SM

LOCKWASHER, Spring 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0
