LT 2044 (2690714) - Snapper 44" Lawn Tractor, 20hp Seat Deck & Fuel Tank Group Parts Diagram

44" Lawn Tractor, 20hp

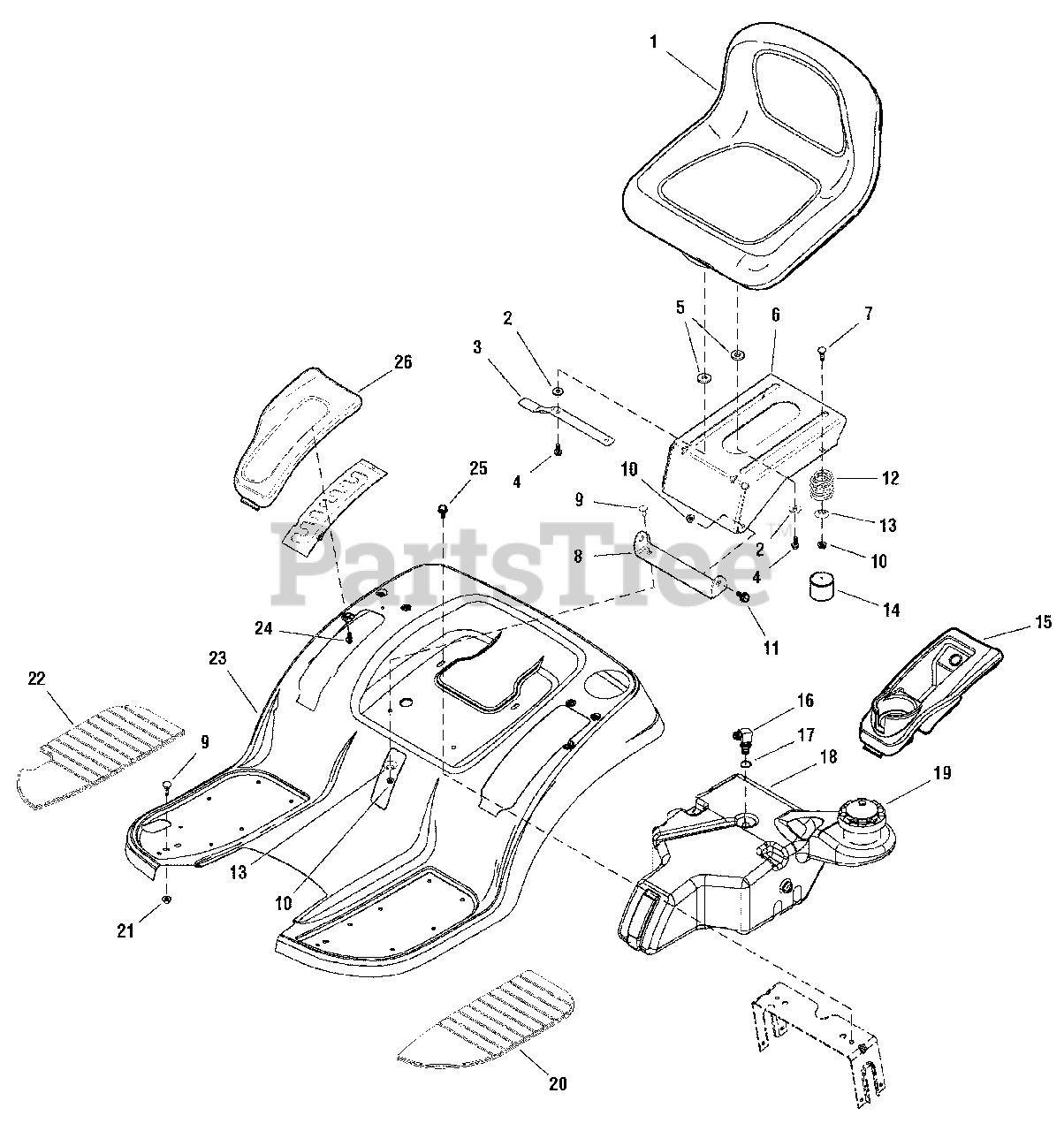

Seat Deck & Fuel Tank Group Parts Diagram

  • Title

1

Snapper 1730159SM

SEAT, Hi Back, Steel Pan

$463.99

$

Usually ships in 2-12 days

0

2

Snapper 1919381SM

WASHER, Plain, 5/16
(Superseded to 703298)

$4.49

$

In Stock, Qty 9

0

3

Snapper 1727268SM

LATCH, Seat 20GA E-Coat

$8.99

$

Usually ships in 2-12 days

0

4

Snapper 770697

CAPSCREW, Hex Head Flange Dog Point, 5/16-18 x 1

$

$

Not available

5

Snapper 1731300SM

SPACER, 0.32 ID x 1-1/2 OD x 3/10 THK Powdered Metal Yellow

$5.49

$

Usually ships in 2-12 days

0

6

Snapper 1727265ASM

SUPPORT, Seat 12GA
(Superseded to 1755767BMYP)

$152.99

$

Usually ships in 2-12 days

0

7

Snapper 1960282SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

8

Snapper 1727266ASM

PIVOT, Seat 10GA

$10.99

$

In Stock, only 1 left!

0

9

Snapper 1931333SM

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

10

Snapper 1960686SM

NUT, Hex Flange, 5/16-18 ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 9

0

11

Snapper 1729576SM

BOLT, Shoulder, 5/16-18 x 15/32
(Superseded to 703851)

$5.49

$

In Stock, only 1 left!

0

12

Snapper 1704728SM

SPRING, Compression

$9.99

$

In Stock, only 2 left!

0

13

Snapper 1709256SM

WASHER, Spring, 5/16 x 1 1/4

$5.99

$

Usually ships in 2-12 days

0

14

Snapper 1704724SM

COVER, Spring

$7.99

$

In Stock, only 1 left!

0

15

Snapper 1729001SM

POD, LH Cup Holder

$38.99

$

Usually ships in 2-12 days

0

16

Snapper 1674231SM

ELBOW FITTING

$5.49

$

Usually ships in 2-12 days

0

17

Snapper 1654930SM

BUSHING

$7.99

$

In Stock, Qty 20+

0

18

Snapper 1727305SM

TANK, Fuel
(Superseded to 1738932YP)

$295.99

$

In Stock, only 1 left!

0

19

Snapper 1715917SM

CAP, Gas
(Superseded to 5101651SM)

$30.99

$

In Stock, Qty 5

0

20

Snapper 1728006SM

PAD, Footrest LH

$21.99

$

In Stock, only 4 left!

0

21

Snapper 1931277SM

NUT, Hex, Flange Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

22

Snapper 1728007SM

PAD, Footrest RH

$20.99

$

In Stock, only 1 left!

0

23

Snapper 1727264DSM

DECK, Seat w/Footrests (Red)

$542.99

$

Usually ships in 2-12 days

0

24

Snapper 1960536SM

SCREW, Hex, Washer Head, Plastite, 1/4-20 x 1/2

$4.99

$

Usually ships in 2-12 days

0

25

Snapper 1930601SM

SCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

26

Snapper 1729000SM

POD, RH Lift Quadrant

$30.99

$

Usually ships in 2-12 days

0
