LT 2044 (2690714) - Snapper 44" Lawn Tractor, 20hp Wheels & Tires Group Parts Diagram

44" Lawn Tractor, 20hp

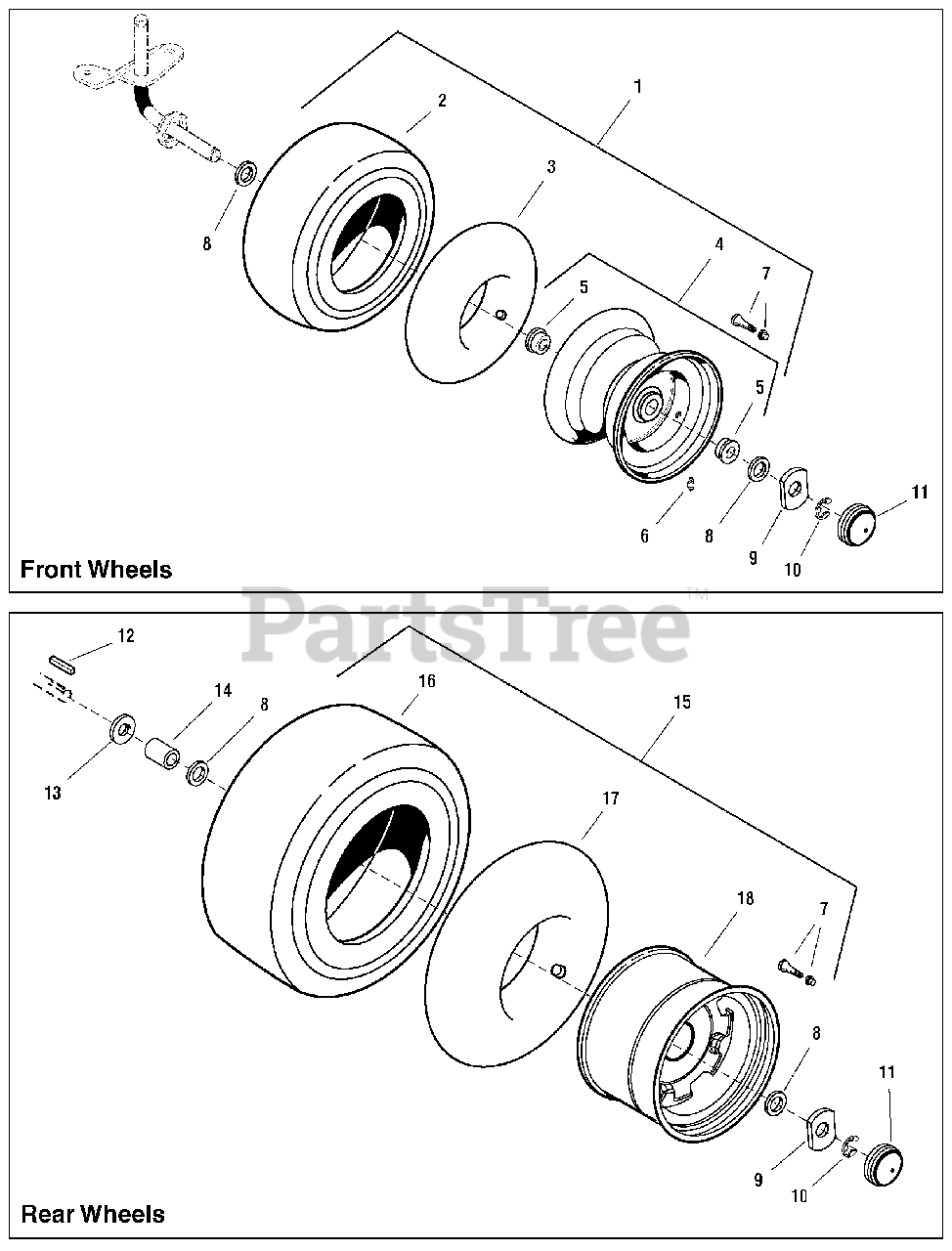

Wheels & Tires Group Parts Diagram

  • Title

1

Snapper 1729708SM

WHEEL & TIRE ASSEMBLY, Front

$168.99

$

In Stock, Qty 5

0

2

Snapper 1731951SM

TIRE, Turf 15 X 6.00 - 6 Saver TL

$131.99

$

In Stock, only 1 left!

0

3

Snapper 1664090SM

TUBE, Tire, Front

$26.99

$

Usually ships in 2-12 days

0

4

Snapper 1726301SM

WHEEL & BUSHINGS ASSEMBLY, Front

$82.99

$

In Stock, only 1 left!

0

5

Snapper 1713167SM

BEARING
(Superseded to 1752171YP)

$11.99

$

In Stock, Qty 20+

0

6

Snapper 2812808SM

FITTING, Grease, 1/4-28 Thread

$4.49

$

In Stock, only 2 left!

0

7

Snapper 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

8

Snapper 2860183SM

WASHER, 3/4

$4.99

$

In Stock, Qty 9

0

9

Snapper 1722717SM

WASHER, Special Yellow

$7.99

$

In Stock, only 2 left!

0

10

Snapper 2827794SM

RING, Retaining

$3.49

$

In Stock, Qty 17

0

11

Snapper 1722676SM

CAP, Hub

$5.49

$

In Stock, Qty 11

0

12

Snapper 1713409SM

KEY, 3/16 x 3/16 x 3

$4.99

$

Usually ships in 2-12 days

0

13

Snapper 2860202SM

WASHER

$4.49

$

In Stock, Qty 10

0

14

Snapper 1730181SM

SPACER, 0.77 ID x 1-1/4 OD x 1.65 LG Powdered Metal Black

$9.49

$

In Stock, only 2 left!

0

15

Snapper 1732324SM

WHEEL & TIRE ASSEMBLY, Rear 22"

$311.99

$

Usually ships in 2-12 days

0

16

Snapper 1732394SM

TIRE, Turf 22 X 10.00 - 8 Saver TL

$256.99

$

Usually ships in 2-12 days

0

17

Snapper 2173477SM

TUBE, Tire, Rear, 22 X 10 - 8

$85.99

$

Usually ships in 2-12 days

0

18

Snapper 1731954SM

WHEEL, Hub
(Superseded to 7101558YP)

$104.99

$

Usually ships in 2-12 days

0
