LT-2046 (13CU609H063) - Troy-Bilt 46" Lawn Tractor (2002) Deck 46-Inch Parts Diagram

46" Lawn Tractor

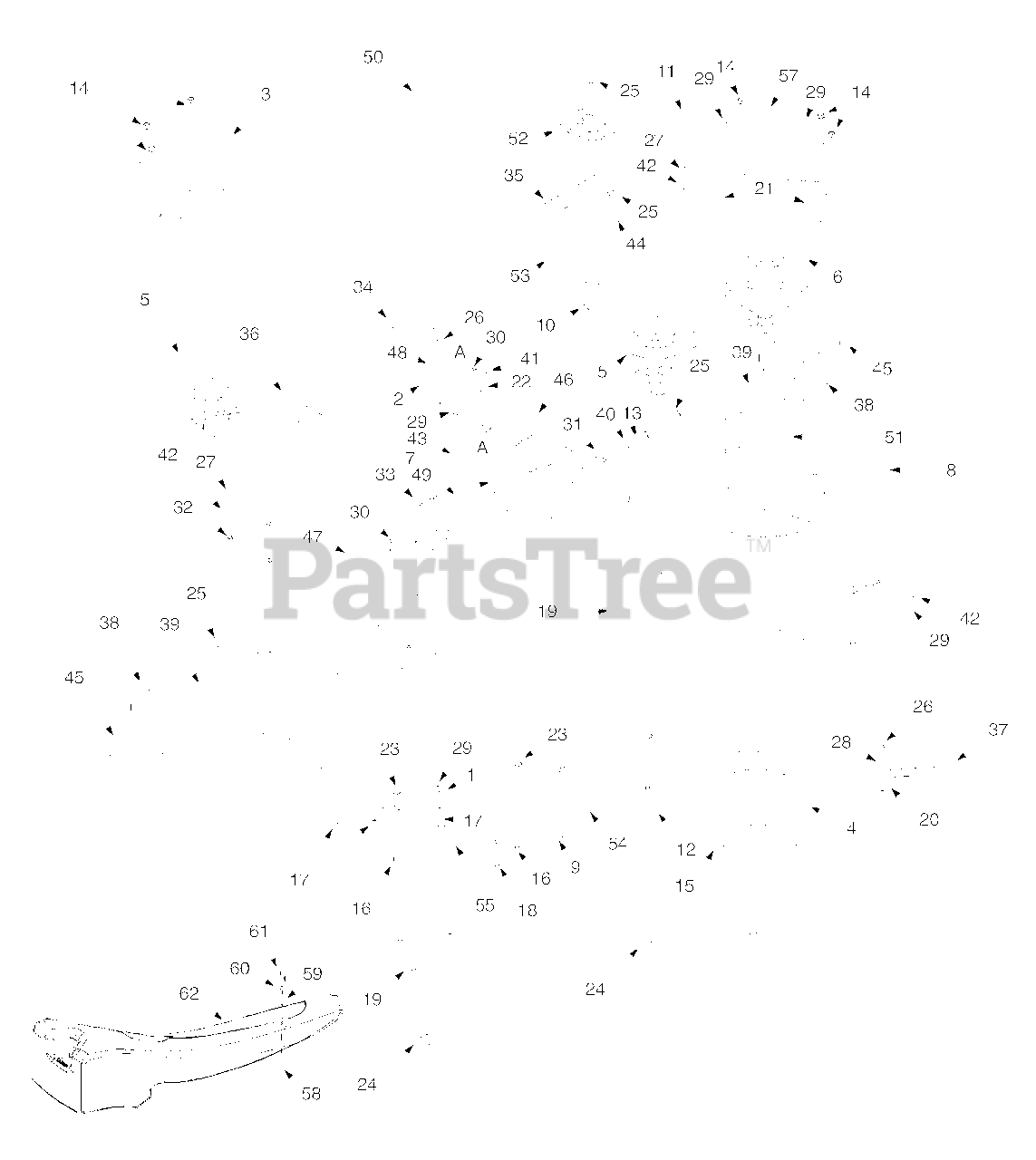

Deck 46-Inch Parts Diagram

  • Title

1

Troy-Bilt 16606

Retainer hook: bracket
(Superseded to 96606)

$6.99

$

In Stock, Qty 12

0

2

Troy-Bilt 17116

Deck Brake Assembly
(Superseded to 97116)

$48.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 17258C

Belt Cover RH
(Superseded to 17258E)

Variations

Troy-Bilt 17258C-0483

Deck Belt Cover, 46" Black - CHARCOAL GRAY (0483)

$50.99

$

In Stock, only 4 left!

0

Troy-Bilt 17258C-0637

Deck Belt Cover, 46" Black - POWDER BLACK (0637)

$50.99

$

In Stock, only 4 left!

0

Troy-Bilt 17258C-0638

Deck Belt Cover, 46" Black - MTD/TROY-BILT RED (0638)

$50.99

$

In Stock, only 4 left!

0

Troy-Bilt 17258C-0648

Deck Belt Cover, 46" Black - TECH GRAY (0648)

$50.99

$

In Stock, only 4 left!

0

Troy-Bilt 17258C-0665

COVER:BELT:DECK 46 - YARDMAN GREEN (0665)

$50.99

$

In Stock, only 4 left!

0

Troy-Bilt 17258C-0691

COVER:BELT:DECK 46 - BLACK JACK (0691)

$46.99

$

Usually ships in 3-6 days

0

$44.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 17982

Spindle Plate
(Superseded to 17982-0637)

Variations

Troy-Bilt 17982-0637

Spindle Plate, Black - POWDER BLACK (0637)

$35.99

$

In Stock, only 2 left!

0

$35.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 618-0240A

Spindle Assembly
(Superseded to 918-0240C)

$136.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 618-0594

Spindle Assembly: Double Pulley
(Superseded to 918-0596D)

$189.99

$

In Stock, only 3 left!

0

7

Troy-Bilt 683-0254

Deck Hanger Bracket LH
(Superseded to 683-0254B)

Variations

Troy-Bilt 683-0254-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$46.99

$

In Stock, Qty 5

0

Troy-Bilt 683-0254-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$46.99

$

In Stock, Qty 5

0

Troy-Bilt 683-0254-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$46.99

$

In Stock, only 1 left!

0

Troy-Bilt 683-0254-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$46.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 683-0265C

Deck Assembly

Variations

Troy-Bilt 683-0265C-0637

46" DECK ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 683-0265C-0498

46" DECK ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 683-0265C-0606

46" DECK ASSEMBLY - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 683-0265C-0638

46" DECK ASSEMBLY - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 683-0265C-0650

DECK ASM-46" LT - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 683-0265C-0665

46" DECK ASSEMBLY (YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 683-0265C-0667

46" DECK ASSEMBLY - MIDNIGHT BLUE (0667)

$

$

Not available

Troy-Bilt 683-0265C-0691

46" DECK ASSEMBLY (BLACK JACK) - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 683-0265C-0708

46" DECK ASSEMBLY (MELLON YELLOW) - MELLON YELLOW (0708)

$

$

Not available

Troy-Bilt 683-0265C-0709

46" DECK ASSEMBLY - MASTERCRAFT GREEN (0709)

$

$

Not available

Troy-Bilt 683-0265C-0716

46" DECK ASSEMBLY (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

8

Troy-Bilt 742-0611

Blade 16.28 Star
(Superseded to 942-0611A)

Note: Not shown

$29.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 742-0612

Blade 14.88 Star
(Superseded to 942-0612A)

Note: Not shown

$29.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-0167

Carriage Screw 1/4-20 x 0.5
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-0344

Hex Screw, Special 3/8-16 x 1.5

$5.49

$

In Stock, only 1 left!

0

11

Troy-Bilt 710-0501

Hex Screw 1/4-20 x 2.0

$6.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 710-0514

Hex Bolt 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 710-0528

Hex Bolt 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 710-0599

TT Screw 1/4-20 x 0.5

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 710-0650

TT Screw 5/16-18 x 0.875

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 710-0703

Carriage Screw 1/4-20 x 0.75

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 710-0751

Hex Bolt 1/4-20 x 0.620

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 710-0805

Hex Screw 5/16-18 x 1.5
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 12

0

19

Troy-Bilt 710-1260A

LD Screw 5/16-18 x 0.75

$3.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 710-3180

Hex Screw 5/16-18 x 1.75

$4.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 711-0993

Belt Guard Pin
(Superseded to 911-0993)

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 711-1554

Pin

$9.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 712-0271

Sems Nut

$4.49

$

In Stock, Qty 19

0

24

Troy-Bilt 712-0417A

Hex Flange Nut

$6.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 712-0431

Lock Nut
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 712-3004A

Lock Nut

$3.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 712-3006

Hex Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 712-3027

Lock Nut 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 714-0470

Cotter Pin

$3.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 717-1553A

Gear: Deck Adjustment
(Superseded to 917-04074)

$12.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 726-0233

Push Nut

$3.99

$

In Stock, Qty 9

0

33

Troy-Bilt 732-0306

Compression Spring
(Superseded to 932-0306A)

$7.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 732-0429A

Extension Spring
(Superseded to 932-0429A)

$8.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 732-594A

Extension Spring

$

$

Currently unavailable

36

Troy-Bilt 732-0934

Extension Spring

$10.99

$

In Stock, only 2 left!

0

37

Troy-Bilt 732-1165

Extension Spring
(Superseded to 732-04197)

$6.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 734-0973

Deck Wheel

$12.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 736-0105

Bell Washer .375 x .870 x .063

$3.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 736-0119

Lock Washer
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

41

Troy-Bilt 736-0140

Flat Washer

$6.99

$

In Stock, Qty 8

0

42

Troy-Bilt 736-0270

Bell Washer

$3.99

$

In Stock, Qty 10

0

43

Troy-Bilt 736-0418A

Flat Washer

$9.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 738-0347

Shoulder Spacer
(Superseded to 938-0347)

$9.49

$

In Stock, Qty 12

0

45

Troy-Bilt 738-0373

Shoulder Screw
(Superseded to 938-0373)

$8.49

$

In Stock, Qty 20+

0

46

Troy-Bilt 746-1107

Cable: Bracket

$14.99

$

In Stock, Qty 5

0

47

Troy-Bilt 747-1116

Rod: Deck Release Handle

$11.99

$

In Stock, Qty 20+

0

48

Troy-Bilt 748-0234

Spacer

$4.49

$

In Stock, Qty 10

0

49

Troy-Bilt 750-1320

Spacer

$

$

Not available

50

Troy-Bilt 754-0349

V Belt
(Superseded to 954-0349)

$40.99

$

In Stock, Qty 20+

0

51

Troy-Bilt 754-0486A

V Belt
(Superseded to 954-0486A)

$58.99

$

In Stock, Qty 12

0

52

Troy-Bilt 756-0627B

Idler Pulley
(Superseded to 756-0627D)

$28.99

$

In Stock, Qty 20+

0

53

Troy-Bilt 783-0139A

Idler Bracket
(Superseded to 783-0139B-0637)

Variations

Troy-Bilt 783-0139A-0637

Idler Bracket, Black - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 783-0141

Deck Skirt: Center

Variations

Troy-Bilt 783-0141-0637

Center Deck Skirt, Powder Black - POWDER BLACK (0637)

$60.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-0141-4008

Center Skirt for Deck, Red - WINE RED (4008)

$56.99

$

In Stock, only 1 left!

0

$56.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 783-0142

Deck Skirt RH
(Superseded to 783-0142-0637)

Variations

Troy-Bilt 783-0142-0637

Deck Skirt, RH Powder Black - POWDER BLACK (0637)

$45.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-0142-4008

Deck Skirt, RH Powder Black - WINE RED (4008)

$45.99

$

In Stock, only 1 left!

0

$45.99

$

In Stock, only 1 left!

0

57

Troy-Bilt 783-1348

Belt Cover LH
(Superseded to 783-1348D)

Variations

Troy-Bilt 783-1348-0483

Belt Cover, LH 46" Gray - CHARCOAL GRAY (0483)

$46.99

$

In Stock, Qty 7

0

Troy-Bilt 783-1348-0637

Belt Cover, LH 46" - POWDER BLACK (0637)

$46.99

$

In Stock, Qty 7

0

Troy-Bilt 783-1348-0665

Belt Cover, LH 46" - YARDMAN GREEN (0665)

$46.99

$

In Stock, Qty 7

0

Troy-Bilt 783-1348-0691

Belt Cover, LH 46" - BLACK JACK (0691)

$46.99

$

In Stock, Qty 7

0

Troy-Bilt 783-1348-0638

Belt Cover, LH 46" - MTD/TROY-BILT RED (0638)

$46.99

$

In Stock, Qty 7

0

$43.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 710-0578

Machine Screw

$4.49

$

Usually ships in 3-6 days

0

59

Troy-Bilt 736-0173

Flat Washer

$3.99

$

In Stock, Qty 10

0

60

Troy-Bilt 712-3006

Hex Nut

$4.49

$

In Stock, Qty 20+

0

61

Troy-Bilt 712-3087

Wing Nut

$3.99

$

In Stock, Qty 20+

0

62

Troy-Bilt 731-1636

Mulch Plug

$139.99

$

In Stock, only 1 left!

0

Troy-Bilt 742-0611

Blade 16.28 Star
(Superseded to 942-0611A)

Note: Not shown

$29.99

$

In Stock, Qty 20+

0

Troy-Bilt 742-0612

Blade 14.88 Star
(Superseded to 942-0612A)

Note: Not shown

$29.99

$

In Stock, Qty 20+

0
