LT 2113 CM (960610224-02) - Jonsered Lawn Tractor (2008-09) STEERING Parts Diagram

Lawn Tractor

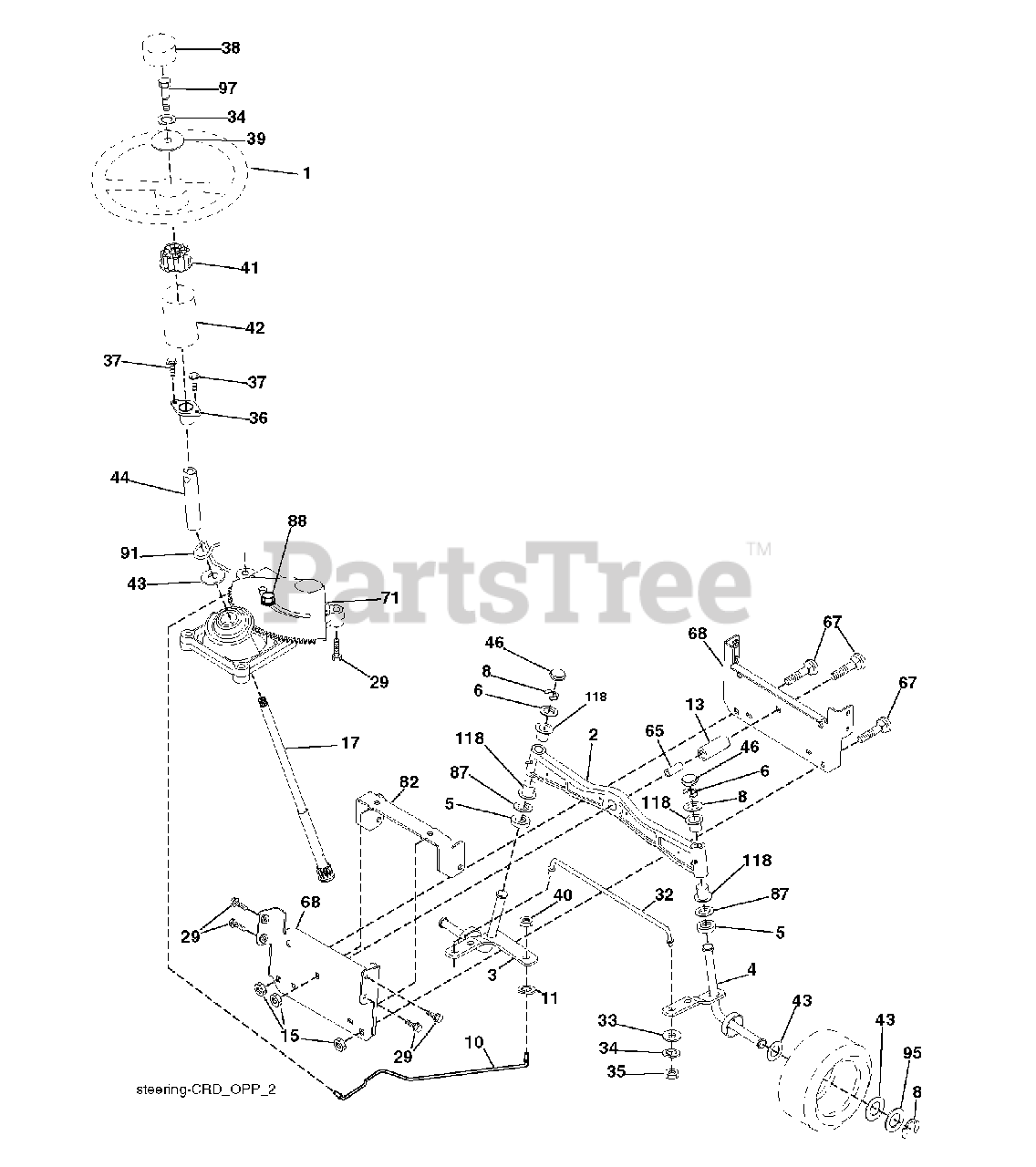

STEERING Parts Diagram

  • Title

1

Jonsered 532186780

No Description Available
(Superseded to 583161701)

$47.99

$

Usually ships in 3-10 days

0

2

Jonsered 532193542

AXLE.ASM.LT.CAST.LGHTWGHT

$169.99

$

Usually ships in 3-10 days

0

3

Jonsered 532169840

SPINDLE.ASM.LH.15"TIRES
(Superseded to 596873901)

$18.99

$

In Stock, Qty 5

0

4

Jonsered 532169839

SPINDLE.ASM.RH.15"TIRES
(Superseded to 596873801)

$17.99

$

In Stock, Qty 12

0

5

Jonsered 532124931

No Description Available
(Superseded to 532006266)

$7.99

$

In Stock, Qty 20+

0

6

Jonsered 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

8

Jonsered 812000029

RING CLIP

$3.99

$

In Stock, Qty 20+

0

10

Jonsered 532175121

DRAGLINK.15".TIRES.2001

$67.99

$

In Stock, Qty 20+

0

11

Jonsered 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$3.49

$

Usually ships in 3-10 days

0

13

Jonsered 532136518

TUBE, PIVOT AXLE

$9.99

$

In Stock, only 4 left!

0

15

Jonsered 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Jonsered 532190753

SHAFT STEERING SPLINE

$

$

Not available

29

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 10

0

32

Jonsered 532170162

ROD.ASM.TIE.BALL.JOINT.NOVAN

$93.99

$

In Stock, Qty 5

0

33

Jonsered 819111216

WASHER M
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

34

Jonsered 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

35

Jonsered 873540500

NUT, CROWNLOCK

$7.49

$

In Stock, Qty 5

0

36

Jonsered 532155099

BUSHING, STEERING
(Superseded to 532155106)

$9.99

$

In Stock, Qty 20+

0

37

Jonsered 532152927

SCREW

$7.49

$

In Stock, Qty 19

0

38

Jonsered 532192916

No Description Available
(Superseded to 583205301)

$5.99

$

Usually ships in 3-10 days

0

39

Jonsered 819113812

WASHER.11/32

$6.49

$

Usually ships in 3-10 days

0

40

Jonsered 873540600

NUT CROWNLOCK 3/8-24

$3.99

$

In Stock, Qty 20+

0

41

Jonsered 532186737

ADAPTER, WHEEL STNG..
(Superseded to 532437747)

$7.99

$

In Stock, Qty 20+

0

42

Jonsered 532169633

BOOT.STEERING.SHAFT.BLACK

$8.99

$

In Stock, only 1 left!

0

43

Jonsered 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

44

Jonsered 532190752

SHAFT.EXTEN.STRG.SPLINE

$17.99

$

In Stock, only 1 left!

0

46

Jonsered 532121232

CAP.SPINDLE

$3.99

$

In Stock, Qty 20+

0

65

Jonsered 532414736

SPACER.BRACE.AXLE

$6.49

$

In Stock, Qty 11

0

67

Jonsered 872110618

BOLT CARRIAGE

$6.49

$

In Stock, only 1 left!

0

68

Jonsered 532169827

BRACE.AXLE.15"TIRES

$21.99

$

Usually ships in 3-10 days

0

71

Jonsered 532175146

STEERING ASM

$182.99

$

In Stock, only 3 left!

0

82

Jonsered 532199978

BRACKET.SUSP.CHASSIS.FRONT.15

$15.99

$

Usually ships in 3-10 days

0

87

Jonsered 532173966

WASHER, FLAT .781 X 1 1/2"

$7.49

$

In Stock, only 3 left!

0

88

Jonsered 532175118

BOLT, SHOULDER 7/16-20

$6.49

$

Usually ships in 3-10 days

0

91

Jonsered 532175553

CLIP.STEERING

$13.99

$

In Stock, only 2 left!

0

95

Jonsered 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

97

Jonsered 874780564

BOLT

$6.49

$

Usually ships in 3-10 days

0

118

Jonsered 532406013

BUSHING, AXLE CAST

$4.99

$

In Stock, Qty 14

0
