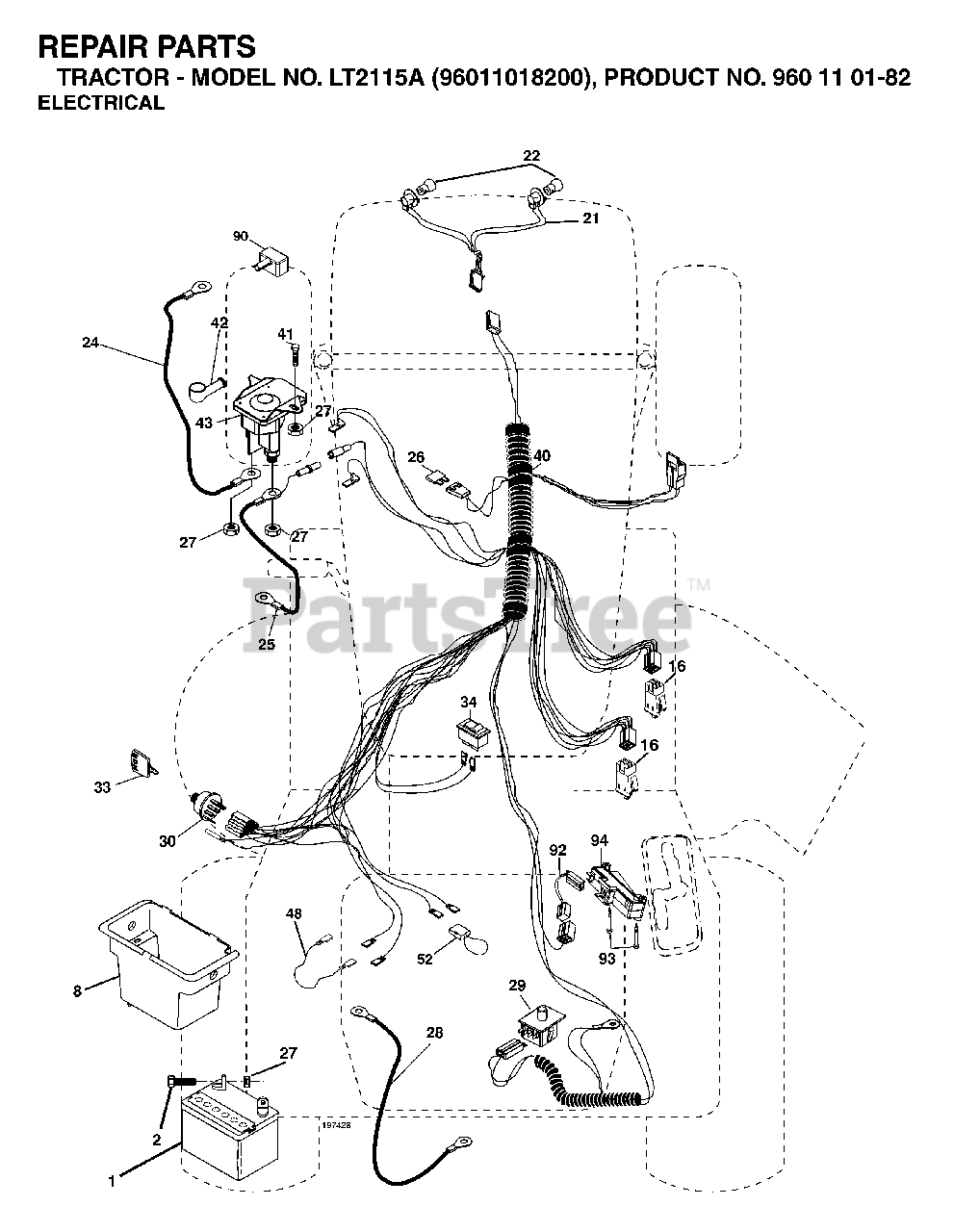

LT 2115 A (960110182-00) - Jonsered Lawn Tractor (2006-03) ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title

1

Jonsered 532144927

BATTERY 12V .35 AMP
(Superseded to 532125603)

$194.99

$

Usually ships in 3-10 days

0

2

Jonsered 874760412

BOLT LT

$7.49

$

In Stock, Qty 5

0

8

Jonsered 532176689

BOX.BATTERY.FENDER

$10.99

$

Usually ships in 3-10 days

0

16

Jonsered 532176138

SWITCH INTERLOOK PUSH-IN

$15.99

$

In Stock, Qty 20+

0

21

Jonsered 532183759

HARNESS ASSY LIGHT

$47.99

$

In Stock, only 2 left!

0

22

Jonsered 532004152

LIGHTBULB

$4.99

$

In Stock, Qty 20+

0

24

Jonsered 532124780

BATTERY CABLE GT
(Superseded to 532004799)

$11.99

$

Usually ships in 3-10 days

0

25

Jonsered 532146147

CABLE BATTERY

$34.99

$

Usually ships in 3-10 days

0

26

Jonsered 532175158

FUSE 20AMP

$7.49

$

In Stock, Qty 12

0

27

Jonsered 873510400

NUT
(Superseded to 873640400)

$

$

Not available

28

Jonsered 532124773

CABLE T
(Superseded to 532420700)

$8.99

$

In Stock, only 1 left!

0

29

Jonsered 532192749

SWITCH.SEAT.DP W/RAMPS

$21.99

$

In Stock, Qty 6

0

30

Jonsered 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$13.99

$

In Stock, Qty 20+

0

33

Jonsered 532140401

KEY MLD GEN DELTA

$6.49

$

In Stock, Qty 20+

0

40

Jonsered 532197428

HARNESS.IGN.CABLE.REG.
(Superseded to 532421251)

$157.99

$

Usually ships in 3-10 days

0

41

Jonsered 871110408

No Description Available
(Superseded to 71110408)

$2.99

$

Usually ships in 3-10 days

0

42

Jonsered 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

43

Jonsered 532192507

SOLENOID.W/BRASS.PLUNG
(Superseded to 582042802)

$13.99

$

In Stock, Qty 20+

0

48

Jonsered 532140844

ADAPTER

$6.49

$

Usually ships in 3-10 days

0

52

Jonsered 532141940

WIRE PROTECTION LOOP

$7.49

$

Usually ships in 3-10 days

0

90

Jonsered 532180449

COVER TERMINAL
(Superseded to 532435395)

$6.49

$

Usually ships in 3-10 days

0

92

Jonsered 532196615

HARNESS.PIGTAIL.CONSLE

$18.99

$

In Stock, only 1 left!

0

93

Jonsered 532192540

SCREW.PLASTITE

$4.99

$

Usually ships in 3-10 days

0

94

Jonsered 532191834

MODULE.REVERSE.ROS

$37.99

$

In Stock, only 2 left!

0
