LT 2115 A (960110182-00) - Jonsered Lawn Tractor (2006-03) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

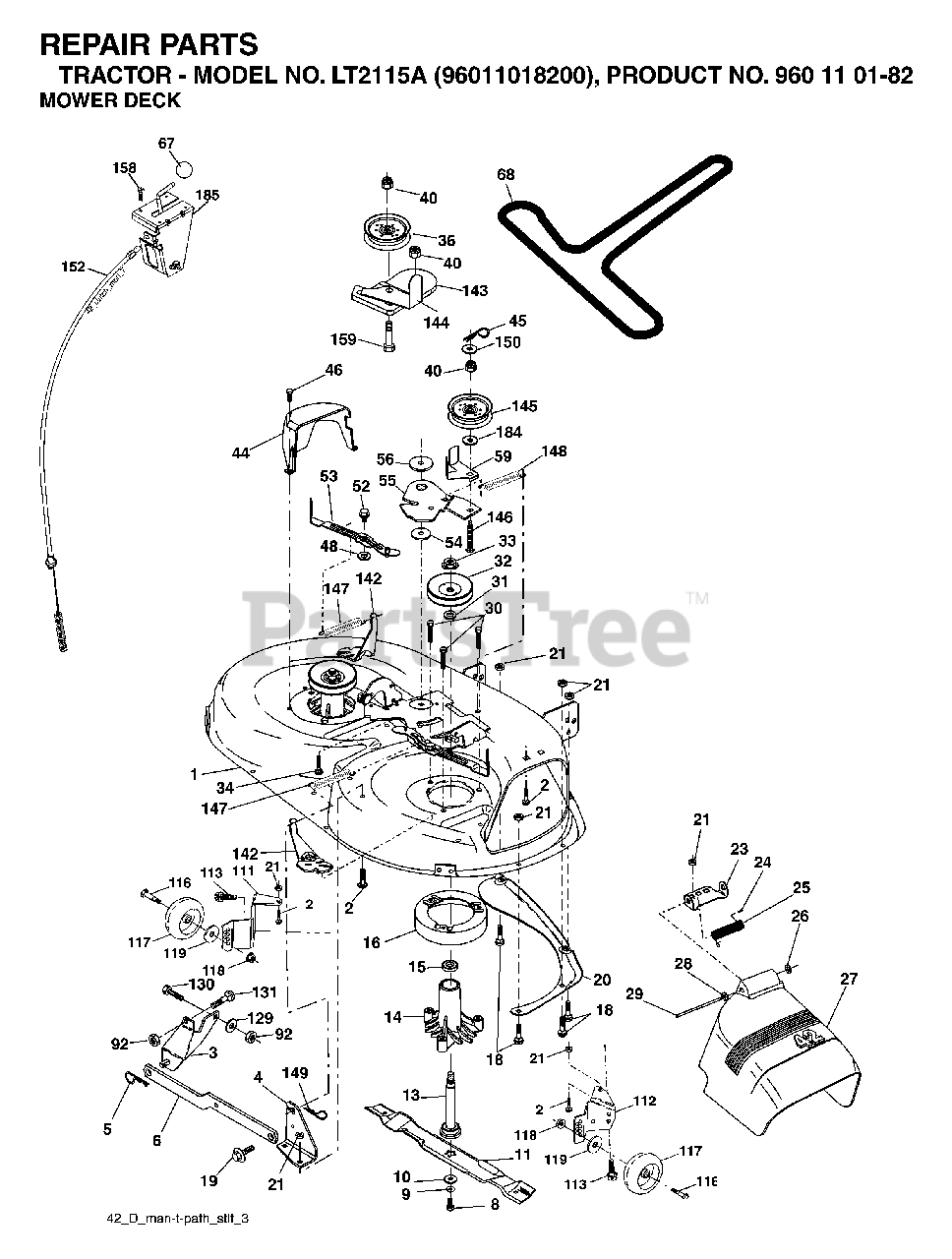

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Jonsered 532165892

42" DECK KIT
(Superseded to 532176027)

$399.99

$

Usually ships in 3-10 days

0

2

Jonsered 872140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Jonsered 532138017

BRKT ASM SWAY BAR

$12.99

$

In Stock, Qty 12

0

4

Jonsered 532165460

BRACKET SWAY BAR 42" DECK

$10.99

$

In Stock, only 2 left!

0

5

Jonsered 532124670

RETAINER-SPRNG RB
(Superseded to 532085902)

$

$

Not available

6

Jonsered 532178024

BAR SWAY DECK

$8.99

$

In Stock, Qty 5

0

8

Jonsered 532850857

BLADE BOLT

$3.99

$

In Stock, Qty 17

0

9

Jonsered 810030600

LOCKWASHER
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

10

Jonsered 532140296

WASHER.BLADE

$6.49

$

In Stock, Qty 6

0

11

Jonsered 532134149

BLADE.42".MULCH

$15.99

$

Usually ships in 3-10 days

0

13

Jonsered 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$26.99

$

In Stock, Qty 20+

0

14

Jonsered 532128774

HSG MANDREL

$31.99

$

In Stock, Qty 20+

0

15

Jonsered 532110485

BEARING

$10.99

$

In Stock, Qty 20+

0

16

Jonsered 532174493

STRIPPER, MWR ROUND

$7.49

$

Usually ships in 3-10 days

0

18

Jonsered 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Jonsered 532132827

BOLT SHD 5/16-18

$6.49

$

Usually ships in 3-10 days

0

20

Jonsered 532159770

BAFFLE.VORTEX

$

$

Not available

21

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

23

Jonsered 532177563

BRKT, DEFL. MOWER

$4.99

$

Usually ships in 3-10 days

0

24

Jonsered 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Jonsered 532123713

SPRING TORSION

$5.99

$

In Stock, Qty 10

0

26

Jonsered 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

27

Jonsered 532171859

SHIELD DEFLECTOR
(Superseded to 532130968)

$34.99

$

In Stock, Qty 20+

0

28

Jonsered 819111016

WASHER
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

29

Jonsered 532131491

ROD.HINGE
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

30

Jonsered 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

31

Jonsered 532187690

WASHER.SPACER.MANDREL

$3.49

$

In Stock, Qty 20+

0

32

Jonsered 532153535

PULLEY/MANDREL
(Superseded to 532173436)

$10.99

$

In Stock, Qty 20+

0

33

Jonsered 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

34

Jonsered 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

36

Jonsered 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 20+

0

40

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

44

Jonsered 532140088

GUARD MANDREL LH BLACK

$26.99

$

In Stock, Qty 13

0

45

Jonsered 532124788

RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

46

Jonsered 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

48

Jonsered 532133944

WASHER

$6.49

$

In Stock, Qty 9

0

52

Jonsered 532139888

BOLT

$6.49

$

In Stock, Qty 9

0

53

Jonsered 532184907

ARM BRAKE ASSY

$14.99

$

Usually ships in 3-10 days

0

54

Jonsered 532178515

WASHER

$6.49

$

In Stock, Qty 20+

0

55

Jonsered 532155046

ARM IDLER 42" MOWER LT/YT

$15.99

$

Usually ships in 3-10 days

0

56

Jonsered 532165723

SPACER.RETAINER.MOWER

$6.49

$

In Stock, Qty 12

0

59

Jonsered 532141043

GUARD, BELT

$

$

Not available

67

Jonsered 532106932

KNOB T (3/8 HOLE)

$6.49

$

In Stock, Qty 9

0

68

Jonsered 532180215

No Description Available

$

$

Not available

92

Jonsered 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

111

Jonsered 532179292

BRACKET, WHEEL
(Superseded to 532181040)

$31.99

$

Usually ships in 3-10 days

0

112

Jonsered 532179293

BRACKET, WHEEL
(Superseded to 532181040)

$31.99

$

Usually ships in 3-10 days

0

113

Jonsered 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 20+

0

116

Jonsered 532124842

No Description Available
(Superseded to 596434402)

$3.99

$

In Stock, Qty 20+

0

117

Jonsered 532188606

WHEEL.GAGE.HALF.SPOKED
(Superseded to 589527401)

$4.99

$

In Stock, Qty 20+

0

118

Jonsered 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Jonsered 819121414

WASHER
(Superseded to 734117201)

$1.99

$

Usually ships in 3-10 days

0

129

Jonsered 819131312

WASHER
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

130

Jonsered 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

131

Jonsered 872140608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

142

Jonsered 532165890

ARM SPRING BRAKE MOWER

$4.99

$

Usually ships in 3-10 days

0

143

Jonsered 532157109

BRACKET, ARM IDLER

$6.49

$

Usually ships in 3-10 days

0

144

Jonsered 532158634

KEEPER.BELT.42".CLUTCH.CABLE
(Superseded to 532173441)

$9.99

$

In Stock, only 3 left!

0

145

Jonsered 532165888

PULLEY
(Superseded to 532173437)

$22.99

$

In Stock, Qty 20+

0

146

Jonsered 532171977

BOLT, CARRIAGE IDLER BLACK
(Superseded to 532173443)

$7.49

$

In Stock, Qty 17

0

147

Jonsered 532179748

SPRING

$3.99

$

In Stock, Qty 20+

0

148

Jonsered 532169022

IDLER RETURN SPRING

$4.99

$

In Stock, Qty 20+

0

149

Jonsered 532165898

SPRING.RETAINER.YELLOW.ZINC

$7.49

$

In Stock, Qty 6

0

150

Jonsered 819091210

WASHER LT
(Superseded to 734115441)

$4.99

$

In Stock, Qty 13

0

152

Jonsered 532181555

42" CLUTCH CABLE

$72.99

$

Usually ships in 3-10 days

0

158

Jonsered 817720408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

159

Jonsered 872140614

BOLT
(Superseded to 596987501)

$3.99

$

In Stock, only 4 left!

0

184

Jonsered 819131410

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

185

Jonsered 532188234

HEAD ASM. CABLE CLUTCH

$53.99

$

Usually ships in 3-10 days

0

--

Jonsered 532130794

MANDREL ASM, LH 5PT STAR

$44.99

$

In Stock, Qty 20+

0

--

Jonsered 532181281

No Description Available

$

$

Not available
