LT 2116 A (954130070) - Jonsered Lawn Tractor (2003-05) ELECTRICAL Parts Diagram

Lawn Tractor

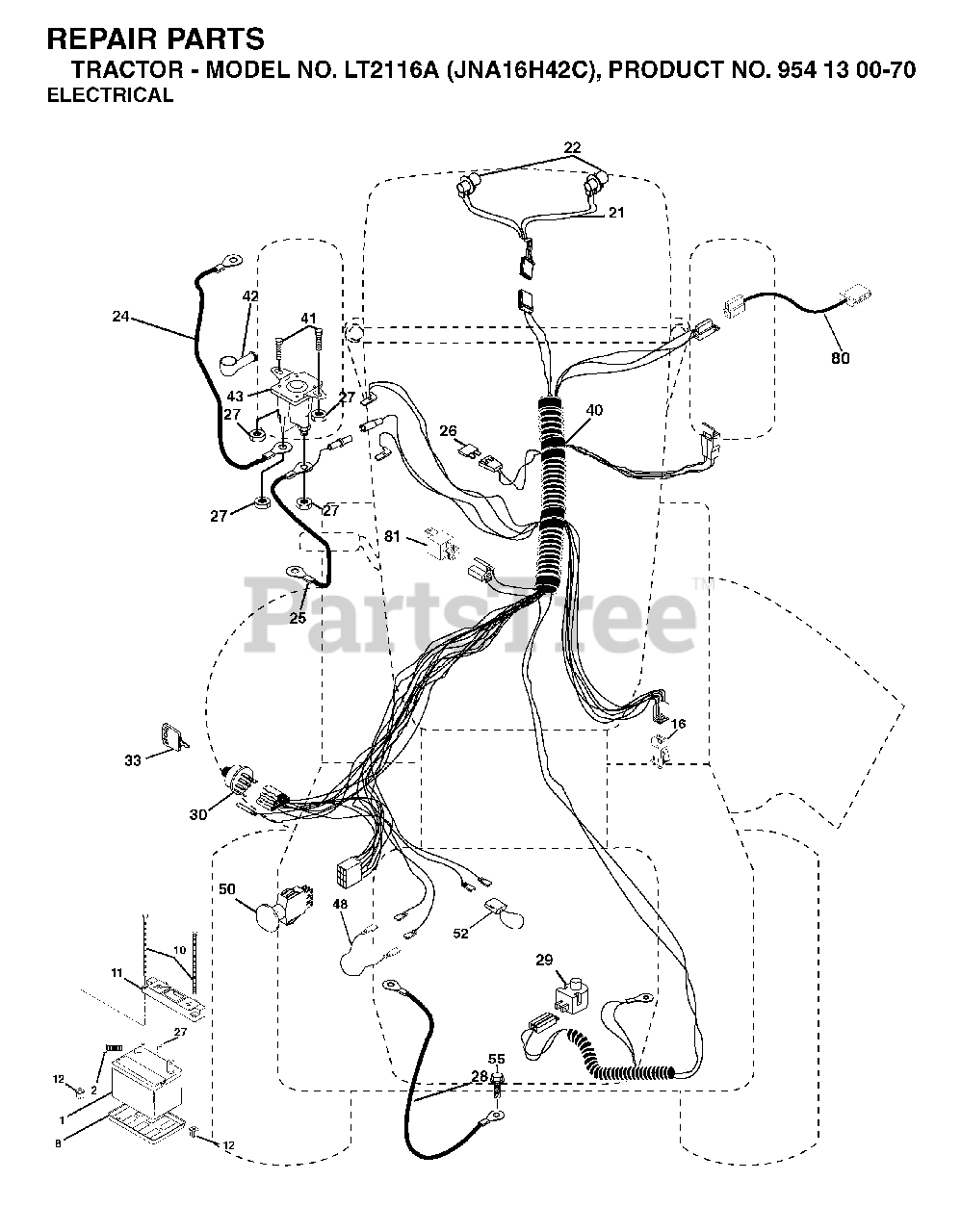

ELECTRICAL Parts Diagram

  • Title

1

Jonsered 532163465

REPL BY 532 12 38-99
(Superseded to 532123899)

$205.99

$

In Stock, Qty 7

0

2

Jonsered 874760412

BOLT LT

$3.99

$

In Stock, Qty 6

0

8

Jonsered 532124886

BATTERY TRAY T
(Superseded to 532007603)

$7.99

$

Usually ships in 3-10 days

0

10

Jonsered 532145211

BOLT 1/4-20 X 7.5
(Superseded to 532150177)

$

$

Not available

11

Jonsered 532150109

BATTERY HOLDDOWN

$

$

Not available

12

Jonsered 532145769

NUT, PUSH NYLON 1/4" BATTERY
(Superseded to 532150177)

$

$

Not available

16

Jonsered 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 20+

0

21

Jonsered 532175685

WIRE HARNESS

$

$

Not available

22

Jonsered 532004152

LIGHTBULB

$5.99

$

In Stock, Qty 20+

0

24

Jonsered 532124780

BATTERY CABLE GT
(Superseded to 532004799)

$17.99

$

In Stock, only 1 left!

0

25

Jonsered 532146148

CABLE BATTERY 6 GA 22" W/16W

$26.99

$

Usually ships in 3-10 days

0

26

Jonsered 532175158

FUSE 20AMP

$5.99

$

In Stock, Qty 5

0

27

Jonsered 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

28

Jonsered 532145491

CABLE GROUND 6 GA 21" 90T BLK

$10.99

$

Usually ships in 3-10 days

0

29

Jonsered 532160784

PLUNGER SWITCH (COLOR:OLIVE)

$21.99

$

In Stock, only 2 left!

0

30

Jonsered 532175566

IGNITION SWITCH

$35.99

$

In Stock, Qty 20+

0

33

Jonsered 532140401

KEY MLD GEN DELTA

$7.49

$

In Stock, Qty 20+

0

40

Jonsered 532179724

HARNESS IGN.

$

$

Not available

41

Jonsered 871110408

No Description Available
(Superseded to 596437001)

$3.99

$

In Stock, only 2 left!

0

42

Jonsered 532131563

TERMINAL COVER
(Superseded to 532154336)

$7.49

$

In Stock, only 4 left!

0

43

Jonsered 532178861

SOLENOID
(Superseded to 532146154)

$27.99

$

In Stock, Qty 20+

0

48

Jonsered 532140844

ADAPTER

$

$

Not available

50

Jonsered 532174651

PTO SWITCH
(Superseded to 582107601)

$31.99

$

In Stock, Qty 20+

0

52

Jonsered 532141940

WIRE PROTECTION LOOP

$

$

Not available

55

Jonsered 817490508

SCREW LT
(Superseded to 539990858)

$

$

Not available

80

Jonsered 532146685

HARNESS, CLUTCH

$17.99

$

In Stock, only 2 left!

0

81

Jonsered 532109748

RELAY.ASSY.T

$23.99

$

Usually ships in 3-10 days

0
