LT 2116 CMA2 (960610088-01) - Jonsered Lawn Tractor (2006-06) ENGINE Parts Diagram

Lawn Tractor

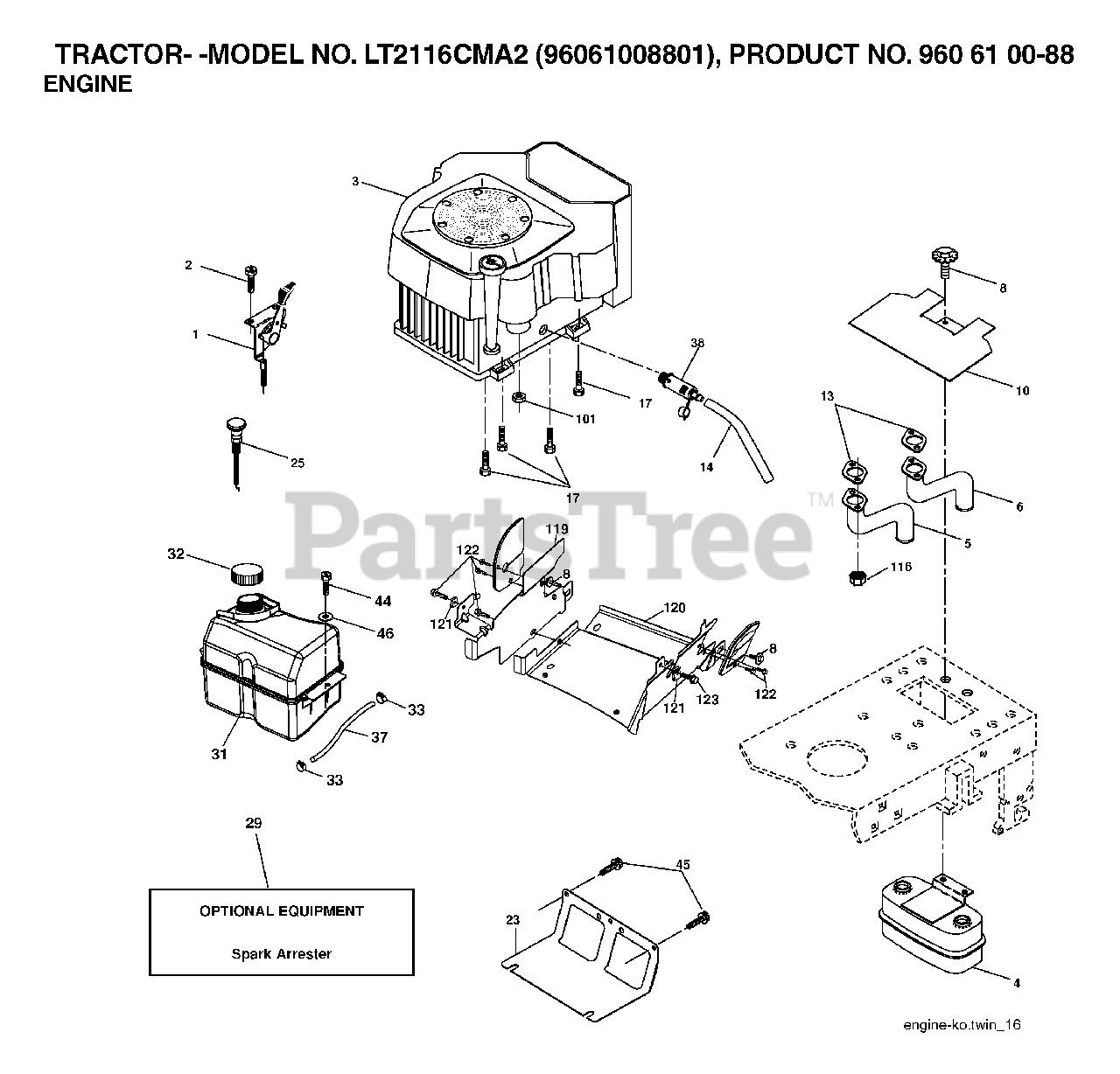

ENGINE Parts Diagram

  • Title

1

Jonsered 532186968

No Description Available

$

$

Not available

2

Jonsered 817720408

SCREW
(Superseded to 596437001)

$3.49

$

In Stock, Qty 9

0

4

Jonsered 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$51.99

$

Usually ships in 3-10 days

0

5

Jonsered 532146699

PIPE-EXHAUST LH
(Superseded to 583954501)

$26.99

$

In Stock, only 2 left!

0

6

Jonsered 532146700

PIPE-EXHAUST RH
(Superseded to 583954801)

$22.99

$

In Stock, only 2 left!

0

8

Jonsered 532171877

BOLT, 5/16-18 X 1 3/4

$5.99

$

In Stock, only 2 left!

0

10

Jonsered 532146629

RP SHIELD HEAT MUFFLER
(Superseded to 531154901)

$13.99

$

In Stock, only 2 left!

0

14

Jonsered 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 10

0

17

Jonsered 817060624

No Description Available

$5.99

$

Usually ships in 3-10 days

0

23

Jonsered 532169837

SHEILD.BROWNING.DBR.GUARD
(Superseded to 531150701)

$26.99

$

In Stock, Qty 7

0

25

Jonsered 532191717

CONTROL, CHOKE, 37", PUSH
(Superseded to 532187766)

$

$

Not available

29

Jonsered 532137180

ARRESTER SPARK (OPTIONAL)

$193.99

$

In Stock, only 1 left!

0

31

Jonsered 532185534

TANK FUEL
(Superseded to 532430825)

$62.99

$

Usually ships in 3-10 days

0

32

Jonsered 532140527

FUEL CAP
(Superseded to 581075501)

$26.99

$

In Stock, Qty 7

0

33

Jonsered 532123487

HOSE CLAMP

$3.99

$

In Stock, only 4 left!

0

37

Jonsered 532137040

LINE.FUEL.20
(Superseded to 587044820)

$13.99

$

In Stock, Qty 10

0

38

Jonsered 532181654

PLUG DRAIN OIL EASY
(Superseded to 532428287)

$20.99

$

In Stock, Qty 7

0

44

Jonsered 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

45

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

46

Jonsered 819091416

WASHER
(Superseded to 596135301)

$3.49

$

In Stock, Qty 6

0

101

Jonsered 532163305

FLANGE NUT
(Superseded to 596433401)

$3.49

$

In Stock, Qty 8

0

116

Jonsered 532184362

NUT.HEX.FLANGE.TOPLOCK

$3.49

$

In Stock, only 3 left!

0

119

Jonsered 532400594

No Description Available

$

$

Not available

120

Jonsered 532400595

No Description Available

$

$

Not available

121

Jonsered 532196688

CLIPS

$3.49

$

In Stock, only 3 left!

0

122

Jonsered 532137729

SCREW.1/4-20X5/8

$2.49

$

In Stock, Qty 20+

0

123

Jonsered 817670508

SCREW, 5/16-18 X 1/2

$9.49

$

In Stock, only 2 left!

0
