LT 2118 CMA (954130217-C) - Jonsered Lawn Tractor (2004-06) ELECTRICAL Parts Diagram

Lawn Tractor

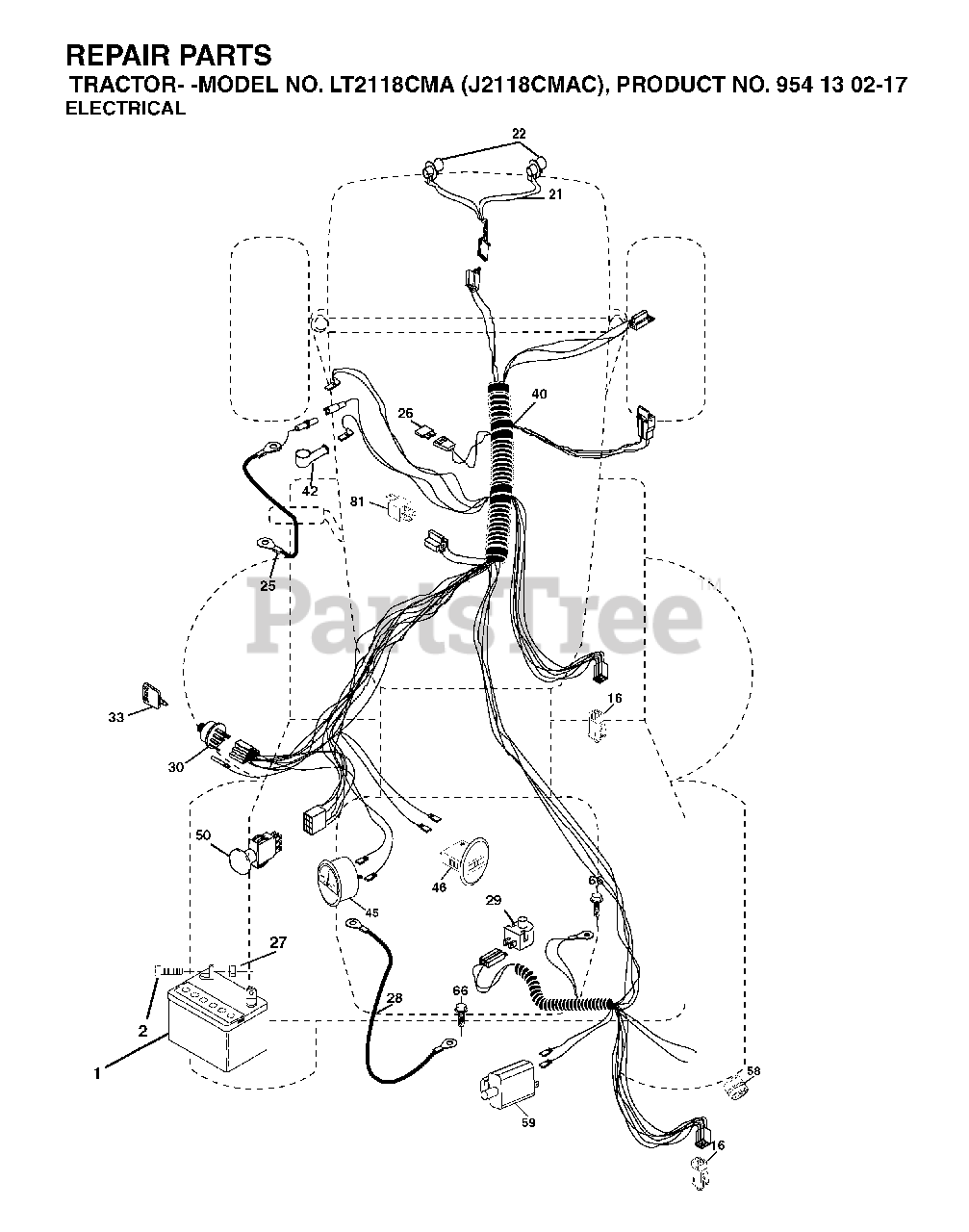

ELECTRICAL Parts Diagram

  • Title

1

Jonsered 532144927

BATTERY 12V .35 AMP
(Superseded to 532123899)

$205.99

$

In Stock, only 2 left!

0

2

Jonsered 874760412

BOLT LT

$3.99

$

In Stock, Qty 5

0

16

Jonsered 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 10

0

21

Jonsered 532175688

HARNESS.W/LIGHT SOCKET

$37.99

$

Usually ships in 3-10 days

0

22

Jonsered 532004152

LIGHTBULB

$4.99

$

In Stock, Qty 20+

0

25

Jonsered 532188544

No Description Available

$

$

Not available

26

Jonsered 532175158

FUSE 20AMP

$5.99

$

In Stock, Qty 16

0

27

Jonsered 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

28

Jonsered 532127725

CABLE GROUND

$

$

Not available

29

Jonsered 532121305

SWITCH SEAT
(Superseded to 532421062)

$17.99

$

In Stock, Qty 13

0

30

Jonsered 532175566

IGNITION SWITCH

$28.99

$

In Stock, Qty 20+

0

33

Jonsered 532140401

KEY MLD GEN DELTA

$6.99

$

In Stock, Qty 20+

0

40

Jonsered 532188039

No Description Available

$

$

Not available

42

Jonsered 532154336

COVER.TERMINAL.RED

$6.99

$

In Stock, Qty 9

0

45

Jonsered 532177500

AMMETER

$

$

Not available

46

Jonsered 532177501

HOURMETER SNAP-IN

$

$

Not available

50

Jonsered 532174651

PTO SWITCH
(Superseded to 582107601)

$31.99

$

In Stock, Qty 20+

0

58

Jonsered 532169419

BUZZER
(Superseded to 532169420)

$74.99

$

Usually ships in 3-10 days

0

59

Jonsered 532180379

No Description Available
(Superseded to 583100701)

$13.99

$

In Stock, only 1 left!

0

66

Jonsered 817490608

SCREW LT
(Superseded to 596564001)

$3.49

$

Usually ships in 3-10 days

0

79

Jonsered 532175242

BULB HOLDER ASM.

$11.99

$

Usually ships in 3-10 days

0

81

Jonsered 532109748

RELAY.ASSY.T

$22.99

$

Usually ships in 3-10 days

0
